HS2JAM2G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> HS2JAM2G

HS2JAM2G: DescriptionRectifier Diode, 1 Phase, 1 Element, 1.5A, 600V V(RRM), Silicon, DO-214AC, SMA, 2 PIN; CategoryDiscrete semiconductor diode; File Size368KB，3 Pages; ManufacturerTaiwan Semiconductor; Websitehttp://www.taiwansemi.com/; Environmental Compliance

Download Datasheet Parametric View All

HS2JAM2G Overview

Rectifier Diode, 1 Phase, 1 Element, 1.5A, 600V V(RRM), Silicon, DO-214AC, SMA, 2 PIN

HS2JAM2G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Taiwan Semiconductor
package instruction	SMA, 2 PIN
Reach Compliance Code	compli
ECCN code	EAR99
application	EFFICIENCY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.7 V
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	1.5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum repetitive peak reverse voltage	600 V
Maximum reverse current	5 µA
Maximum reverse recovery time	0.075 µs
surface mount	YES
Terminal form	C BEND
Terminal location	DUAL

Preview

Download Datasheet

View All

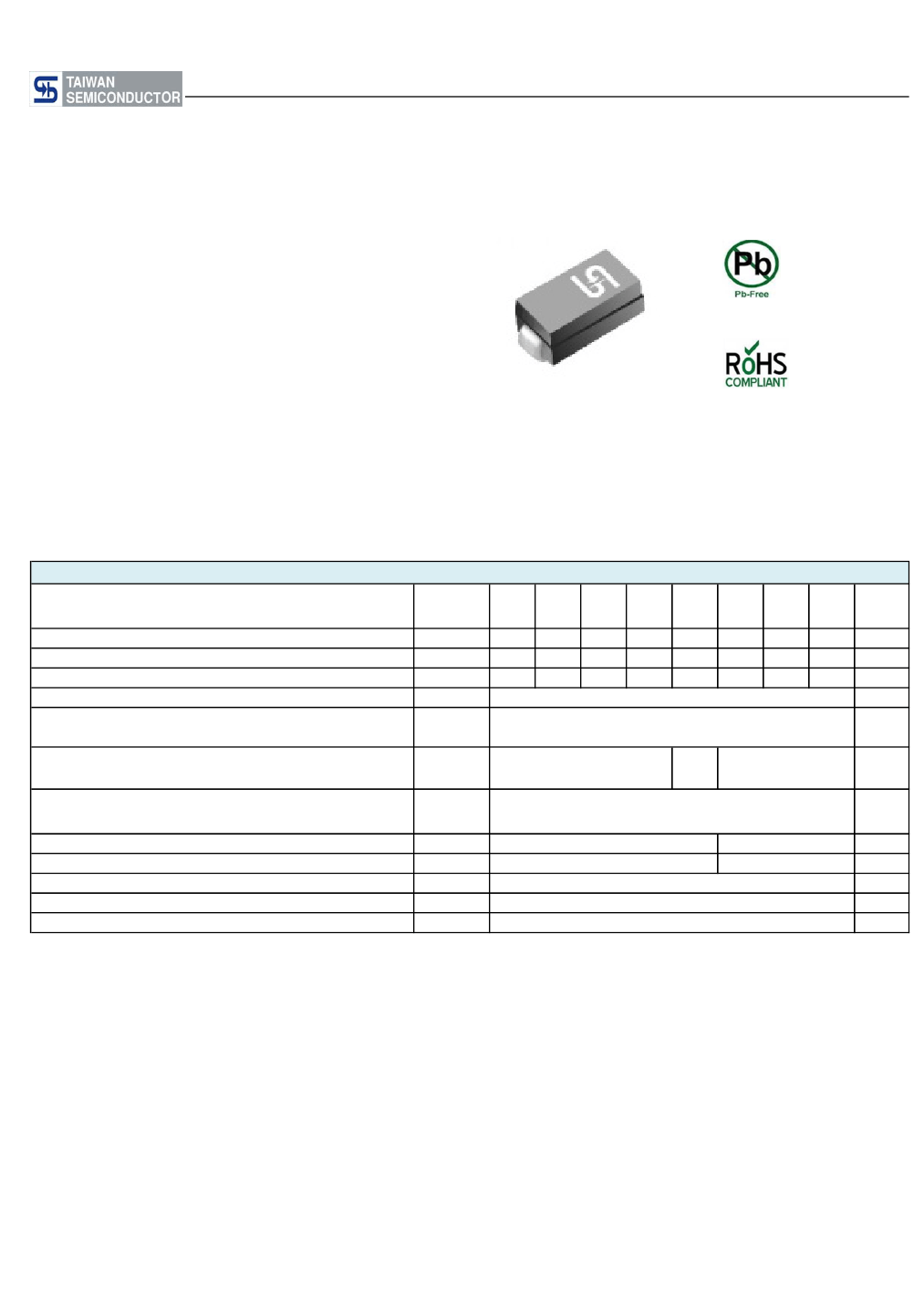

HS2AA thru HS2MA

Taiwan Semiconductor

CREAT BY ART

FEATURES

- Glass passivated junction chip

- Ideal for automated placement

- Low profile package

- Fast switching for high efficiency

- Moisture sensitivity level: level 1, per J-STD-020

- AEC-Q101 qualified (Green compound not involved)

- Compliant to RoHS Directive 2011/65/EU and

in accordance to WEEE 2002/96/EC

- Halogen-free according to IEC 61249-2-21 definition

High Efficient Surface Mount Rectifiers

MECHANICAL DATA

Case：DO-214AC(SMA)

Molding compound, UL flammability classification rating 94V-0

Base P/N with suffix "G" on packing code - halogen-free, RoHS compliant

Terminal：Matte

tin plated leads, solderable per JESD22-B102

Meet JESD 201 class 1A whisker test

Polarity：Indicated

by cathode band

Weight：0.06

gram (approximately)

DO-214AC(SMA)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERSTICS

=25℃ unless otherwise noted)

PARAMETER

Maximum repetitive peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forward rectified current

Peak forward surge current, 8.3 ms single half sine-wave

superimposed on rated load

Maximum instantaneous forward voltage (Note 1)

@ 1.5 A

Maximum reverse current @ rated VR

=25

℃

=125

℃

SYMBOL

RRM

RMS

F(AV)

FSM

Trr

θJA

STG

- 55 to + 150

1.0

100

2AA

2BA

100

2DA

200

140

200

2FA

300

210

300

1.5

2GA

400

280

400

2JA

600

420

600

2KA

800

560

800

2MA

1000

700

1000

UNIT

1.3

1.7

C/W

Maximum reverse recovery time (Note 2)

Typical junction capacitance (Note 3)

Typical thermal resistance

Operating junction temperature range

Storage temperature range

Note 1：Pulse test with PW=300u sec, 1% duty cycle

Note 2: Reverse Recovery Test Conditions: I

=0.5A, I

=1.0A, I

=0.25A

Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.

Document Number：DS_D1310030

Version:H13
