S2AA - S2MA
Taiwan Semiconductor
CREAT BY ART

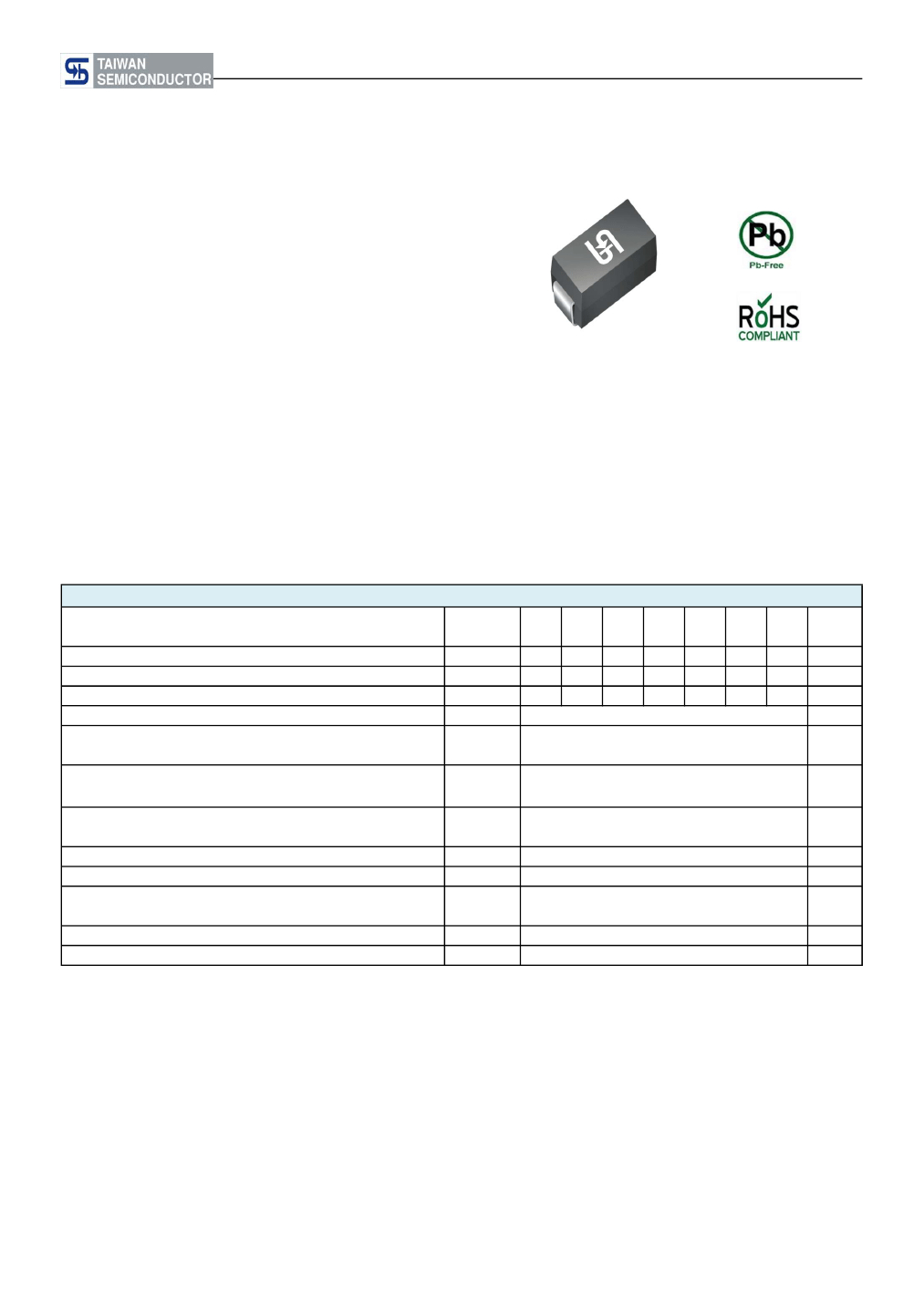

2A, 50V - 1000V Surface Mount Rectifiers
FEATURES
- Glass passivated chip junction
- Ideal for automated placement
- Low forward voltage drop
- High surge current capability
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
DO-214AC (SMA)
MECHANICAL DATA
Case:
DO-214AC (SMA)
Molding compound, UL flammability classification rating 94V-0
Moisture sensitivity level: level 1, per J-STD-020
Part no. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
Indicated by cathode band
Weight:
0.06 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@ 1.5 A
Maximum reverse current @ rated V
R
Typical reverse recovery time (Note 2)
Typical junction capacitance (Note 3)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
T
J
=25°C
T
J
=125°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
t
rr
C
J
R
θJL
R
θJA
T
J
T
STG
S2
AA
50
35
50
S2
BA
100
70
100
S2
DA
200
140
200
S2
GA
400
280
400
1.5
50
1.1
5
125
1.5
30
16
53
- 55 to +150
- 55 to +150
S2
JA
600
420
600
S2
KA
800
560
800
S2
MA
1000
700
1000
UNIT
V
V
V
A
A
V
μA
μs
pF
°C/W
°C
°C
Document Number: DS_D1410015
Version: J15
S2AA - S2MA
Taiwan Semiconductor

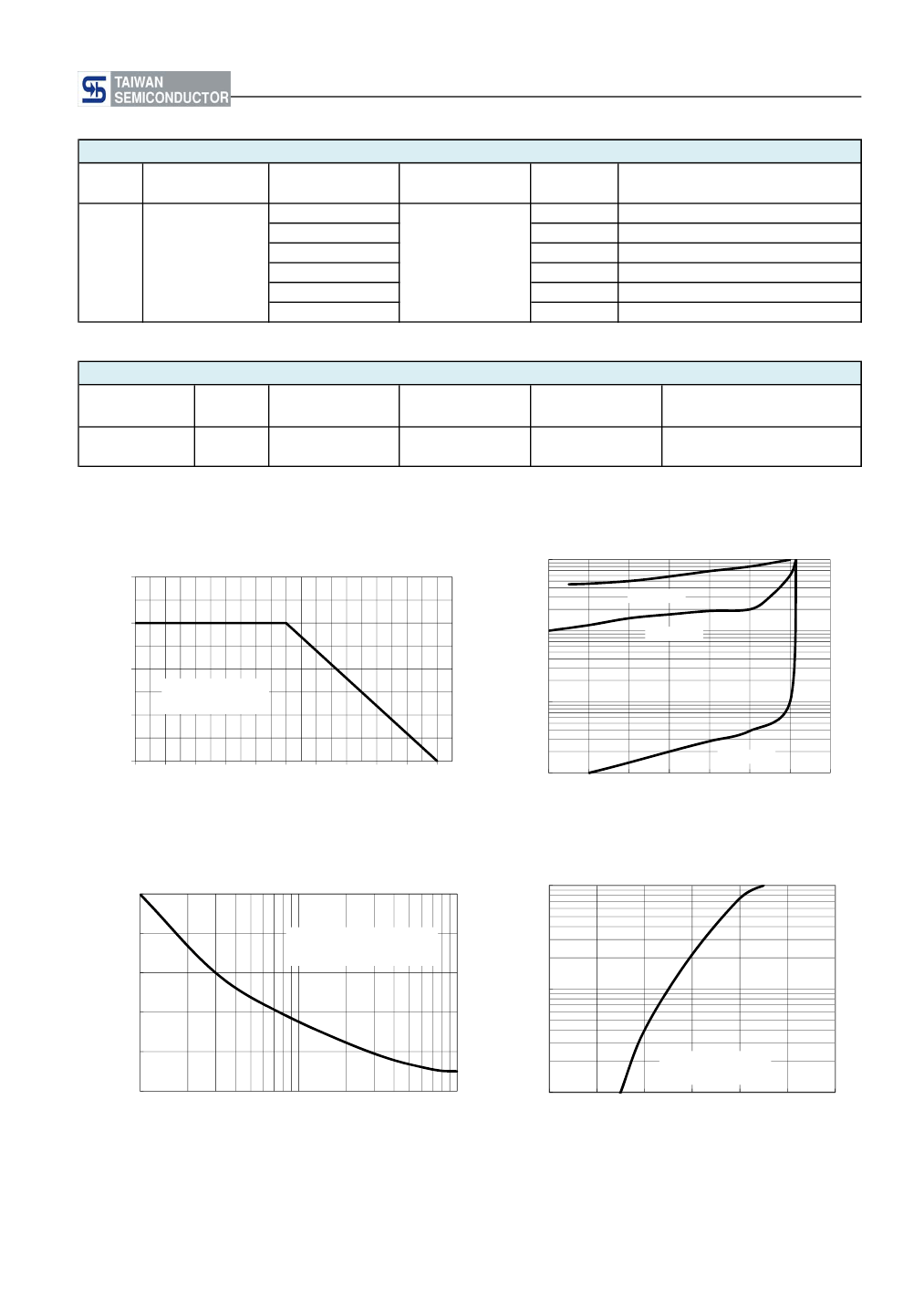

ORDERING INFORMATION
PART
NO.
PART NO.
SUFFIX
R3
R2
S2xA
(Note 1)
H
M2
F3
F2
F4
Note 1: "x" defines voltage from 50V (S2AA) to 1000V (S2MA)
G
PACKING CODE
PACKING CODE
SUFFIX
SMA
SMA
SMA
Folded SMA
Folded SMA
Folded SMA
1,800 / 7" Plastic reel
7,500 / 13" Paper reel
7,500 / 13" Plastic reel
1,800 / 7" Plastic reel
7,500 / 13" Paper reel
7,500 / 13" Plastic reel
PACKAGE
PACKING
EXAMPLE
PREFERRED
PART NO.
S2MAHR3G
PART NO.
S2MA
PART NO.
SUFFIX
H
PACKING CODE
R3
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound
RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
FIG.1- MAXIMUM FORWARD CURRENT DERATING
CURVE
INSTANTANEOUS REVERSE CURRENT (μA)
FIG. 2- TYPICAL REVERSE CHARACTERISTICS
10
T
J
=125°C
1
T
J
=100°C
2
AVERAGE FORWARD CURRENT (A)
1.5
1
RESISTIVE OR
INDUCTIVE LOAD
0.5
0.1
0
50
60
70
80
90
100
110
120
130
140
150
LEAD TEMPERATURE (
°
C)
T
J
=25°C
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
FIG. 3- MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
INSTANTANEOUS FORWARD CURRENT (A)
FIG. 4 TYPICAL FORWARD CHARACTERISTICS
10
PEAK FORWARD SURGE CURRENT (A)
50
40
8.3ms Single Half Sine Wave
30
1
20
10
Pulse Width=300μs
1% Duty Cycle
0.1
0.4
0.6
0.8
1
1.2
1.4
1.6
FORWARD VOLTAGE (V)
0
1
10
100
NUMBER OF CYCLES AT 60 Hz
Document Number: DS_D1410015
Version: J15
S2AA - S2MA
Taiwan Semiconductor

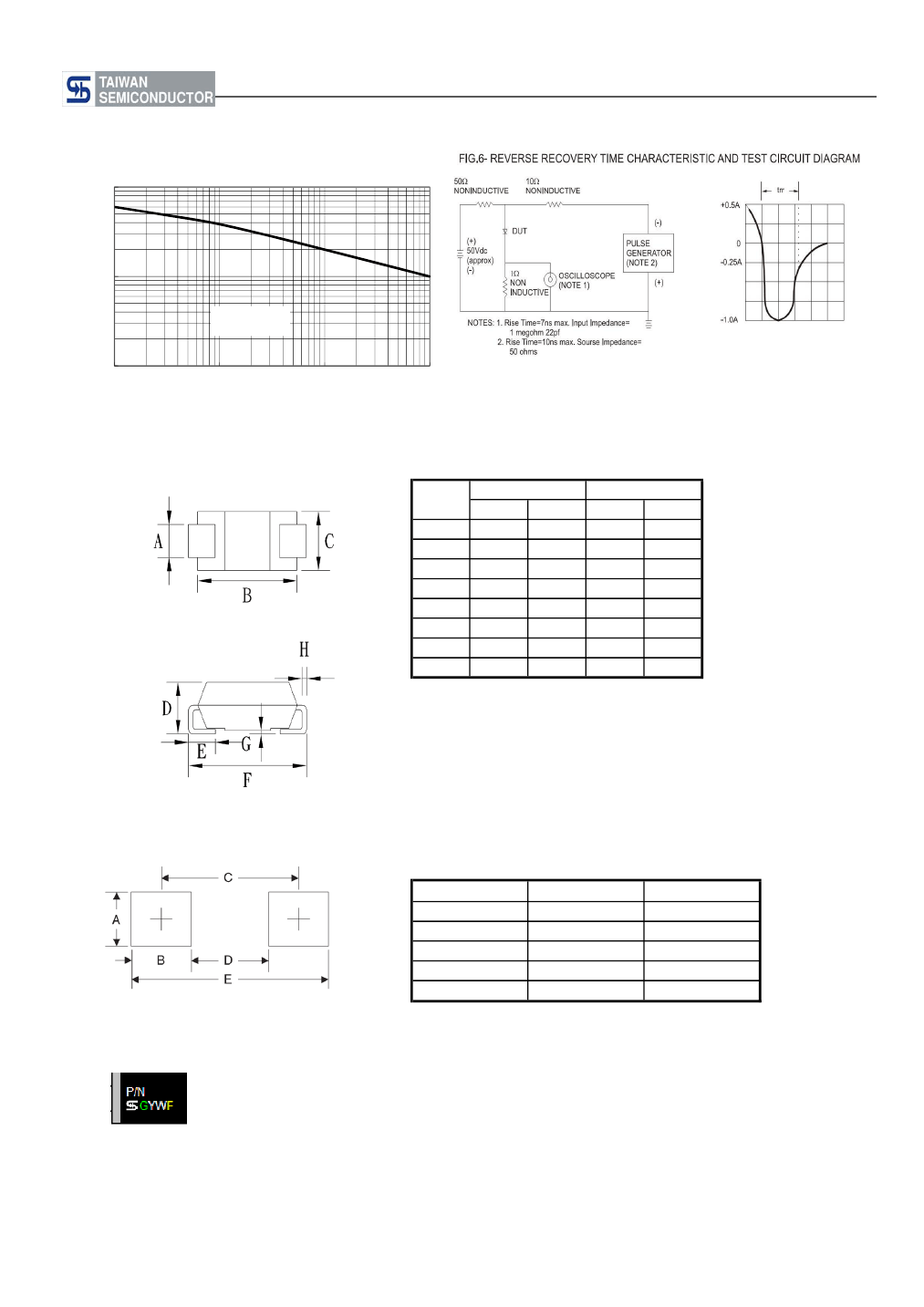

FIG. 5 TYPICAL JUNCTION CAPACITANCE
100
JUNCTION CAPACITANCE (pF)
10
f=1.0MHz
Vsig=50mVp-p
1
0.1
1
10
100
REVERSE VOLTAGE (V)
PACKAGE OUTLINE DIMENSIONS
DO-214AC (SMA)
DIM.
A
B
C
D
E
F
G
H
Unit (mm)
Min
1.27
4.06
2.29
1.99
0.90
4.95
0.10
0.15
Max
1.58
4.60
2.83
2.50
1.41
5.33
0.20
0.31
Unit (inch)
Min
0.050
0.160
0.090
0.078
0.035
0.195
0.004
0.006
Max
0.062
0.181
0.111
0.098
0.056
0.210
0.008
0.012
SUGGESTED PAD LAYOUT
Symbol
A
B
C
D
E
Unit (mm)
1.68
1.52
3.93
2.41
5.45
Unit (inch)
0.066
0.060
0.155
0.095
0.215
MARKING DIAGRAM
P/N =
G=
YW =
F=
Specific Device Code
Green Compound
Date Code
Factory Code
Document Number: DS_D1410015
Version: J15
S2AA - S2MA
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
