1N4728A-G thru 1N4764A-G
SILICON ZENER DIODE
REVERSE VOLTAGE
- 3.3
to
100
Volts
FORWARD CURRENT -
1.0
Watts
DO-41G
FEATURES
●
Low profile package
●
Built-in strain relief
●
Low inductance
●
High temperature soldering : 260°C /10
seconds at terminals
●
Glass package has Underwriters
Laboratory Flammability Classification
●
In compliance with EU RoHS
2002/95/EC directives
APPLICATIONS
●
Case: Molded Glass DO-41G
●
Terminals: Axial leads, solderable per
MIL-STD-750, Method 2026 guaranteed
●
Polarity: Color band denotes positive end
●
Mounting position:Any
●
Weight: 0.012 ounce, 0.336 gram
Dimensions in inches and (millimeters)
Ratings at 25°C ambient temperature unless otherwise specified.
Parameter
Power Dissipation at Tamb=25℃
Symbol
Ptot
Value
1*
150
Units
W
Junction Temperature
Storage Temperature Range
Tj
T
stg
℃
℃
-65 ~ +200
*Valid provided that leads at a distance of 10mm from case are kept at ambient temperature.
Parameter
Thermal Resistance Junction Ambient Air
Forward Voltage at I
F
=200mA
Symbol
R
θJA
V
F
Min.
-
-
Typ.
-
-
Max.
170*
1.2
Units
K/W
V
*Valid provided that leads at a distance of 10mm from case are kept at ambient temperature.
RATING AND CHARACTERISTIC CURVES
1N4728A-G thru 1N4764A-G
NOTE:
1. Tolerance and Type Number Designation. The type umbers listed have a standard tolerance on the nominal zener voltage of + 5%
2. Specials Available Include:
A. Nominal zener voltages between the voltages shown and tighter voltage tolerances.
B. Matched sets.
3. Zener Voltage (Vz) Measurement. Guarantees the zener voltage when measured at 90 seconds while maintaining the lead temperature (T )
at 30 C + 1 C, from the diode body.
4. Zener Impedance (Zz) Derivation. The zener impedance is derived from the 60 cycle ac voltage, which results when
an rms value equal to 10% of the dc zener current (Izt or Izk) is superimposed on Izt or Izk.
5. Surge Current (Ir) Non-Repetitive. The rating listed in the electrical characteristics table is maximum peak,non-repetitive, reverse surge current
of 1/2

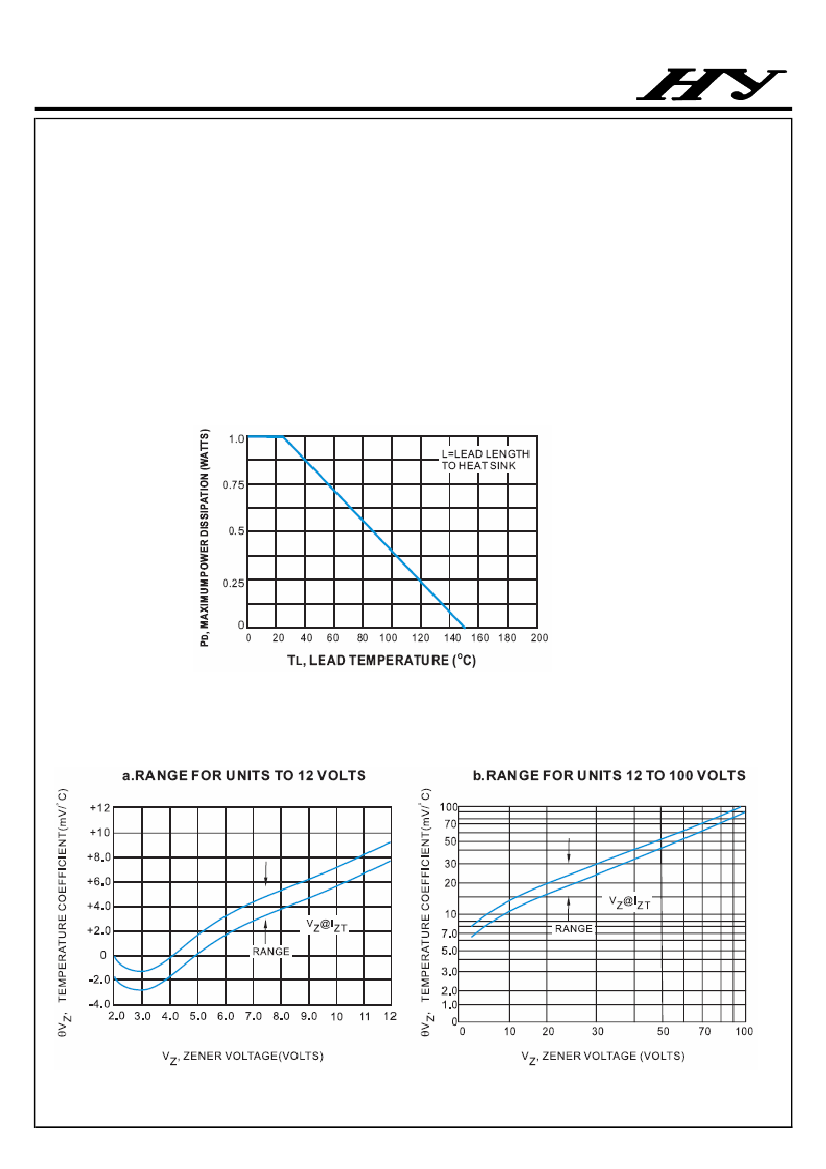

FIG. 1 - POWER TEMPERATURE DERATING CURVE
an ac current having
FIG.2 - TEMPERATURE COEFFICIENTS
(-55°C to +150°C temperature range;90% of the units are in the ranges indicated.)
RATING AND CHARACTERISTIC CURVES
1N4728A-G thru 1N4764A-G

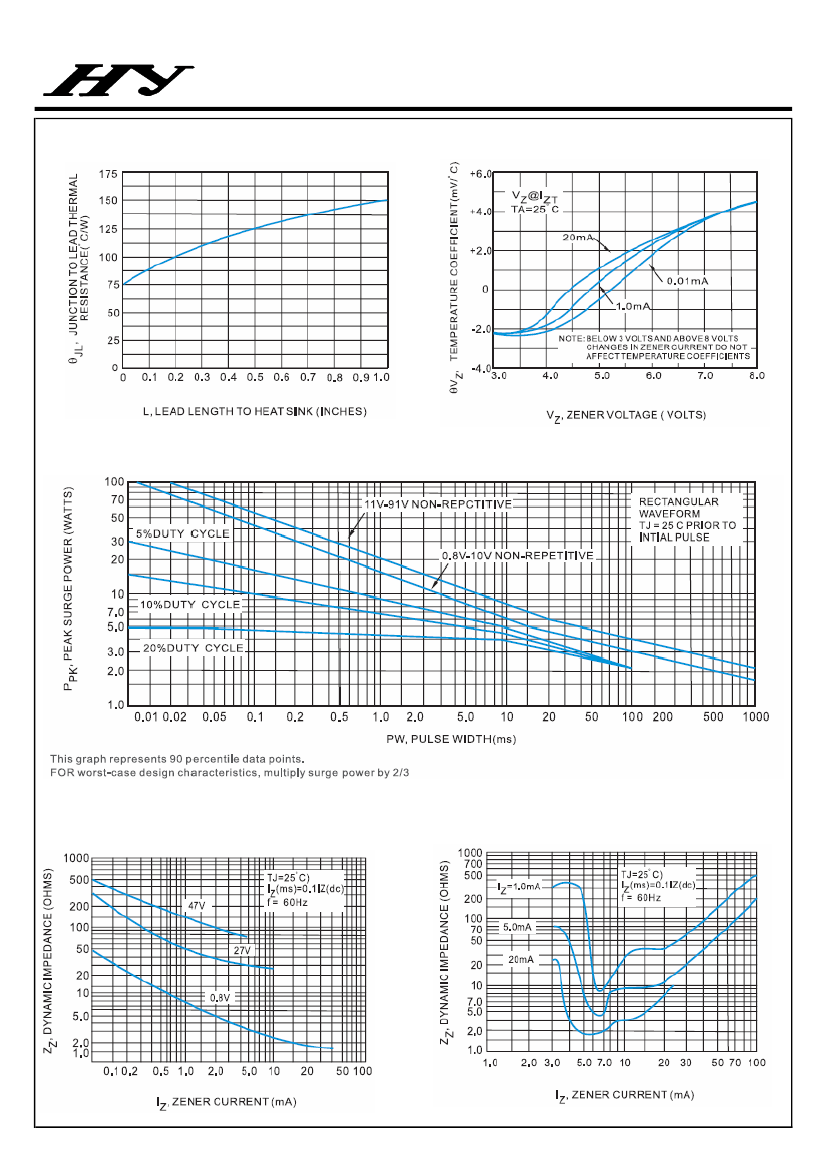

FIG. 3 - TYPICAL THERMAL RESISTANCE versus LEAD
LENGTH
FIG. 4 - EFFECT OF ZENER CURRENT
FIG. 5 - MAXIMUM SURGE POWER
FIG.6- EFFECT OF ZENER CURRENT ON ZENER IMPEDANCE
FIG. 7 - EFFECT OF ZENER VOLTAGE ON ZENER
RATING AND CHARACTERISTIC CURVES
1N4728A-G thru 1N4764A-G

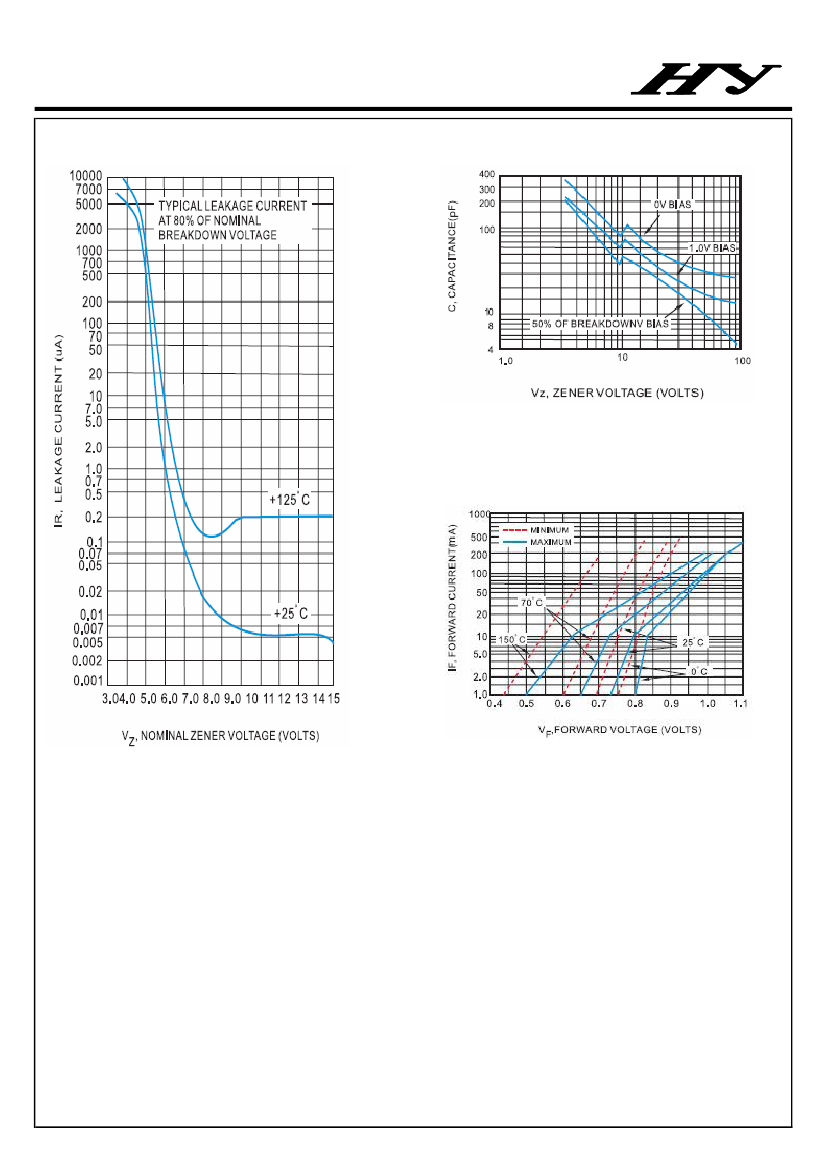

FIG. 8 - TYPICAL LEAKAGE CURRENT
FIG. 9 - TYPICAL CAPACITANGE versus Vz
FIG. 10 - TYPICAL FORWAWD CHARACTERISTICS
1N4728A-G thru 1N4764A-G
Nominal Zener Voltage
TYPE
Nom.V
1.0 Watt Zener Diodes
V
Z
@ I
ZT
Min.V
Max.V
Ω
Max. Zener Impedance
Z
ZT
@ I
ZT
mA
Ω
Z
ZT
@ I
ZK
mA
μA
Maximum Leakage
Current
I
R
@ V
R
V
Marking
Code
1N4728A-G
1N4729A-G
1N4730A-G
1N4731A-G
1N4732A-G
1N4733A-G
1N4734A-G
1N4735A-G
1N4736A-G
1N4737A-G
1N4738A-G
1N4739A-G
1N4740A-G
1N4741A-G
1N4742A-G
1N4743A-G
1N4744A-G
1N4745A-G
1N4746A-G
1N4747A-G
1N4748A-G
1N4749A-G
1N4750A-G
1N4751A-G
1N4752A-G
1N4753A-G
1N4754A-G
1N4755A-G
1N4756A-G
1N4757A-G
1N4758A-G
1N4759A-G
1N4760A-G
1N4761A-G
1N4762A-G
1N4763A-G
1N4764A-G
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10.0
11.0
12.0
13.0
15.0
16.0
18.0
20.0
22.0
24.0
27.0
30.0
33.0
36.0
39.0
43.0
47.0
51.0
56.0
62.0
68.0
75.0
82.0
91.0
100.0
3.14
3.42
3.71
4.09
4.47
4.85
5.32
5.89
6.46
7.13
7.79
8.65
9.50
10.45
11.40
12.35
14.25
15.20
17.10
19.00
20.90
22.80
25.65
28.50
31.35
34.20
37.05
40.85
44.65
48.45
53.20
58.90
64.60
71.25
77.90
86.45
95.00
3.47
3.78
4.10
4.52
4.94
5.36
5.88
6.51
7.14
7.88
8.61
9.56
10.50
11.55
12.60
13.65
15.75
16.80
18.90
21.00
23.10
25.20
28.35
31.50
34.65
37.80
40.95
45.15
49.35
53.55
58.80
65.10
71.40
78.75
86.10
95.55
105.00
10.0
10.0
9.0
9.0
8.0
7.0
5.0
2.0
3.5
4.0
4.5
5.0
7.0
8.0
9.0
10.0
14.0
16.0
20.0
22.0
23.0
25.0
35.0
40.0
45.0
50.0
60.0
70.0
80.0
95.0
110.0
125.0
150.0
175.0
200.0
250.0
350.0
76.00
69.00
64.00
58.00
53.00
49.00
45.00
41.00
37.00
34.00
31.00
28.00
25.00
23.00
21.00
19.00
17.00
15.50
14.00
12.50
11.50
10.50
9.50
8.50
7.50
7.00
6.50
6.00
5.50
5.00
4.50
4.00
3.70
3.30
3.00
2.80
2.50
400
400
400
400
500
550
600
700
700
700
700
700
700
700
700
700
700
700
750
750
750
750
750
1000
1000
1000
1000
1500
1500
1500
2000
2000
2000
2000
3000
3000
3000
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
0.50
0.50
0.50
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
100
100
50
10
10
10
10
10
10
10
10
10
10
5
5
5
5
5
5
5
5
5
5
5
5
5
5
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
1.0
1.0
1.0
1.0
1.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
7.6
8.4
9.1
9.9
11.4
12.2
13.7
15.2
16.7
18.2
20.6
22.8
25.1
27.4
29.7
32.7
35.8
38.8
42.6
47.1
51.7
56.0
62.2
69.2
76.0
1N4728A
1N4729A
1N4730A
1N4731A
1N4732A
1N4733A
1N4734A
1N4735A
1N4736A
1N4737A
1N4738A
1N4739A
1N4740A
1N4741A
1N4742A
1N4743A
1N4744A
1N4745A
1N4746A
1N4747A
1N4748A
1N4749A
1N4750A
1N4751A
1N4752A
1N4753A
1N4754A
1N4755A
1N4756A
1N4757A
1N4758A
1N4759A
1N4760A
1N4761A
1N4762A
1N4763A
1N4764A
