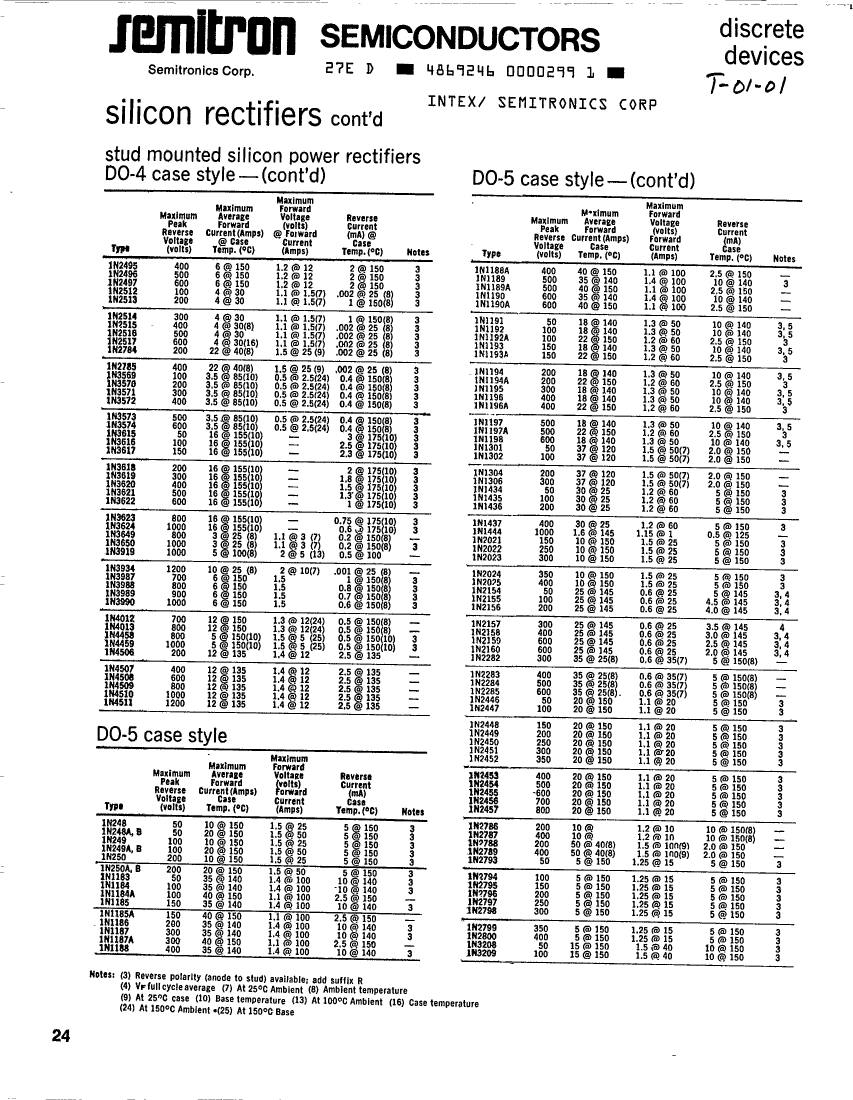

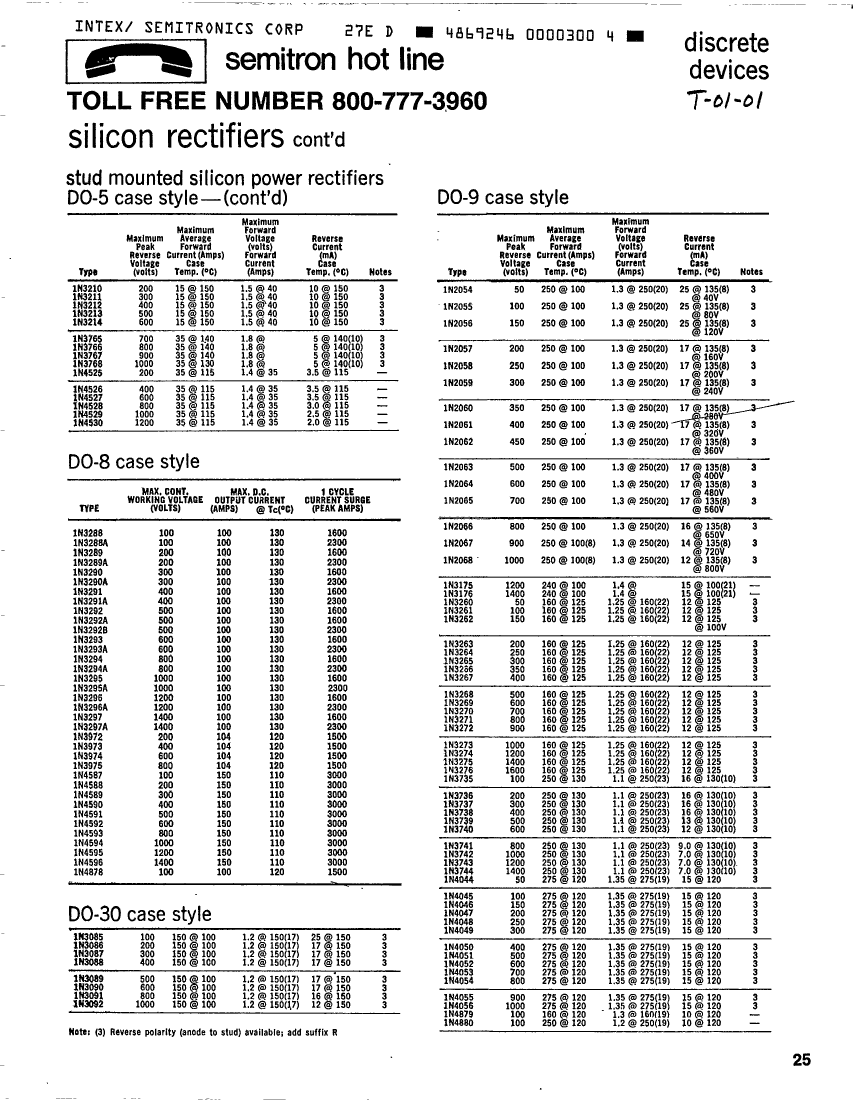

Rectifier Diode, 1 Phase, 1 Element, 35A, 800V V(RRM), Silicon, DO-5,

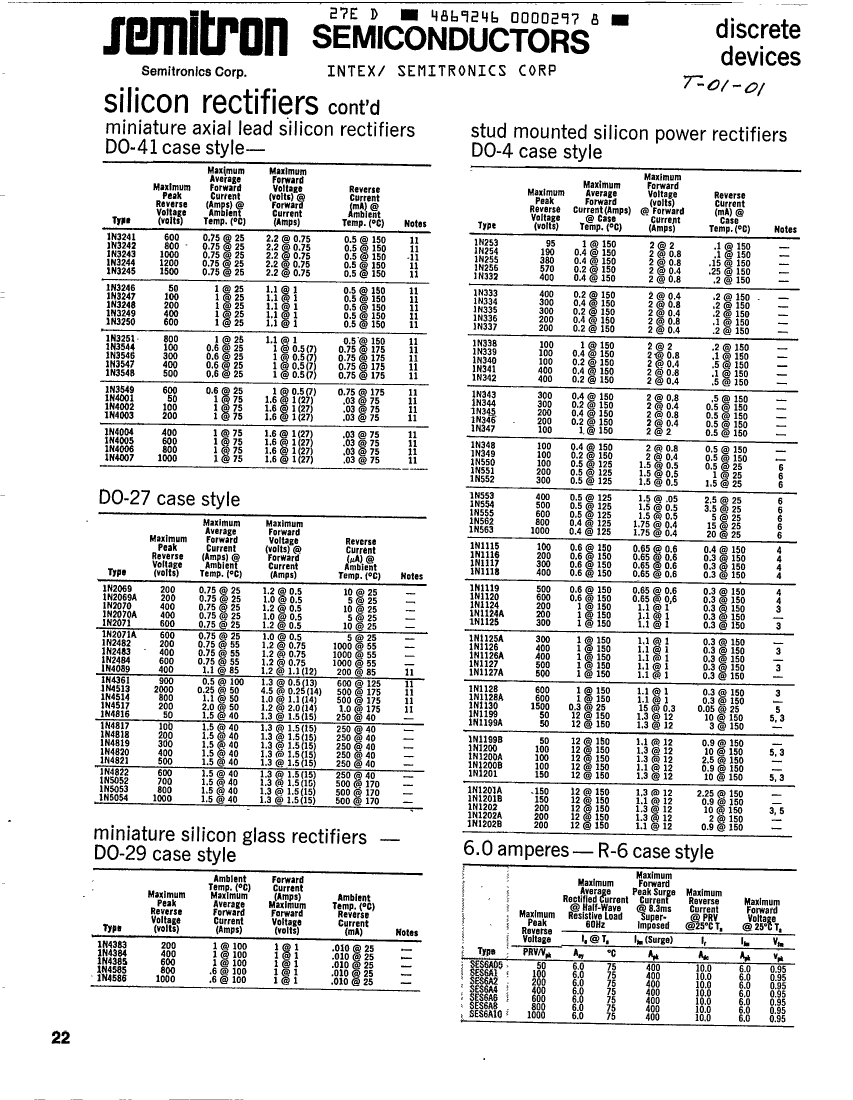

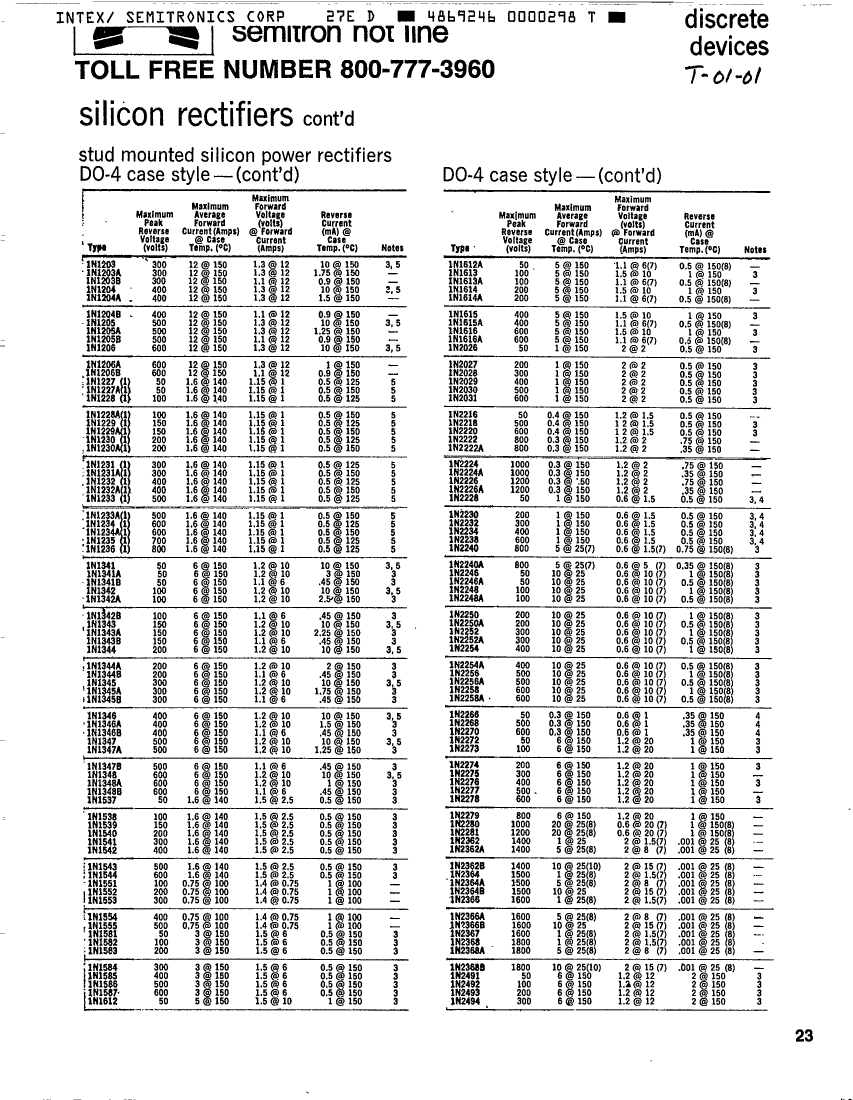

| Parameter Name | Attribute value |
| Maker | Semitronics Corp. |
| package instruction | O-MUPM-D1 |
| Reach Compliance Code | unknow |
| application | POWER |
| Shell connection | CATHODE |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.5 V |
| JEDEC-95 code | DO-5 |
| JESD-30 code | O-MUPM-D1 |
| Maximum non-repetitive peak forward current | 400 A |
| Number of components | 1 |
| Phase | 1 |
| Number of terminals | 1 |
| Maximum operating temperature | 175 °C |
| Maximum output current | 35 A |
| Package body material | METAL |
| Package shape | ROUND |
| Package form | POST/STUD MOUNT |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 800 V |
| surface mount | NO |
| Terminal form | SOLDER LUG |
| Terminal location | UPPER |
| Base Number Matches | 1 |
| 1N3766 | 1N1126A | 1N1124A | 1N1125A | 58M-B10G | 1N1128A | 1N3765 | 1N3767 | 1N3768 | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Rectifier Diode, 1 Phase, 1 Element, 35A, 800V V(RRM), Silicon, DO-5, | Rectifier Diode, 1 Element, 3.3A, 400V V(RRM), Silicon, DO-4, | Rectifier Diode, 1 Element, 3.3A, 200V V(RRM), Silicon, DO-4, | Rectifier Diode, 1 Element, 1A, 300V V(RRM), Silicon, DO-4 | Special Switch, SPST, Maintained, Wire Terminal, Panel Mount, | Rectifier Diode, 1 Element, 3.3A, 600V V(RRM), Silicon, DO-4, | Rectifier Diode, 1 Phase, 1 Element, 35A, 700V V(RRM), Silicon, DO-5, | Rectifier Diode, 1 Phase, 1 Element, 35A, 900V V(RRM), Silicon, DO-5, | Rectifier Diode, 1 Phase, 1 Element, 35A, 1000V V(RRM), Silicon, DO-5, |
| Reach Compliance Code | unknow | unknown | unknown | unknown | compliant | unknown | unknown | unknown | unknown |
| Maximum operating temperature | 175 °C | 175 °C | 175 °C | 175 °C | 85 °C | 175 °C | 140 °C | 140 °C | 175 °C |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Maker | Semitronics Corp. | Semitronics Corp. | Semitronics Corp. | Semitronics Corp. | - | Semitronics Corp. | Semitronics Corp. | Semitronics Corp. | Semitronics Corp. |
| Shell connection | CATHODE | CATHODE | CATHODE | CATHODE | - | CATHODE | CATHODE | CATHODE | CATHODE |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | - | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | - | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | - | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| JEDEC-95 code | DO-5 | DO-4 | DO-4 | DO-4 | - | DO-4 | DO-5 | DO-5 | DO-5 |
| JESD-30 code | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | - | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 |
| Number of components | 1 | 1 | 1 | 1 | - | 1 | 1 | 1 | 1 |
| Number of terminals | 1 | 1 | 1 | 1 | - | 1 | 1 | 1 | 1 |
| Maximum output current | 35 A | 3.3 A | 3.3 A | 1 A | - | 3.3 A | 35 A | 35 A | 35 A |
| Package body material | METAL | METAL | METAL | METAL | - | METAL | METAL | METAL | METAL |
| Package shape | ROUND | ROUND | ROUND | ROUND | - | ROUND | ROUND | ROUND | ROUND |
| Package form | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | - | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 800 V | 400 V | 200 V | 300 V | - | 600 V | 700 V | 900 V | 1000 V |
| Terminal form | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG | - | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG |
| Terminal location | UPPER | UPPER | UPPER | UPPER | - | UPPER | UPPER | UPPER | UPPER |
| Base Number Matches | 1 | 1 | 1 | 1 | - | 1 | 1 | 1 | - |
| Is Samacsys | - | N | N | N | - | N | N | N | - |
| Maximum reverse recovery time | - | 5 µs | 5 µs | 5 µs | - | 5 µs | 5 µs | 5 µs | - |
