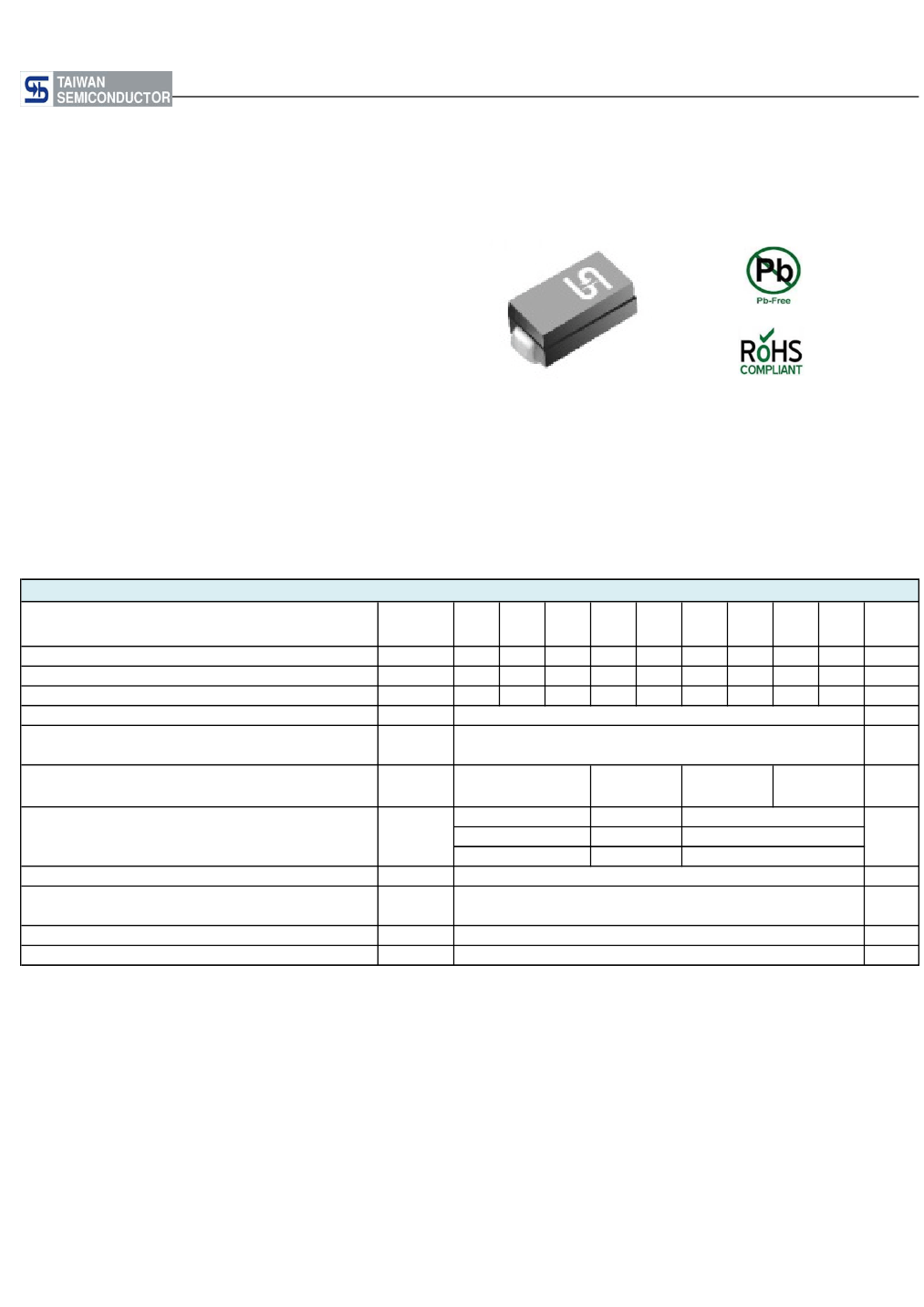

SK32A thru SK320A
Taiwan Semiconductor
CREAT BY ART
FEATURES
- Low power loss, high efficiency
- Ideal for automated placement
- Guardring for overvoltage protection
- High surge current capability
- Moisture sensitivity level : level 1, per J-STD-020
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
Surface Mount Schottky Barrier Rectifier
MECHANICAL DATA
Case:
DO-214AC (SMA)
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - halogen-free
Base P/N with prefix "H" on packing code - AEC-Q101 qualified
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test,
with prefix "H" on packing code meet JESD 201 class 2 whisker test
Polarity:
Indicated by cathode band
Weight:
0.07 g (approximately)
DO-214AC (SMA)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@3A
Maximum reverse current @ rated VR
T
J
=25
℃
T
J
=100℃
T
J
=125
℃
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
0.55
0.5
I
R
dV/dt
R
θJL
R
θJA
T
J
T
STG
10
-
0.72
0.2
5
10
10000
25
66
- 55 to +150
- 55 to +150
SK
32A
20
14
20
SK
33A
30
21
30
SK
34A
40
28
40
SK
35A
50
35
50
SK
36A
60
42
60
3
70
0.85
0.1
-
0.5
V/μs
O
SK
39A
90
63
90
SK
100
70
100
SK
150
105
150
SK
200
140
200
310A 315A 320A
Unit
V
V
V
A
A
0.95
V
mA
Voltage Rate of Change (Rated V
R
)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
C/W
O
O
C
C
Document Number: DS_D1309042
Version: O13
SK32A thru SK320A
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
AEC-Q101
QUALIFIED
R3
R2
SK3xxA
(Note 1)
Prefix "H"
M2
F3
F2
F4
N/A
E3
E2
Suffix "G"
PACKING CODE
GREEN COMPOUND
CODE
SMA
SMA
SMA
Folded SMA
Folded SMA
Folded SMA
Clip SMA
Clip SMA
1,800 / 7" Plastic reel
7,500 / 13" Paper reel
7,500 / 13" Plastic reel
1,800 / 7" Plastic reel
7,500 / 13" Paper reel
7,500 / 13" Plastic reel
1,800 / 7" Plastic reel
7,500 / 13" Paper reel
PACKAGE
PACKING
Note 1: "xx" defines voltage from 20V (SK32A) to 200V (SK320A)
EXAMPLE
PREFERRED P/N
SK36A R3
SK36A R3G
SK36AHR3
PART NO.
SK36A
SK36A
SK36A
H
AEC-Q101
QUALIFIED
PACKING CODE
R3
R3
R3
G
Green compound
AEC-Q101 qualified
GREEN
COMPOUND
DESCRIPTION

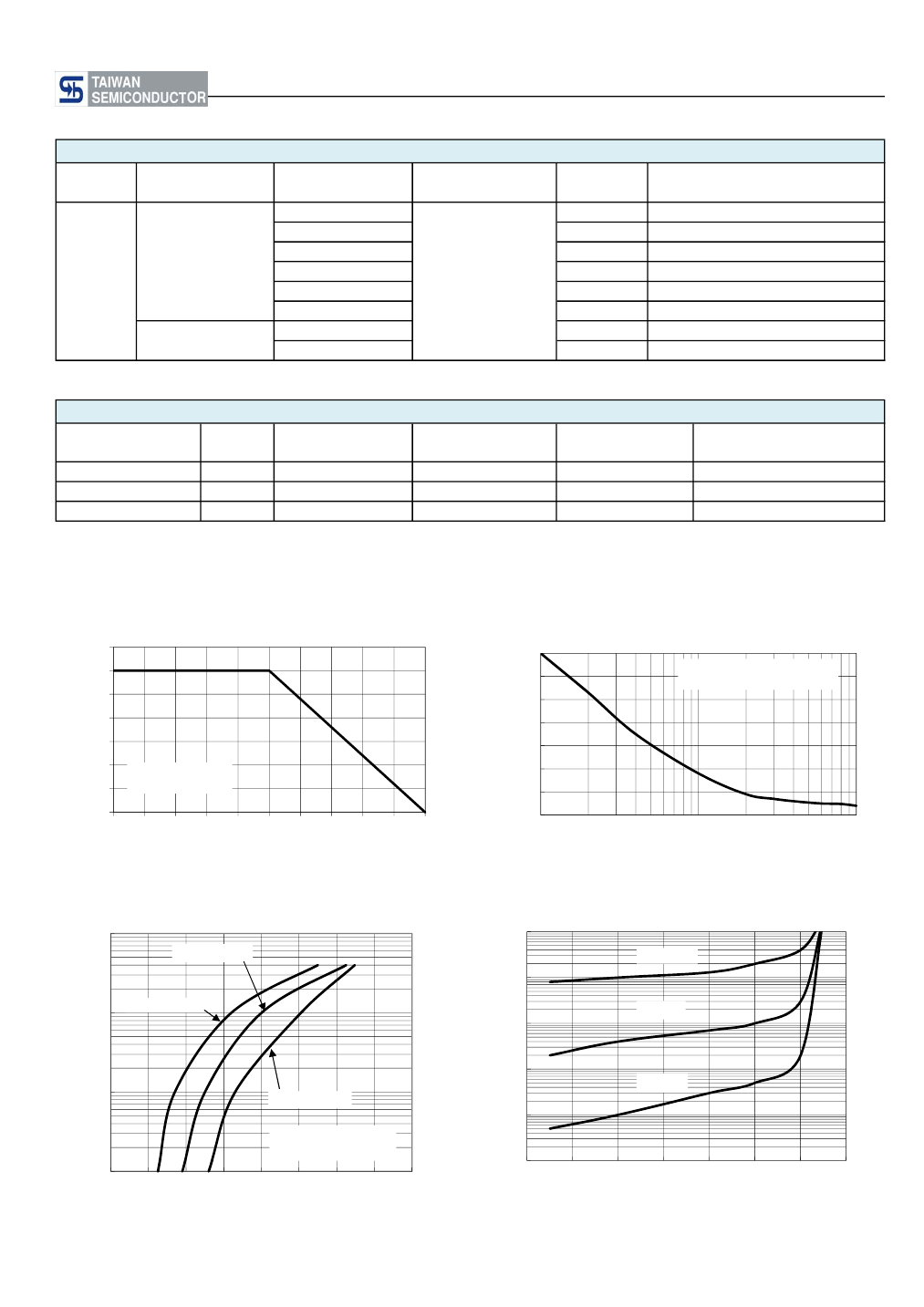

RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
FIG.1 FORWARD CURRENT DERATING CURVE
3.5
3
AVERAGE FORWARD
A
CURRENT (A)
PEAK FORWARD SURGE CURRENT
(A)
FIG. 2 MAXIMUM NON-REPETITIVE FORWARD SURGE
CURRENT
70
60
50
40
30
20
10
0
1
10
100
8.3ms Single Half Sine Wave
JEDEC Method
2.5
2
1.5
1
RESISTIVE OR
INDUCTIVE LOAD
0.5
0
50
60
70
80
90
100
110
120
(
o
C)
130
140
150
LEAD TEMPERATURE
NUMBER OF CYCLES AT 60 Hz
FIG. 3 TYPICAL FORWARD CHARACTERISTICS
100
SK35A-SK36A
10
INSTANTANEOUS FORWARD
A
CURRENT (A)
100
FIG. 4 TYPICAL REVERSE CHARACTERISTICS
TJ=125℃
INSTANTANEOUS REVERSE
A
CURRENT (mA)
10
SK32A-SK34A
TJ=75℃
1
0.1
TJ=25℃
1
SK39A-SK320A
PULSE WIDTH=300μs
1% DUTY CYCLE
0.01
0.1
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
FORWARD VOLTAGE (V)
0.001
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Document Number: DS_D1309042
Version: O13
SK32A thru SK320A
Taiwan Semiconductor

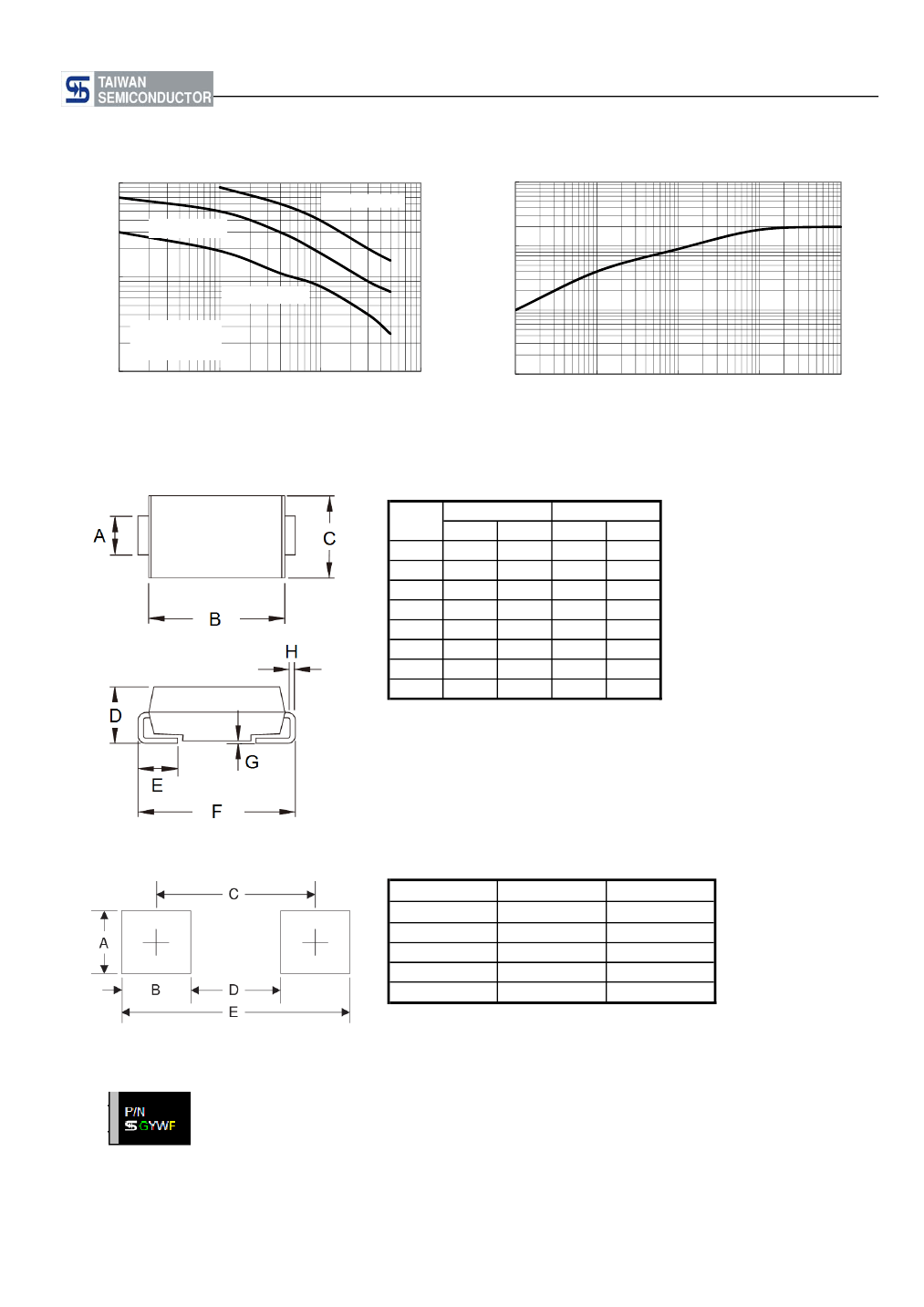

FIG. 5 TYPICAL JUNCTION CAPACITANCE
1000
FIG. 6 TYPICAL TRANSIENT THERMAL IMPEDANCE
100
SK32A-SK34A
SK35A-SK36A
CAPACITANCE (pF)
100
SK39A-SK320A
TRANSIENT THERMAL IMPEDANCE
A
(℃/W)
100
10
1
f=1.0MHz
Vslg=50mVp‐p
10
0.1
1
10
REVERSE VOLTAGE (V)
0.1
0.01
0.1
1
T-PULSE DURATION(s)
10
100
PACKAGE OUTLINE DIMENSIONS
Unit (mm)
Min
1.27
4.06
2.29
1.99
0.90
4.95
0.10
0.15
Max
1.58
4.60
2.83
2.50
1.41
5.33
0.20
0.31
Unit (inch)
Min
0.050
0.160
0.090
0.078
0.035
0.195
0.004
0.006
Max
0.062
0.181
0.111
0.098
0.056
0.210
0.008
0.012
DIM.
A
B
C
D
E
F
G
H
SUGGESTED PAD LAYOUT
Symbol
A
B
C
D
E
Unit (mm)
1.68
1.52
3.93
2.41
5.45
Unit (inch)
0.066
0.060
0.155
0.095
0.215
MARKING DIAGRAM
P/N =
G=
YW =
F=
Specific Device Code
Green Compound
Date Code
Factory Code
Document Number: DS_D1309042
Version: O13
