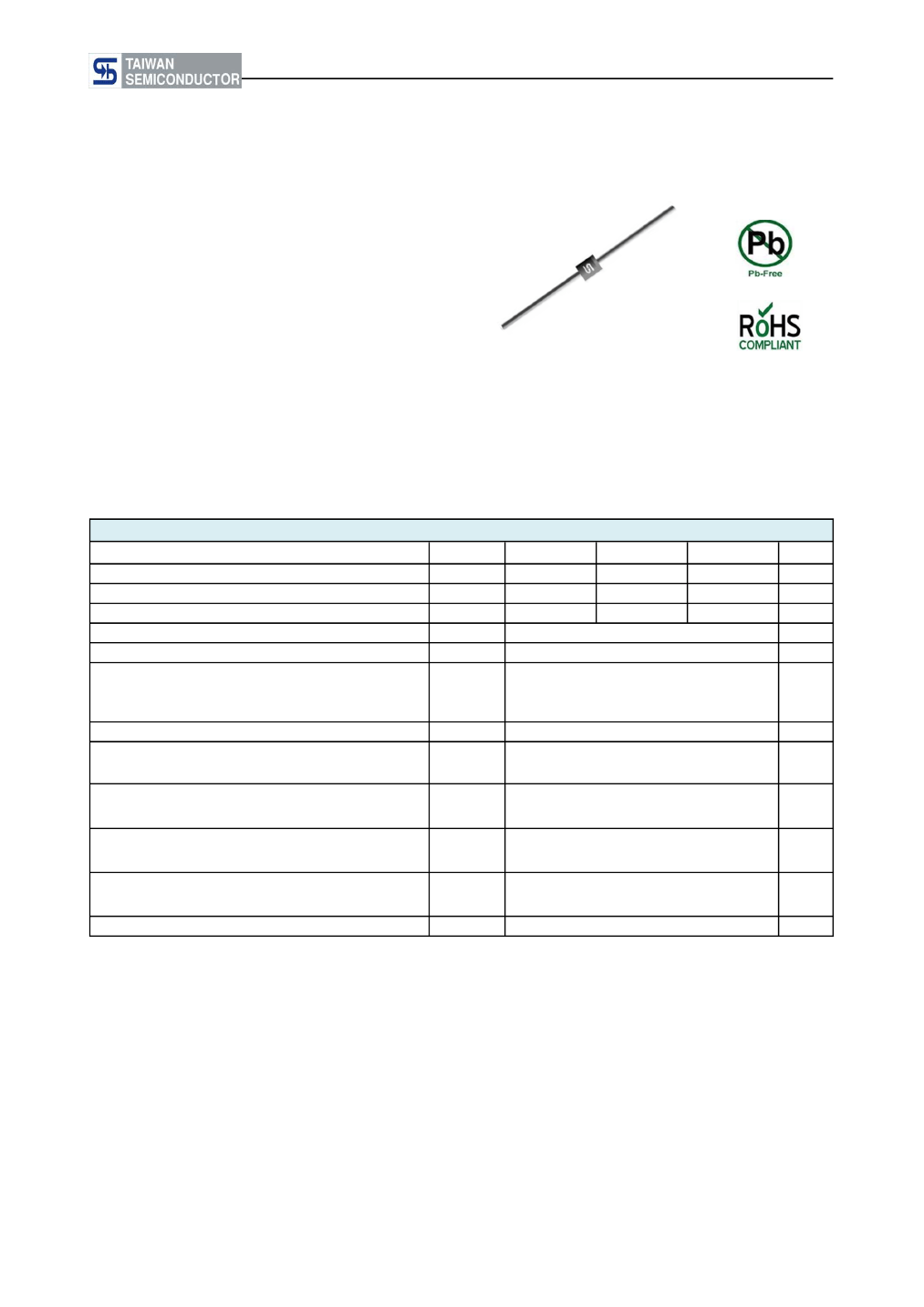

SR1202 thru SR1204
Taiwan Semiconductor
CREAT BY ART
FEATURES
- Low forward voltage drop
- Low power loss, high efficiency
- Guardring for overvoltage protection
- High surge current capability
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
Schottky Barrier Rectifier
MECHANICAL DATA
Case:
DO-201AD
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - halogen-free
Base P/N with prefix "H" on packing code - AEC-Q101 qualified
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test,
with prefix "H" on packing code meet JESD 201 class 2 whisker test
Weight:
1.1 g (approximately)
DO-201AD
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Repetitive peak forward current f > 15Hz
Peak forward surge current, 50/60 Hz single half
sine-wave superimposed on rated load (JEDEC
Method )
Rating for fusing
t < 10ms
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FRM
I
FSM
I
2
t
V
F
I
R
R
θJL
R
θJA
T
J
T
STG
SR1202
20
14
20
SR1203
30
21
30
12
55
280 / 320
390
0.45
0.55
500
20
3
24
- 50 to + 150
<=200
- 55 to + 175
O
SR1204
40
28
40
UNIT
V
V
V
A
A
A
A
2
s
V
μA
mA
O
Maximum instantaneous forward voltage @5 A
(Note 1)
@12 A
Maximum DC reverse current
at rated DC blocking voltage
Typical thermal resistance
Junction temperature range
- in DC forward mode
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
@T
J
=25
℃
@T
J
=100
℃
C/W
O
C
C
Document Number: DS_D1308044
Version: F13
SR1202 thru SR1204
Taiwan Semiconductor
CREAT BY ART
ORDERING INFORMATION
PART NO.
AEC-Q101
QUALIFIED
A0
SR12xx
(Note 1)
Prefix "H"
R0
B0
X0
Note 1: "xx" defines voltage from 20V (SR1202) to 40V (SR1204)
Suffix "G"
PACKING CODE GREEN COMPOUND
CODE
DO-201AD
DO-201AD
DO-201AD
DO-201AD
500 / Ammo box
1,250 / 13" Paper reel
500 / Bulk packing
Forming
PACKAGE
PACKING
EXAMPLE
PREFERRED P/N
SR1204 A0
SR1204 A0G
SR1204HA0
PART NO.
SR1204
SR1204
SR1204
H
AEC-Q101
QUALIFIED
PACKING CODE
A0
A0
A0
G
Green compound
AEC-Q101 qualified
GREEN
COMPOUND
DESCRIPTION

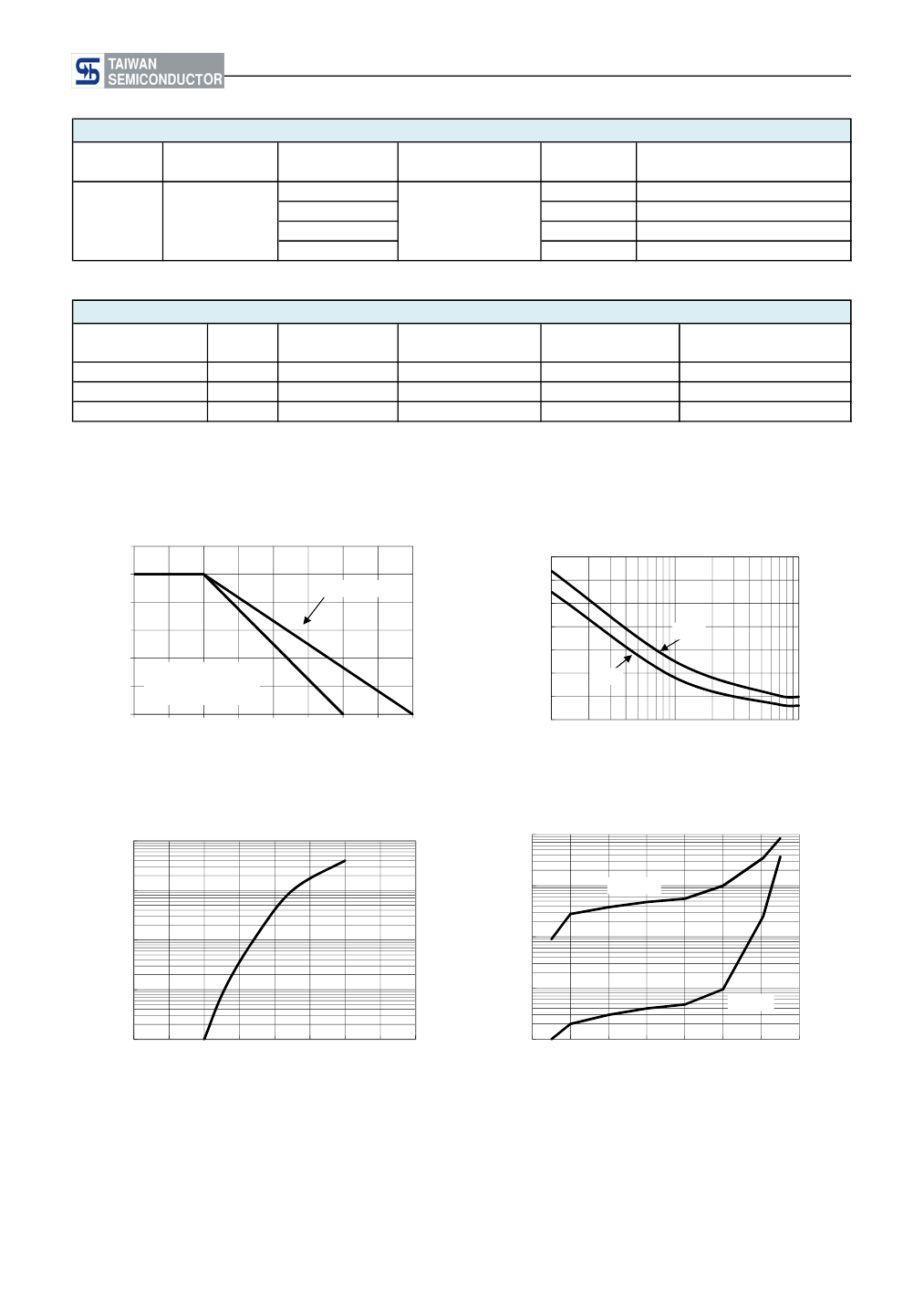

RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
FIG.1 FORWARD CURRENT DERATING CURVE
PEAK FORWARD SURGE CURRENT (A)
120
100
80
60
40
20
0
0
25
50
75
100
125
150
175
200
AMBIENT TEMPERATURE (
o
C)
RESISTIVE OF
INDUCTIVE LOAD
WITH HEATSINK
DC forward
350
300
250
200
150
100
50
0
1
FIG. 2 MAXIMUM FORWARD SURGE CURRENT
AVERAGE FORWARD
A
CURRENT (%)
60Hz
50 Hz
10
NUMBER OF CYCLES AT 60 Hz
100
FIG. 3 TYPICAL FORWARD CHARACTERISTICS
100
REVERSE IREAKAGE CURRENT (mA)
100
FIG. 4 TYPICAL REVERSE CHARACTERISTICS
10
FORWARD CURRENT(A)
10
T
J
=100℃
1
1
0.1
0.1
T
J
=25℃
0.01
0
20
40
60
80
100
120
140
PERCENTAGE OF VR (%)
0.01
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
FORWARD VOLTAGE (V)
Document Number: DS_D1308044
Version: F13
SR1202 thru SR1204
Taiwan Semiconductor
CREAT BY ART

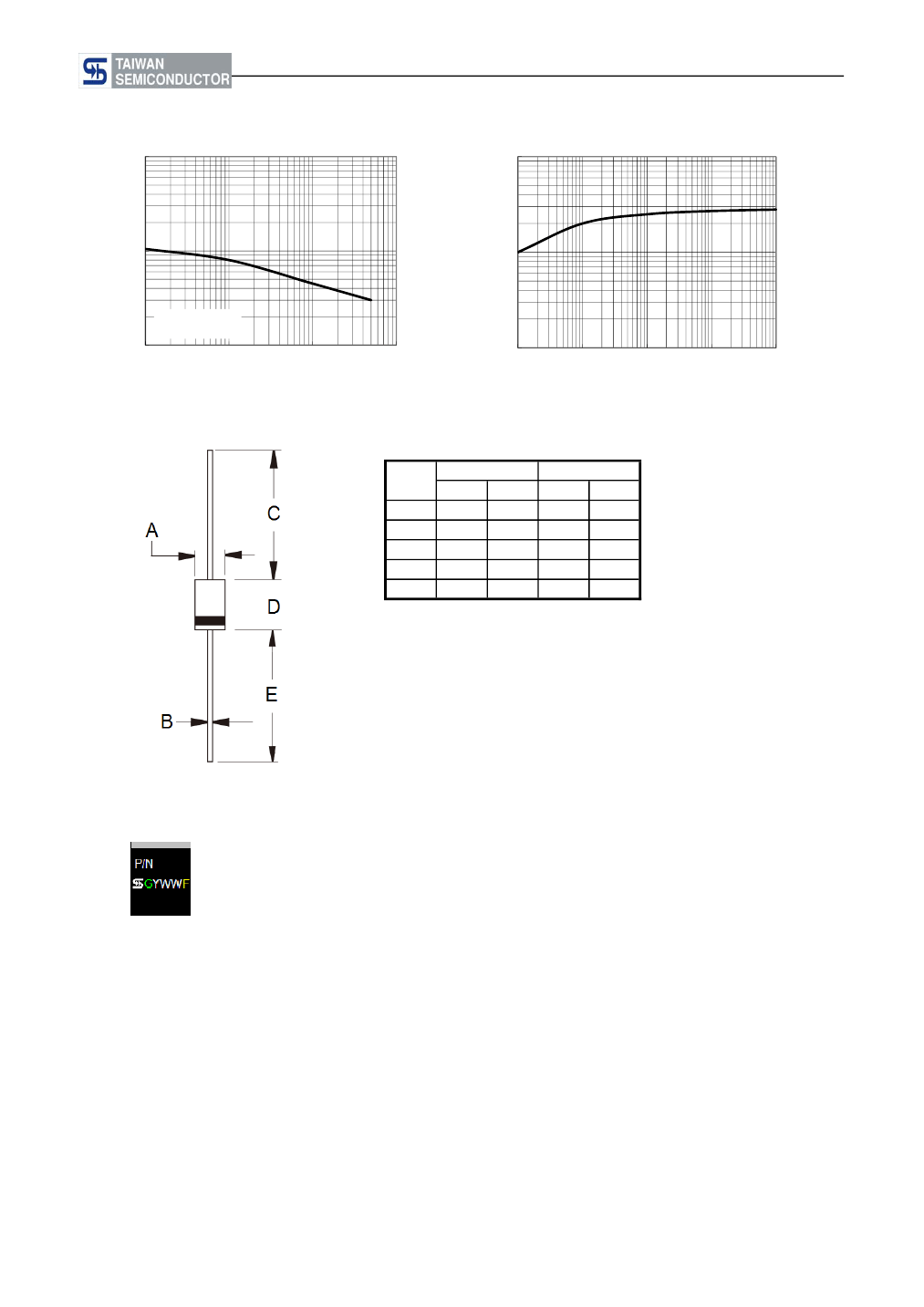

FIG. 5 TYPICAL JUNCTION CAPACITANCE
10000
10
FIG. 6 TYPICAL TRANSIENT THERMAL
RESISTANCE
1000
TRANSIENT THERMAL
RESISTANCE (℃/W)
f=1.0MHz
Vslg=50mVp-p
0.1
1
10
100
CAPACITANCE (pF)
A
1
100
REVERSE VOLTAGE (V)
0.1
0.01
0.1
1
10
100
T-PULSE DURATION (sec)
PACKAGE OUTLINE DIMENSIONS
Unit (mm)
Min
5.00
1.20
25.40
8.50
25.40
Max
5.60
1.30
-
9.50
-
Unit (inch)
Min
0.197
0.048
1.000
0.335
1.000
Max
0.220
0.052
-
0.375
-
DIM.
A
B
C
D
E
MARKING DIAGRAM
P/N =
G=
F=
Specific Device Code
Green Compound
Factory Code
YWW = Date Code
Document Number: DS_D1308044
Version: F13
SR1202 thru SR1204
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied,to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or seling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
