TS9011DCYRM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> TS9011DCYRM

TS9011DCYRM: DescriptionFixed Positive LDO Regulator, 1.8V, 0.75V Dropout, CMOS, PSSO3, ROHS COMPLIANT, SOT-89, 3 PIN; CategoryPower/power management The power supply circuit; File Size180KB，7 Pages; ManufacturerTaiwan Semiconductor; Websitehttp://www.taiwansemi.com/

Download Datasheet Parametric Compare View All

TS9011DCYRM Overview

Fixed Positive LDO Regulator, 1.8V, 0.75V Dropout, CMOS, PSSO3, ROHS COMPLIANT, SOT-89, 3 PIN

TS9011DCYRM Parametric

Parameter Name	Attribute value
Maker	Taiwan Semiconductor
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
Maximum drop-back voltage 1	0.75 V
Maximum input voltage	3.8 V
Minimum input voltage	2.8 V
JESD-30 code	R-PSSO-F3
length	4.5 mm
Number of functions	1
Number of terminals	3
Working temperatureTJ-Max	150 °C
Operating temperatureTJ-Mi	-40 °C
Maximum output current 1	0.25 A
Maximum output voltage 1	1.83 V
Minimum output voltage 1	1.76 V
Nominal output voltage 1	1.8 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	1.6 mm
surface mount	YES
technology	CMOS
Terminal form	FLAT
Terminal pitch	1.5 mm
Terminal location	SINGLE
width	2.5 mm

Preview

Download Datasheet

View All

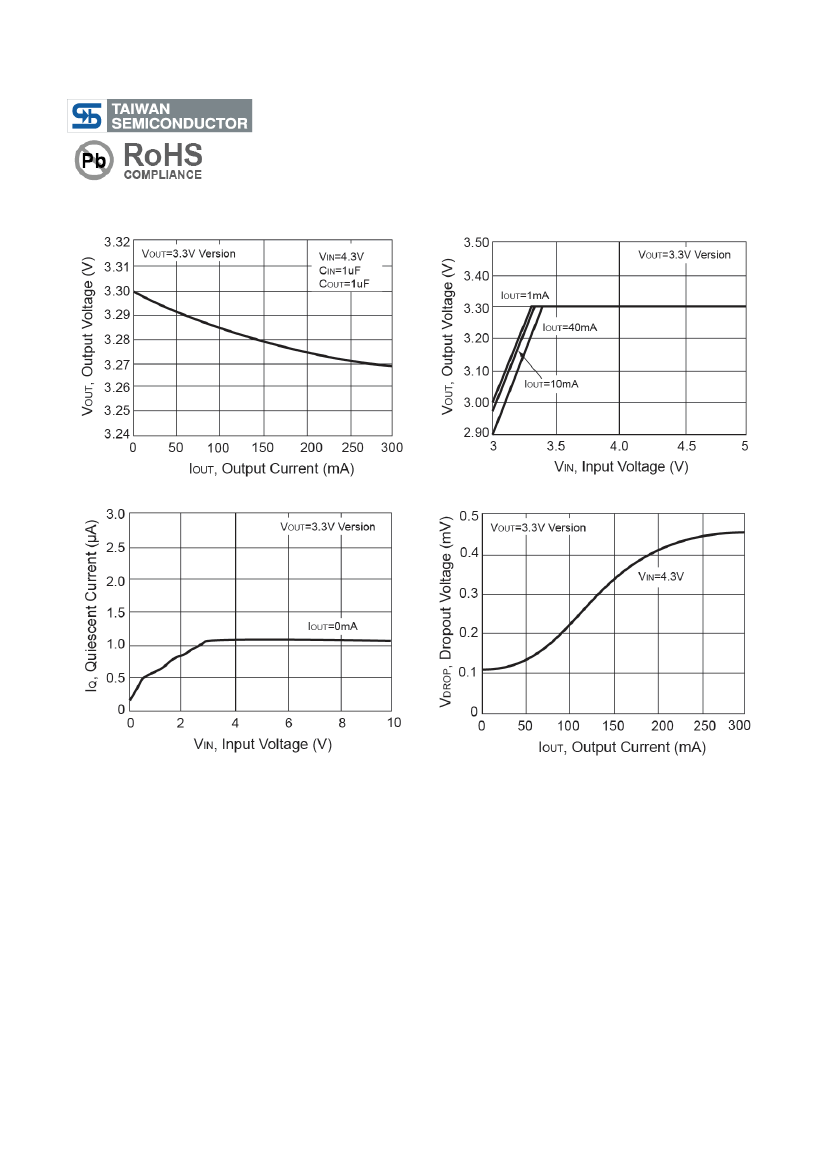

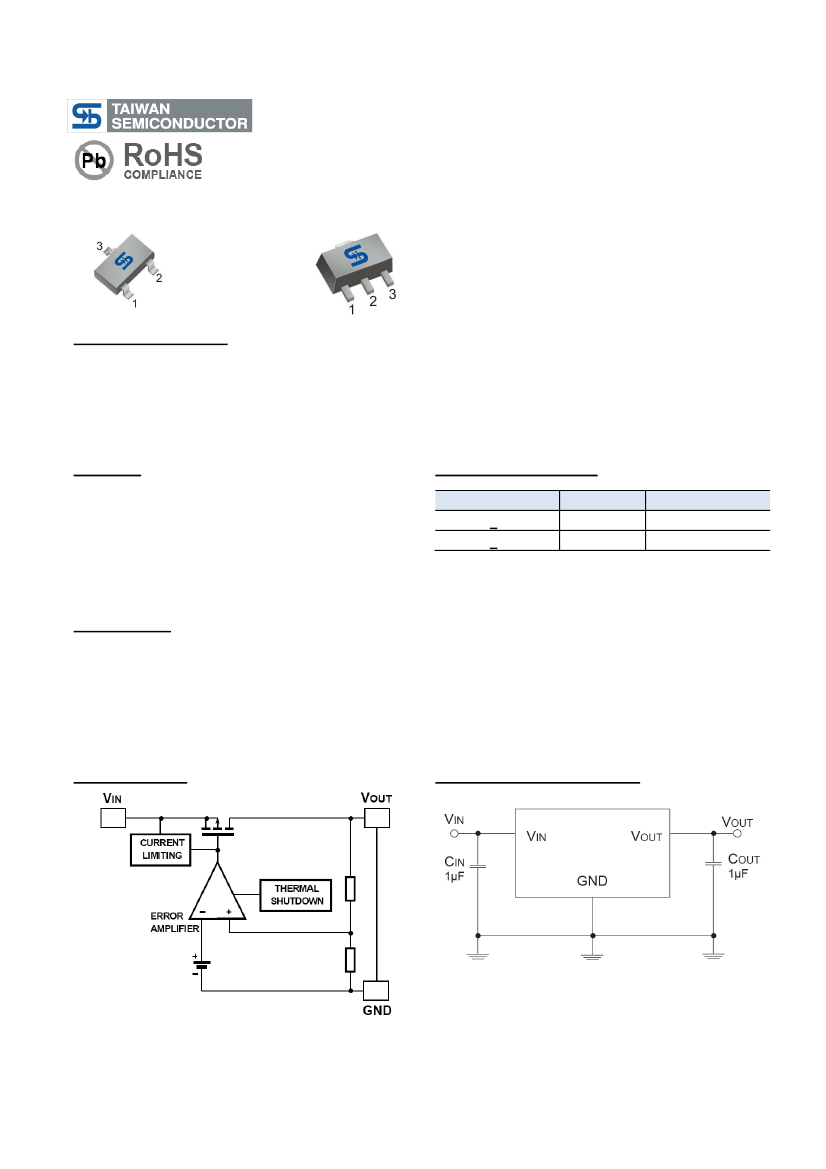

TS9011

250mA Low Quiescent Current CMOS LDO

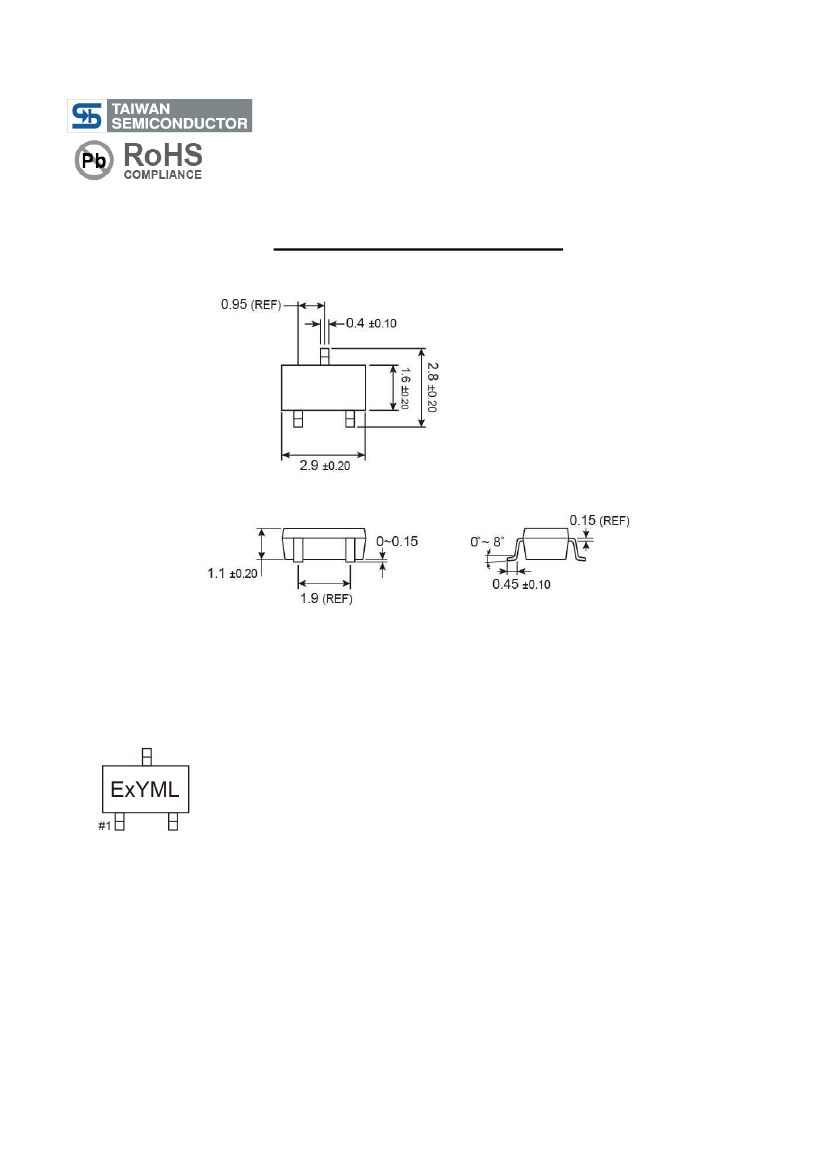

SOT-23

Pin Definition:

1. Ground

2. Output

3. Input

SOT-89

Pin Definition:

1. Ground

2. Input

3. Output

General Description

TS9011 is a positive voltage regulator developed utilizing CMOS technology featured very low power consumption,

low dropout voltage and high output voltage accuracy. Built in low on-resistor provides low dropout voltage and large

output current. A 1µF or greater can be used as an output capacitor. TS9011 are prevented device failure under the

worst operation condition with both thermal shutdown and current fold-back. These series are recommended for

configuring portable devices and large current application, respectively.

Features

●

Dropout Voltage 0.4V (typ) @ Io=250mA

Output Current up to 250mA

Low Power Consumption, 2µA (typ)

Output Voltage

±2%

Internal Current Limit

Thermal Shutdown Protection

Ordering Information

Part No.

Package

Packing

TS9011xCX RF

SOT-23

3kpcs / 7” Reel

TS9011xCY RM

SOT-89

1kpcs / 7” Reel

Note:

Refer to detail ordering information table.

Applications

●

Battery-operated systems

Microprocessor reset circuitry

Memory battery back-up circuits

Power-on reset circuits

Power failure detection

System battery life and charge voltage monitors

Block Diagram

Typical Application Circuit

Tantalum capacitor for Input & Output capacitor are

recommended

1/7

Version: F14

TS9011DCYRM Related Products

	TS9011DCYRM	TS9011KCXRF	TS90115CXRF	TS90115CYRM	TS9011SCYRM	TS9011SCXRF	TS9011DCXRF	TS9011KCYRM	TS9011PCYRM
Description	Fixed Positive LDO Regulator, 1.8V, 0.75V Dropout, CMOS, PSSO3, ROHS COMPLIANT, SOT-89, 3 PIN	Fixed Positive LDO Regulator, 2.5V, 0.7V Dropout, CMOS, PDSO3, ROHS COMPLIANT, SOT-23, 3 PIN	Fixed Positive LDO Regulator, 5V, 0.6V Dropout, CMOS, PDSO3, ROHS COMPLIANT, SOT-23, 3 PIN	Fixed Positive LDO Regulator, 5V, 0.6V Dropout, CMOS, PSSO3, ROHS COMPLIANT, SOT-89, 3 PIN	Fixed Positive LDO Regulator, 3.3V, 0.65V Dropout, CMOS, PSSO3, ROHS COMPLIANT, SOT-89, 3 PIN	Fixed Positive LDO Regulator, 3.3V, 0.65V Dropout, CMOS, PDSO3, ROHS COMPLIANT, SOT-23, 3 PIN	Fixed Positive LDO Regulator, 1.8V, 0.75V Dropout, CMOS, PDSO3, ROHS COMPLIANT, SOT-23, 3 PIN	Fixed Positive LDO Regulator, 2.5V, 0.7V Dropout, CMOS, PSSO3, ROHS COMPLIANT, SOT-89, 3 PIN	Fixed Positive LDO Regulator, 3V, 0.7V Dropout, CMOS, PSSO3, ROHS COMPLIANT, SOT-89, 3 PIN
Reach Compliance Code	compli	compliant	compliant	compliant	compliant	compliant	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum drop-back voltage 1	0.75 V	0.7 V	0.6 V	0.6 V	0.65 V	0.65 V	0.75 V	0.7 V	0.7 V
Maximum input voltage	3.8 V	4.5 V	7 V	7 V	5.3 V	5.3 V	3.8 V	4.5 V	5 V
Minimum input voltage	2.8 V	3.5 V	6 V	6 V	4.3 V	4.3 V	2.8 V	3.5 V	4 V
JESD-30 code	R-PSSO-F3	R-PDSO-G3	R-PDSO-G3	R-PSSO-F3	R-PSSO-F3	R-PDSO-G3	R-PDSO-G3	R-PSSO-F3	R-PSSO-F3
length	4.5 mm	2.95 mm	2.95 mm	4.5 mm	4.5 mm	2.95 mm	2.95 mm	4.5 mm	4.5 mm
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3	3
Working temperatureTJ-Max	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current 1	0.25 A	0.25 A	0.25 A	0.25 A	0.25 A	0.25 A	0.25 A	0.25 A	0.25 A
Maximum output voltage 1	1.83 V	2.55 V	5.1 V	5.1 V	3.36 V	3.36 V	1.83 V	2.55 V	3.06 V
Minimum output voltage 1	1.76 V	2.45 V	4.9 V	4.9 V	3.23 V	3.23 V	1.76 V	2.45 V	2.94 V
Nominal output voltage 1	1.8 V	2.5 V	5 V	5 V	3.3 V	3.3 V	1.8 V	2.5 V	3 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	1.6 mm	1.3 mm	1.3 mm	1.6 mm	1.6 mm	1.3 mm	1.3 mm	1.6 mm	1.6 mm
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	FLAT	GULL WING	GULL WING	FLAT	FLAT	GULL WING	GULL WING	FLAT	FLAT
Terminal pitch	1.5 mm	0.95 mm	0.95 mm	1.5 mm	1.5 mm	0.95 mm	0.95 mm	1.5 mm	1.5 mm
Terminal location	SINGLE	DUAL	DUAL	SINGLE	SINGLE	DUAL	DUAL	SINGLE	SINGLE
width	2.5 mm	1.55 mm	1.55 mm	2.5 mm	2.5 mm	1.55 mm	1.55 mm	2.5 mm	2.5 mm
Maker	Taiwan Semiconductor	-	Taiwan Semiconductor	Taiwan Semiconductor	Taiwan Semiconductor	Taiwan Semiconductor	Taiwan Semiconductor	Taiwan Semiconductor	Taiwan Semiconductor
Working temperature TJ-Min	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-	-	-
