Film Capacitors – Power Factor Correction
HomeCap Capacitors
Construction
Dielectric: Polypropylene film
Internally insulated, no grounding required
Soft polyurethane resin, non PCB (NPCB)
Aluminum can
B32340C....Jxxx
MKP
Features
Self-healing properties
Low dissipation factor
Overpressure disconnection device
High insulation resistance
Typical applications
Residential power factor correction unit
Mounting
Threaded stud at bottom of can
(max. torque for M12 = 10 Nm)

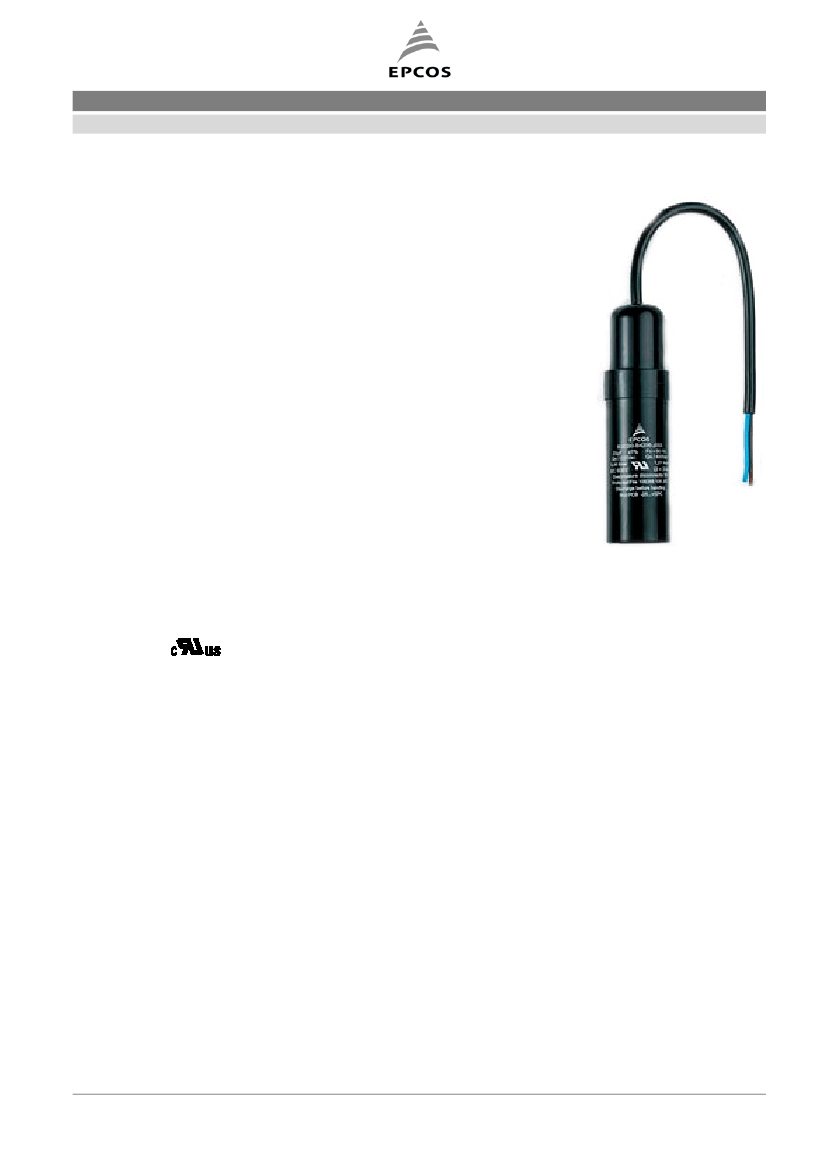

Product composition
Cable
Plastic terminal protection cover
Capacitor
file 106388
Cable
Cross section: 1.5 mm
2
(14AWG)
Length: 300 mm
Rated voltage: 600 V AC
Operation temperature: +105 ºC
Material: Electrolytic copper with PVC insulation
FILM PFC PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 10
November 2010
Film Capacitors – Power Factor Correction
HomeCap Capacitors
Technical data and specifications
Characteristics
Rated capacitance C
N
Tolerance
Connection
Rated voltage V
R
Rated frequency f
N
Output
Rated current I
R
tan
δ
0
(dielectric)
According to dimension table, 5 to 33 µF
–5 / +10%
Cables
400 V (application voltage 127 … 400 V)
50 Hz / 60 Hz
According to dimension table
0.02 … 1.66 kvar
According to power rating
0.5 W / kvar
B32340C....Jxxx
MKP
Maximum ratings
V
max
(up to 8 h daily)
V
max
(up to 1 min)
I
max
I
S
1.1
•
VR
1-3
•
VR
1.3
•
IR (A)
100
•
I
R
(A)
Test data
V
TT
V
TC
*tan
δ
(120 Hz) at 20 °C
* Without discharge resistor
2.15 x V
R
, 60 s (type test)
3000 V AC / 50 Hz during 60 s
≤
1.0 x 10
-3
Design data
Dimensions (d x h)
d1: 42.5 ± 1 mm
h: see product table
L1: 10 ± 1 mm
L2: 58 ± 1 mm
L3: 50 ± 5 mm
L4: 10 ± 2 mm
See product table
Non PCB, soft polyurethane resin
Al can stud or bracket
4 Nm
Any mounting position possible
Weight approx
Impregnation
Fixing
Max. torque (Al can stud)
Mounting position
FILM PFC PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 10
November 2010
Film Capacitors – Power Factor Correction
HomeCap Capacitors
B32340C....Jxxx
MKP
Mean life expectancy
t
LD
up to 100 000 hours
Max. 5000 switchings per year acc. to IEC 60831
Terminals
Protection degree
Terminal cross section
Maximum terminal current
Creepage distance (min)
Clearance (min)
IP53, indoor mounting
16 mm
2
15 A
12.7 mm
9.5 mm
Safety
Mechanical safety
Max. short circuit current
Overpressure disconnector
(AFC: 10 kA)
Climatic category –25/D
min
max
Storage temperature
Humidity
Maximum altitude
Degree of protection
–25 ºC
+55 ºC
–40 ºC….+85 ºC
av. rel. < 65%
4 000 m above sea level
IP 20
Reference standards
IEC 60831–1/2, UL 810-5th edition
Discharge resistors are available upon request. Discharge resistor time according to IEC specification for
specific types.
FILM PFC PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 10
November 2010
Film Capacitors – Power Factor Correction
HomeCap Capacitors
B32340C....Jxxx
MKP
C
R
μF
5
7
10
15
20
25
30
33
400 V AC
kvar
50 Hz
0.25
0.35
0.50
0.75
1.00
1.25
1.50
1.66
60 Hz
0.30
0.42
0.60
0.90
1.21
1.51
1.81
1.99
240 V AC
kvar
50 Hz
0.09
0.13
0.18
0.27
0.36
0.45
0.54
0.60
60 Hz
0.11
0.15
0.22
0.33
0.43
0.54
0.65
0.72
230 V AC
kvar
50 Hz
0.08
0.12
0.17
0.25
0.33
0.42
0.50
0.55
0.10
0.14
0.20
0.30
0.40
0.50
0.60
0.66
220 V AC
kvar
60 Hz 50 Hz
0.08
0.11
0.15
0.23
0.30
0.38
0.46
0.50
60 Hz
0.09
0.13
0.18
0.27
0.36
0.46
0.55
0.60
127 V AC
kvar
50 Hz
0.025
0.04
0.05
0.08
0.10
0.13
0.15
0.17
60 Hz
0.030
0.04
0.06
0.09
0.12
0.15
0.18
0.20
Dimensions
dxh
mm
40 x 70
40 x 70
40 x 70
40 x 80
40 x 105
40 x 105
40 x 125
40 x 125
Weight Ordering Code *
kg
0.15
0.15
0.15
0.16
0.18
0.18
0.20
0.20
B32340C4056J000
B32340C4076J000
B32340C4106J000
B32340C4156J000
B32340C4206J000
B32340C4256J000
B32340C4306J000
B32340C4336J000
*)Types of products range by code identity.
Without studs in the aluminum can, cable length 300 mm: Jxx0.
Without studs in the aluminum can, aluminum can with PVC cover 180 um thickness, cable length
300 mm: Jxx1.
Without studs in the aluminum can, cable length 500 mm: Jxx2.
Without studs in the aluminum can, aluminum can with PVC cover 180 um thickness, cable length
500 mm: Jxx3.
With studs in the aluminum can, cable length 300 mm: Jxx4.
With studs in the aluminum can, aluminum can with PVC cover 180 um thickness, cable length 300
mm: Jxx5.
With studs in the aluminum can, cable length 500 mm: Jxx6.
With studs in the aluminum can, aluminum can with PVC cover 180 um thickness, cable length 500
mm: Jxx7.
FILM PFC PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 10
November 2010
