CJS27556RK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> CJS27556RK

CJS27556RK: DescriptionFixed Resistor, Wire Wound, 275W, 56ohm, 3000V, 10% +/-Tol; CategoryPassive components The resistor; File Size115KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

CJS27556RK Overview

Fixed Resistor, Wire Wound, 275W, 56ohm, 3000V, 10% +/-Tol

CJS27556RK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	unknow
ECCN code	EAR99
structure	Aluminum Housing
Number of terminals	2
Package height	54.5 mm
Package length	200 mm
Package form	Chassis Mou
Package width	57.4 mm
Rated power dissipation(P)	275 W
resistance	56 Ω
Resistor type	FIXED RESISTOR
series	CJS
technology	WIRE WOUND
Tolerance	10%
Operating Voltage	3000 V

Preview

Download Datasheet

View All

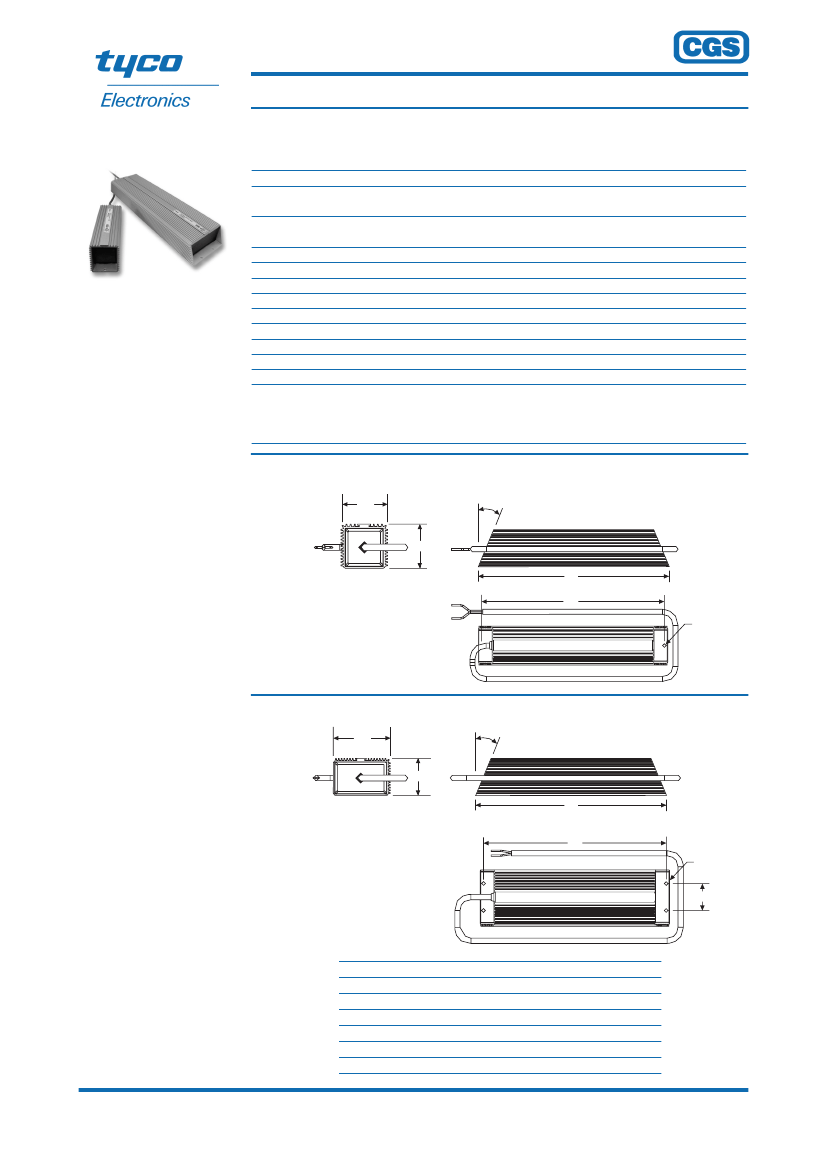

Aluminium Housed Power Resistor

Type CJS Series

Characteristics -

Electrical

CJS275

CJS300

CJS550

CJS600

CJS700

CJS1000

Dissipation at 25°C - With Heatsink (W):

275W

300W

550W

600W

700W

1000W

Without Heatsink:

175W

225W

325W

450W

525W

Ohimic Value - Min (Ω):

1R0

2R0

Max:

7k5

13k

26k

32k

36k

Maximum Working Voltage - DC/ACrms (Volts):

3kV

Dielectric Strength - AC peak (Volts):

5kV

3.5kV

Capacitance to Ground:

35pF

60pF

115pF

122pF

165pF

Insulation Resistance (Ω):

> 100M at 500V

Stability - % Resistance Change, 1000 hours (%):

<5%

Standard Heatsink:

Liquid Cooled (75˚C max) 0.24˚C/W

Weight (g):

990

1450

2125

2590

3675

Cable Length:

Mounting:

Vertical

Heat Dissipation:

Although the use of proprietary heat sinks with lower thermal

resistance is acceptable, up rating is not recommended. The use

of proprietary heat sink compound to improve

thermal conductivity is essential.

Tyco Electronics is the leading

European supplier of standard and

custom designed mineral insulated

resistors

for

general-purpose,

drives and controls.

The CJS is a mineral filled power

resistor

durable

aluminium

housing offering high performance

as a braking resistor for large

drives.

The high overload rating enables

the absorption of high-energy

pulses with a compact device.

A variety of terminations are

available

meet

customer

requirements including Faston,

terminals, butt splices etc.

Dimensions - CJS300 / CJS275

22.5°

57.4

54.5

Key Features

High Power Dissipation

•

Up to 1000W with a

heatsink, and 525W

without

Unsurpassed Pulse

Capability

•

Large active element

can absorb 18kJ

High Voltage Withstand

•

Reliability at 3kV

High Stability

•

Specify the CJS with

complete confidence

10 Times Overload Rating

•

A compact and cost

effective solution

FIXING HOLE CTRS

ø5.5 TYP

Dimensions - CJS1000 / CJS700 / CJS600 / CJS550

22.5°

83.5

51.9

FIXING HOLE CTRS

ø5.5 TYP

Applications

Braking

Capacitor Charging &

Discharging

Crowbar

Filter

Power Supplies

Electrical Machinery

Type

CJS275

CJS300

CJS550

CJS600

CJS700

CJS1000

–

280

340

400

–

270

330

390

200

280

–

190

270

–

40.0

Literature No. 1773309

Issued: 02-06

Dimensions are shown for

reference purposes only.

Dimensions are in millimetres

unless otherwise specified.

Specifications subject to

change.

www.tycoelectronics.com

passives.tycoelectronics.com
