TK11580MCMG Overview

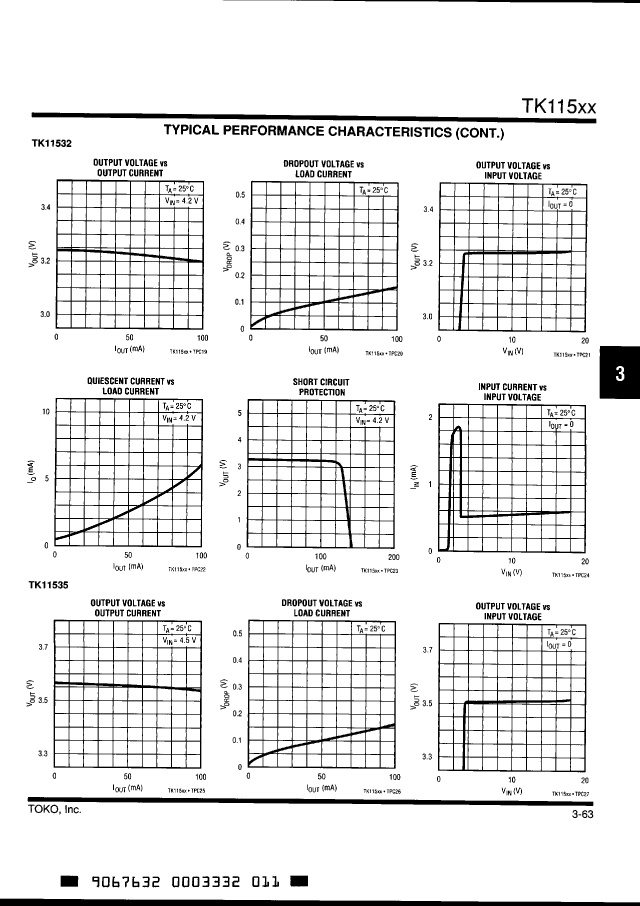

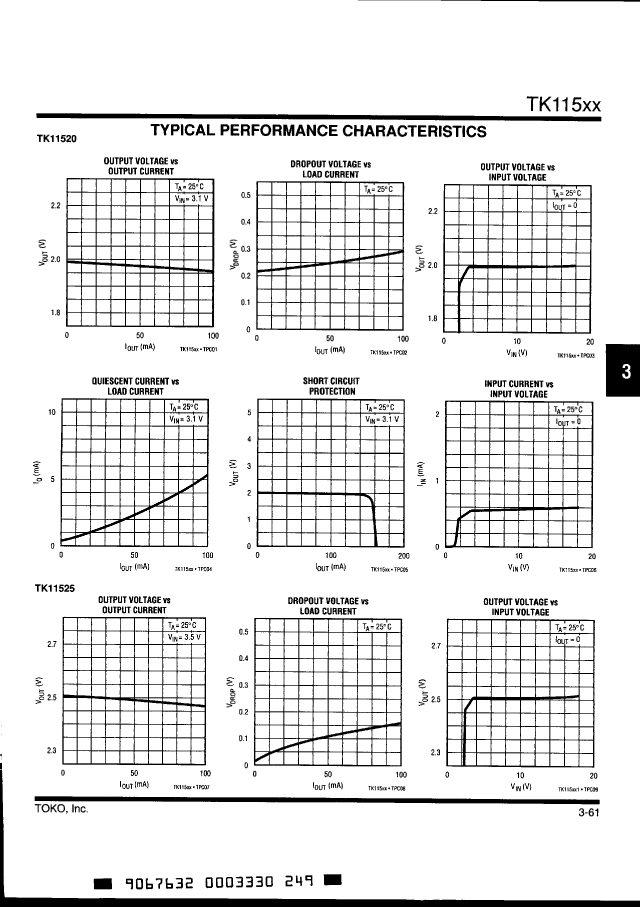

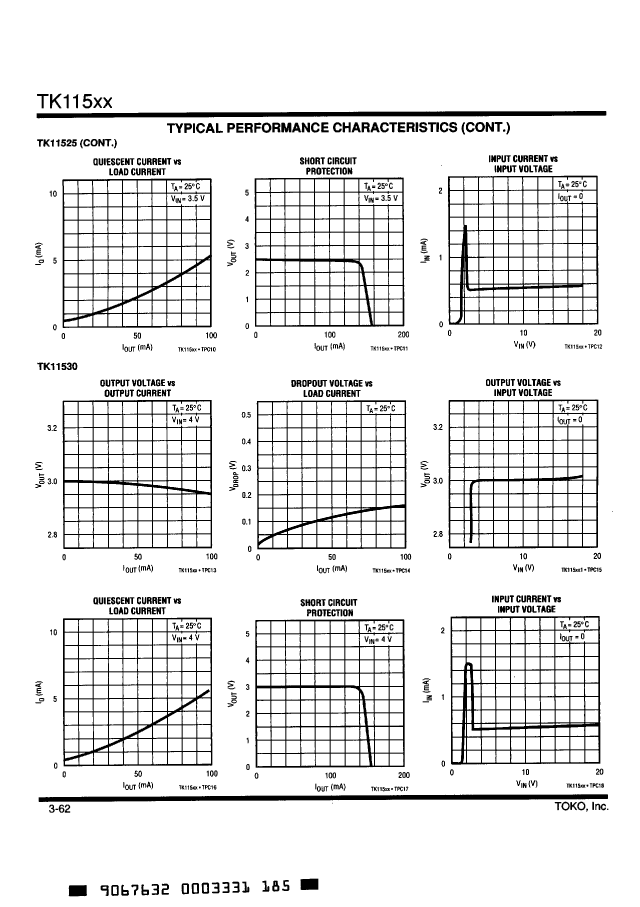

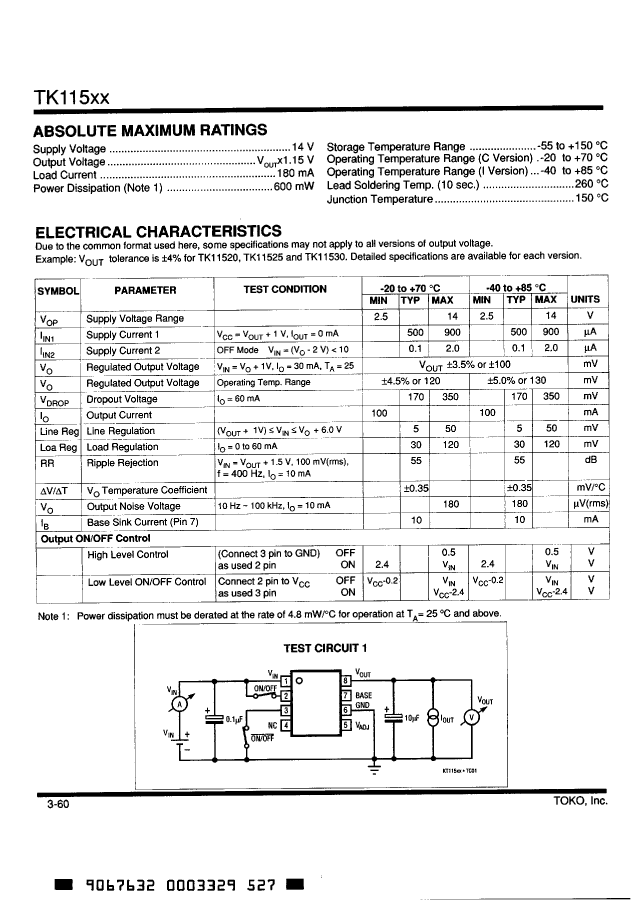

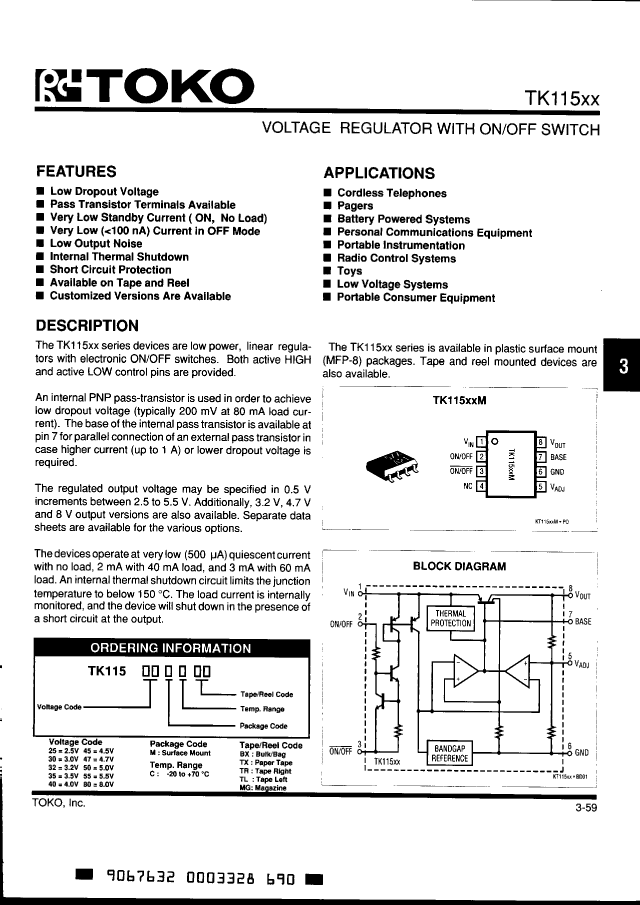

Fixed Positive LDO Regulator, 8V, 0.35V Dropout, PDSO8, PLASTIC, MFP-8

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TOKO, INC.
package instruction	PLASTIC, MFP-8
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum drop-back voltage 1	0.35 V
Maximum input voltage	14 V
Minimum input voltage	2.5 V
JESD-30 code	R-PDSO-G8
length	5 mm
Number of functions	1
Number of terminals	8
Working temperatureTJ-Max	150 °C
Maximum output voltage 1	8.36 V
Minimum output voltage 1	7.64 V
Nominal output voltage 1	8 V
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	1.7 mm
surface mount	YES
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	4.4 mm
