TC7SH04F/FU
TOSHIBA CMOS Digital Integrated Circuit
Silicon Monolithic
TC7SH04F, TC7SH04FU
INVERTER
TC7SH04F
Features
•
•
•
•
•
•
High Speed
Low power dissipation
High noise immunity
5.5-V tolerant input
Wide operating voltage range : V
CC
= 2 to 5.5V
Identical pin assignment and function with TC7S04
: t
pd
= 3.8ns (typ.)
at V
CC
= 5V, C
L
= 15pF
: I
CC
= 2
μA
(max) at Ta = 25°C
: V
NIH
= V
NIH
= 28% V
CC
(min)
TC7SH04FU
Absolute Maximum Ratings (Ta=25°C)
Characteristics
Supply voltage
DC input voltage
DC output voltage
Input diode current
Output diode current
DC output current
DC V
CC
/ground current
Power dissipation
Storage temperature
Lead Temperature (10s)
Symbol
V
CC
V
IN
V
OUT
I
IK
I
OK
I
OUT
I
CC
P
D
T
stg
TL
Rating
−0.5
to 7
−0.5
to 7
−0.5
to V
CC
+
0.5
−20
±20
(Note1)
±25
±50
200
−65
to 150
260
Unit
V
V
V
mA
mA
mA
mA
mW
°C
°C

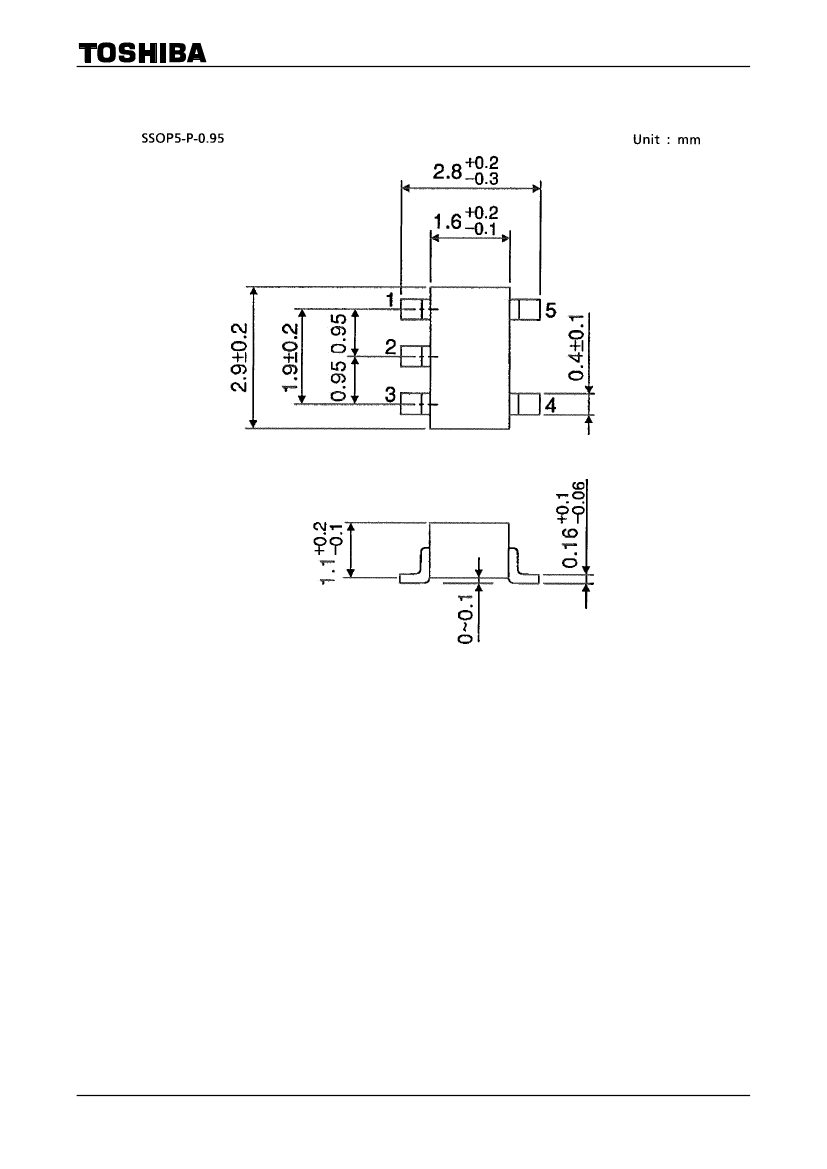

SSOP5-P-0.95

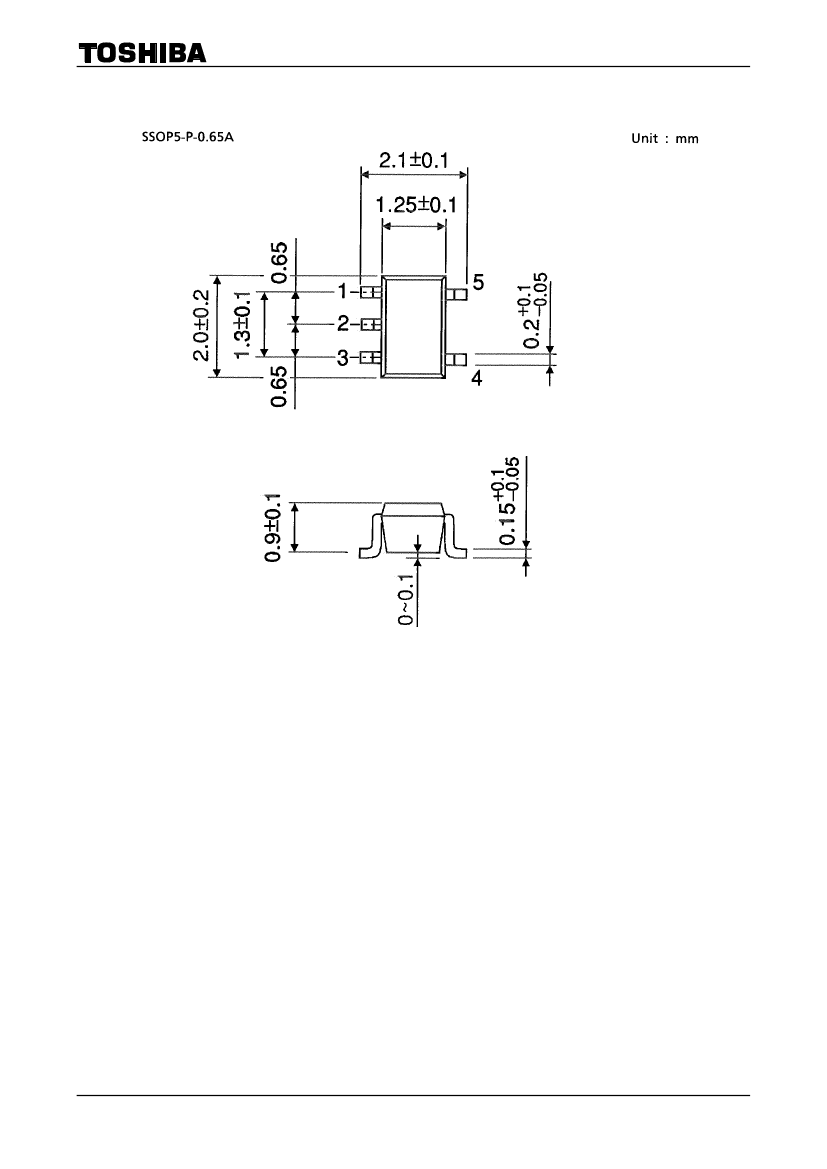

SSOP5-P-0.65A
: 0.016 g (typ.)
: 0.006 g (typ.)
Marking
Product Name
H
5
Pin Assignment (top view)
NC
1
5
V
CC
IN A
2
Note: Using continuously under heavy loads (e.g. the application of
4 OUT Y
GND 3
high temperature/current/voltage and the significant change in
temperature, etc.) may cause this product to decrease in the
reliability significantly even if the operating conditions (i.e.
operating temperature/current/voltage, etc.) are within the
absolute maximum ratings and the operating ranges.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
Note1: V
OUT
< GND, V
OUT
> V
CC
Start of commercial production
1993-09
1
2014-03-01
TC7SH04F/FU
AC Characteristics
(unless otherwise specified, input: t
r
=
t
f
=
3 ns)
Parameter
Symbol
Test Condition
V
CC
(V)
3.3
±
0.3
C
L (
pF)
15
50
15
50
Min
⎯
⎯
⎯
⎯
⎯
(Note 2)
⎯
Ta
=
25°C
Typ.
5.0
7.5
3.8
5.3
4
13
Max
7.1
10.6
5.5
7.5
10
⎯
Ta
= −40
to 85°C
Min
1.0
1.0
1.0
1.0
⎯
⎯
Max
8.5
12.0
6.5
8.5
10
⎯
pF
pF
ns
Unit
Propagation delay time
t
PLH
t
PHL
5.0
±
0.5
Input capacitance
Power dissipation capacitance
C
IN
C
PD
Note 2: C
PD
is defined as the value of the internal equivalent capacitance which is calculated from the operating
current consumption without load.
Average operating current can be obtained by the equation.
I
CC (opr)
=
C
PD
½V
CC
½f
IN
+
I
CC
INPUT EQUIVALENT CIRCUIT
INPUT
3
2014-03-01
