7486R200L.52GLF datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> 7486R200L.52GLF

7486R200L.52GLF: DescriptionPotentiometer, Wire Wound, 1.5W, 200ohm, 5% +/-Tol, 5 Turn(s), ROHS COMPLIANT; CategoryPassive components The resistor; File Size228KB，4 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Environmental Compliance

Download Datasheet Parametric View All

7486R200L.52GLF Overview

Potentiometer, Wire Wound, 1.5W, 200ohm, 5% +/-Tol, 5 Turn(s), ROHS COMPLIANT

7486R200L.52GLF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TT Electronics plc
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Actuator direction	HORIZONTAL
Actuator type	SHAFT
Other features	PRECISION
gang number	2
Installation features	CHASSIS MOUNT
Number of terminals	6
number of turns	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	CIRCULAR PACKAGE
Rated power dissipation(P)	1.5 W
Rated temperature	70 °C
resistance	200 Ω
resistance law	LINEAR
Resistor type	POTENTIOMETER
surface mount	NO
technology	WIRE WOUND
Terminal shape	LUG
Tolerance	5%

Preview

Download Datasheet

View All

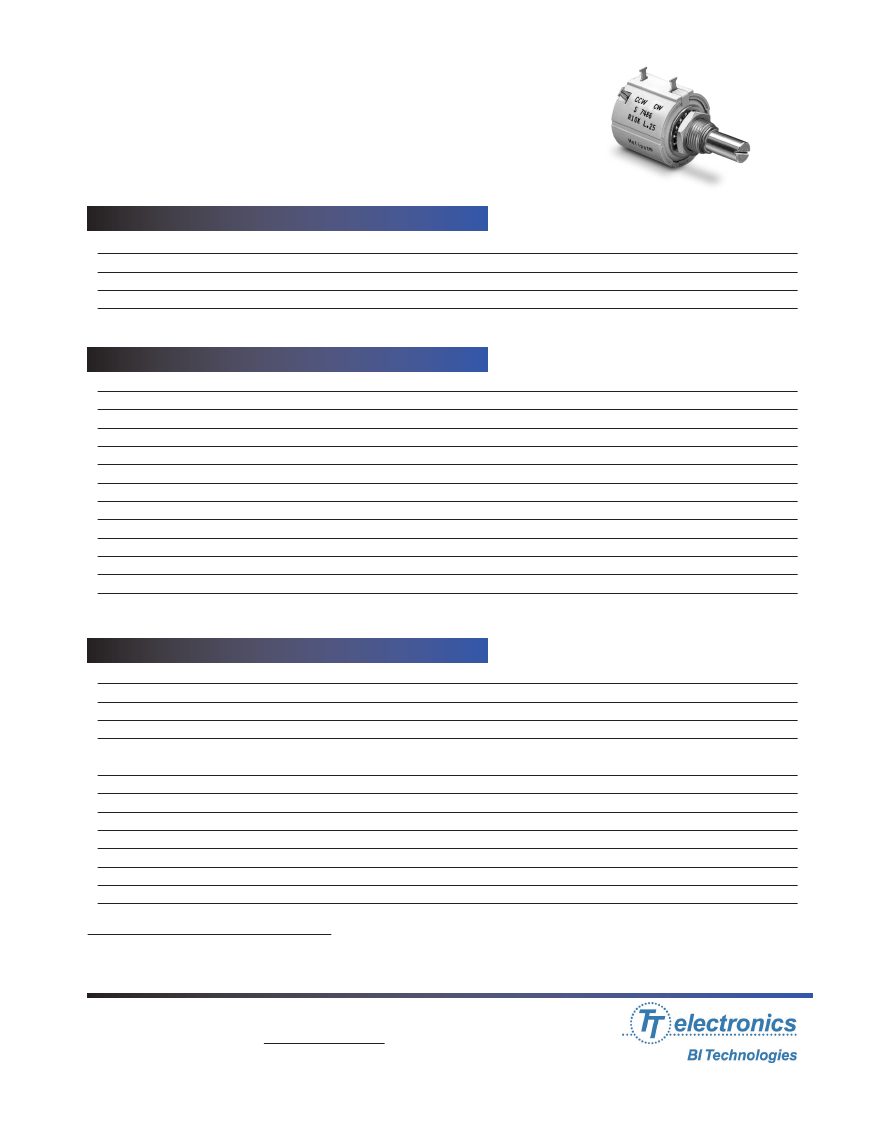

Model 7480

7/8” Diameter

5 Turn Wirewound

Precision Potentiometer

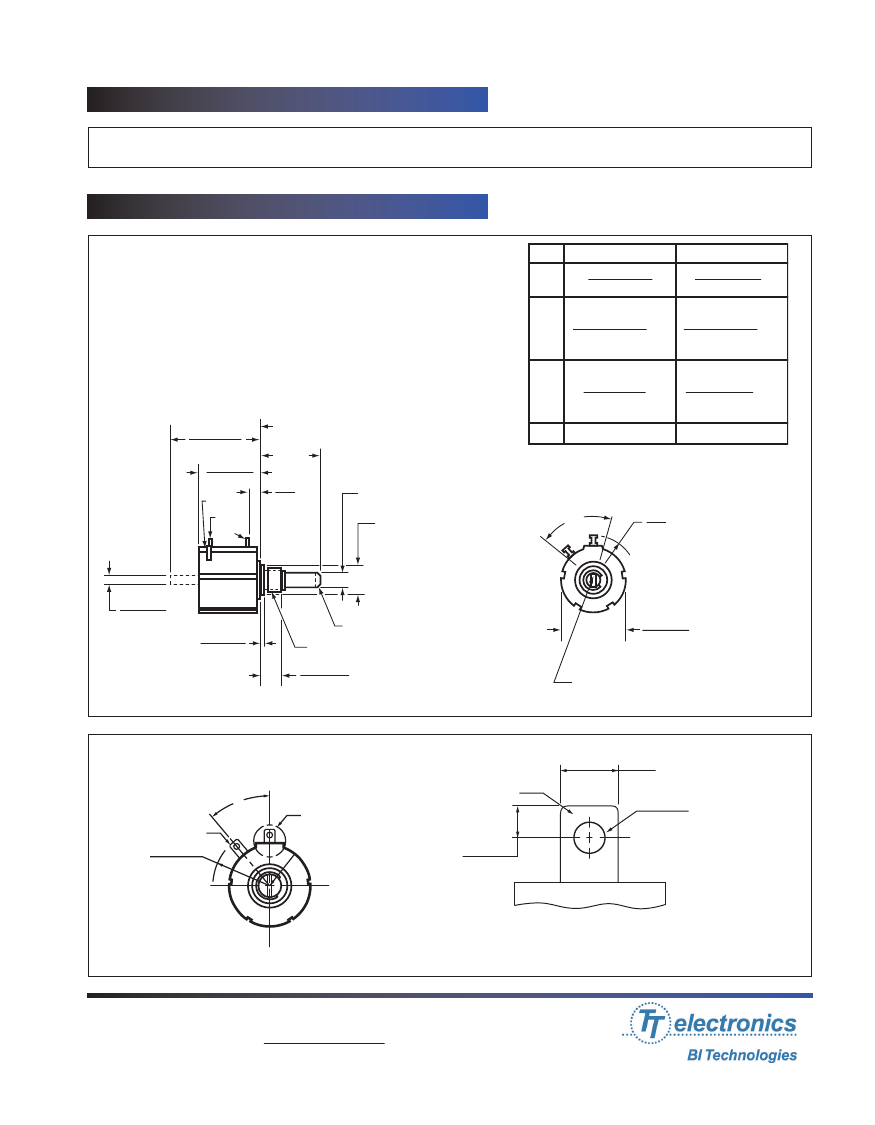

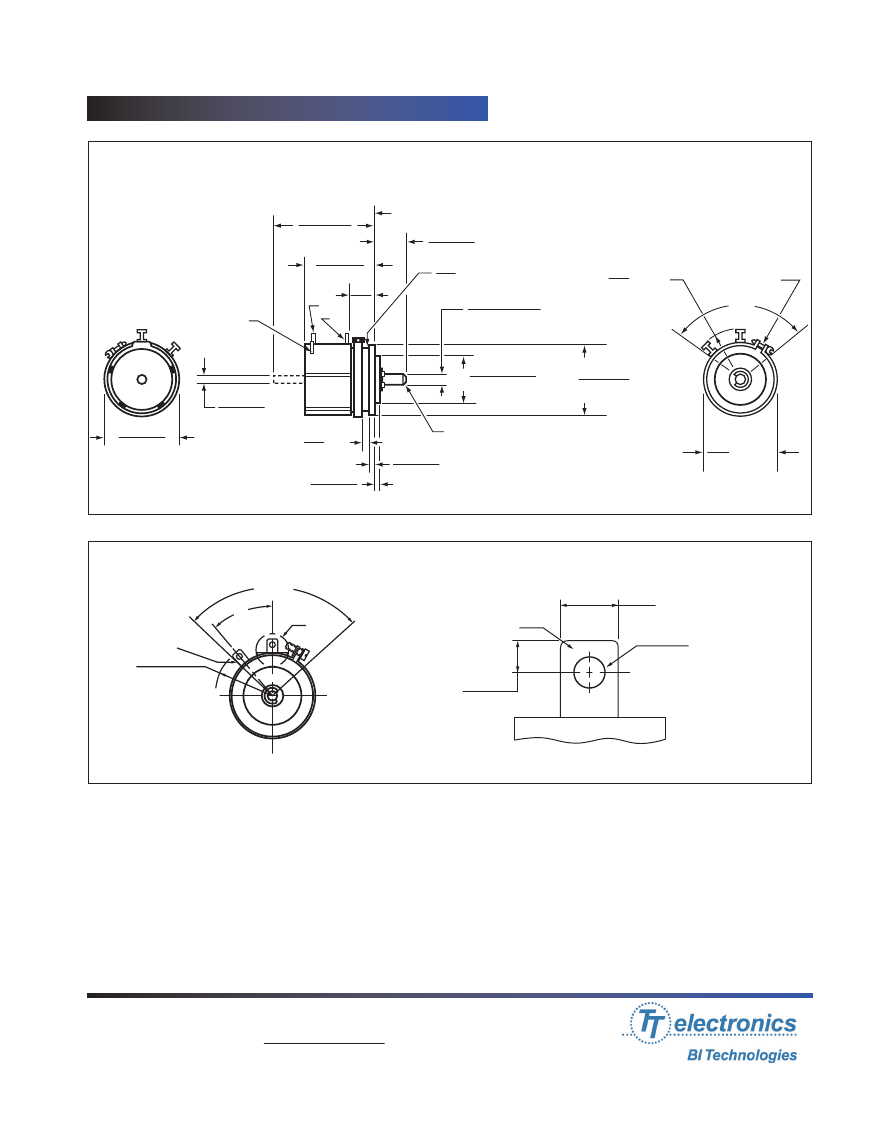

MODEL STYLES AVAILABLE

7481

7483

7486

7488 (for heavy side load applications)

1/8” Shaft, 1/4” Bushing

1/8” Shaft, Servo

1/4” Shaft, 3/8” Bushing

ELECTRICAL

Resistance Range

Standard Resistance Tolerance

Minimum Practical Resistance Tolerance

Independent Linearity

Minimum Practical Independent Linearity

Power Rating

Dielectric Strength

Insulation Resistance

Noise

Actual Electrical Travel

End Voltage

Tap Tolerance

100 to 50K ohms

±5%

±1%

±0.25%

±0.25% (<500 ohms), ±0.20% (≥500 ohms)

1.5 Watts at 70°C, derating to 0 at 125°C

1,000 V rms

1,000 Megohms minimum

100 ohms maximum

1800° +10° -0° (>100 ohms), 1800° +10° -5° (≤100 ohms)

maximum 0.25% of input voltage

±3°

MECHANICAL

Total Mechanical Travel

Number of Gangs

Weight (single gang)

Backlash

7481, 7486

Static Stop Strength

Panel Nut Tightening Torque

Shaft End Play

Shaft Runout

Pilot Diameter Runout

Lateral Runout

Shaft Radial Play

Start/Run Torque (per gang)

maximum

maximum T.I.R.

maximum

60 oz.-in.

25 lb.-in.

0.010”

0.003”

0.004”

0.005”

0.003”

1.2 oz.-in.

1800° +15° -0°

2 maximum

0.75 oz. nominal

1° maximum

7483

36 oz.-in.

n/a

0.005”

0.002”

0.004”

0.002”

0.9 oz.-in.

Specifications subject to change without notice.

Linearity is measured between 1% and 99% of input voltage.

BI Technologies Corporation

4200 Bonita Place, Fullerton, CA 92835 USA

Phone: 714 447 2345

August 24, 2012

Website: www.bitechnologies.com

Model 7480 page 1 of 4
