AA1704

Description
HIGH POWER LED DRIVER
File Size42KB,1 Pages
ManufacturerAgamem
Websitehttp://www.agamem.com.tw/eng/
Download Datasheet View All

AA1704 Overview

HIGH POWER LED DRIVER

Agamem Microelectronics Inc.
PRELIMINARY
AA1704
HIGH POWER LED DRIVER
„
DESCRIPTION
The AA1704 is a constant current driver to be applied on LED applications. It provides four regulated current ports
for maximum output current up to 360mA. Users may decide the output current by external resistor. In addition,
the LED brightness can be adjusted via
OE
. Build-in thermal protection can prevent the chip over heat damage.
„
FEATURES
• Constant output current sink for driving LEDs
• Adjustable output current controlled by external resistor
• Build-in thermal protection
• Schmitt trigger input
• 5V Supply voltage
• SOP8 package with thermal pad
„
APPLICATIONS
• High power LED driver
• RGB full color power LED driver
• LED table lamp
„

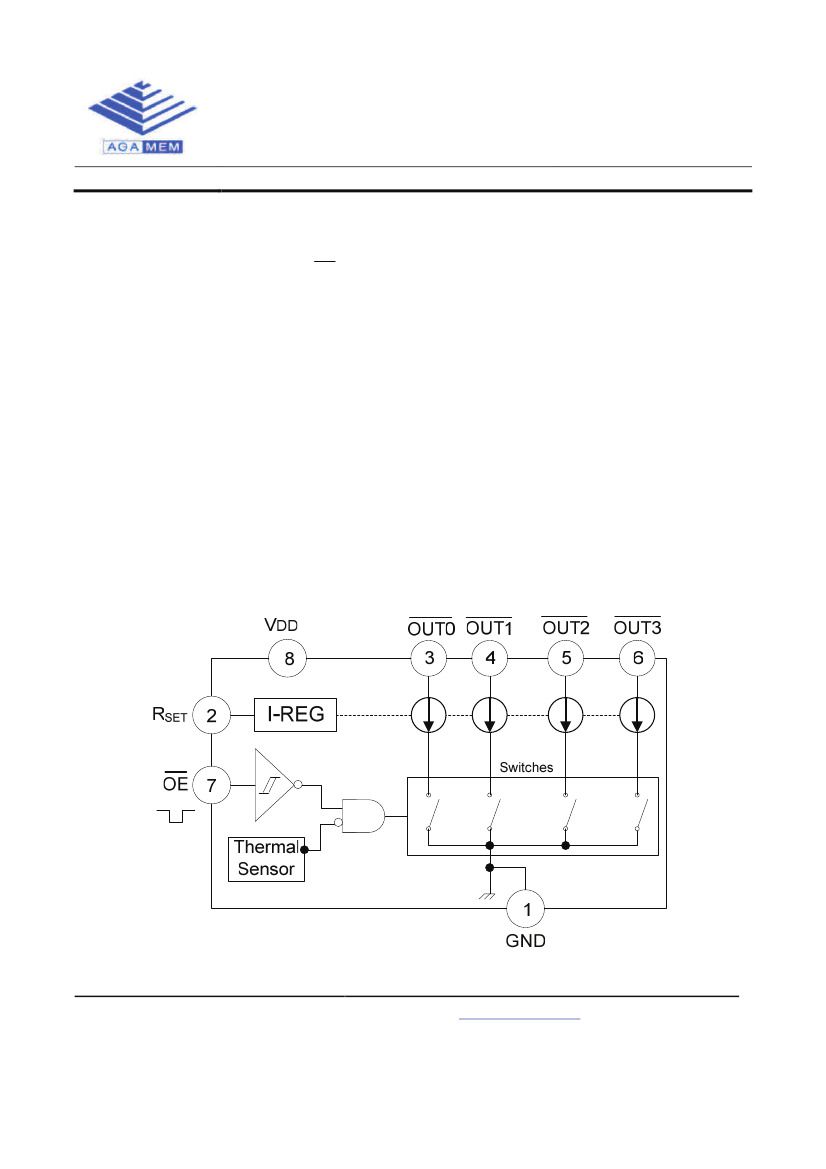

BLOCK DIAGRAM
©Copyright
Agamem Microelectronics Inc.
1
www.agamem.com.tw
2009/08/02
Ver 1.0
AGAMEM MICROELECTRONICS INCORPORATION RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO
ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. AGAMEM DOES NOT ASSUME ANY LIABILITY
ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCTS OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT CONVEY
ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
