GUS-TS20V-680-K-180-M datasheet, PDF

GUS-TS20V-680-K-180-M: DescriptionRC Network, Terminator, 68ohm, 0.000018uF, Surface Mount, 20 Pins, TSSOP; CategoryPassive components RC network; File Size150KB，2 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric View All

GUS-TS20V-680-K-180-M Overview

RC Network, Terminator, 68ohm, 0.000018uF, Surface Mount, 20 Pins, TSSOP

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	TT Electronics plc
package instruction	TSSOP
Reach Compliance Code	unknow
capacitance	0.000018 µF
Capacitor Negative Tolerance	20%
Capacitor positive tolerance	20%
The first element resistor	68 Ω
JESD-609 code	e0
Manufacturer's serial number	ACTERMINATOR
Installation features	SURFACE MOUNT
Network Type	TERMINATOR
Number of capacitor elements	18
Number of functions	1
Number of RC components	18
Number of resistor elements	18
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR; TUBE
Resistor tolerance	10%
Resistor temperature coefficient	100 ppm/°C
Resistor/Capacitor Network Type	RC NETWORK
surface mount	YES
technology	THIN FILM
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	GULL WING

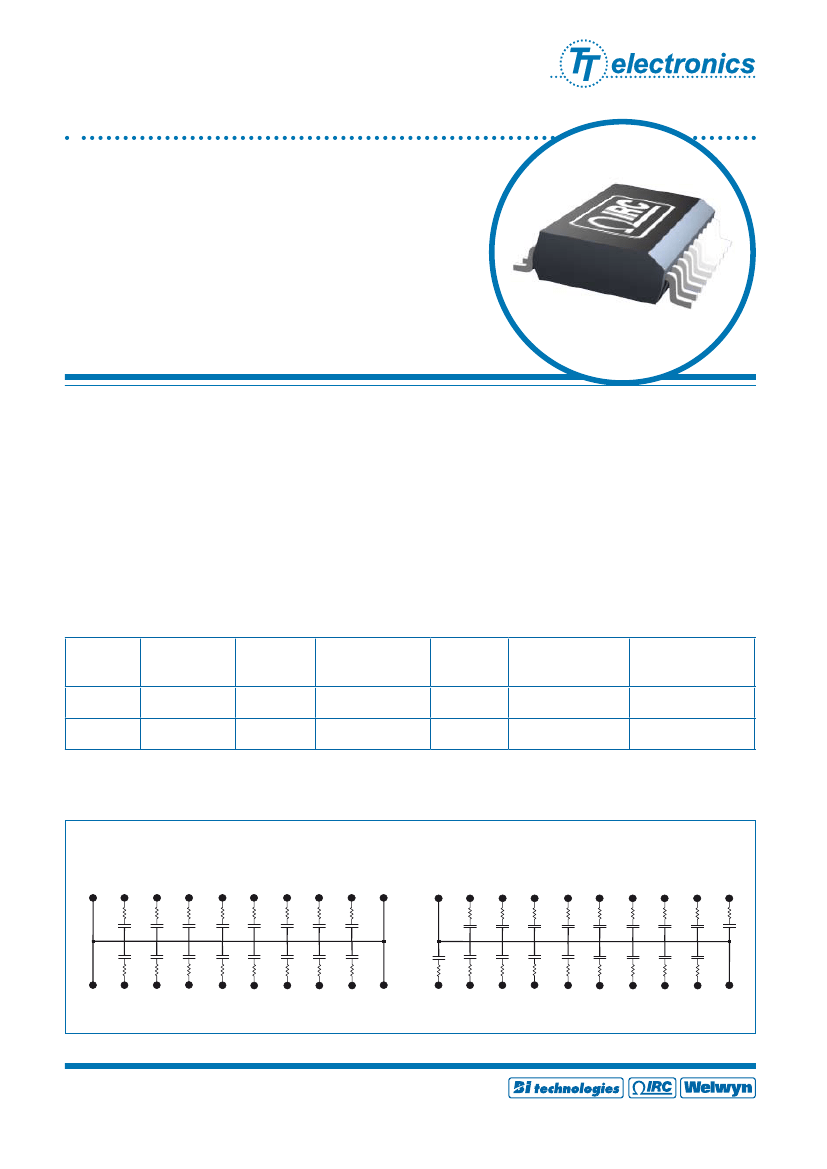

TaNCap

®

AC Line

Termination Network

AC Terminator Series

·

Improves signal quality

Reduces power dissipation

Highly integrated - replaces up to 36 discretes

RoHS compliant and Sn/Pb terminations available

Proven TaNCap® thin film technology in QSOP, SOIC,

and TSSOP packages

General Note

TT electronics reserves the right to make changes in product specification without notice or liability.

All information is subject to TT electronics’ own data and is considered accurate at time of going to print.

www.bitechnologies.com www.irctt.com www.welwyn-tt.com

09. 11
