LVC-LVC0805LF-R680-F datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> LVC-LVC0805LF-R680-F

LVC-LVC0805LF-R680-F: DescriptionFixed Resistor, 0.125W, 0.68ohm, 1% +/-Tol, -200,200ppm/Cel, 0805,; CategoryPassive components The resistor; File Size220KB，4 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

LVC-LVC0805LF-R680-F Overview

Fixed Resistor, 0.125W, 0.68ohm, 1% +/-Tol, -200,200ppm/Cel, 0805,

LVC-LVC0805LF-R680-F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TT Electronics plc
Reach Compliance Code	compli
ECCN code	EAR99
structure	Chi
JESD-609 code	e3
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.55 mm
Package length	2 mm
Package form	SMT
Package width	1.25 mm

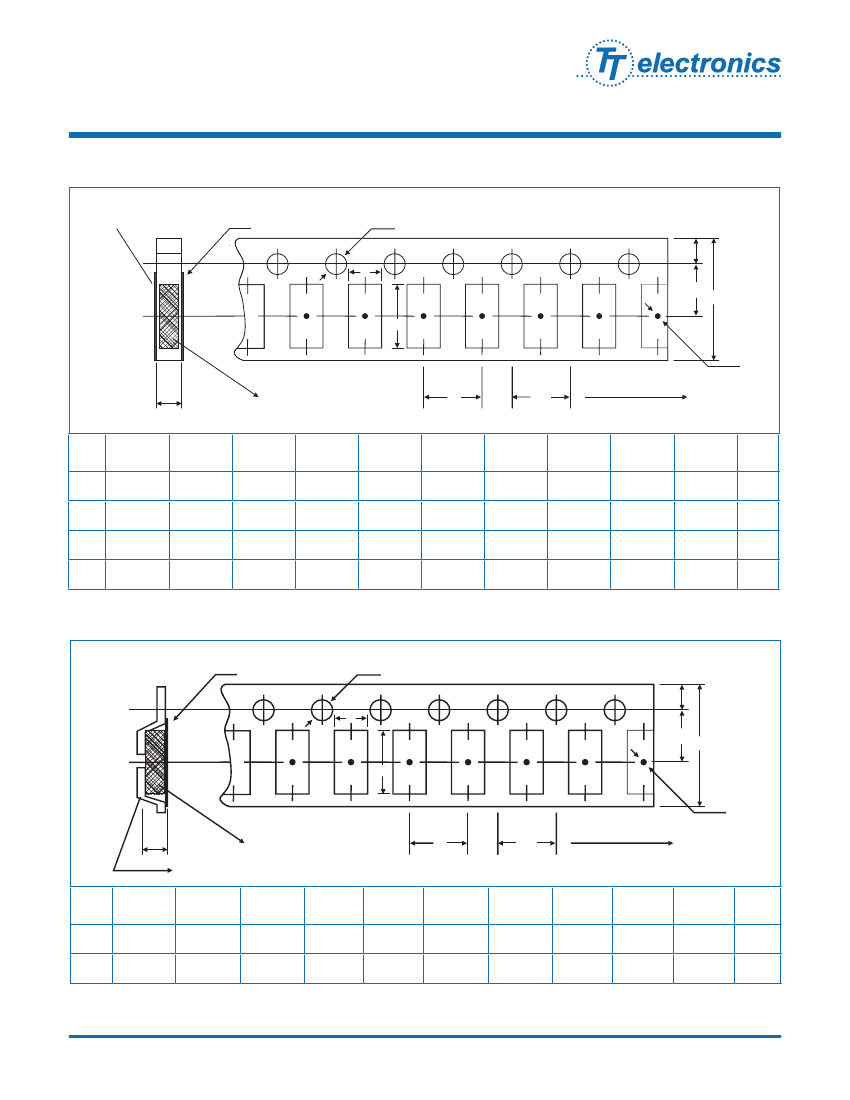

method of packing	TR
Rated power dissipation(P)	0.125 W
resistance	0.68 Ω
Resistor type	FIXED RESISTOR
series	LVC
size code	0805
Temperature Coefficient	-200,200 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie
Tolerance	1%

Preview

Download Datasheet

View All

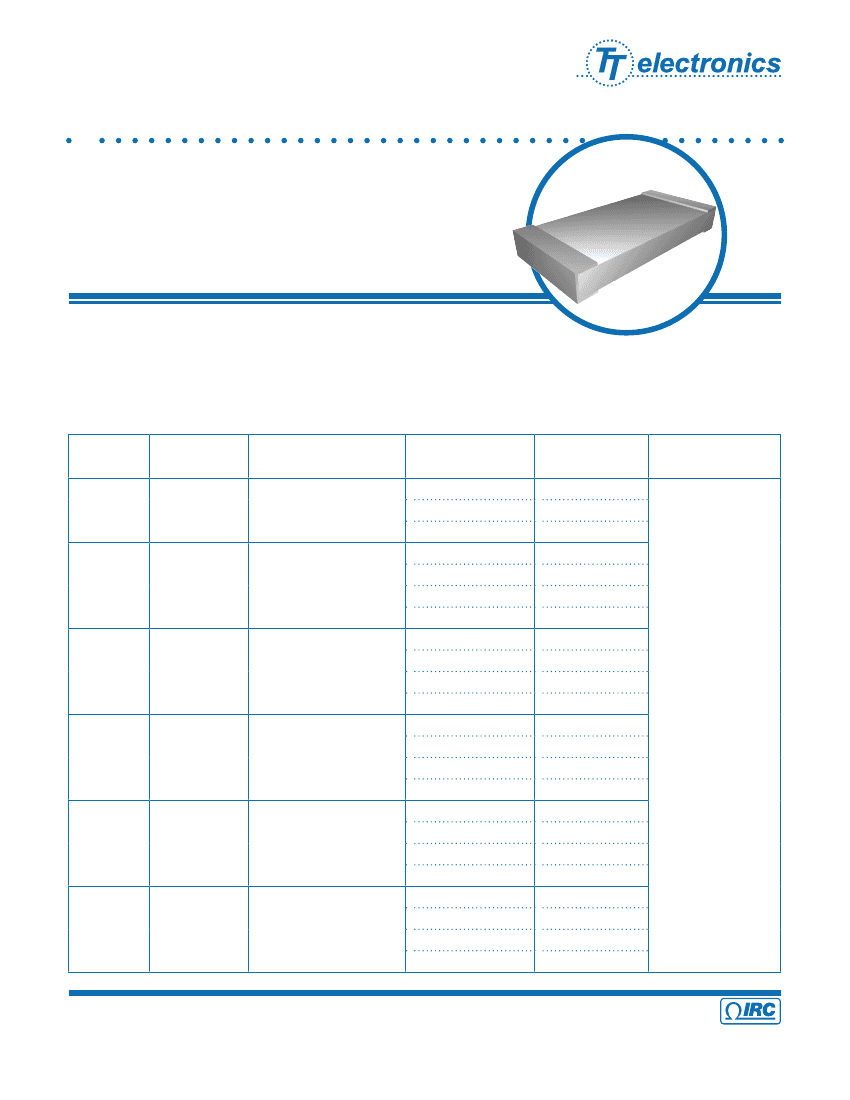

Miniature Current Sense

Surface Mount Chip Resistors

LVC Series

•

RoHS compliant

•

Tolerances to ±1%

•

Resistance range from 0.01Ω up to 1Ω

•

Available in 0402, 0603, 0805, 1206, 2010 and 2512 chip sizes

IRC’s new LVC miniature surface mount chip resistors combine small size

with precision tolerances for accurate current sense applications. Excellent

power handling capability, low TCR, low inductance and resistance tolerances to ±1% make the LVC series an

ideal choice for disk drive, computer power supply, and battery pack applications.

Electrical Data

Size

Power Rating at

70°C

Tolerance

Resistance Range*

50mΩ - 100mΩ

0402

62.5mW

1%, 2%, 5%

101Ω - 500mΩ

501mΩ - 1000mΩ

20mΩ - 50mΩ

0603

100mW

1%, 2%, 5%

51mΩ - 100mΩ

101mΩ - 500mΩ

501mΩ - 1000mΩ

20mΩ - 50mΩ

0805

125mW

1%, 2%, 5%

51mΩ - 100mΩ

101mΩ - 500mΩ

501mΩ - 1000mΩ

10mΩ - 20mΩ

1206

250mW

1%, 2%, 5%

21mΩ - 50mΩ

51mΩ - 500mΩ

501mΩ - 1000mΩ

10mΩ - 20mΩ

2010

750mW

1%, 2%, 5%

21mΩ - 50mΩ

51mΩ - 500mΩ

501mΩ - 1000mΩ

10mΩ - 20mΩ

2512

1000mW

1%, 2%, 5%

21mΩ - 50mΩ

51mΩ - 500mΩ

501mΩ - 1000mΩ

*Standard Values E24 Preferred

General Note

IRC reserves the right to make changes in product specification without notice or liability.

All information is subject to IRC’s own data and is considered accurate at time of going to print.

Absolute TCR

±400

±300

±600

±400

±300

±200

±600

±400

±300

±200

±600

±400

±300

±200

±600

±400

±300

±200

±600

±400

±300

±200

Operating

Temperature

-55°C to +155°C

Advanced Film Division

• 4222 South Staples Street • Corpus Christi Texas 78411 USA

Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com

A subsidiary of

TT electronics plc

LVC Series Issue July 2008

LVC-LVC0805LF-R680-F Related Products

	LVC-LVC0805LF-R680-F	LVC-LVC0402LF-R100-F	LVC-LVC0603LF-1R00-F	LVC-LVC0603LF-R500-F	LVC-LVC0603LF-R100-F
Description	Fixed Resistor, 0.125W, 0.68ohm, 1% +/-Tol, -200,200ppm/Cel, 0805,	Fixed Resistor, 0.0625W, 0.1ohm, 1% +/-Tol, -400,400ppm/Cel, 0402	Fixed Resistor, 0.1W, 1ohm, 1% +/-Tol, -200,200ppm/Cel, 0603	Fixed Resistor, 0.1W, 0.5ohm, 1% +/-Tol, -300,300ppm/Cel, 0603	Fixed Resistor, 0.1W, 0.1ohm, 1% +/-Tol, -400,400ppm/Cel, 0603
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	TT Electronics plc	TT Electronics plc	TT Electronics plc	TT Electronics plc	TT Electronics plc
Reach Compliance Code	compli	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
structure	Chi	Chip	Chip	Chip	Chip
JESD-609 code	e3	e3	e3	e3	e3
Number of terminals	2	2	2	2	2
Maximum operating temperature	155 °C	155 °C	155 °C	155 °C	155 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package height	0.55 mm	0.32 mm	0.45 mm	0.45 mm	0.45 mm
Package length	2 mm	1 mm	1.6 mm	1.6 mm	1.6 mm
Package form	SMT	SMT	SMT	SMT	SMT
Package width	1.25 mm	0.5 mm	0.8 mm	0.8 mm	0.8 mm
method of packing	TR	TR	TR	TR	TR
Rated power dissipation(P)	0.125 W	0.0625 W	0.1 W	0.1 W	0.1 W
resistance	0.68 Ω	0.1 Ω	1 Ω	0.5 Ω	0.1 Ω
Resistor type	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
series	LVC	LVC	LVC	LVC	LVC
size code	0805	0402	0603	0603	0603
Temperature Coefficient	-200,200 ppm/°C	-400,400 ppm/°C	-200,200 ppm/°C	-300,300 ppm/°C	-400,400 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier
Tolerance	1%	1%	1%	1%	1%
Is it lead-free?	-	Lead free	Lead free	Lead free	Lead free
Manufacturer's serial number	-	LVC	LVC	LVC	LVC
