PFC-W0603HT-01-1211-F datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> The resistor> PFC-W0603HT-01-1211-F

Preview

PFC-W0603HT-01-1211-F: DescriptionFixed Resistor, Thin Film, 0.0625W, 1210ohm, 33.3V, 1% +/-Tol, -100,100ppm/Cel, 0603,; CategoryPassive components The resistor; File Size385KB，2 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

PFC-W0603HT-01-1211-F Overview

Fixed Resistor, Thin Film, 0.0625W, 1210ohm, 33.3V, 1% +/-Tol, -100,100ppm/Cel, 0603,

PFC-W0603HT-01-1211-F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TT Electronics plc
Reach Compliance Code	compli
ECCN code	EAR99
structure	Chi
JESD-609 code	e4
Number of terminals	2
Maximum operating temperature	200 °C
Minimum operating temperature	-55 °C
Package height	0.508 mm
Package length	1.6 mm
Package form	SMT
Package width	0.787 mm
Rated power dissipation(P)	0.0625 W
resistance	1210 Ω
Resistor type	FIXED RESISTOR
series	PFC-HT
size code	0603
technology	THIN FILM
Temperature Coefficient	-100,100 ppm/°C
Terminal surface	Gold (Au)
Tolerance	1%
Operating Voltage	33.3 V

Preview

Download Datasheet

View All

High Temperature

TaNFilm

®

Chip Resistors

PFC HT Series

IRC Advanced Film Division

·

IRC Advanced Film Division

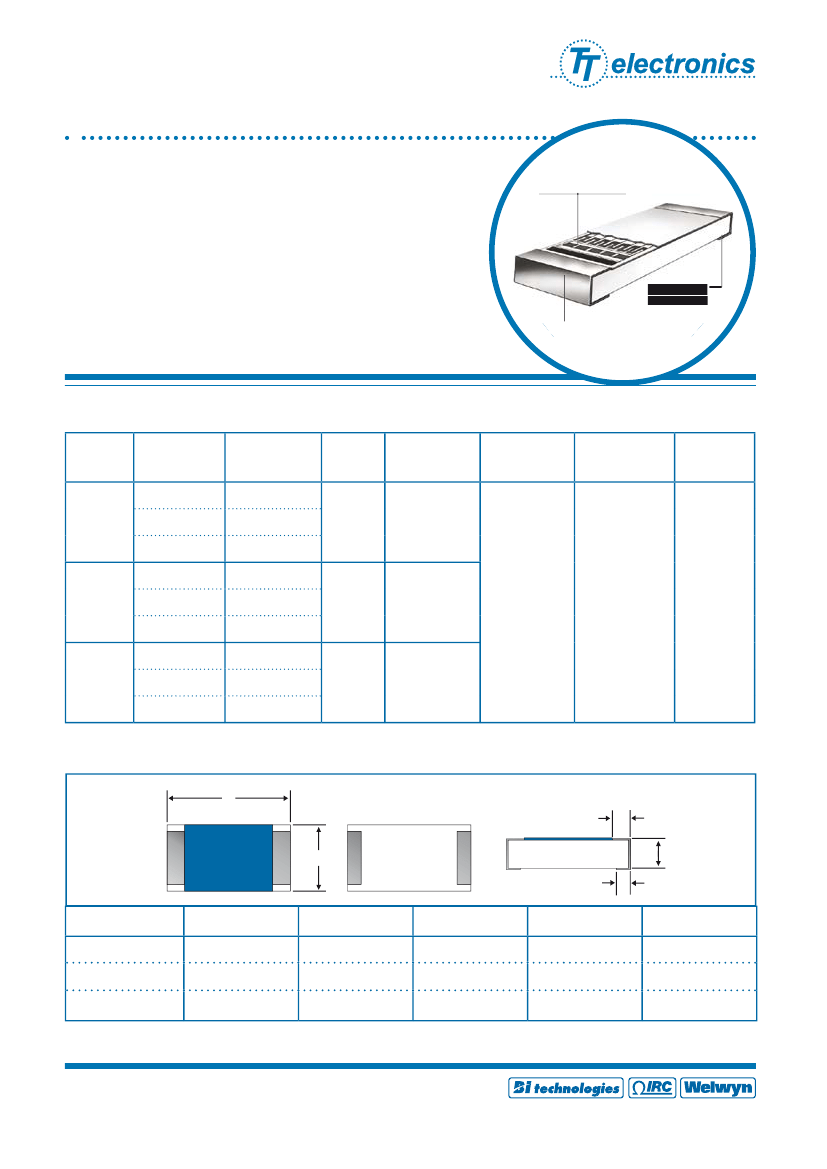

Available in industry standard 0603,

0805 and 1206 chip sizes

Gold and 100% tin (Pb-free) terminations available

Self-passivating TaNFilm® element

Absolute TCR to ±25ppm/°C

IRC reserves the right to make changes in product specification without notice or liability.

All information is subject to IRC’s own data and is considered accurate at time of going to print.

• Corpus Christi Texas 78411 USA

Telephone: 361 992 7900

the

Facsimile:

make changes in

Email: afdsales@irctt.com • Website: www.irctt.com

TT electronics reserves

•

right to

361 992 3377 •

product specification without notice or liability.

General Note

A subsidiary of

TT electronics plc

PFC Hi Temp Series Issue May 2005

All information is subject to TT electronics’ own data and is considered accurate at time of going to print.

www.bitechnologies.com www.irctt.com www.welwyn-tt.com

10. 11

PFC-W0603HT-01-1211-F Related Products

	PFC-W0603HT-01-1211-F	PFC-W1206HT-02-2550-F	PFC-W1206HTLF-02-9090-F	PFC-W0603HTLF-02-3900-J
Description	Fixed Resistor, Thin Film, 0.0625W, 1210ohm, 33.3V, 1% +/-Tol, -100,100ppm/Cel, 0603,	Fixed Resistor, Thin Film, 0.125W, 255ohm, 100V, 1% +/-Tol, -50,50ppm/Cel, 1206,	Fixed Resistor, Thin Film, 0.125W, 909ohm, 100V, 1% +/-Tol, -50,50ppm/Cel, 1206,	Fixed Resistor, Thin Film, 0.0625W, 390ohm, 33.3V, 5% +/-Tol, -50,50ppm/Cel, 0603,
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compli	compli	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
structure	Chi	Chi	Chi	Chip
JESD-609 code	e4	e4	e3	e3
Number of terminals	2	2	2	2
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package height	0.508 mm	0.609 mm	0.609 mm	0.508 mm
Package length	1.6 mm	3.2 mm	3.2 mm	1.6 mm
Package form	SMT	SMT	SMT	SMT
Package width	0.787 mm	1.6 mm	1.6 mm	0.787 mm
Rated power dissipation(P)	0.0625 W	0.125 W	0.125 W	0.0625 W
resistance	1210 Ω	255 Ω	909 Ω	390 Ω
Resistor type	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
series	PFC-HT	PFC-HT	PFC-HT	PFC-HT
size code	0603	1206	1206	0603
technology	THIN FILM	THIN FILM	THIN FILM	THIN FILM
Temperature Coefficient	-100,100 ppm/°C	-50,50 ppm/°C	-50,50 ppm/°C	-50,50 ppm/°C
Terminal surface	Gold (Au)	Gold (Au)	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrier
Tolerance	1%	1%	1%	5%
Operating Voltage	33.3 V	100 V	100 V	33.3 V
Maker	TT Electronics plc	TT Electronics plc	TT Electronics plc	-
