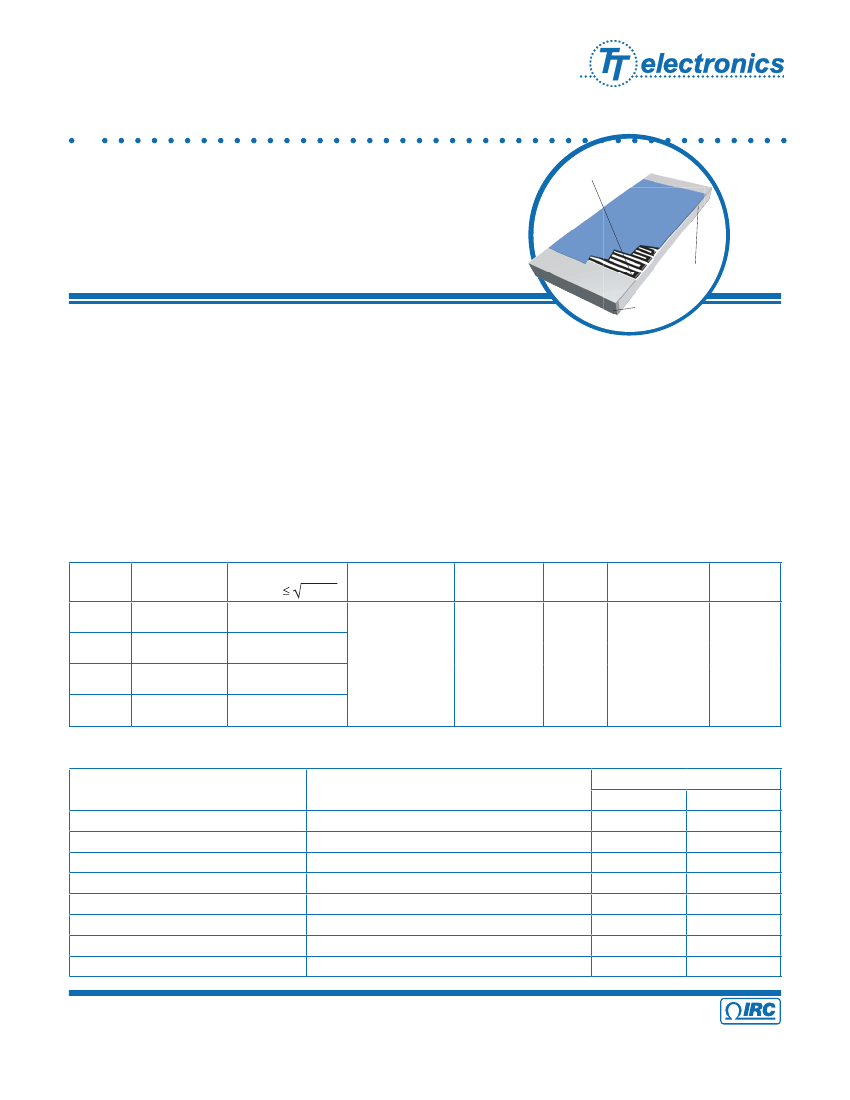

Precision Thin Film
Chip Resistors
PFC Series
•
Standard 60/40 Sn/Pb and Pb-free (RoHS compliant) terminations available
•
Available in 0402, 0603, 0805 and 1206
•
Tested for COTS applications
•
Absolute TCR to ±10ppm/°C
•
MIL screening available
•
Superior anti-sulfuration characteristics
IRC Advanced Film Division
Ultra stable Tantalum Nitride
resistor film system
Non-leaching
Nickel barrier
Wrap around
termination
The IRC TaNFilm
®
PFC chip resistor series provides the high precision and ultra stable performance of our
Tantalum Nitride resistive film system in 0402, 0603, 0805 and 1206 sizes. The unique characteristics of the
passivated Tantalum Nitride film ensure long term life stability and reliability in most environments.
Qualified for resistance to sulfur bearing gases, the PFC series is an excellent solution for automotive and
heavy equipment applications where precision, exceptional reliability with anti-sulfuration characteristics
is imperative.
Using the same manufacturing line as the PFC Military Series, IRC’s precision chips maintain the same supe
rior environmental performance. Specially selected materials and processes insure initial precision is main
tained in the harshest surface mount soldering environment. Wrap-around terminations with leach-resistant
nickel barriers insure high integrity solder connections.
Electrical Data
Model
W0402
W0603
W0805
W1206
Power Rating
(70°C)
50mW
100mW
250mW
333mW
Max Voltage
P x R)
Rating (
75V
75V
100V
200V
-65°C to +150°C
2KV to 4KV
(HBM)
<-25dB
100% matte tin
(RoHS
compliant)
plated over
nickel barrier
Temperature
Range
ESD
Sensitivity
Noise
Termination
Substrate
99.5%
Alumina
Environmental Data
Environmental Test
Sulfuration Test
Thermal Shock
Low Temperature Operation
Short Time Overload
High Temperature Exposure
Effects of Solder
Moisture Resistance
Life
General Note
Test Method
ASTM B-809 (Modified) 105°C Dry, 1000 Hours
MIL-PRF-55342
MIL-PRF-55342
MIL-PRF-55342
MIL-PRF-55342
MIL-PRF-55342
MIL-PRF-55342
MIL-PRF-55342
Performance
Typical
±0.02%
±0.02%
±0.01%
±0.01%
±0.03%
±0.01%
±0.03%
±0.03%
Maximum
±0.05%
±0.10%
±0.05%
±0.05%
±0.10%
±0.10%
±0.10%
±0.10%
IRC reserves the right to make changes in product speci cation without notice or liability .
All information is subject to IRC’s own data and is considered accurate at time of going to print.
© IRC Advanced Film Division
• Corpus Christi
Texas 78411 USA
Telephone:
361 992 7900 •
Facsimile:
361 992 3377 • Email: afdsales@irctt.com •
Website: www.irctt.com
A subsidiary of
TT electronics plc
PFC Series Issue August 2011 Sheet 1 of 4
Precision Thin Film
Chip Resistors
Manufacturing Capabilities Data
IRC Advanced Film Division
Tolerance
W0402
50Ω
±25, ±50 or ±100 ppm/°C
30K
Ω
Resistance Range
TCR
±5%, ±2%, ±1%, ±0.5%, ±0.1%, ±0.05%, ±0.02%
±5%, ±2%, ±1%, ±0.5%, ±0.1%, ±0.05%
±5%, ±2%, ±1%, ±0.5%, ±0.1%
W0603
W0805
W1206
5Ω
5Ω
5Ω
10Ω
10Ω
10Ω
50Ω
50Ω
50Ω
100Ω
100Ω
100Ω
200Ω
200Ω
200Ω
±50 or ±100 ppm/°C
±25 ppm/°C
±15 ppm/°C
±10 ppm/°C
TCR
50KΩ
100KΩ
400KΩ
75KΩ
180KΩ
650KΩ
100KΩ
267KΩ Resistance Range
1.0MΩ
Tolerance
© IRC Advanced Film Division
• Corpus Christi
Texas 78411 USA
Telephone:
361 992 7900 •
Facsimile:
361 992 3377 • Email: afdsales@irctt.com •
Website:
www.irctt.com
PFC Series Issue August 2011 Sheet 2 of 4
Precision Thin Film
Chip Resistors
Environmental Data
IRC Advanced Film Division
Performance
Environmental Test MIL-PRF-55342
Maximum R per Characteristic E
Typical
Thermal Shock
Low Temperature Operation
Short Time Overload
High Temperature Exposure
Effects of Solder
Moisture Resistance
Life
±0.10%
±0.10%
±0.10%
±0.10%
±0.20%
±0.20%
±0.50%
±0.02%
±0.01%
±0.01%
±0.03%
±0.01%
±0.03%
±0.03%
Maximum
±0.10%
±0.05%
±0.05%
±0.10%
±0.10%
±0.10%
±0.10%
Power Derating Curve
% Of Rated Power
Temperature ( °C)
© IRC Advanced Film Division
• Corpus Christi
Texas 78411 USA
Telephone:
361 992 7900 •
Facsimile:
361 992 3377 • Email: afdsales@irctt.com •
Website:
www.irctt.com
PFC Series Issue August 2011 Sheet 3 of 4
Precision Thin Film
Chip Resistors
Physical Data
L
IRC Advanced Film Division
a
TO P
W
BOTTOM
SIDE
b
H
Model
W0402
W0603
W0805
W1206
L
0.040" ±0.002
0.063" ±0.004
0.081" ±0.005
0.126" ±0.006
W
0.021" ±0.002
0.031" ±0.004
0.050" ±0.005
0.063" ±0.005
H
0.012" ±0.003
0.020" ±0.004
0.020" ±0.006
0.024" ±0.004
a
0.008" ±0.002
0.012" ±0.005
0.015" ±0.008
0.025" ±0.010
b
0.010" ±0.002
0.015" ±0.005
0.016" ±0.008
0.025" ±0.010
MIL Screened Precision Chip Resistors
IRC’s PFC chip resistors are available with MIL screening. These chips are manufactured on the same production line as our Mil-
qualified chip resistors and screened in accordance with MIL-PRF-55342.
These chips are identified with IRC’s ordering information and not with MIL marking.
Commercial
Ordering Data
Prefix
Model
PFC - W1206 R - 01 - 1001 - B
W0402; 0603; W0805; W1206
Mil Screened
Ordering Data*
Prefix
Model
PFC - W1206 R - 04 - 1001 - B
W0402; W0603; W0805; W1206
Anti-Sulfuriation
Ordering Data
Prefix
Model
PFC - W1206 ASLF - 01 - 1001 - B
W0402; 0603; W0805; W1206
Termination
R = 60/40 Sn/Pb plated solder
LF = 100% tin plated (Pb-free)
Termination
R = 60/40 Sn/Pb plated solder
Termination
ASLF = Anti-sulfuriation chip resistor with
100% matte tin finish (Pb-free) terminations
MIL-Screened TCR Code
TCR Code
01 = ±100ppm/°C; 02 = ±50ppm/°C; 03 = ±25ppm/°C
11 = ±15ppm/°C; 12 = ±10ppm/°C
04 = ±300ppm/°C; 05 = ±100ppm/°C;
06 = ±50ppm/°C; 07 = ±25ppm/°C
14 = ±20ppm/°C; 15 = ±15ppm/°C
16 = ±10ppm/°C
TCR Code
01 = ±100ppm/°C; 02 = ±50ppm/°C; 03 = ±25ppm/°C
11 = ±15ppm/°C; 12 = ±10ppm/°C
Resistance Code
4-Digit resistance code.
Ex: 10R0 = 10Ω
; 1000 = 100Ω
1001 = 1000Ω; 1002 = 10K
Ω
Resistance Code
Resistance Code
4-Digit resistance code.
Ex: 10R0 = 10Ω
; 1000 = 100Ω
1001 = 1000Ω; 1002 = 10K
Ω
4-Digit resistance code.
Ex: 10R0 = 10Ω
; 1000 = 100Ω
1001 = 1000Ω; 1002 = 10K
Ω
Tolerance Code
J = ±5%; G = ±2%; F = ±1%; D = ±0.5%
B = ±0.1%; A = ±0.05%; Q = ±0.02%
For
additional information or to discuss your specific requirements,
please contact our Applications
Team
using the contact details below.
Tolerance Code
Tolerance Code
J = ±5%; G = ±2%; F = ±1%; D = ±0.5%
B = ±0.1%; A = ±0.05%
For
additional information or to discuss your specific requirements,
please contact our Applications
Team
using the contact details below.
J = ±5%; G = ±2%; F = ±1%; D = ±0.5%
B = ±0.1%; A = ±0.05%; Q = ±0.02%
*Please refer to our MIL-Chip Series datasheet to order
parts qualified to MIL-PRF-55342.
© IRC Advanced Film Division
• Corpus Christi
Texas 78411 USA
Telephone:
361 992 7900 •
Facsimile:
361 992 3377 • Email: afdsales@irctt.com •
Website:
www.irctt.com
PFC Series Issue August 2011 Sheet 4 of 4
