SENSITRON
SEMICONDUCTOR
TECHNICAL DATA
DATA SHEET 874, REV. -
JAN
JANTX
JANTXV
1N5614
1N5616
1N5618
1N5620
1N5622
HERMETIC AXIAL LEAD / MELF
GENERAL PURPOSE RECTIFIER
DESCRIPTION: A 200/400/600/800/1000 VOLT, 1.0 AMP, AXIAL LEAD/SURFACE MOUNT
2000 NS GLASS RECTIFIER.
MAXIMUM RATINGS
RATING
Peak Inverse Voltage
(PIV)
1N5614
1N5616
1N5618
1N5620
1N5622
Average DC Output
Current (I
o
) T
C
= 55
°C
T
C
= 100
°C
Peak Single Cycle Surge
Current (I
fsm
)
t
p
= 8.3 ms Single
Half Cycle Sine
Wave,
Superimposed On
Rated Load
Junction to Lead
d = 0.375”
Junction to Endcap
-
CONDITIONS
All ratings are at T
A
= 25
o
C unless otherwise specified.
MIN
-
TYP
-
200
400
600
800
1000
-
-
1.0
0.75
-
-
30
Amps(pk)
Amps
MAX
UNIT
Vdc
Thermal Resistance (
θJL
)
Thermal Resistance (θ
JEC
)
Operating and Storage
Temp. (T
op
& T
stg
)
-
-
-65
-
-
-
38
7.0
+175
°C/W
°C/W
°C
ELECTRICAL CHARACTERISTICS
CHARACTERISTIC
Maximum Forward
Voltage (V
f
)
Maximum Instantaneous
Reverse Current At Rated
(PIV)
Maximum Reverse
Recovery Time
CONDITIONS
I
F
= 3.0A (300
µsec
pulse, duty cycle <
2%)
T
A
= 25° C
T
A
= 100° C
I
F
= 0.5A, I
R
= 1.0A
I
RR
= 0.25A
MIN
-
TYP
-
MAX
1.3
UNIT
Volts
-
-
0.5
25
2000
µAmps
µAmps
ns
-
-
•
221 West Industry Court Deer Park, NY 11729-4681 Phone (631) 586 7600 Fax (631) 242 9798
•
•
World Wide Web - www.sensitron.com
•
E-mail Address - sales@sensitron.com
•
SENSITRON
TECHNICAL DATA
DATA SHEET 874, REV. -
JAN
JANTX
JANTXV
1N5614
1N5616
1N5618
1N5620
1N5622

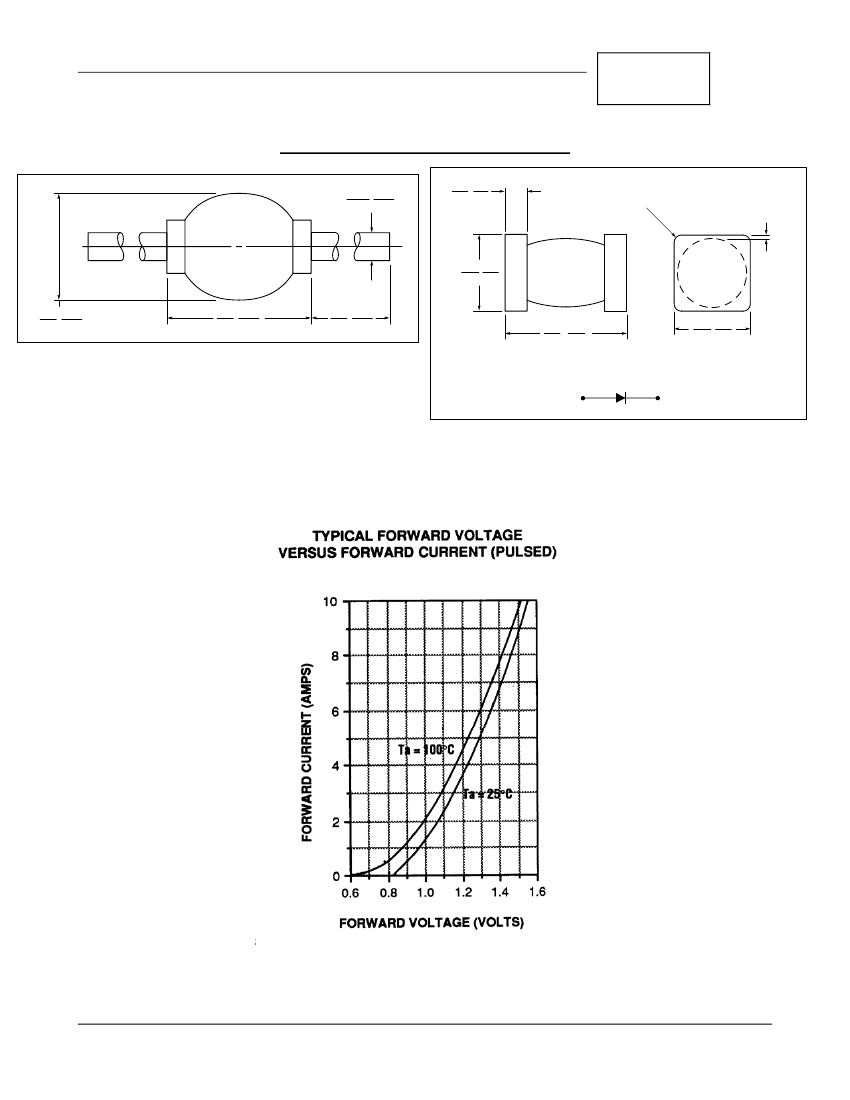

MECHANICAL DIMENSIONS: in inches / mm
.028 (.72
.019 .48)
0.033 (.84
0.026 .66)
0.20 R Max
(5.08)
.003 Min
(.076)
.128 (3.8
.091 3.4)
.110 (2.79
.065 1.65)
.225 (5.72
.130 3.30)
1.30 (33.0
1.00 25.4)
.230 (5.9
.168 4.2)
.128 (3.8
.091 3.4 )
PKG. 102
MELF-1
•
