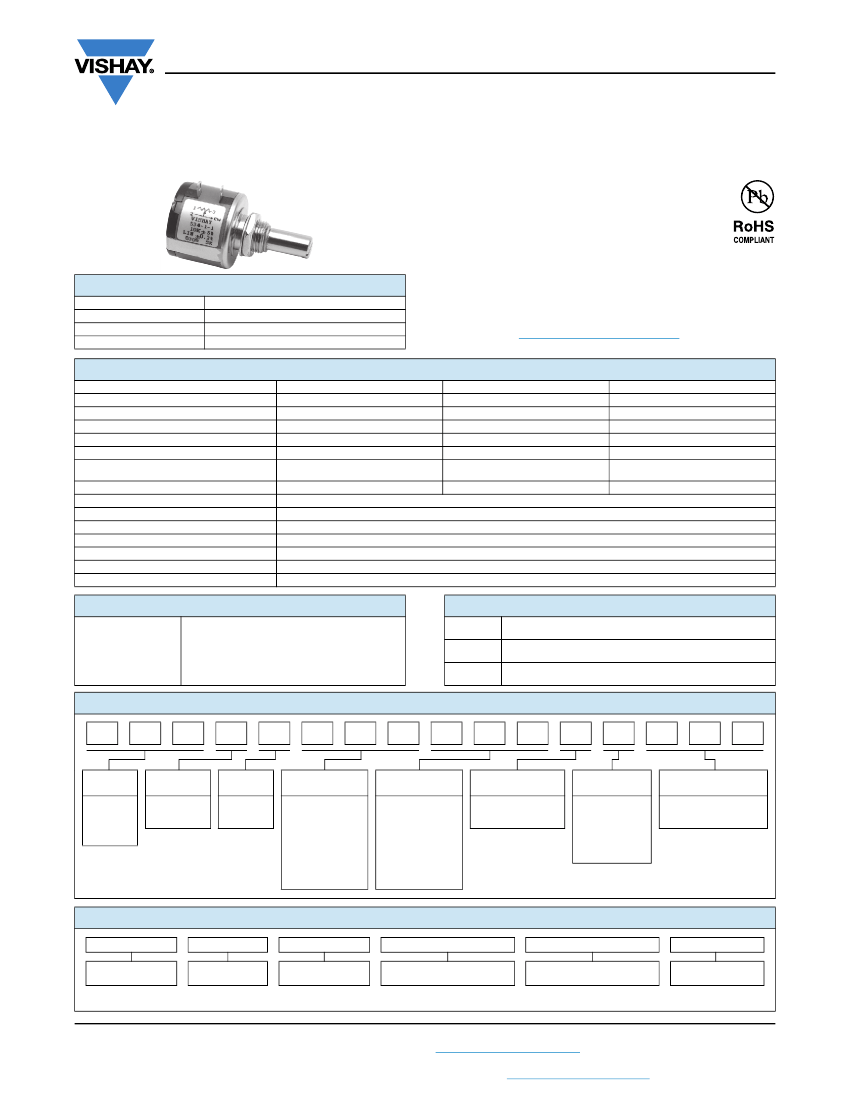

Model 533, 534, 535
www.vishay.com
Vishay Spectrol
7
/
8
"
(22.2 mm) Multi Turn Wirewound Potentiometer -
533: 3 Turns / 534: 10 Turns / 535: 5 Turns
FEATURES
Bushing and servo mount designs available
Special resistance tolerances to 1 %
Rear shaft extensions and support bearing
Metric shaft available
Dual gang configuration and concentric shafts
High torque, center tap, slipping clutch on request
Special markings and front shaft extensions
Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
QUICK REFERENCE DATA
Sensor type
Output type
Market appliance
Dimensions
ROTATIONAL, multi turn wirewound
Output by turrets
Industrial
7
/ " (22.2 mm)
8
ELECTRICAL SPECIFICATIONS
PARAMETER
Resistance range - standard values
Capability range
Standard tolerance
Linearity (independent)
Noise
Rotation (electrical and mechanical)
Power rating (at 70 °C)
Insulation resistance
Dielectric strength
Absolute minimum resistance
Temperature coefficient
End voltage
Phasing
Taps
MODEL 533
50
to 20 k
5
to 60 k
±5%
± 0.25 %
100
ENR
1080°
+ 10°
- 0°
MODEL 534
100
to 100 k
10
to 200 k
±5%
± 0.25 %
100
ENR
3600°
+ 10°
- 0°
MODEL 535
50
to 50 k
5
to 100 k
±5%
± 0.25 %
100
ENR
1800°
+ 10°
- 0°
1.0 W
2.0 w
1.5 W
1000 M minimum 500 V
DC
1000 V
RMS
minimum 60 Hz
Not to exceed linearity x total resistance or 1
,
whichever is greater
20 ppm/°C (standard values, wire only)
0.25 % of total applied voltage, maximum
CCW end points - section 2 phased to section 1 within ± 2°
Center tap only
MARKING
Unit identification
Manufacturer’s name and model number,
resistance value and tolerance, linearity
specification date code and terminal
identification.
Example of a marking for a standard part:
534-11103
RESISTANCE VALUES
533
(
534
(
535
(
50, 100, 200, 500, 1K, 2K, 5K, 10K, 20K
100, 200, 500, 1K, 2K, 5K, 10K, 20K, 50K, 100K
50, 100, 200, 500, 1K, 2K, 5K, 10K, 20K, 50K
ORDERING INFORMATION
5
3
4
B
2
1
0
3
2
0
3
J
C
4
7
0
MODEL
533
534
535
STYLE
B:
Bushing
S:
Servo
GANGS
1
2
OHMIC VALUE
GANGS N
o
1
470
= 47
222
= 2.200
103
= 10 k
For ohmic value
range see
electrical
specification
OHMIC VALUE
GANGS N
o
2
470
= 47
222
= 2.200
103
= 10 k
For ohmic value
range see
electrical
specification
TOLERANCE ON
OHMIC VALUE
J
=±5%
F
=±1%
LINEARITY
C
= ± 0.25 %
D
= ± 0.1 %
L
= ± 0.2 %
E
= ± 0.05 %
SPECIAL REQUEST
Special code
xxxx
PART NUMBER DESCRIPTION
(for information only)
534-
MODEL
1
STYLE
B:
1
S:
2
Revision: 30-Jul-14
Document Number: 57065
1
For technical questions, contact:
sferprecisionpot@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
2
GANGS
103
OHMIC VALUE
GANGS N
o
1
203
OHMIC VALUE
GANGS N
o
2
xxxx
SPECIAL
Model 533, 534, 535
www.vishay.com
Vishay Spectrol

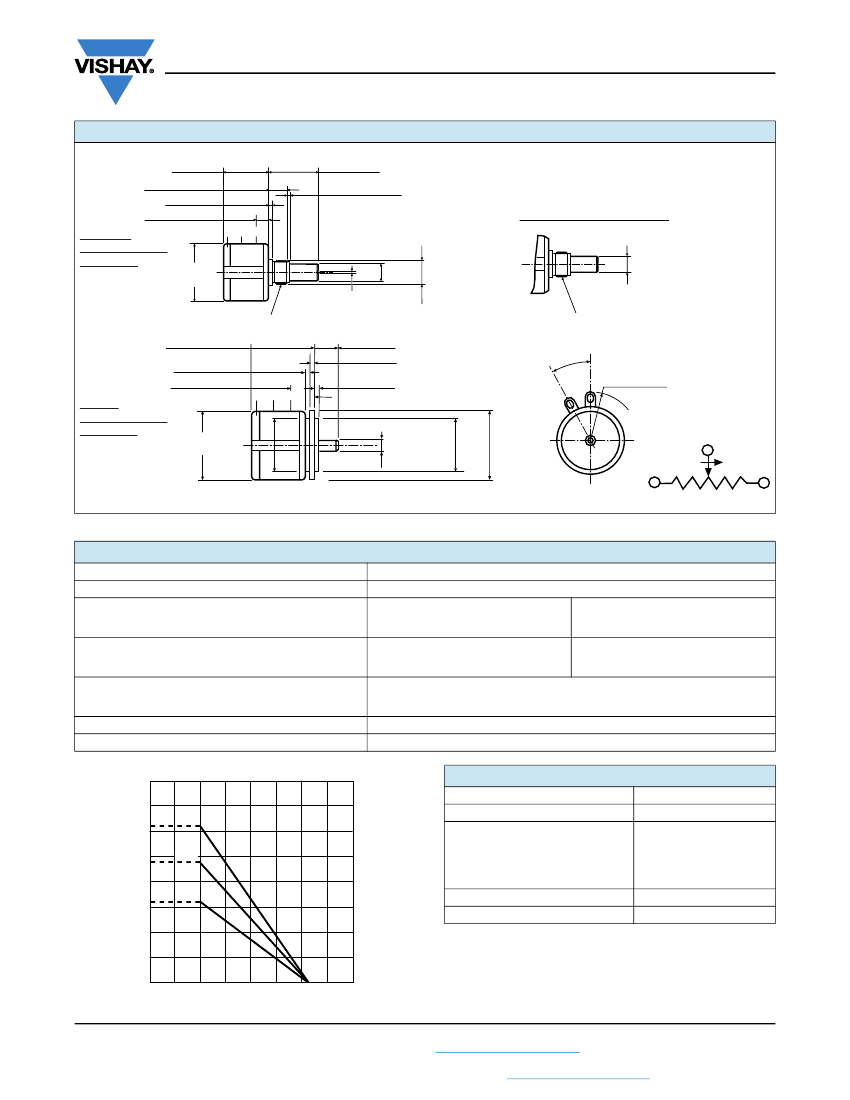

SINGLE SECTION DIMENSIONS
in inches (millimeters)
0.750 (19.05)
0.312 (7.92)
± 0.015
± 0.015
0.812 (20.62)
± 0.031
0.030 MAX. (0.76)
0.062 (1.57)
0.200 MIN. (5.08)
METRIC SHAFT: 534B...8872
2
1
3
BUSHING
MOUNT MODEL:
534B/534-1
Ø 0.2497 (6.34)
- 0.0003
± 0.015
+ 0.0000
+ 0.0000
- 0.0020
+ 0.000
Ø 0.875
(22.22)
0.032 x 0.032
(0.81) x (0.81) DP
3
/
8
± 0.010
Ø 0.4062
(10.32)
Ø 6.00 mm
- 0.0003
9 mm x 0.75 P
- 32UNEF - 2A
SCREWDRIVER SLOT
± 0.031
0.850 (21.59)
± 0.015
0.375 (9.52)
0.062 (1.57)
0.057 (1.45) MIN.
0.300 (7.62) MIN.
0.062 (1.57)
2
1
30°
TYP.
Ø 0.7500 (19.05)
- 0.0005
+ 0.0000
R 0.625 MAX.
(15.88)
SERVO
MOUNT MODEL:
534S/534-2
3
Ø 0.875
(22.22)
± 0.015
Ø 0.1248 (3.17)
+ 0.0000
- 0.0003
2
CW
Ø 0.750 (19.05) MAX.
Ø 0.875 (22.22)
1
3
SCHEMATIC
Mounting hardware, washer and panel nut, nickel plated
MECHANICAL SPECIFICATIONS
PARAMETER
Bearing type
Torque (maximums): starting
Section 1
Section 2
Torque (maximums): running
Section 1
Section 2
Weight (maximums)
Section1
Section 2
Stop strength
Ganging
Bushing: Sleeve bearing
534
0.5 oz. - in (36 g - cm)
0.9 oz. - in (65 g - cm)
534
0.4 oz. - in (28.80 g - cm)
0.7 oz. - in (50.40 g - cm)
Servo: Ball bearing
533/535
0.7 oz. - in (50 g - cm)
1.1 oz. - in (79 g - cm)
533/535
0.6 oz. - in (43.20 g - cm)
0.9 oz. - in (64.8 g - cm)
0.75 oz. (21.26 g)
1.25 oz. (35.44 g)
75 oz. - in (static) (5.4 kg - cm)
2 sections maximum
POWER RATING CHART
4
ENVIRONMENTAL SPECIFICATIONS
Vibration
15
g
thru 2000 Hz
50
g
300 000
1 000 000
> 1 000 000
500 000
900 h
- 55 °C to + 125 °C
Shock
Rotational life (shaft revolution)
533
534
534 (servo)
535
Load life
Temperature range
534
RATED POWER IN W
3
535
2
533
1
0
0
20
40
60
80
100
120
140
160
AMBIENT TEMPERATURE IN °C
Revision: 30-Jul-14
Document Number: 57065
2
For technical questions, contact:
sferprecisionpot@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Model 533, 534, 535
www.vishay.com
Vishay Spectrol
MAXIMUM CURRENT
AT 70 °C AMBIENT
(mA)
533
141.0
100.0
70.7
44.7
31.6
22.4
14.1
10.0
7.07
-
-
-
-
534
-
141.0
100.0
63.2
44.7
31.6
20.0
14.1
10.0
6.32
4.47
-
-
535
173.0
122.0
86.6
54.7
38.7
27.4
17.3
12.2
8.66
5.47
-
-
-
MAXIMUM VOLTAGE
ACROSS COIL
(V)
533
7.07
10.0
14.1
22.4
31.6
44.7
70.7
100.0
141.0
-
-
-
-
534
-
14.1
20.0
31.6
44.7
63.2
100.0
141.0
200.0
316.0
447.0
-
-
535
8.66
12.2
17.3
27.4
38.7
54.8
86.6
122.0
173.0
274.0
-
-
-
RESISTANCE ELEMENT DATA
RESISTANCE VALUE
()
533
50
100
200
500
1K
2K
5K
10K
20K
-
-
-
-
534
-
100
200
500
1K
2K
5K
10K
20K
50K
100K
-
-
535
50
100
200
500
1K
2K
5K
10K
20K
50K
-
-
-
533
0.149
0.111
0.097
0.069
0.063
0.041
0.044
0.034
0.031
-
-
-
-
RESOLUTION
(%)
534
-
0.060
0.037
0.031
0.025
0.021
0.016
0.017
0.015
0.009
0.007
-
-
535
0.120
0.075
0.061
0.049
0.041
0.031
0.034
0.030
0.020
0.015
-
-
-
OHMS PER TURN
533
0.0746
0.1114
0.1954
0.3424
0.6331
0.8206
2.2330
3.4510
6.1790
-
-
-
-
534
-
0.0603
0.0746
0.1520
0.2459
0.4113
0.8206
1.7230
3.0160
4.6690
7.4560
-
-
535
0.0603
0.0746
0.1220
0.2459
0.4113
0.6331
1.7230
3.0160
3.9910
7.4560
-
-
-
Revision: 30-Jul-14
Document Number: 57065
3
For technical questions, contact:
sferprecisionpot@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical
requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements
about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular
product with the properties described in the product specification is suitable for use in a particular application. Parameters
provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All
operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please
contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by
any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
Material Category Policy
Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the
definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council
of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
(EEE) - recast, unless otherwise specified as non-compliant.
Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that
all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.
Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as Halogen-Free follow Halogen-Free
requirements as per JEDEC JS709A standards. Please note that some Vishay documentation may still make reference
to the IEC 61249-2-21 definition. We confirm that all the products identified as being compliant to IEC 61249-2-21
conform to JEDEC JS709A standards.
Revision: 02-Oct-12
1
Document Number: 91000
Freescale Coldfire V1 Series MCURGPIO Tutorial
RGPIO is a module added in Freescale Coldfire V1 series MCU. Coldfire V1 also retains the traditional GPIO. RGPIO fast GPIO is directly connected to the processor local bus GPIO, so its speed will be ...
bluehacker NXP MCU
Does the 2440 camera use the ITU 656 format?
My camera used to display with ITU 601 format, but after changing to ITU 656, it cannot trigger the camera interrupt! 601 triggers the interrupt through the field sync signal, but what about 656? Is i...
lanlan Embedded System
The subtitles are also shocking - tribute to the great subtitle group!
I remember downloading a movie and watching it a few days ago. I guess it was translated by someone from Northeast China. In the subtitles, the policeman kept saying the word "de se" all the time. I w...
lunbor Talking
Why can the interrupt be enabled in this way in the SCI enable interrupt function?
[align=left][color=#000]In the SCI enable interrupt function: How do you understand the last two sentences? Why can the interrupt be enabled in this way? [/color][/align][align=left][color=#000]void s...
cwb Microcontroller MCU
The difference between Bluetooth and WIFI speakers
[i=s]This post was last edited by jameswangsynnex on 2015-3-3 19:52[/i]   NFC (Near Field Communication) is actually just a function that simplifies Bluetooth connection. Mobile phones and tablets tha...
youluo Mobile and portable
From TI to a private enterprise, this guy is really extraordinary
[color=#000000][font=宋体][size=10.5pt]I attended the 15th anniversary celebration of Hezhongda (TI's most powerful DSP agent and third-party partner) these days, and met a handsome guy, let's call him ...
向农 Talking about work

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 1090  631  1233  852  1728  22  13  25  18  35
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
