BZW06
Series
T
RANS
Z
ORB
®
Transient Voltage Suppressors
F126
uct
rod
wP
Features
Ne
0.034 (0.86)
0.028 (0.71)
DIA.
Stand Off Voltage
5.8 to 376V
Peak Pulse Power
600W
1.220 (31)
1.024 (26)
MIN.
0.250 (6.35)
0.238 (6.05)
• Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
• Glass passivated junction
• Uni and Bidirectional Types Available
• Excellent Clamping Capability
• Low incremental surge resistance
• Fast response time: theoretically (with no parisitic
inductance) less than 1.0ps from 0 Volts to V
(BR)
for unidirectional and 5.0ns for bidirectional types
• High temperature soldering guaranteed:
265°C/10 seconds, 0.375" (9.5mm) lead length,
5lbs. (2.3 kg) tension
0.120 (3.05)
0.116 (2.95)
DIA.
1.220 (31)
1.024 (26)
Mechanical Data
Case:
F126 molded plastic body over passivated
junction
Terminals:
Solder plated axial leads, solderable
per MIL-STD-750, Method 2026
Polarity:
For unidirectional types the color band
denotes the cathode, which is positive with respect
to the anode under normal TVS operation
Mounting Position:
Any
Weight:
0.015oz., 0.4g
Packaging Codes – Options (Antistatic):
51 – 1K per Bulk box, 10K/carton
54 – 4K per 13” paper Reel
(52mm horiz. tape), 12K/carton
73 – 2K per horiz. tape & Ammo box, 20K/carton
Dimensions in inches and (millimeters)
Devices for Bidirectional Applications
For bi-directional use add suffix letter “B” (e.g. BZW06P-6V4B).
Electrical characteristics apply in both directions.
Maximum Ratings and Thermal Characteristics
Ratings at 25°C ambient temperature unless otherwise specified.
Parameter
Peak pulse power dissipation with a 10/1000µs
waveform
(1)
(Fig. 1)
Peak pulse current with a 10/1000µs waveform
(1)
Steady state power dissipation at T
A
= 75°C
lead lengths, 0.375" (9.5mm)
(2)
Peak forward surge current, 10ms single half sine-wave
unidirectional only
Thermal Resistance
junction to lead
junction to ambient L
lead
= 10mm
Symbol
P
PPM
I
PPM
P
M(AV)
I
FSM
R
θJL
R
θJA
T
J
, T
STG
Value
600
See Next Table
3.0
100
60
100
–65 to +175
Unit
W
A
W
A
°C/W
°C
Operating junction and storage temperature range
Notes
:
(1) Non-repetitive current pulse, per Fig. 3 and derated above T
A
= 25°C per Fig. 2
Rating is 500W between 40V and 188V types. For a surge greater than the maximum values, the diode will short circuit.
(2) Mounted on copper pad area of 1.6 x 1.6” (40 x 40mm) per Fig. 5
12/13/00
BZW06
Series
T
RANS
Z
ORB
®
Transient Voltage Suppressors
Ratings and
Characteristic Curves
(T
A
=25
O
C unless otherwise noted.)
100
P
PPM
– Peak Pulse Power (kW)
Non-repetitive Pulse
Waveform shown in Fig. 3
TA = 25°C
Peak Pulse Power (P
PP
) or Current (I
PP
)
Derating in Percentage, %

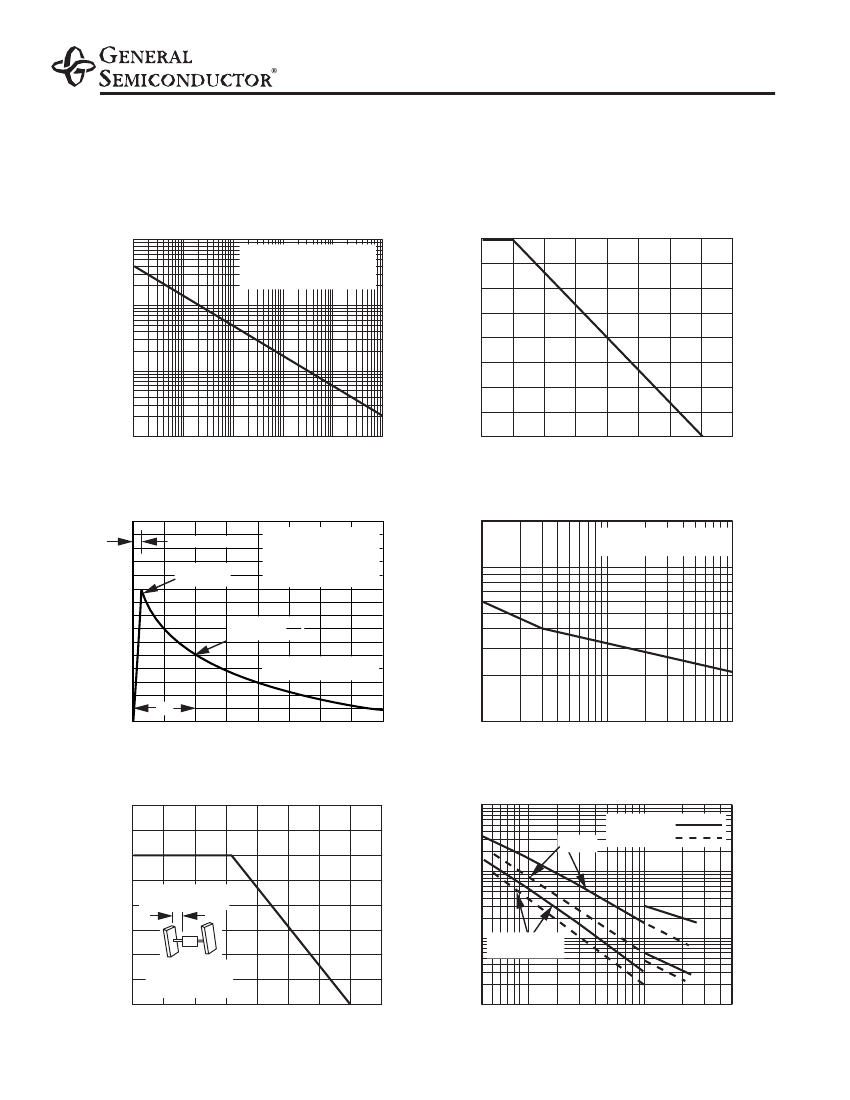

Fig. 1 – Peak Pulse Power
Rating Curve
Fig. 2 – Pulse Derating Curve
100
75
10
50
1.0
25
0.1
0.1µs
10µs
100µs
1.0µs
td – Pulse Width (sec.)
1.0ms
10ms
0
0
25 50 75 100 125 150 175 200
T
A
– Ambient Temperature (°C)
Fig. 3 – Pulse Waveform
I
FSM
– Peak Forward Surge Current (A)
150
Fig. 4 - Maximum Non-Repetitive Forward
Surge Current Uni-Directional Only
200
8.3ms Single Half Sine-Wave
(JEDEC Method)
I
PPM
– Peak Pulse Current, % I
RSM
tr = 10µsec.
Peak Value
I
PPM
100
T
J
= 25°C
Pulse Width (td)
is defined as the point
where the peak current
decays to 50% of I
PPM
100
Half Value – IPP
2
I
PPM
50
10/1000µsec. Waveform
as defined by R.E.A.
td
0
0
1.0
2.0
3.0
4.0
10
1
10
100
t – Time (ms)
Number of Cycles at 60 Hz
Fig. 5 – Steady State Power Derating Curve
4.0
P
M(AV)
, Steady State
Power Dissipation (W)
10,000
Fig. 6 – Capacitance
Unidirectional
Bidirectional
3.0
L = 0.375" (9.5mm)
Lead Lengths
C
J
– Capacitance (pF)
V
R
= 0
1,000
2.0
100
1.0
1.6 x 1.6 x .040"
(40 x 40 x 1mm)
Copper Heat Sinks
V
R
= Rated
Stand-off voltage
0
0
25
50 75 100 125 150 175 200
T
L
– Lead Temperature (°C)
10
5
100
Reverse Voltage (V)
500
