D/CRCW e3
Vishay
Lead (Pb)-Free Thick Film, Rectangular Chip Resistors
FEATURES
•
Stability
ΔR/R
= 1 % for 1000 h at 70 ° C
•
Pure tin solder contacts on Ni barrier layer
provides compatibility with lead (Pb)-free and lead
containing soldering processes
•
Metal glaze on high quality ceramic
•
Compliant to RoHS Directive 2002/95/EC
•
Halogen-free according to IEC 61249-2-21 definition
•
AEC-Q200 qualified, rev. C compliant
STANDARD ELECTRICAL SPECIFICATIONS
SIZE
MODEL
INCH
METRIC
LIMITING
RESISTANCE
TEMPERATURE
RATED DISIPATION
ELEMENT
RANGE
COEFFICIENT TOLERANCE
P
70 °C
%
VOLTAGE
Ω
ppm/K
W
U
max.
AC/DC
± 100
CRCW0201
0201
RR 0603M
0.05
30
± 200
±1
±1
±5
±1
±5
47R to 1M0
10R to 1M0
SERIES
E24; E96
E24; E96
E24
E24; E96
E24
Zero-Ohm-Resistor:
R
max..
= 50 mΩ,
I
max.
at 70 °C = 1.0 A
D10/CRCW0402
0402
RR 1005M
0.063
50
± 100
± 200
1R0 to 10M
Zero-Ohm-Resistor:
R
max.
= 20 mΩ,
I
max.
at 70 °C = 1.5 A
D11/CRCW0603
0603
RR 1608M
0.10
75
± 100
± 200
± 100
± 200
±1
±5
±1
±5
1R0 to 10M
E24; E96
E24
E24; E96
E24
Zero-Ohm-Resistor:
R
max.
= 20 mΩ,
I
max.
at 70 °C = 2.0 A
D12/CRCW0805
0805
RR 2012M
0.125
150
1R0 to 10M
Zero-Ohm-Resistor:
R
max.
= 20 mΩ,
I
max.
at 70 °C = 2.5 A
D25/CRCW1206
1206
RR 3216M
0.25
200
± 100
± 200
±1
±5
1R0 to 10M
E24; E96
E24
Zero-Ohm-Resistor:
R
max.
= 20 mΩ,
I
max.
at 70 °C = 3.5 A
CRCW1210
1210
RR 3225M
0.5
200
± 100
± 200
± 100
± 200
±1
±5
±1
±5
1R0 to 10M
E24; E96
E24
E24; E96
E24
Zero-Ohm-Resistor:
R
max.
= 20 mΩ,
I
max.
at 70 °C = 5.0 A
CRCW1218
1218
RR 3246M
1.0
200
1R0 to 2M2
Zero-Ohm-Resistor:
R
max.
= 20 mΩ,
I
max.
at 70 °C = 7.0 A
CRCW2010
2010
RR 5025M
0.75
400
± 100
± 200
± 100
± 200
±1
±5
±1
±5
1R0 to 10M
E24; E96
E24
E24; E96
E24
Zero-Ohm-Resistor:
R
max.
= 20 mΩ,
I
max.
at 70 °C = 6.0 A
CRCW2512
2512
RR 6332M
1.0
500
1R0 to 10M
Zero-Ohm-Resistor:
R
max.
= 20 mΩ,
I
max.
at 70 °C = 7.0 A
Notes
•
These resistors do not feature a limited lifetime when operated within the permissible limits. However, resistance value drift increasing over
operating time may result in exceeding a limit acceptable to the specific application, thereby establishing a functional lifetime.
•
Marking: See data sheet “Surface Mount Resistor Marking” (document number 20020).
•
Power rating depends on the max. temperature at the solder point, the component placement density and the substrate material.
Document Number: 20035
Revision: 02-Dec-10
For technical questions, contact:
thickfilmchip@vishay.com
www.vishay.com
111
D/CRCW e3
Vishay
Lead (Pb)-Free Thick Film, Rectangular Chip Resistors
TECHNICAL SPECIFICATIONS
PARAMETER
Rated dissipation
P
70 (1)
Limiting element voltage
U
max.
AC/DC
Insulation voltage
U
ins
(1 min)
Insulation resistance
Category temperature
range
Failure rate
Weight
D10/
D11/
D12/
D25/
UNIT CRCW0201 CRCW0402 CRCW0603 CRCW0805 CRCW1206 CRCW1210 CRCW1218 CRCW2010 CRCW2512
W
V
0.05
30
0.063
50
0.1
75
0.125
150
0.25
200
0.5
200
1.0
200
0.75
400
1.0
500
V
Ω
°C
h
-1
mg
50
> 75
> 100
> 200
> 300
> 10
9
- 55 to + 155
> 300
> 300
> 300
> 300
1 x 10
-9
0.17
0.65
2
5.5
< 0.1 x 10
- 9
10
16
29.5
25.5
40.5
Note
(1)
The power dissipation on the resistor generates a temperature rise against the local ambient, depending on the heat flow support of the
printed-circuit board (thermal resistance). The rated dissipation applies only if the permitted film temperature of 155 °C is not exceeded.
PART NUMBER AND PRODUCT DESCRIPTION
Part Number: CRCW0603562RFKEC
(2)
C
R
C
W
0
6
0
3
5
6
2
R
F
K
E
C
MODEL
CRCW0201
CRCW0402
CRCW0603
CRCW0805
CRCW1206
CRCW1210
CRCW1218
CRCW2010
CRCW2512
VALUE
R
= Decimal
K
= Thousand
M
= Million
0000
= Jumper
TOLERANCE
F
= ± 1.0 %
J
= ± 5.0 %
Z
= Jumper
TCR
K
= ± 100 ppm/K
N
= ± 200 ppm/K
0
= Jumper
S
= Special
PACKAGING
EA, EB,
EC, ED,
EE, EF,
EG, EH,
EK
SPECIAL
Up to 2 digits
Product Description: D11/CRCW0603 100 562R 1 % ET6 e3
D11/CRCW0603
MODEL
CRCW0201
D10/CRCW0402
D11/CRCW0603
D12/CRCW0805
D25/CRCW1206
CRCW1210
CRCW1218
CRCW2010
CRCW2512
100
TCR
±
200
ppm/K
±
100
ppm/K
562R
RESISTANCE VALUE
10R
= 10
Ω
562R
= 562
Ω
10K
= 10 kΩ
1M
= 1 MΩ
0R0
= Jumper
1%
TOLERANCE
±
5%
±
1%
ET6
PACKAGING
ET1, ET5,
ET6, ET7,
EF4, E02,
E67, E82,
ET9
e3
LEAD (Pb)-FREE
e3
= Pure tin
termination finish
Note
(2)
Preferred way for ordering products is by use of the PART NUMBER.
www.vishay.com
112
For technical questions, contact:
thickfilmchip@vishay.com
Document Number: 20035
Revision: 02-Dec-10
D/CRCW e3
Lead (Pb)-Free Thick Film, Rectangular Chip Resistors
Vishay
PACKAGING
MODEL
UNIT
180 mm/7"
330 mm/13"
180 mm/7"
330 mm/13"
180 mm/7"
D11/CRCW0603 285 mm/11.25"
330 mm/13"
180 mm/7"
D12/CRCW0805 285 mm/11.25"
330 mm/13"
180 mm/7"
D25/CRCW1206 285 mm/11.25"
330 mm/13"
180 mm/7"
CRCW1210
CRCW1218
CRCW2010
CRCW2512
285 mm/11.25"
330 mm/13"
180 mm/7"
180 mm/7"
180 mm/7"
10 000
50 000
10 000
50 000
5000
10 000
20 000
5000
10 000
20 000
5000
10 000
20 000
5000
10 000
20 000
PAPER TAPE ON REEL
ACC. TO IEC 60286-3, TYPE I
ED
EE
ED
EE
EA
EB
EC
EA
EB
EC
EA
EB
EC
EA
EB
EC
ET7
EF4
ET7
EF4
ET1
ET5
ET6
ET1
ET5
ET6
ET1
ET5
ET6
ET1
ET5
ET6
4000
4000
2000
4000
EK
EF
EG
EH
ET9
E02
E67
E82
BLISTER TAPE ON REEL
ACC. TO IEC 60286-3, TYPE II
QUANTITY PART NUMBER PRODUCT DESC. QUANTITY PART NUMBER PRODUCT DESC.
CRCW0201
D10/CRCW0402
DIMENSIONS
SOLDER PAD DIMENSIONS
in millimeters
SIZE
INCH METRIC
0201
0402
0603
0805
1206
1210
1218
2010
2512
0525
1005
1608
2012
3216
3225
3246
5025
6332
L
0.6 ± 0.05
1.0 ± 0.05
1.55
2.0
3.2
+ 0.10
- 0.05
+ 0.20
- 0.10
+ 0.10
- 0.20
DIMENSIONS
in millimeters
REFLOW SOLDERING
W
0.3 ± 0.05
0.5 ± 0.05
0.85 ± 0.1
1.25 ± 0.15
1.6 ± 0.15
2.5 ± 0.2
4.6 ± 0.15
2.5 ± 0.15
3.15 ± 0.15
H
T1
T2
0.15
+ 0.05
- 0.10
WAVE SOLDERING
a
b
l
a
0.28
0.4
0.5
0.7
0.9
0.9
1.05
1.0
1.0
b
0.43
0.6
0.9
1.3
1.7
2.5
4.9
2.5
3.2
l
0.23
0.5
1.0
1.2
2.0
2.0
1.9
3.9
5.2
0.23 ± 0.05 0.15 ± 0.05
0.35 ± 0.05 0.25 ± 0.05
0.45 ± 0.05
0.45 ± 0.05
0.55 ± 0.05
0.55 ± 0.05
0.55 ± 0.05
0.6 ± 0.1
0.6 ± 0.1
0.3 ± 0.2
0.3
+ 0.20
- 0.10
0.2 ± 0.1
0.3 ± 0.2
0.3 ± 0.2
0.4 ± 0.2
0.4 ± 0.2
0.4 ± 0.2
0.6 ± 0.2
0.6 ± 0.2
0.9
0.9
1.1
1.1
1.25
1.2
1.2
0.9
1.3
1.7
2.5
4.8
2.5
3.2
1.0
1.3
2.3
2.2
1.9
3.9
5.2
0.45 ± 0.2
0.45 ± 0.2
0.45 ± 0.2
0.6 ± 0.2
0.6 ± 0.2
3.2 ± 0.2
3.2
+ 0.10
- 0.20
5.0 ± 0.15
6.3 ± 0.2
Document Number: 20035
Revision: 02-Dec-10
For technical questions, contact:
thickfilmchip@vishay.com
www.vishay.com
113
D/CRCW e3
Vishay
Lead (Pb)-Free Thick Film, Rectangular Chip Resistors

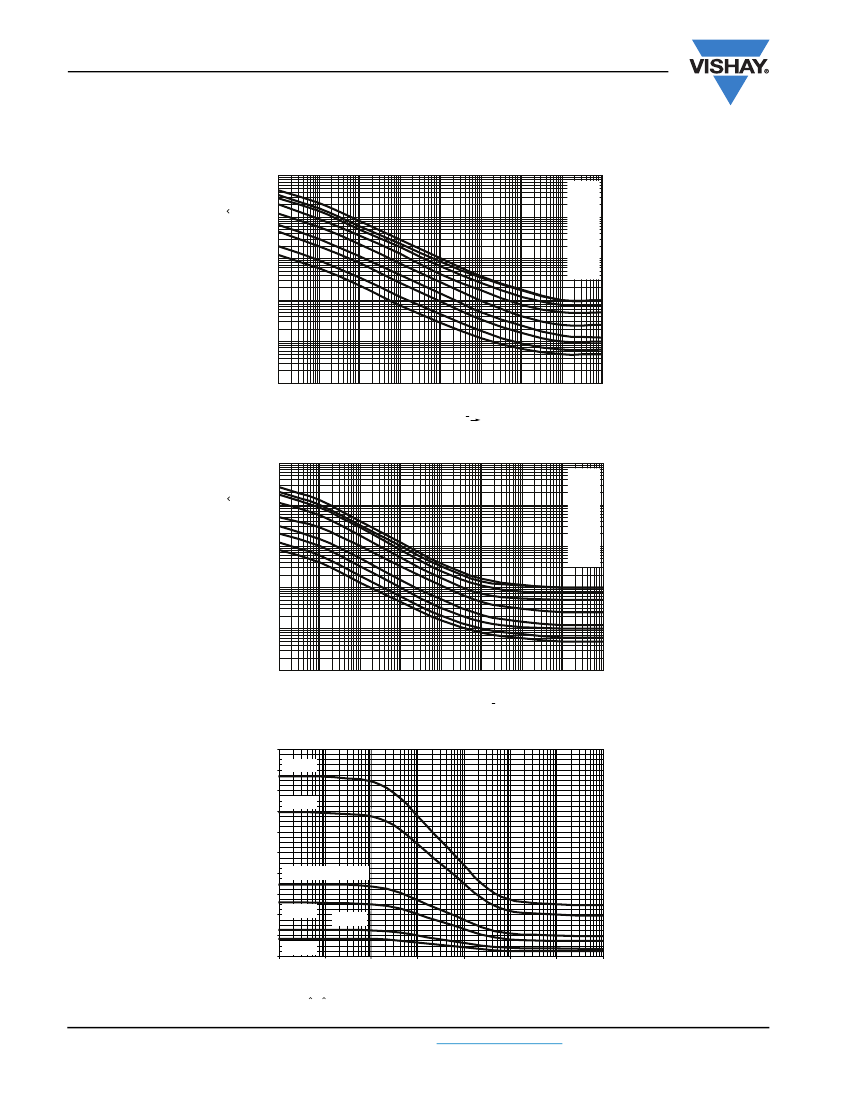

FUNCTIONAL PERFORMANCE
Single Pulse
Pulse Load
P
max.
(W)
1000
2512
1218
2010
1210
1206
0805
0603
0402
0201
100
10
1
0.1
0.01
10
-6
10
-5
10
-4
10
-3
10
-2
10
-1
1
10
100
Pulse Duration
t
i
(s)
Maximum pulse load, single pulse; applicable if
P
0 and n < 1000 and
Û
≤
Û
max.
;
for permissible resistance change equivalent to
8000
h operation
Continuous Pulse
Continuous Pulse Load
P
max.
(W)
1000
2512
1218
2010
1210
1206
0805
0603
0402
0201
100
10
1
0.1
0.01
10
-6
10
-5
10
-4
10
-3
10
-2
10
-1
1
10
100
Pulse Duration
t
i
(s)
Maximum pulse load, continuous pulses; applicable if
P
≤
P
(ϑ
amb
) and
Û
≤
Û
max.
;
for permissible resistance change equivalent to
8000
h operation
Pulse Voltage
Pulse Voltage
Û
max.
(V)
2000
1800
1600
1400
1200
1000
800
600
400
200
0402
0
-6
10
- 5
10
10
- 4
10
- 3
10
- 2
10
- 1
1
10
0805
0603
1206/1210/1218
2010
2512
Pulse Duration
t
i
(s)
Maximum pulse
voltage,
single and continuous pulses; applicable if
P
≤
P
max.
; for permissible resistance change equivalent to
8000
h operation
www.vishay.com
114
For technical questions, contact:
thickfilmchip@vishay.com
Document Number: 20035
Revision: 02-Dec-10
D/CRCW e3
Lead (Pb)-Free Thick Film, Rectangular Chip Resistors
Vishay
Derating
Fraction of Rated Dissipation in
%
120
100
80
60
40
20
0
- 55
- 25
0
25
50
75
70
100
125
155 175
Ambient Temperature in °C
Non-Linearity
Attenuation of 3rd Harmonic A
3
in dB
120
100
80
1206, 2010
0805
60
40
20
0
10
0603
0402
100
1K
10K
100K
1M
10M
Resistance Value
R
in
Ω
Current Noise
Current Noise
A
1
in µV/V
100
10
2
040
3
060
5
0
8
0 6
120 0
201
1
0.1
0.01
100
1K
10K
100K
1M
10M
Resistance Value
R
in
Ω
Document Number: 20035
Revision: 02-Dec-10
For technical questions, contact:
thickfilmchip@vishay.com
www.vishay.com
115
