CWR06MC685JTA/TR

Description
CAPACITOR, TANTALUM, SOLID, POLARIZED, 35 V, 6.8 uF, SURFACE MOUNT, 2915, CHIP
CategoryPassive components    capacitor
File Size104KB，7 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

CWR06MC685JTA/TR Overview

CAPACITOR, TANTALUM, SOLID, POLARIZED, 35 V, 6.8 uF, SURFACE MOUNT, 2915, CHIP

CWR06MC685JTA/TR Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerVishay
package instruction, 2915
Reach Compliance Codecompli
ECCN codeEAR99
capacitance6.8 µF
Capacitor typeTANTALUM CAPACITOR
dielectric materialsTANTALUM (DRY/SOLID)
high2.79 mm
JESD-609 codee0
leakage current0.003 mA
length7.24 mm
Manufacturer's serial numberCWR06
Installation featuresSURFACE MOUNT
negative tolerance5%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
Package formSMT

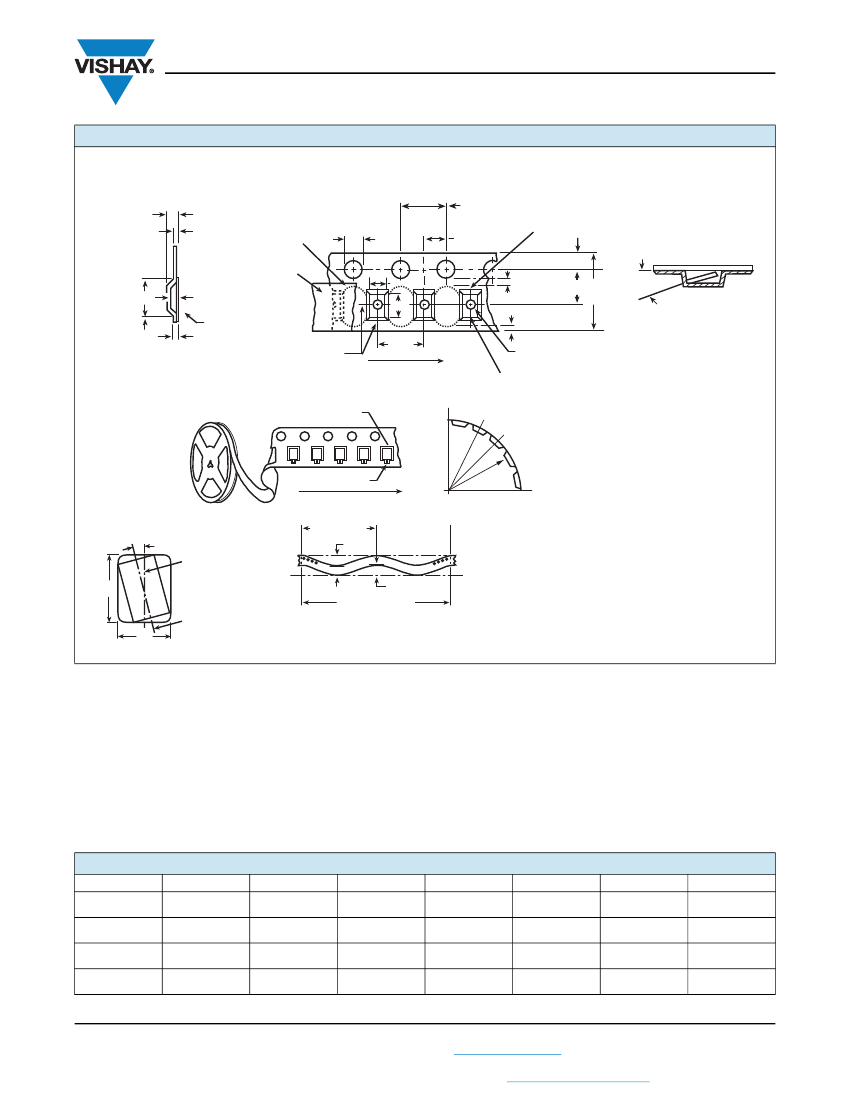

method of packingTR, EMBOSSED PLASTIC, 7 INCH
polarityPOLARIZED
positive tolerance5%
Rated (DC) voltage (URdc)35 V
GuidelineMIL-PRF-55365/4
seriesCWR06
size code2915
surface mountYES
Delta tangent0.06
Terminal surfaceTin/Lead (Sn60Pb40) - with Nickel (Ni) barrie
Terminal shapeWRAPAROUND
width3.81 mm

Preview

Download Datasheet

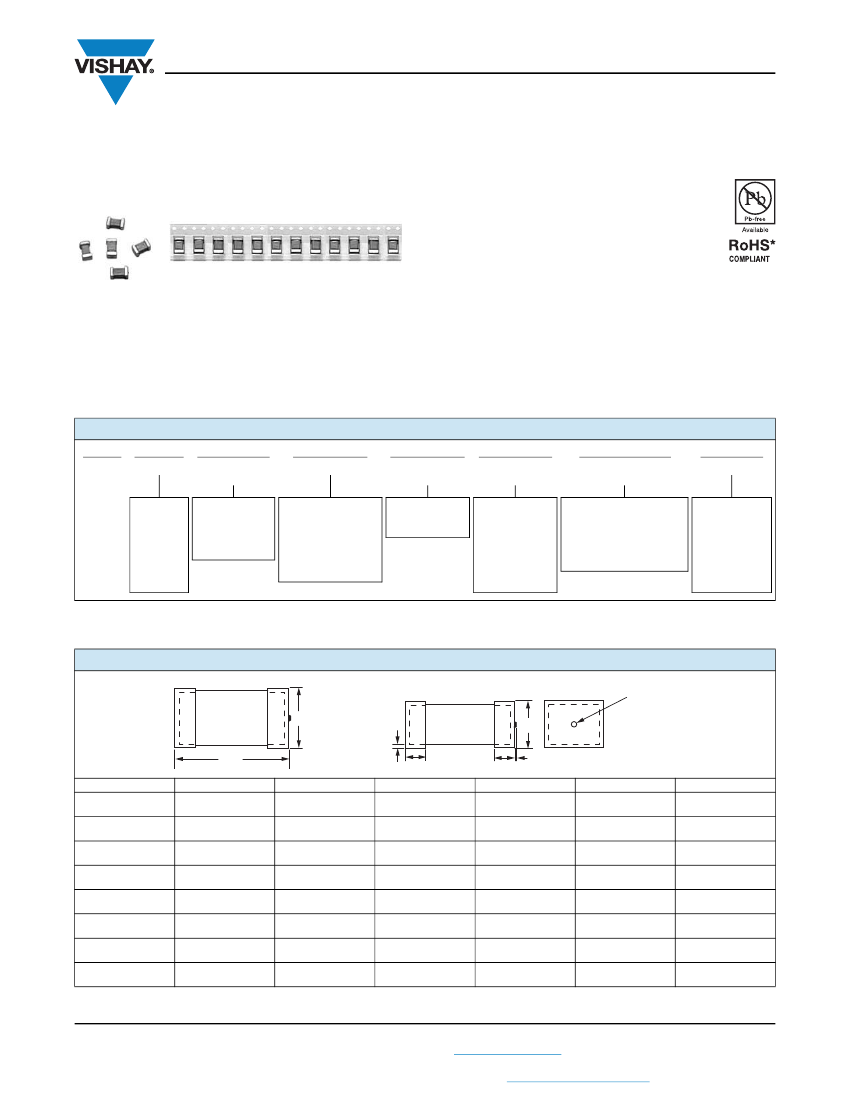

CWR06
www.vishay.com
Vishay Sprague
Solid Tantalum Surface Mount Capacitors T
ANTAMOUNT®
Conformal Coated, Military MIL-PRF-55365/4 Qualified
FEATURES
• Weibull failure rates B, C, D, T
Exponential failure rates M, P, R, S
• Tape and reel available per EIA 481
• Termination finishes available; gold plate,
solder plated and hot solder dipped
• Mounting: Surface mount
• Compliant to RoHS Directive 2011/65/EU
Note
*
Pb containing terminations are not RoHS compliant, exemptions
may apply
PERFORMANCE CHARACTERISTICS
Operating Temperature:
- 55 °C to + 125 °C
(above 85 °C, voltage derating is required)
Capacitance Range:
0.10 μF to 100 μF
Capacitance Tolerance:
± 5 %, ± 10 %, ± 20 %
Voltage Rating:
4 V
DC
to 50 V
DC
ORDERING INFORMATION
CWR06
TYPE
D
VOLTAGE
B
TERMINATION
FINISH
B = Gold
C = Hot solder
dipped
H = Solder
plate
155
CAPACITANCE
K
CAPACITANCE
TOLERANCE
J=±5%
K = ± 10 %
M = ± 20 %
B
FAILURE RATE
%/1000 h
M = 1.0
P = 0.1
R = 0.01
S = 0.001
B = 0.1
C = 0.01
D = 0.001
(1)
T = 0.01
(2)
A
SURGE CURRENT
(OPTIONAL)
A = 10 cycles at + 25 °C
B = 10 cycles at - 55 °C
and + 85 °C
C = 10 cycles at - 55 °C
and + 85 °C
(before Weibull grading)
/TR
PACKAGING
C=4V
D=6V
F = 10 V
H = 15 V
J = 20 V
K = 25 V
M = 35 V
N = 50 V
This is expressed in
picofarads. The first
two digits are the
significant figures.
The third is the
number of zeros to
follow.
Blank = Bulk,
plastic tray
/FA = Waffle
pack
/PR =
100 pcs reel
/HR = Half reel
/TR = Full reel
Notes
(1)
Contact marketing for availability of Weibull D failure rate for 50 V ratings
(2)
T level requires surge current option “C”. Capacitors are recommended for “space applications”
DIMENSIONS
in inches [millimeters]
-
+
Weld and
dimple
projection
identifies
anode (+)
terminal
W
T
1 -
L
H
T
2
(max.)
P
P
CASE CODE
A
B
C
D
E
F
G
H
L
0.100 ± 0.015
[2.54 ± 0.38]
0.150 ± 0.015
[3.81 ± 0.38]
0.200 ± 0.015
[5.08 ± 0.38]
0.150 ± 0.015
[3.81 ± 0.38]
0.200 ± 0.015
[5.08 ± 0.38]
0.220 ± 0.015
[5.59 ± 0.38]
0.265 ± 0.015
[6.73 ± 0.38]
0.285 ± 0.015
[7.24 ± 0.38]
W
0.050 ± 0.015
[1.27 ± 0.38]
0.050 ± 0.015
[1.27 ± 0.38]
0.050 ± 0.015
[1.27 ± 0.38]
0.100 ± 0.015
[2.54 ± 0.38]
0.100 ± 0.015
[2.54 ± 0.38]
0.135 ± 0.015
[3.43 ± 0.38]
0.110 ± 0.015
[2.79 ± 0.38]
0.150 ± 0.015
[3.81 ± 0.38]
H
0.050 ± 0.015
[1.27 ± 0.38]
0.050 ± 0.015
[1.27 ± 0.38]
0.050 ± 0.015
[1.27 ± 0.38]
0.050 ± 0.015
[1.27 ± 0.38]
0.050 ± 0.015
[1.27 ± 0.38]
0.070 ± 0.015
[1.78 ± 0.38]
0.110 ± 0.015
[2.79 ± 0.38]
0.110 ± 0.015
[2.79 ± 0.38]
P
0.030 ± 0.005
[0.76 ± 0.13]
0.030 ± 0.005
[0.76 ± 0.13]
0.030 ± 0.005
[0.76 ± 0.13]
0.030 ± 0.005
[0.76 ± 0.13]
0.030 ± 0.005
[0.76 ± 0.13]
0.030 ± 0.005
[0.76 ± 0.13]
0.050 ± 0.005
[1.27 ± 0.13]
0.050 ± 0.005
[1.27 ± 0.13]
T
1
0.005
[0.13]
0.005
[0.13]
0.005
[0.13]
0.005
[0.13]
0.005
[0.13]
0.005
[0.13]
0.005
[0.13]
0.005
[0.13]
T
2
(max.)
0.015
[0.38]
0.015
[0.38]
0.015
[0.38]
0.015
[0.38]
0.015
[0.38]
0.015
[0.38]
0.015
[0.38]
0.015
[0.38]
Note
• When solder coated terminations are required, add 0.015" [0.38 mm] to termination dimension tolerances
Revision: 17-Feb-12
Document Number: 40009
58
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
