EYZ
Vishay Roederstein
Aluminum Capacitors
Power 105 °C Printed Wiring Style
FEATURES
•
Polarized aluminum electrolytic capacitors,
non-solid electrolyte
•
Large types, minimized dimensions, cylindrical
aluminum case, insulated with a blue sleeve
•
Provided with keyed polarity
•
Very long useful life:
5000 h at 105 °C
•
Low ESR, high ripple current capability
•
Temperature range up to 105 °C
•
High resistance to shock and vibration
Pb-free
Available
RoHS*
COMPLIANT
Component outlines
APPLICATIONS
•
•
•
•
Computer, telecommunication and industrial systems
Smoothing and filtering
Standard and switched mode power supplies
Energy storage in pulse systems
QUICK REFERENCE DATA
DESCRIPTION
Nominal case size (Ø D
×
L in mm)
Rated capacitance range
(E6 series), C
R
Tolerance on C
R
Rated voltage range, U
R
Category temperature range
Endurance test at 105 °C
Useful life at 105 °C
Useful life at 40 °C,
1.9
×
I
R
applied
Shelf life at 0 V, 105 °C
Based on sectional specification
Climatic category IEC 60068
VALUE
25 x 30 to 40 x 100
470 to
150 000 µF
68 to
3300 µF
MARKING
The capacitors are marked (where possible)
with the following information:
•
Rated capacitance (in µF)
•
Tolerance on rated capacitance, code letter in accordance
with IEC 60062 (M for ± 20 %)
•
Rated voltage (in V)
•
Date code (YYMM)
•
Name of manufacturer
•
Code for factory of origin
•
Polarity of the terminals and ‘−’ sign to indicate the
negative terminal, visible from the top and/or side of the
capacitor
•
Code number
•
Climatic category in accordance with IEC 60068
± 20 %
10 to 100 V
200 to 400 V
- 40 to + 105 °C
2000 h
5000 h
150 000 h
500 h
IEC 60384-4/EN130300
40/105/56
SELECTION CHART FOR C
R
, U
R
AND RELEVANT NOMINAL CASE SIZES
(Ø D
×
L in mm)
C
R
(µF)
470
680
1000
1500
2200
U
R
(V)
10
16
25
40
-
-
-
-
25 x 30
-
25 x 40
30 x 40
-
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
-
40 x 100
-
-
-
-
-
-
63
-
-
25 x 30
25 x 40
30 x 40
-
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
-
40 x 100
-
-
-
-
-
-
-
-
-
100
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
-
40 x 100
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
3300
-
-
-
-
-
25 x 30
4700
-
-
-
6800
-
25 x 30
25 x 40
25 x 30
25 x 40
30 x 40
10 000
-
-
-
15 000
25 x 40
30 x 40
35 x 40
30 x 40
35 x 40
35 x 50
22 000
-
-
40 x 40
35 x 40
35 x 50
40 x 50
33 000
-
40 x 40
-
35 x 50
40 x 50
40 x 70
47 000
40 x 40
-
-
68 000
40 x 50
40 x 70
40 x 100
100 000
40 x 70
40 x 100
-
150 000
40 x 100
-
-
*
Pb containing terminations are not RoHS compliant, exemptions may apply
Document Number: 25127
Revision: 06-Feb-08
For technical questions, contact: aluminumcaps2@vishay.com
www.vishay.com
211
EYZ
Vishay Roederstein
Not for new design
Aluminum Capacitors
Power 105 °C Printed Wiring Style
SELECTION CHART FOR C
R
, U
R
AND RELEVANT NOMINAL CASE SIZES
(∅ D
×
L in mm)
C
R
(µF)
68
100
150
220
330
470
680
1000
1500
2200
U
R
(V)
200
-
-
25 x 30
25 x 40
30 x 40
-
35 x 40
-
35 x 50
40 x 50
40 x 50
40 x 70
40 x 100
250
-
25 x 30
25 x 40
30 x 40
35 x 40
-
35 x 50
40 x 40
40 x 50
-
40 x 70
40 x 100
-
385
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
-
40 x 70
-
40 x 100
-
-
400
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
-
40 x 70
-
40 x100
-
-

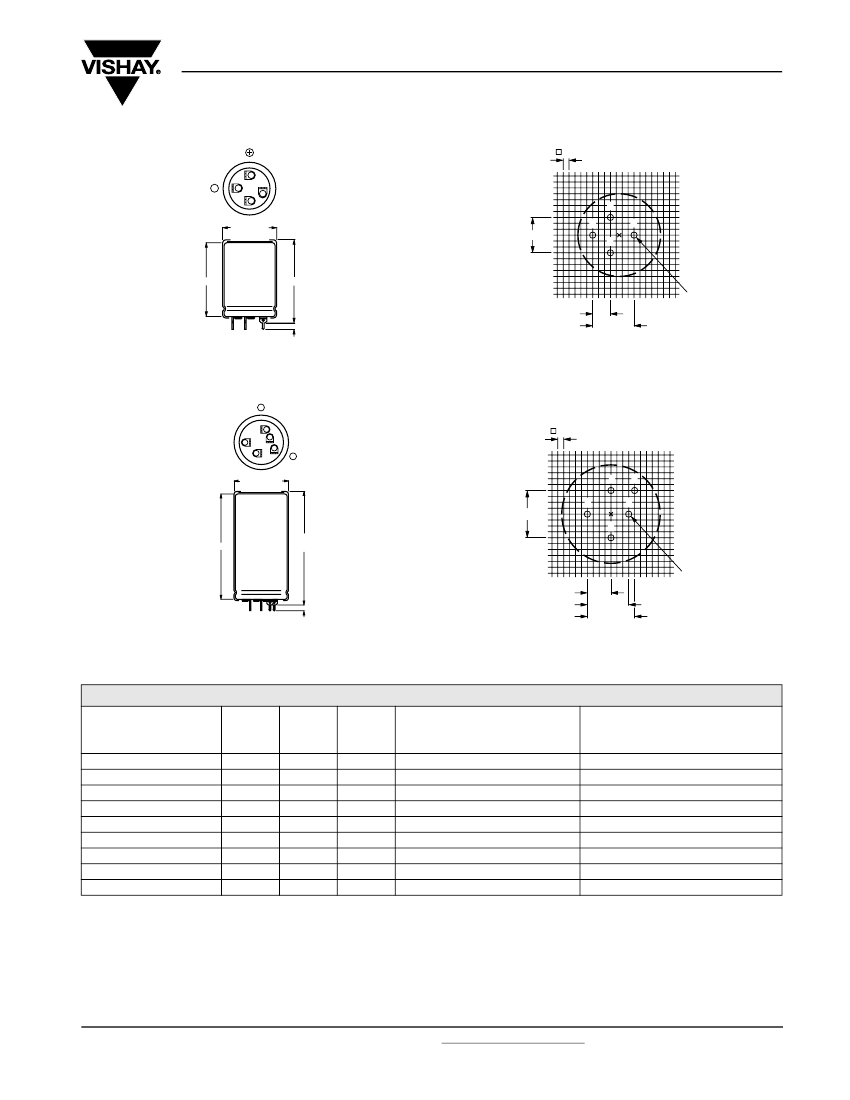

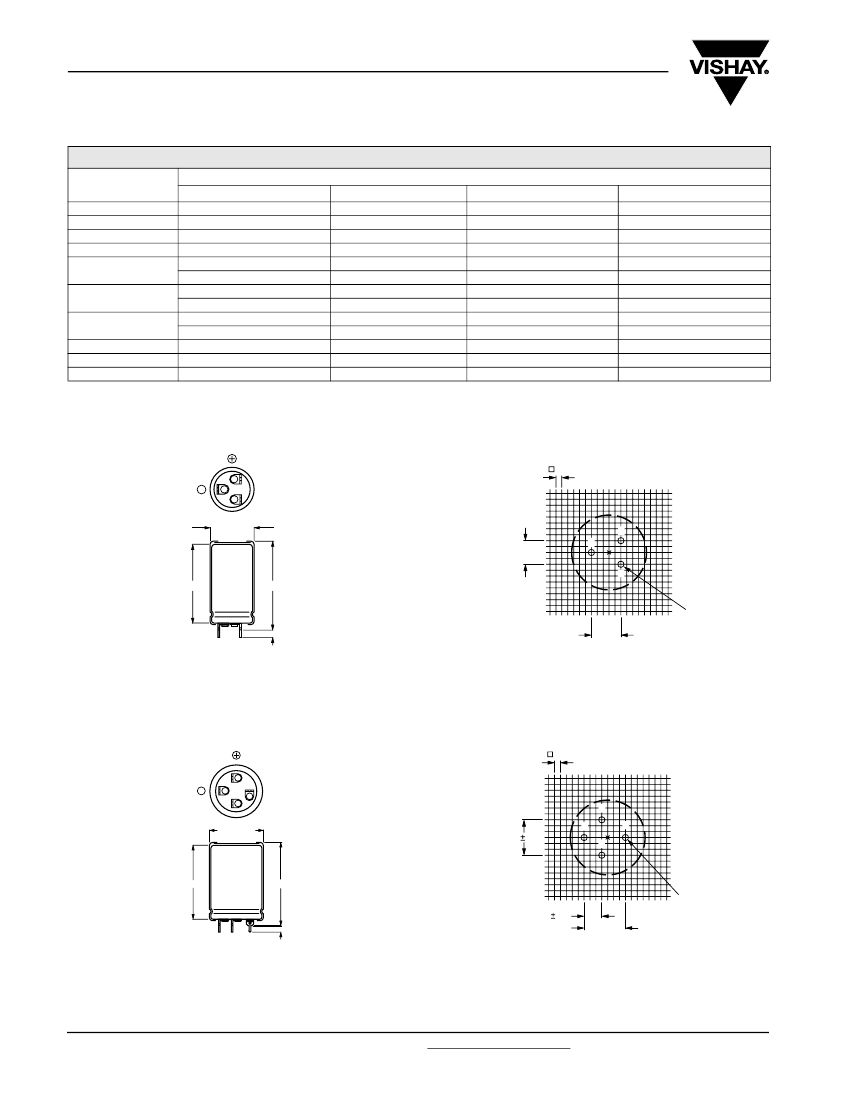

DIMENSIONS
in millimeters
AND AVAILABLE FORMS
2.5
1
-
ØD
+ 1 max
10 ± 0.1
5
5
2
2
1
L
L + 5 max.
1.3
(3x)
1 = Positive terminal;
5 = negative terminal
Case Ø D = 25 mm
5.1 ± 0.1
Case Ø D = 25 mm
12.5
± 0.1
Fig.1 Printed
wiring
pin
version
Fig.2 Mounting hole diagramm
viewed
from the component side
2.5
1
-
ØD
+ 1 max.
5
3
2
2
5
15
0.1
1
3
L
L + 5 max.
7.5
0.1
17.5
± 0.1
Case Ø D = 30 mm and 35 mm
1.3
(4x)
1 = Positive terminal;
5 = negative terminal
Case Ø D = 30 mm and 35 mm
5.1 ± 0.1
Fig.3 Printed
wiring
pin
version
Fig.4 Mounting hole diagramm
viewed
from the component side
www.vishay.com
212
For technical questions, contact: aluminumcaps2@vishay.com
Document Number: 25127
Revision: 06-Feb-08
Not for new design
Aluminum Capacitors
Power 105 °C Printed Wiring Style
2.5
1
EYZ
Vishay Roederstein
-
ØD
+ 1 max.
5
3
2
2
5
15 ± 0.1
1
3
L
L + 5 max.
7.5 ± 0.1
1.3
(4 x)
7.5 ± 0.1
Case Ø D = 35 mm
1 = Positive terminal;
5 = negative terminal
Case Ø D = 35 mm
5.1 ± 0.1
Fig.5 Printed
wiring
pin
version
+
Fig.6 Mounting hole diagramm
viewed
from the component side
2.5
-
1
4
2
5
ØD
+ 1 max.
2
20 ± 0.1
3
3
4
1
5
L
L + 1 max.
1.3
(5 x)
10 ± 0.1
1 = Positive terminal;
5 =
Negative
terminal
Case Ø D = 40 mm
5.1 ± 0.1
Case Ø D = 40 mm
17.5 ± 0.1
20 ± 0.1
Fig.7 Printed
wiring
pin
version
Fig.8 Mounting hole diagramm
viewed
from the component side
DIMENSIONS
in millimeters,
MASS AND PACKAGING QUANTITIES
PW versions
NOMINAL
CASE SIZE
ØDxL
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
Ø D
max
26
26
31
36
36
41
41
41
41
L
max
35
45
45
45
55
45
55
75
105
MASS
(g)
≈
24
≈
28
≈
38
≈
51
≈
66
≈
78
≈
82
≈
110
≈
176
PACKAGING QUANTITIES
(units per box)
100
100
100
50
50
50
50
25
25
CARDBOARD
BOX DIMENSIONS
LxWxH
290 x 280 x 50
290 x 280 x 60
340 x 330 x 60
390 x 198 x 60
390 x 198 x 70
440 x 223 x 60
440 x 223 x 70
230 x 230 x 90
230 x 230 x 120
MOUNTING
When a number of capacitors are connected in a bank, they must not be closer together than 15 mm, when no derating of ripple
current and/or temperature is applied.
Pin numbers 2, 3 and 4 (if present) must be free from the electrical circuit.
Document Number: 25127
Revision: 06-Feb-08
For technical questions, contact: aluminumcaps2@vishay.com
www.vishay.com
213
EYZ
Vishay Roederstein
Not for new design
Aluminum Capacitors
Power 105 °C Printed Wiring Style
ORDERING EXAMPLE
DESCRIPTION
rated capacitance at 100 Hz
rated RMS ripple current at 100 Hz and 105 °C
max. leakage current after 1 min at U
R
max. leakage current after 5 min at U
R
max. equivalent series resistance at 100 Hz
max. impedance at 10 kHz
ELECTRICAL DATA
SYMBOL
C
R
I
R
I
L1
I
L5
ESR
Z
10 000 µF/25 V; ± 20 %
Nominal case size: Ø 30
×
40 mm
Catalog number: EYZ00BB510E02W
Note
1. Unless otherwise specified, all electrical values in Tables and 3
apply at T
amb
= 20 °C, P = 86 to 106 kPa, RH = 45 to 75 %.
ELECTRICAL DATA AND ORDERING INFORMATION
U
R
(V)
C
R
100 Hz
(µF)
10 000
15 000
22 000
33 000
47 000
47 000
68 000
100 000
150 000
6800
10 000
15 000
22 000
33 000
33 000
47 000
68 000
100 000
4700
6800
10 000
15 000
22 000
22 000
33 000
47 000
68 000
2200
3300
4700
6800
10 000
10 000
15 000
22 000
33 000
1000
1500
2200
3300
4700
4700
6800
10 000
15 000
NOMINAL
CASE SIZE
ØD
×
L
(mm)
25
×
30
25
×
40
30
×
40
35
×
40
35
×
50
40
×
40
40
×
50
40
×
70
40
×
100
25
×
30
25
×
40
30
×
40
35
×
40
35
×
50
40
×
40
40
×
50
40
×
70
40
×
100
25
×
30
25
×
40
30
×
40
35
×
40
35
×
50
40
×
40
40
×
50
40
×
70
40
×
100
25
×
30
25
×
40
30
×
40
35
×
40
35
×
50
40
×
40
40
×
50
40
×
70
40
×
100
25
×
30
25
×
40
30
×
40
35
×
40
35
×
50
40
×
40
40
×
50
40
×
70
40
×
100
I
R
100 Hz
105 °C
(A)
3.17
4.21
5.05
5.63
6.19
6.19
7.64
10.0
12.9
3.11
4.09
4.97
5.53
6.08
6.08
7.46
9.70
12.90
2.94
3.93
4.81
5.43
5.98
5.98
7.30
9.43
12.44
2.36
3.17
3.93
4.59
5.03
5.03
6.09
8.34
10.97
1.55
2.10
2.72
3.44
4.09
4.09
5.10
6.86
9.31
I
L1
1 min
(mA)
0.60
0.90
1.32
1.98
2.82
2.82
4.08
6.00
9.00
0.65
0.96
1.44
2.12
3.17
3.17
4.52
6.53
9.60
0.71
1.02
1.50
2.25
3.30
3.30
4.95
7.05
10.20
0.53
0.79
1.13
1.63
2.40
2.40
3.60
5.28
7.92
0.38
0.57
0.83
1.25
1.78
1.78
2.57
3.78
5.67
I
L5
5 min
(mA)
0.20
0.30
0.44
0.66
0.94
0.94
1.36
2.00
3.00
0.22
0.32
0.48
0.71
1.06
1.06
1.51
2.18
3.20
0.24
0.34
0.50
0.75
1.10
1.10
1.65
2.35
3.40
0.18
0.27
0.38
0.55
0.80
0.80
1.20
1.76
2.64
0.13
0.19
0.28
0.42
0.60
0.60
0.86
1.26
1.89
ESR
100 Hz
(mΩ)
48
34
29
27
26
26
21
16
13
50
36
30
29
28
28
22
17
13
56
39
32
30
29
29
23
18
14
87
60
48
42
41
41
33
23
18
202
137
100
75
62
62
47
34
25
Z
10 kHz
(mΩ)
37
27
23
22
21
21
18
15
12
37
27
23
22
21
21
18
15
12
37
27
23
22
21
21
18
15
12
54
38
33
31
29
29
24
18
15
155
109
79
61
53
53
40
29
21
CATALOG
NUMBER
EYZ00AV510C02W
EYZ00AB515C02W
EYZ00BB522C02W
EYZ00CB533C02W
EYZ00CD547C02W
EYZ00DB547C02W
EYZ00DD568C02W
EYZ00DG610C02W
EYZ00DM615C02W
EYZ00AV468D02W
EYZ00AB510D02W
EYZ00BB515D02W
EYZ00CB522D02W
EYZ00CD533D02W
EYZ00DB533D02W
EYZ00DD547D02W
EYZ00DG568D02W
EYZ00DM610D02W
EYZ00AV447E02W
EYZ00AB468E02W
EYZ00BB510E02W
EYZ00CB515E02W
EYZ00CD522E02W
EYZ00DB522E02W
EYZ00DD533E02W
EYZ00DG547E02W
EYZ00DM568E02W
EYZ00AV422G02W
EYZ00AB423G02W
EYZ00BB447G02W
EYZ00CB468G02W
EYZ00CD510G02W
EYZ00DB510G02W
EYZ00DD515G02W
EYZ00DG522G02W
EYZ00DM533G02W
EYZ00AV410J02W
EYZ00AB415J02W
EYZ00BB422J02W
EYZ00CB433J02W
EYZ00CD447J02W
EYZ00DB447J02W
EYZ00DD468J02W
EYZ00DG510J02W
EYZ00DM515J02W
10
16
25
40
63
www.vishay.com
214
For technical questions, contact: aluminumcaps2@vishay.com
Document Number: 25127
Revision: 06-Feb-08
Not for new design
Aluminum Capacitors
Power 105 °C Printed Wiring Style
ELECTRICAL DATA AND ORDERING INFORMATION
U
R
(V)
C
R
100 Hz
(µF)
470
680
1000
1500
2200
2200
3300
4700
6800
150
220
330
470
680
680
1000
1500
2200
100
150
220
330
470
470
680
1000
1500
68
100
150
220
330
330
470
680
1000
68
100
150
220
330
330
470
680
1000
NOMINAL
CASE SIZE
ØD
×
L
(mm)
25
×
30
25
×
40
30
×
40
35
×
40
35
×
50
40
×
40
40
×
50
40
×
70
40
×
100
25
×
30
25
×
40
30
×
40
35
×
40
35
×
50
40
×
40
40
×
50
40
×
70
40
×
100
25
×
30
25
×
40
30
×
40
35
×
40
35
×
50
40
×
40
40
×
50
40
×
70
40
×
100
25
×
30
25
×
40
30
×
40
35
×
40
35
×
50
40
×
40
40
×
50
40
×
70
40
×
100
25
×
30
25
×
40
30
×
40
35
×
40
35
×
50
40
×
40
40
×
50
40
×
70
40
×
100
I
R
100 Hz
105 °C
(A)
1.42
1.90
2.48
3.17
3.79
3.79
4.81
6.49
8.80
0.72
0.96
1.29
1.66
2.09
2.09
2.71
3.75
5.24
0.67
0.92
1.28
1.65
2.01
2.01
2.59
3.58
5.05
0.61
0.82
1.10
1.44
1.84
1.84
2.37
3.24
4.54
0.39
0.53
0.72
0.94
1.24
1.24
1.59
2.18
3.07
I
L1
1 min
(mA)
0.28
0.41
0.60
0.90
1.32
1.32
1.98
2.82
4.08
0.18
0.26
0.40
0.57
0.82
0.82
1.20
1.80
2.64
0.15
0.22
0.33
0.49
0.70
0.70
1.02
1.50
2.25
0.16
0.23
0.35
0.51
0.77
0.77
1.09
1.58
2.31
0.16
0.24
0.36
0.52
0.79
0.79
1.12
1.63
2.40
I
L5
5 min
(mA)
0.10
0.14
0.20
0.30
0.44
0.44
0.66
0.94
1.36
0.06
0.09
0.14
0.19
0.28
0.28
0.40
0.60
0.88
0.05
0.08
0.11
0.17
0.24
0.24
0.34
0.50
0.75
0.06
0.08
0.12
0.17
0.26
0.26
0.36
0.53
0.78
0.06
0.08
0.12
0.17
0.26
0.26
0.37
0.54
0.80
ESR
100 Hz
(mΩ)
240
167
120
88
72
72
53
38
28
950
650
442
321
237
237
167
114
79
1060
710
492
325
256
256
182
125
85
1650
1120
755
525
360
360
260
180
125
3200
2180
1460
1010
680
680
485
336
230
Z
10 kHz
(mΩ)
155
109
79
61
53
53
40
29
21
710
485
330
240
185
185
133
90
62
710
485
330
240
185
185
133
90
62
1260
855
580
405
280
280
205
140
100
2660
1810
1210
830
570
570
407
282
193
EYZ
Vishay Roederstein
CATALOG
NUMBER
EYZ00AV347L02W
EYZ00AB368L02W
EYZ00BB410L02W
EYZ00CB415L02W
EYZ00CD422L02W
EYZ00DB422L02W
EYZ00DD433L02W
EYZ00DG447L02W
EYZ00DM468L02W
EYZ00AV315S02W
EYZ00AB322S02W
EYZ00BB333S02W
EYZ00CB347S02W
EYZ00CD368S02W
EYZ00DB368S02W
EYZ00DD410S02W
EYZ00DG415S02W
EYZ00DM422S02W
EYZ00AV310N02W
EYZ00AB315N02W
EYZ00BB322N02W
EYZ00CB333N02W
EYZ00CD347N02W
EYZ00DB347N02W
EYZ00DD368N02W
EYZ00DG410N02W
EYZ00DM415N02W
EYZ00AV268R02W
EYZ00AB310R02W
EYZ00BB315R02W
EYZ00CB322R02W
EYZ00CD333R02W
EYZ00DB333R02W
EYZ00DD347R02W
EYZ00DG368R02W
EYZ00DM410R02W
EYZ00AV268X02W
EYZ00AB310X02W
EYZ00BB315X02W
EYZ00CB322X02W
EYZ00CD333X02W
EYZ00DB333X02W
EYZ00DD347X02W
EYZ00DG368X02W
EYZ00DM410X02W
100
200
250
385
400
ADDITIONAL ELECTRICAL DATA
PARAMETER
Voltage
Surge voltage
Reverse voltage
Current
Leakage current
Inductance
case Ø D = 25 mm
Equivalent series inductance (ESL)
case Ø D = 30 and 35 mm
case Ø D = 40 mm
max. 25 nH
max. 30 nH
max. 35 nH
after 1 min at U
R
after 5 min at U
R
I
L1
≤
0.006 C
R
x U
R
+ 4 µA
I
L5
≤
0.002 C
R
x U
R
+ 4 µA
≤
200 V versions
≥
385 V versions
U
s
= 1.15 x U
R
U
s
= 1.1 x U
R
U
rev
≤
1 V
CONDITIONS
VALUE
Document Number: 25127
Revision: 06-Feb-08
For technical questions, contact: aluminumcaps2@vishay.com
www.vishay.com
215
Automotive Electronics
京公网安备 11010802033920号
EEWORLD
