Not Available for New Designs
GPP100D, GPP100G, GPP100J, GPP100K, GPP100M
www.vishay.com
Vishay General Semiconductor
Glass Passivated Junction Plastic Rectifier
FEATURES
• Glass passivated chip junction
• Low forward voltage drop
• Low leakage current, typical I
R
less than 0.2 μA
• High forward surge capability
• Meets environmental standard MIL-S-19500
• Solder dip 275 °C max. 10 s, per JESD 22-B106
• AEC-Q101 qualified
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
P600
TYPICAL APPLICATIONS
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
V
F
at I
F
= 10 A
I
R
T
J
max.
Package
Diode variations
10 A
200 V, 400 V, 600 V, 800 V, 1000 V
440 A
1.05 V
5.0 μA
175 °C
P600
Single die
For use in general purpose rectification of power supplies,
inverters, converters, and freewheeling diodes application.
MECHANICAL DATA
Case:
P600, molded epoxy over passivated junction
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Base P/NHE3 - RoHS-compliant, AEC-Q101 qualified
Terminals:
Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix
meets JESD 201 class 2 whisker test
Polarity:
Color band denotes cathode end
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
0.375" (9.5 mm) lead length at T
A
= 50 °C
Peak forward surge current 8.3 ms single
half sine-wave superimposed on rated load
Operating junction and storage
temperature range
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
T
J
, T
STG
GPP100D
200
140
200
GPP100G
400
280
400
GPP100J
600
420
600
10
440
- 55 to + 175
GPP100K
800
560
800
GPP100M
1000
700
1000
UNIT
V
V
V
A
A
°C
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum instantaneous
forward voltage
Maximum reverse current
Typical reverse recovery
time
Typical junction
capacitance
TEST CONDITIONS
I
F
= 10 A
Rated V
R
T
A
= 25 °C
T
A
= 100 °C
SYMBOL
V
F
(1)
I
R
t
rr (2)
C
J
GPP100D
GPP100G
GPP100J
1.05
5.0
100
5.5
110
GPP100K
GPP100M
UNIT
V
μA
μs
pF
I
F
= 0.5 A, I
R
= 1.0 A,
I
rr
= 0.25 A
4.0 V, 1 MHz
Notes
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
(2)
Pulse test: 40 ms pulse width,
Revision: 14-Aug-13
Document Number: 89952
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Not Available for New Designs
GPP100D, GPP100G, GPP100J, GPP100K, GPP100M
www.vishay.com
Vishay General Semiconductor
SYMBOL
R
JA
(1)
R
JL
(1)
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance
GPP100D
GPP100G
GPP100J
20
4.0
GPP100K
GPP100M
UNIT
°C/W
Note
(1)
Leads clipped at 3 mm lead length from plastic body on 7.0 cm x 2.2 cm x 1.9 cm x 2 heatsink
ORDERING INFORMATION
(Example)
PREFERRED P/N
GPP100J-E3/54
GPP100J-E3/73
GPP100JHE3/54
(1)
GPP100JHE3/73
(1)
(1)
UNIT WEIGHT (g)
2.0
2.0
2.0
2.0
PREFERRED PACKAGE CODE
54
73
54
73
BASE QUANTITY
800
300
800
300
DELIVERY MODE
13" diameter paper tape and reel
Ammopack packaging
13" diameter paper tape and reel
Ammopack packaging
Note
AEC-Q101 qualified

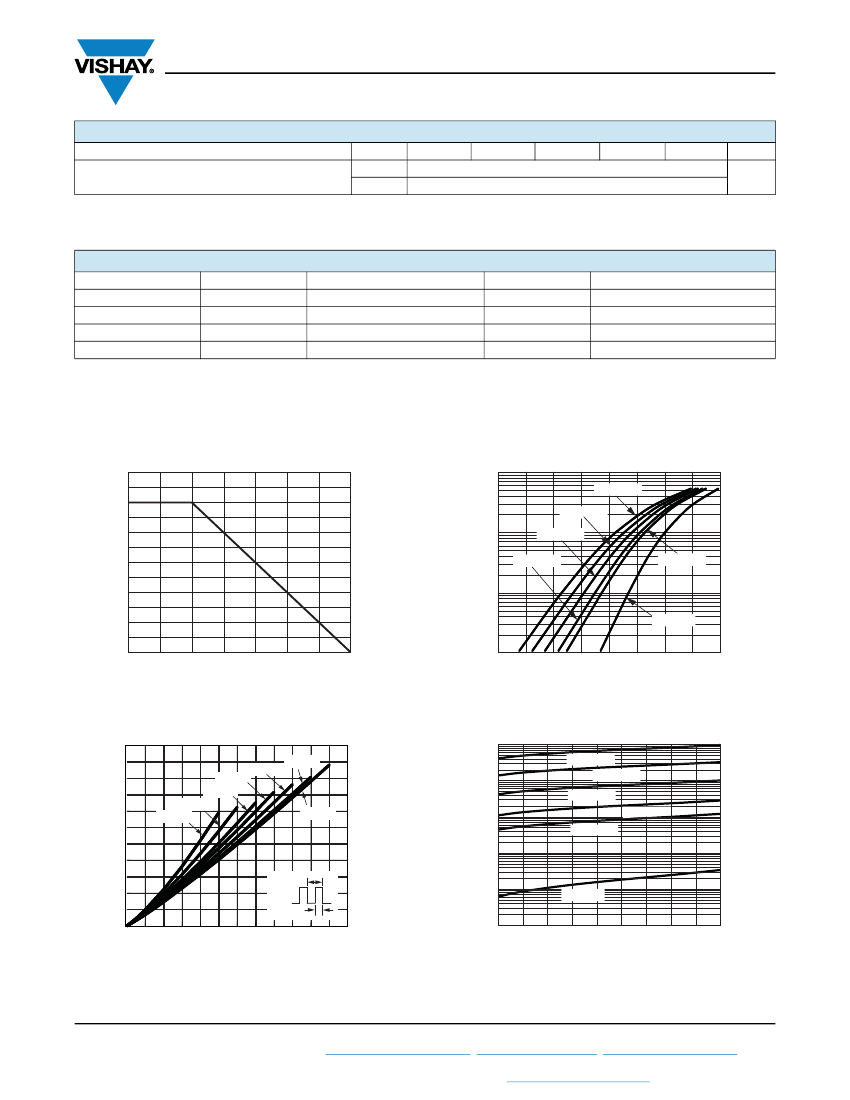

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
12
100
10
8
6
4
2
0
0
25
50
75
100
125
150
175
Instantaneous Forward Current (A)
T
A
= 175 °C
T
A
= 150 °C
10
T
A
= 125 °C
T
A
= 100 °C
T
A
= 85 °C
Average Forward Current (A)
1
T
A
= 25 °C
0.1
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
Ambient Temperature (°C)
Instantaneous Forward Voltage (V)
Fig. 1 - Maximum Forward Current Derating Curve
Fig. 3 - Typical Instantaneous Forward Characteristics
11
1000
Instantaneous Reverse Current (mA)
10
Average Power Loss (W)
9
8
7
6
5
4
3
2
1
0
0
1
2
3
4
5
D = 0.1
D = 0.05
D = 0.3
D = 0.2
D = 0.5
D = 0.8
T
A
= 175 °C
100
T
A
= 150 °C
T
A
= 125 °C
10
T
A
= 85 °C
1
T
A
= 100 °C
D = 1.0
T
0.1
T
A
= 25 °C
D = t
p
/T
6
7
8
9
t
p
10
11 12
0.01
10
20
30
40
50
60
70
80
90
100
Average Forward Current (A)
Percent of Rated Peak Reverse Voltage (%)
Fig. 2 - Forward Power Loss Characteristics
Fig. 4 - Typical Reverse Leakage Characteristics
Revision: 14-Aug-13
Document Number: 89952
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Not Available for New Designs
GPP100D, GPP100G, GPP100J, GPP100K, GPP100M
www.vishay.com
Vishay General Semiconductor
1000
T
J
= 25 °C
f = 1.0 MHz
V
STG
= 50 mV
p-p
Junction Capacitance (pF)
100
10
0.1
1
10
100
Reverse Voltage (V)
Fig. 5 - Typical Junction Capacitance
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
P600
1.0 (25.4)
MIN.
0.360 (9.1)
0.340 (8.6)
0.360 (9.1)
0.340 (8.6)
0.052 (1.32)
0.048 (1.22)
DIA.
1.0 (25.4)
MIN.
Revision: 14-Aug-13
Document Number: 89952
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
