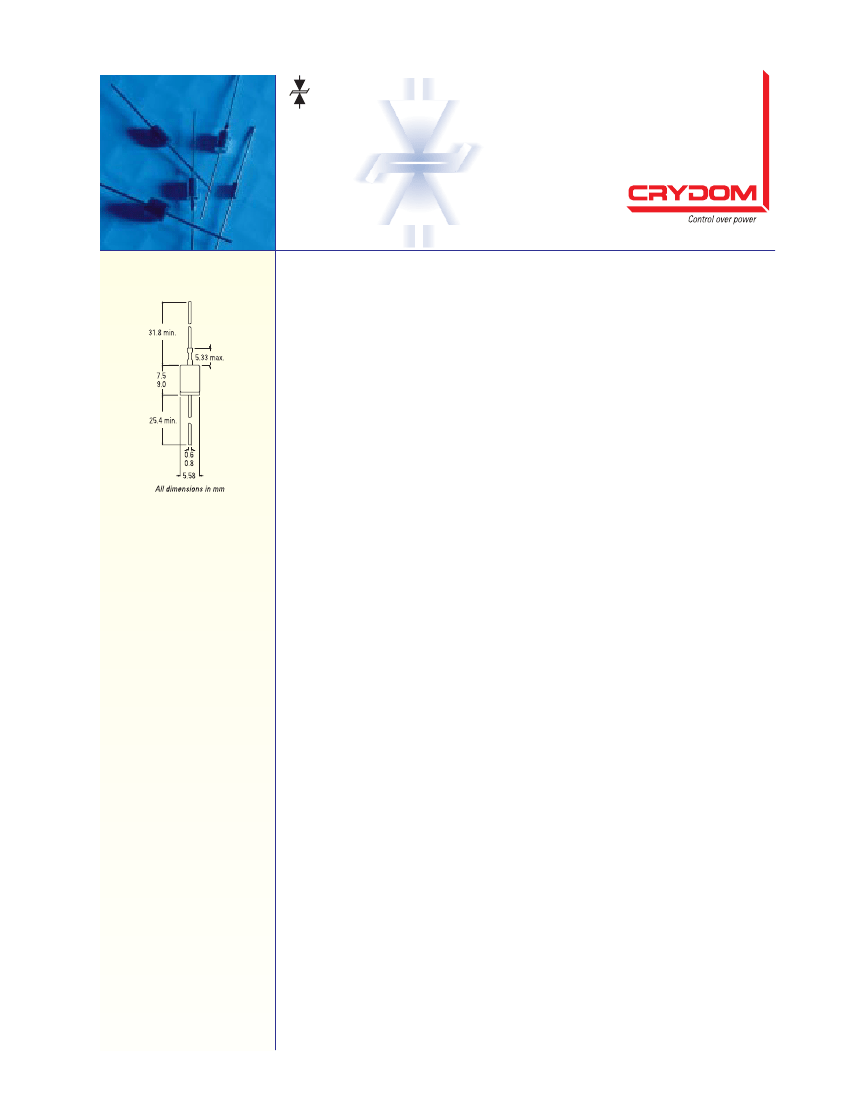

Tr a n s i e n t V o l t a g e S u p p r e s s i o n ( T V S ) D i o d e s
1N6036 – 1N6072A
Series
Invisible Protection
When no problems exist, Crydom TVS
Diodes are totally invisible to the circuits
they're protecting. But when potentially
damaging transients occur, they provide
high-speed "clamping" to prevent damage
– and then return to their electronically
invisible state.
MAXIMUM RATINGS
• Peak pulse power (P
PK
):
1500 watts (10 X 1000 µs)
• 1 watt steady state
• Response time: 1 X 10
–12
s (theoretical)
• Operating and storage temperature:
-55°C to +175°C
MECHANICAL CHARACTERISTICS
1N60 SERIES (1500 WATT) METAL AXIAL
TRANSIENT VOLTAGE SUPPRESSORS
(hermetically sealed package for harsh
industrial environments)
• Case: Metal hermetically sealed
DO-13 package
• Terminals: Axial leads, solderable
per MIL-STD-202 Method 208
• Weight: 1.5 grams (approx.)
FEATURES
• Glass passivated junction
• Stand-off voltage range: 6.8-200 V
• Excellent clamping capability
• Low zener impedance
• 100% surge tested
• -65°C to +175°C
• Hermetically sealed
• Bi-directional
To Order: 1-877-502-5500 Fax: 1-619-715-7280
Tr a n s i e n t V o l t a g e S u p p r e s s i o n ( T V S ) D i o d e s
1N6036 – 1N6072A
Series
Peak Power Derating Curve
Peak Pulse Power in Percentage of 25
°C
Rating
100%
Watts
1.0
0.75
0.50
0.25
0
0
50
100
150
200
0
50
100
150
200
Permissible
area of
operation
Continuous DC Power Derating Curve
Continuous DC Power Dissipation
50%
Permissible
area of
operation
0
Tamb°C
Percentage peak pulse power plotted against
ambient temperature
Tamb°C
Continuous DC power dissipation plotted
against junction temperature
Specify Crydom
…for these industry-leading
components and products:
Ordering Information
For recommended applications and more
information contact:
Sales: 1-877-502-5500
Technical support: 1-877-702-7700
Corporate Headquarters: 1-619-715-7200
Fax: 1-619-715-7280
E-mail: sales@crydom.com
Website: www.crydom.com
About Crydom
Over the years Crydom has become the
supplier of choice for advanced, high-quality
products like those featured here. It's the
result of our teams of design and production
engineers – material, production control,
and quality assurance experts, and more –
working seamlessly together to create,
produce, and deliver superior components
and products that satisfy the most demand-
ing environmental and performance require-
ments. We focus on timely delivery and
competitive pricing aimed at meeting your
needs and helping you succeed in today's
fast-paced, fast-changing global markets.
• Solid State Relays
Printed Circuit Board Mount
Panel Mount
DIN Rail Mount
• Power Cubes
• I/O Modules
Voltage
IN60
A
• Transient Voltage
Suppression Components
TVS Diodes
Thyristor Suppression
Devices
Gas Discharge Tubes (GDT)
Zeners/Studs
Hybrid Arrester Devices
5% Voltage tolerance
Packaging option
B = Bulk (500 pcs)
T = Tape & reeled (1000 pcs)
FASTFAX Product Info: 1-888-267-9191
Crydom
9525 Chesapeake Drive
San Diego, CA 92123 USA
©1998 Crydom
Specifications subject to change without notice.
CRYDOM 1N6036 998-5000 Ver A
