Chip Scale Packages
LLP, DFN, QFN MLP, CLCC
DIP Adapters
DIP ADAPTER
MODULES
ELIMINATE THE
NEED TO
REDESIGN
MOTHERBOARDS
OR MAY BE USED
FOR
BREADBOARD
PROTOTYPING
FEATURES
Description
This new family of Accutek DIP Adapter Modules converts surface
mount IC’s to pin compatible DIP packages for creating drop-in re-
placements for end-of-life DIP IC’s. Package types supported are:
LLP (Leadless Leadframe Package), DFN, QFN, MLP and CLCC.
These DIP Adapters were developed for users with motherboard
designs that require DIP’s, now obsoleted by manufacturers. These
adapter modules save costly motherboard redesigns.
Available with machined or flat contact pins. Accutek DIP Adapter
Modules feature 8 to 72 pins, are fully assembled and tested and
may include a decoupling capacitor. These DIP Adapters can be
manufactured turnkey or from customer supplied surface mount
chips. Modules range in length from 0.400” to 3.600” depending on
number of pins and incorporate 0.300”, 0.400”, 0.600”, and 0.900",
row-to-row spacing with 0.100” lead spacing.
Custom configurations up to 200 pins, multi-chip and double sided
modules are also available for special functions. A variety of pin
lengths with varying diameters as well as custom sizes and spacing
can be specified with different materials and finishes. All modules
are designed in-house using PCB CAD workstations. Automated
assembly and 100% testing are also performed in-house.
·
·
·
·
·
·
·
Saves costly redesign of current motherboards
Fully tested with lifetime limited warranty
May include an on board decoupling capacitor
IC assembly and testing available
EPROM and Flash programming available
Custom lead lengths available
Custom multi-chip and double-sided modules available
ORDERING OPTIONS
·
Adapter only
·
Customer supplies chips - Accutek assembles on Accutek
adapters, tests and delivers finished product in antistatic tubes.
·
Complete turnkey - Accutek purchases IC’s and passives. Then
assembles, tests and delivers finished product in antistatic tubes.
MICROCIRCUIT CORPORATION
ACCUTEK
5 NEW PASTURE ROAD
NEWBURYPORT, MA 01950-4040
PHONE: 978-465-6200 FAX: 978-462-3396
Email: sales@accutekmicro.com
Internet: www.accutekmicro.com
We can assemble your chips on to our adapter
boards. Fully automated assembly and test at
our Newburyport, Massachusetts facility.

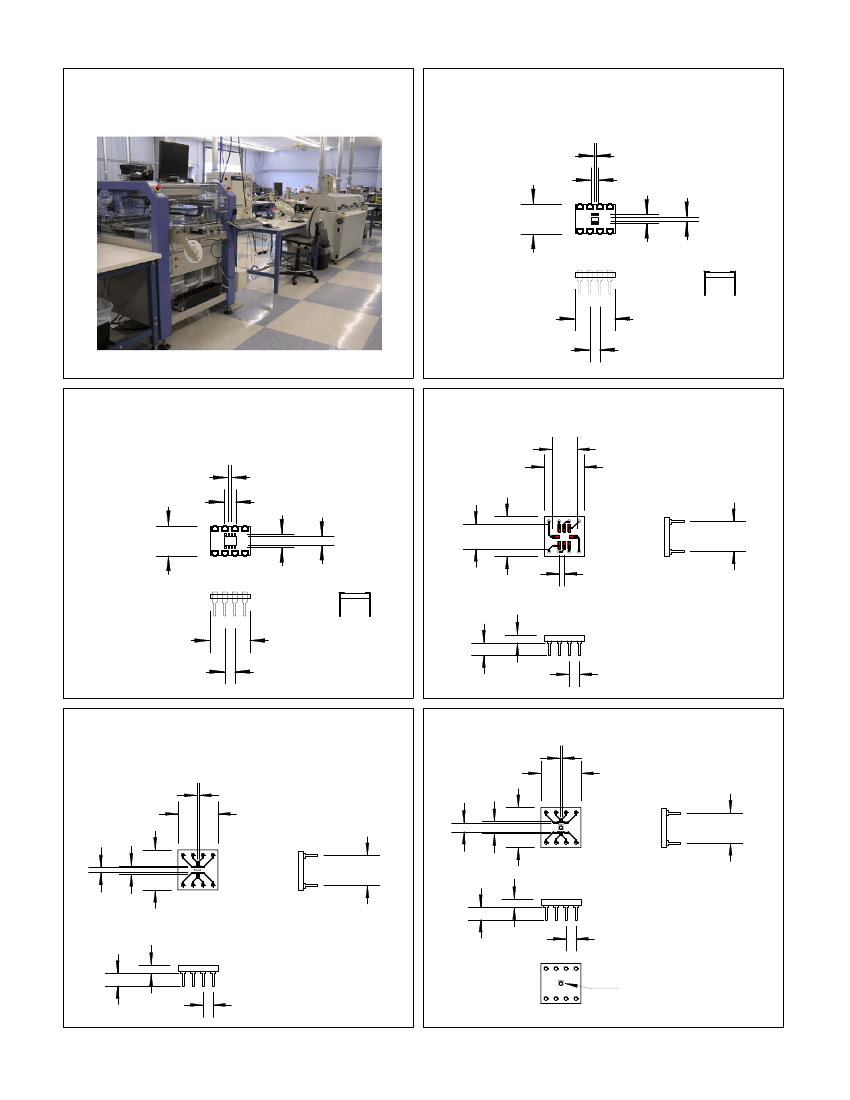

AK08D300-LLP3X3
LEADLESS LEADFRAME PACKAGE (3 X 3)
TO 8 PIN DIP
0.020" (0.5mm)
0.300"
0.070"
0.090" 0.047"
(2.3mm)
0.400"
0.100"
No job to large or small.
LEADLESS LEADFRAME PACKAGE (4 X 4)
TO 8 PIN DIP
AK08D300-LLP4X4
AK08D300-CLCC
8 PIN CLCC TO DIP
(CLCC=ceramic leadless chip carrier)
0.250"
0.031" (0.8mm)
0.300"
0.117"
0.250"
0.400"
0.400"
0.130" 0.087"
(3.3mm)
0.080"
0.125"
0.400"
0.100"
0.100"
0.050"
0.300"

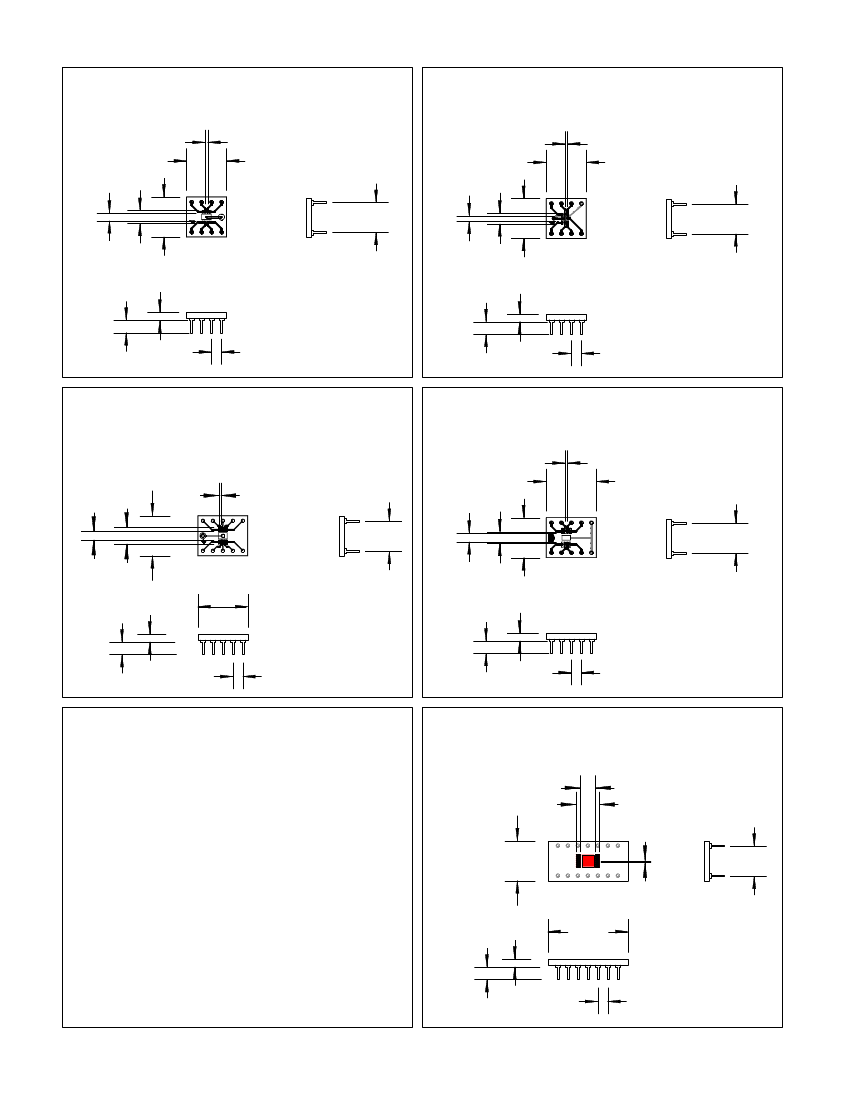

AK08D300-LFCSP2x3 .5MM
8 PIN 2mm x3mm LFCSP 0.5mm PITCH TO 0.300" DIP
AK08D300-LFCSP3x3 .5MM
8 PIN 3mm LFCSP 0.5mm PITCH TO 0.300" DIP
0.020" (0.5mm)
0.400"
0.020" (0.5mm)
0.400"
0.400"
0.047" 0.079"
0.400"
0.118"
0.086"
0.080"
0.125"
0.300"
0.080"
0.125"
0.100"
0.300"
BOTTOM VIEW
CONNECTION TO TOP SIDE PAD
0.100"
PAGE 2 ACCUTEKMICRO.COM 03/2012(CSP02)

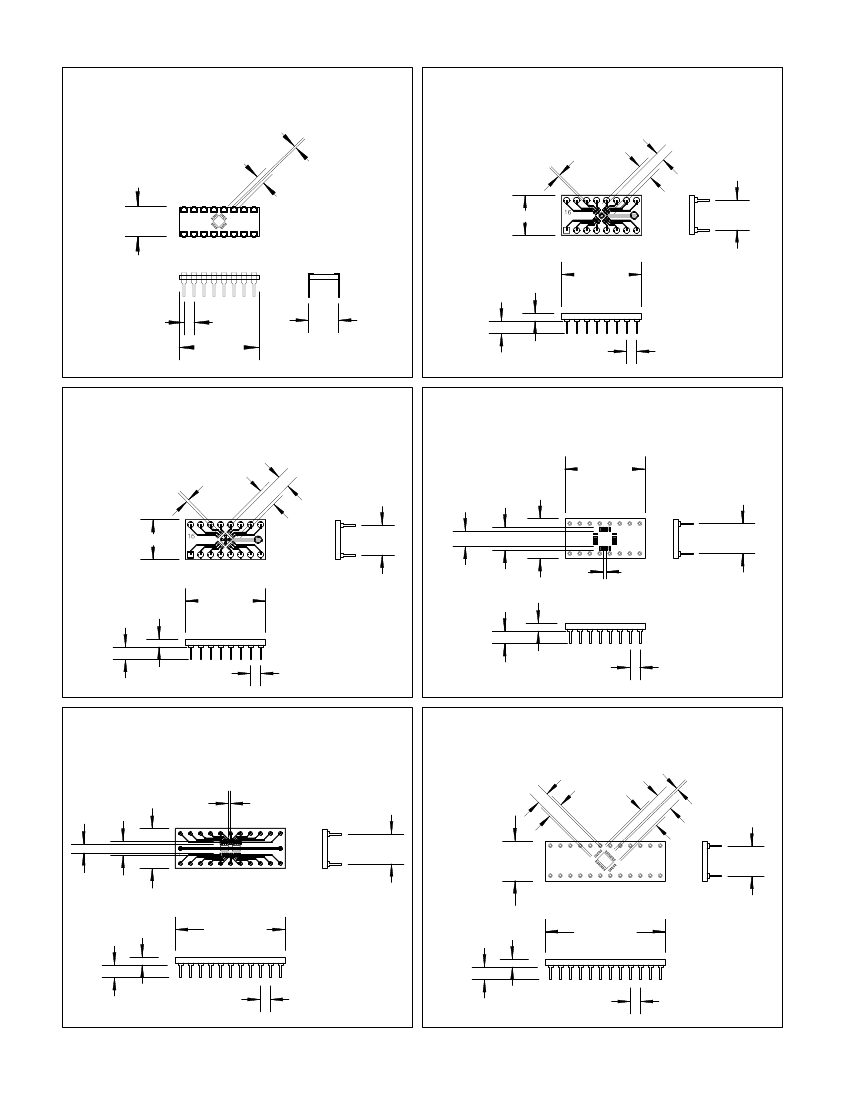

AK16D300-LLP4X4
LEADLESS LEADFRAME PACKAGE (4 X 4)
TO 16 PIN DIP
AK16D300-QFN/MLP 3X3
3MM-16 PIN QFN/MLP 0.5MM PITCH TO DIP
0.50 mm
0.50 mm
7.62 mm
2.21 mm
10.16 mm
3.95 mm
2.26 mm
7.62 mm
20.32 mm
2.03 mm
3.18 mm
2.54 mm
20.32 mm
7.62 mm
2.54 mm
AK16D300-QFN/MLP 4X4
4MM-16 PIN QFN/MLP 0.65MM PITCH TO 16 PIN DIP
AK16D300-QFN5X5
16 PIN QUAD FLAT NO-LEAD PACKAGE 0.8mm PITCH TO DIP
0.65 mm
4.80 mm
3.20 mm
3.94 mm 5.96 mm
10.16 mm
20.32 mm
10.16 mm
0.8mm
(0.0315")
7.62 mm
7.62 mm
20.32 mm
2.03 mm
3.18 mm
2.03 mm
3.18 mm
2.54 mm
2.54 mm
AK22D300-DFN
AK24D300-LLP
LEADLESS LEADFRAME PACKAGE(5 X 4)
TO 24 PIN DIP
0.50 mm
3.00 mm
4.01 mm 5.61 mm
22 PIN DFN 0.65MM PITCH TO DIP
10.16 mm
3.61 mm
2.29 mm
0.50 mm
4.60 mm
7.62 mm
10.16 mm
7.62 mm
2.03 mm
3.18 mm
27.94 mm
2.03 mm
3.18 mm
30.48 mm
2.54 mm
2.54 mm
PAGE 4 ACCUTEKMICRO.COM 3/2012(CSP04)
AK24D300-QFN/MLP 4X4
4.49 mm
4MM-24 PIN QFN/MLP 0.5MM PITCH TO 0.300" DIP
AK24D400-QFN/MLP 5X5
5.26 mm
0.65 mm
5MM-24 PIN QFN/MLP 0.65MM PITCH TO 0.400" DIP
0.50 mm
3.30 mm
10.16 mm
12.70 mm
4.18 mm
7.62 mm
10.16 mm
2.03 mm
3.18 mm
30.48 mm
2.03 mm
3.18 mm
30.48 mm
2.54 mm
2.54 mm
AK24D600-QFN/MLP 4X4
4.49 mm
4MM-24 PIN QFN/MLP 0.5MM PITCH TO 0.600" DIP
AK28D300-LLP
LEADLESS LEADFRAME PACKAGE(5 X 5)
TO 28 PIN 0.300" DIP
5.00 mm
0.50 mm
0.50 mm
3.30 mm
10.16 mm
15.24 mm
3.81 mm
17.78 mm
7.62 mm
2.03 mm
3.18 mm
35.56 mm
2.03 mm
3.18 mm
30.48 mm
2.54 mm
2.54 mm

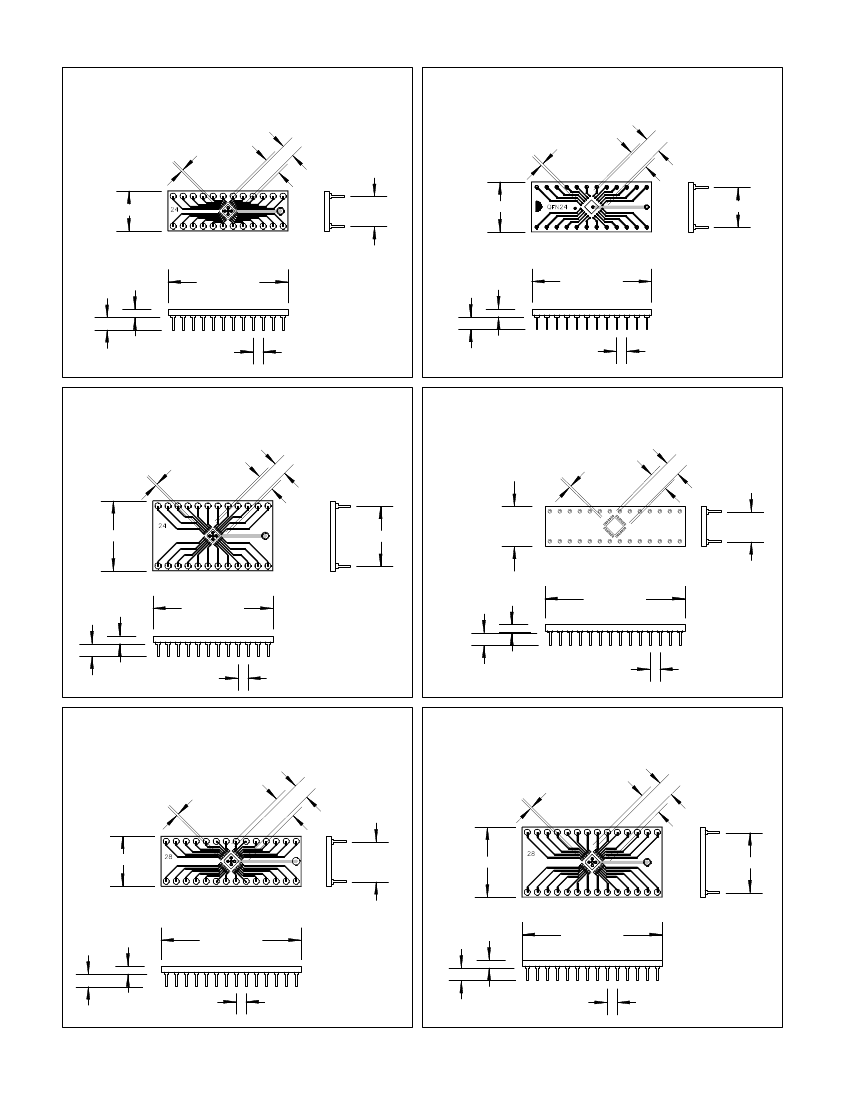

AK28D400-QFN/MLP 5X5
5MM-28 PIN QFN/MLP 0.5MM PITCH TO 0.600" DIP
AK28D600-QFN/MLP 5X5
5MM-28 PIN QFN/MLP 0.5MM PITCH TO 0.400" DIP
6.00 mm
0.50 mm
4.00 mm
6.00 mm
0.50 mm
4.00 mm
12.70 mm
17.78 mm
15.24 mm
10.16 mm
2.03 mm
3.18 mm
35.56 mm
2.03 mm
3.18 mm
35.56 mm
2.54 mm
2.54 mm
PAGE 5 ACCUTEKMICRO.COM 3/2012(CSP05)
