2.45 GHz ISM-band antenna for
Bluetooth and WLAN IEEE 802.11b
Surface-mount ceramic
multilayer antennas
www.phycomp-components.com
Product specification
Supersedes data of 5th February 2001
2001 Sep 27 Rev.1
Phycomp
Product specification
Surface-mount ceramic
multilayer antennas
FEATURES
•
Designed for 2.45 GHz ISM-band
•
Simplifies antenna circuitry
•
NiSn lead-free terminations
•
suitable for wave and reflow
soldering
•
Supplied in tape on reel.
APPLICATIONS
•
Telecommunications
•
Computing (PCs, printers, PDAs)
•
Wireless office data
communications including WLAN
•
Consumer electronics (wireless
headphones).
DESCRIPTION
2.45 GHz ISM-band antenna for
Bluetooth and WLAN IEEE 802.11b
ENVIRONMENTAL CARE
The foil making process
uses an environment-
friendly aqueous-solvent
technology that fully
complies with today’s green-product
design requirements. All terminations
are lead-free. Packing materials can
be recycled.
This 2.45 GHz ceramic multilayer
antenna has been designed to meet
the requirements of the Bluetooth
TM(1)
and IEEE 802.11b wireless
communications protocol. It consists
of a rectangular block of low-dielectric
ceramic material and is fabricated in a
water-based non-toxic process. The
antenna is capable of providing good
connectivity using near 50
Ω
microstrip directly onto the PC board.
(1) Bluetooth is a trademark owned by
Telefonieaktiebolaget L M Ericsson,
Sweden.
QUICK REFERENCE DATA
DESCRIPTION
Center frequency
Bandwidth
Gain
VSWR
Polarization
Azimuth beamwidth
Impedance
Power dissipation
Operating temperature
Terminations
Resistance to soldering heat
Weight
100 MHz
1.2 dBi max.
2 max.
Linear
Omni-directional
50
Ω
1W
−55
to
+125 °C
NiSn
260
°C
for 10 s
0.16 g
VALUE
2.45, 2.60 and 2.70 GHz
2001 Sep 27 Rev.1
2
www.phycomp-components.com
Phycomp
Product specification
Surface-mount ceramic
multilayer antennas
MECHANICAL DATA
2.45 GHz ISM-band antenna for
Bluetooth and WLAN IEEE 802.11b
W
S4
S3
S2
S2
S3
S4
C
L
C
F
G
S1
T
S1
F
G
Dimensions in mm
For dimensions see Table 1.
HBK016
Fig.1 Dimensional outline.
Physical dimensions
Table 1
L
–
Antenna dimensions
W
–
T
–
F
feed
termination
G
optional
1)
ground
termination
C
–
S
1
NC
solder
termination
S
2
NC
solder
termination
S
3
NC
solder
termination
S
4
NC
solder
termination
Dimensions in millimetres
7.35
±0.25
5.5
±0.2
1.3
±0.2
0.9
±0.25
1.25
±0.35
0.5 ±0.3
1.25
±0.35
1.25
±0.35
0.9
±0.25
1.25
±0.35
Note
1. The antenna has built-in circuitry to the ground termination. Connecting the antenna’s ground point to the system’s
RF ground plane is optional. If good matching is achieved, the ground termination is then used as a solder joint (like
S1, S2, S3, and S4) to fix the antenna to the substrate only.
Device marking
CENTER
FREQUENCY
(GHZ)
2.45
2.60
2.70
2001 Sep 27 Rev.1
MARKING
CODE
no marking
6
7
3
www.phycomp-components.com
Phycomp
Product specification
Surface-mount ceramic
multilayer antennas
ELECTRICAL CHARACTERISTICS
DESCRIPTION
Center frequency
Bandwidth
Gain
VSWR
Polarization
Azimuth beamwidth
Impedance
Power dissipation
Operating temperature
Terminations
Resistance to soldering heat
FOOTPRINT DIMENSIONS
100 MHz
1.2 dBi max.
2 max.
Linear
Omni-directional
50
Ω
1W
−55
to
+125 °C
NiSn
260
°C,
10 sec.
VALUE
2.45 GHz ISM-band antenna for
Bluetooth and WLAN IEEE 802.11b
2.45, 2.60 and 2.70 GHz
L
C
C
S1
ANTENNA
F
S2
S3
W
G
S4
HBK015
Dimensions in mm
For dimensions see Table 2.
Fig.2 Recommended dimensions of solder lands.
Physical dimensions
Table 2
L
–
Recommended solder land pattern
W
–
F
feed pad
G
optional
ground pad
C
–
S
1
NC
mounting pad
S
2
NC
mounting pad
S
3
NC
mounting pad
S
4
NC
mounting pad
Dimensions in millimetres
8.30
±0.10
5.70
±0.10
1.00
±0.10
1.40
±0.10
0.90
±0.10
1.40
±0.10
1.40
±0.10
1.00
±0.10
1.40
±0.10
2001 Sep 27 Rev.1
4
www.phycomp-components.com
Phycomp
Product specification
Surface-mount ceramic
multilayer antennas
2.45 GHz ISM-band antenna for
Bluetooth and WLAN IEEE 802.11b

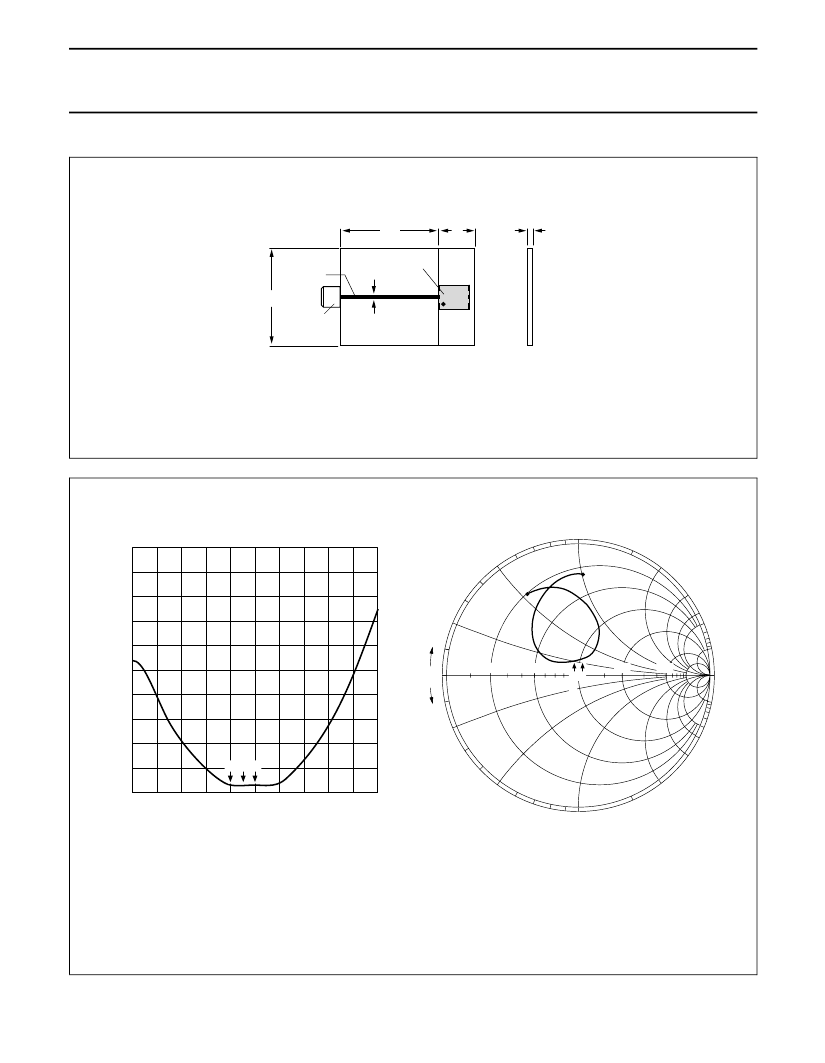

STANDARD TEST BOARD FOR RADIATION PATTERN AND SWR MEASUREMENTS
14
50
Ω
transmisson
line
14
SMA
connector
antenna
chip
8
0.8
1.2
Dimensions in mm
HBK090
Fig.3 Typical FR4 test board.
HBK089
50
25
3 GHz
2 GHz
10
Ω
+
j
Ω
10
25
100
250
250
100
SWR
10.0
9.0
8.0
7.0
6.0
5.0
4.0
3.0
2.0
1.0
2.0
2.2
1 2 3
−
j
Ω
10
0
2 1
3
∞
250
25
100
HBK088
2.4
2.6
2.8
3.0
f (GHz)
50
Marker data:
1: SWR = 1.28; f = 2.400 GHz
2: SWR = 1.34; f = 2.450 GHz
3: SWR = 1.34; f = 2.500 GHz.
Marker data:
1: 50.75
Ω/12.36 Ω;
f = 2.400 GHz
2: 44.98
Ω/12.83 Ω;
f = 2.450 GHz
3: 43.99
Ω/12.27 Ω;
f = 2.500 GHz.
Fig.4 Typical SWR and characteristic impedance measurements.
2001 Sep 27 Rev.1
5
www.phycomp-components.com
