Features/Benefits
•
IP67 sealed
•
1,000,000 life cycle
•
Illumination / non-illumination
•
Multiple colored caps
•
Threaded or snap-in mounting
•
SPST, normally open
•
Caps available separately
•
RoHS compliant
Specifications
FUNCTION: SPST Momentary, double break
CONTACT ARRANGEMENT: N.O.
MOUNTING TYPE:
Snap-in (panel front) or threaded (nut with locking washer and
panel gasket)
AP Series
Industrial Pushbutton Switch
A
Pushbutton
Typical Applications
•
Harsh environments
•
Off-Road
•
Industrial
•
Medical
•
Transportation
•
Joystick control modules
•
Gaming
•
Military
Materials
HOUSING: PBT
BASE: PBT
CAP: PBT
ACTUATOR:
Illuminated: Clear polycarbonate
Non-illuminated: PBT
INTERNAL SEAL: Silicone rubber
TERMINALS: Copper alloy, gold over silver plating
MOVABLE CONTACT: Copper alloy, gold over silver plating
TERMINAL SEAL: Epoxy
Mechanical
TOTAL TRAVEL: 2.1 ± 0.2 mm
OPERATING POINT 1.55 ± 0.25 mm
OVER TRAVEL: 0.6 ± 0.2 mm
OPERATING FORCE: 4N ± 0.5N standard configuration; other
force option 2N ± 0.5N
VIBRATION: 10-500 Hz 10g Max
SHOCK: 60g 11ms sawtooth wave
Operating Environment
OPERATING TEMPERATURE: -40˚C to 85˚C (+105˚C non-illuminated)
OPERATING LIFE: 1,000,000 cycles
Electrical
CONTACT RATING:
200mA @ 24 V DC resistive
100mA @ 50 V DC resistive
400mA @ 32 V AC resistive
125mA @ 125 V AC resistive
DIELECTRIC STRENGTH: 1000 V AC min.
INSULATION RESISTANCE: 1 G
Ω
@ 500 VDC
INITIAL CONTACT RESISTANCE 50 mΩ max (without wire leads)
BOUNCE TIME: <5 ms
Process Environment
SEALING: IP67
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, please contact Customer Service.

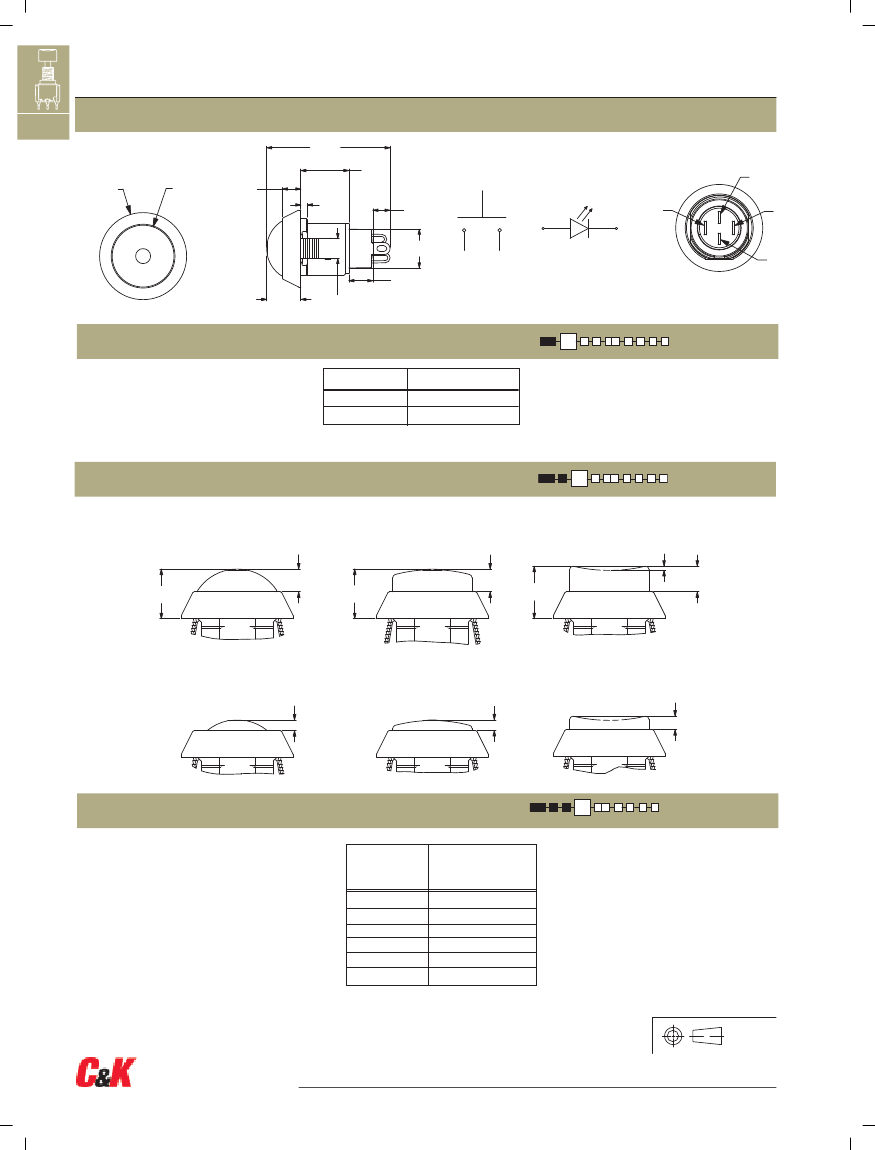

Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box.
A
Designation
AP Series
AP
Operating Force
2 Newtons
2
4
4 Newtons
Actuator Style
Dome / Convex
D
C
Concave
E
Extended Dome
N
None
Actuator Color
0
No Cap
2
Black
3
Red
4
Orange
5
Yellow
6
Green
Terminal Seal
Epoxy
E
All models are epoxy sealed
Contact Material
B
Gold
Termination
Z
Solder Lug
W
12” Wire Leads 22 AWG
C****
PC Terminals
Bushing Style**
S
Snap-in plastic
T***
Threaded plastic
Metal threaded bushing available, contact
Customer Service
***

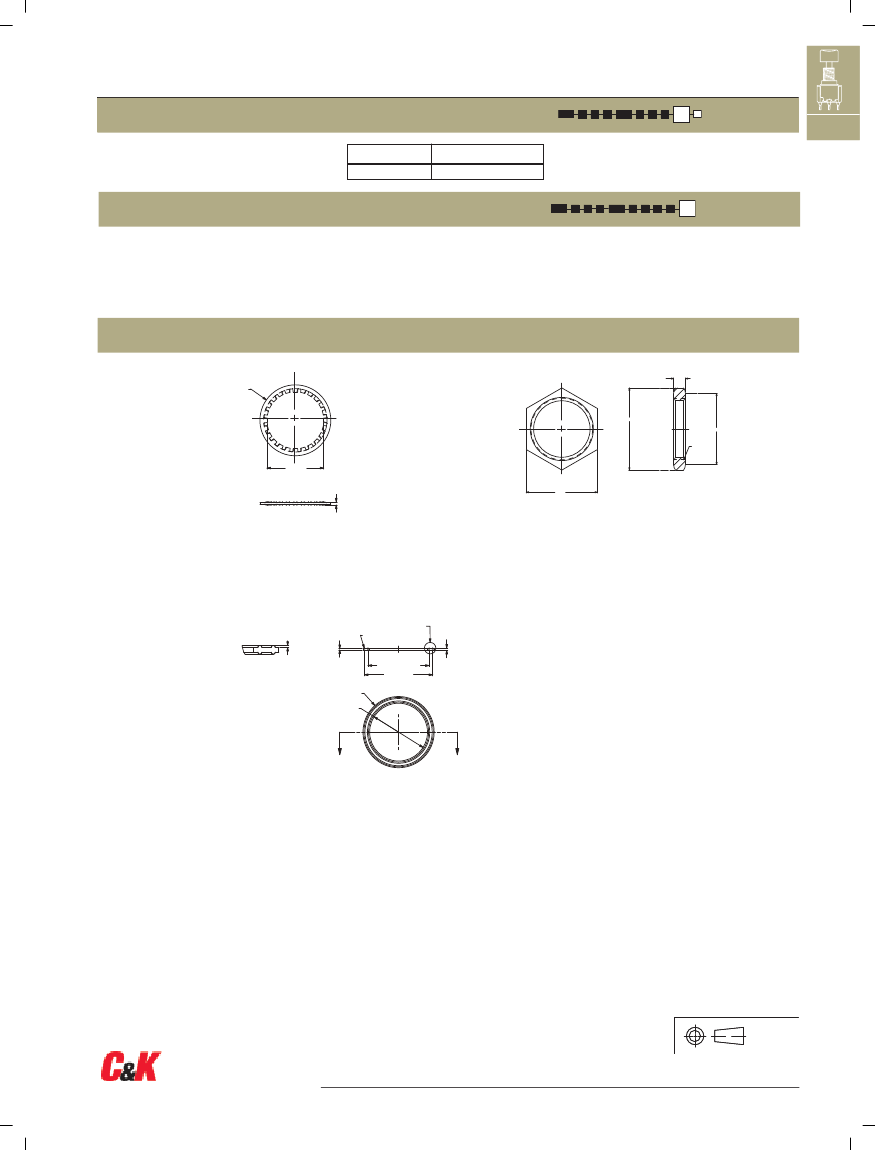

T bushing style includes: 1 lockwasher, 1 hex nut & 1
panel seal washer
**** Illumination not available with PC Terminals
Contact Customer Service for additional hardware options.
**
Specifications and dimensions subject to change
P
B
E
Please contact Customer
Service for additional colors
and paint / laser etched
button options.
Illumination
00
No LED*
01
Super White
02
Bi-color; Red (Green)
03
Red
05
Amber
06
Green
07
Super Blue
08
Bi-color; Amber (Green)
* No LED available in short body only
A–3
www.ck-components.com
!
NEW
AP Series
Industrial Pushbutton Switch
A
Pushbutton
PEAK
WAVELENGTH
(nm)
N/A
5,000
20
8
50
50
1,500
10
N/A
635/565
700
610
565
470
585/565
3.5
2.0
2.0
2.0
2.0
3.8
2.0
Vf Forward Voltage
ILLUMINATION
OPTION
CODE
ILLUMINATION
TYPE
TYPICAL INTENSITY*
MIN
MAX
(mcd)
00
01
02
03
05
06
07
08
Model without illumination
LED Super White
LED Bi-Color – Red (Green)
LED Red
LED Amber
LED Green
LED Super Blue
LED Bi-Color – Amber (Green)
4,000
10
4
35
35
800
10
N/A
*LED FORWARD CURRENT: 20 mA
LED FORWARD VOLTAGE: see chart above
LED REVERSE VOLTAGE: 5.0 V MAX
* For information on specific and custom LED, please contact Customer Service.
+ Anode
NOTE:
For bi-color LED’s the polarity must be reversed to alternate the color
3
- Cathode
4

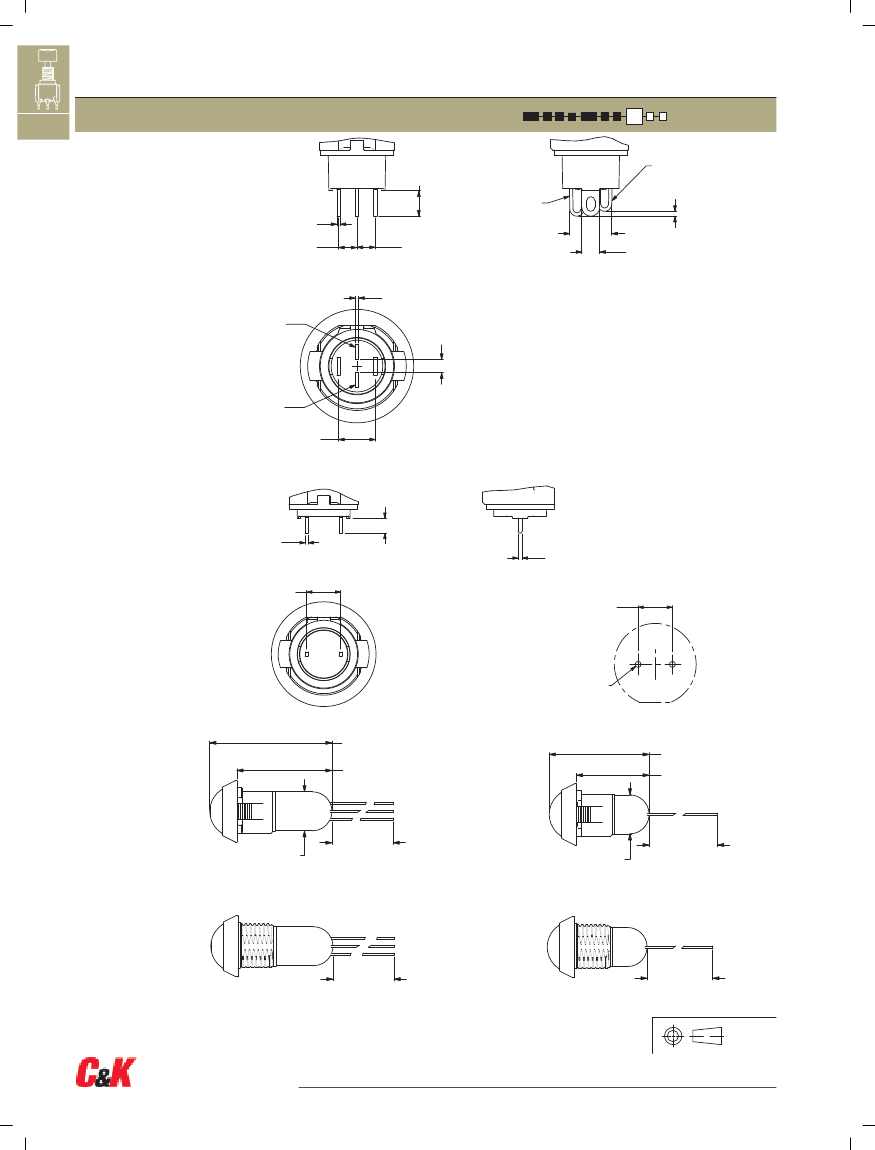

BUSHING STYLE
S
SNAP-IN
28,00
[ 1.102 ]
7,74
[ 0.305 ]
20,25
[ 0.797 ]
7,75
[ 0.305 ]
24,00
[ 0.945 ]
16,25
[ 0.640 ]
SNAP-IN
WITH ILLUMINATION
1,50
[ 0.059 ]
SNAP-IN
NO ILLUMINATION
1,50
[ 0.059 ]
T
THREADED PLASTIC
M13 X 1.25-6g
M13 X 1.25-6g
THREADED WITH
ILLUMINATION
THREADED
NO ILLUMINATION
0,85
[ 0.033 ]
0,85
[ 0.033 ]
PANEL CUTOUT
øA
B
PANEL THICKNESS
1 mm
[0.039 in]
2 mm
[0.079 in]
3 mm
[0.118 in]
THREADED BODY
MIN PANEL THICKNESS 1 mm
DIM A (± 0.05 mm)
13.70 mm
[0.539 in]
13.80 mm
[0.539 in]
13.90 mm
[0.547 in]
13.70 mm
[0.539 in]
DIM B (± 0.05 mm)
13.00 mm
[0.512 in]
13.00 mm
[0.512 in]
13.10 mm
[0.516 in]
13.00 mm
[0.512 in]
Third Angle
Projection
Dimensions are shown: mm (inches)
Specifications and dimensions subject to change
A 0.1mm min. chamfer on the leading edge of the mounting hole is recommended for snap-in version.
A–5
www.ck-components.com
