AP9414GM
RoHS-compliant Product
Advanced Power
Electronics Corp.
▼
Low On-resistance
▼
Simple Drive Requirement
D
D
D
D
N-CHANNEL ENHANCEMENT MODE
POWER MOSFET
BV
DSS
R
DS(ON)
G
30V
6.5mΩ
16A
▼
Fast Switching Characteristic
SO-8
S
S
S
I
D
Description
Advanced Power MOSFETs from APEC provide the
designer with the best combination of fast switching,
ruggedized device design, low on-resistance and cost-effectiveness.
The SO-8 package is widely preferred for commercial-industrial
surface mount applications and suited for low voltage applications
such as DC/DC converters.
D
G
S
Absolute Maximum Ratings
Symbol
V
DS
V
GS
I
D
@T
A
=25℃
I
D
@T
A
=70℃
I
DM
P
D
@T
A
=25℃
T
STG
T
J
Parameter
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current
3
Continuous Drain Current
3
Pulsed Drain Current
1
Total Power Dissipation
Storage Temperature Range
Operating Junction Temperature Range
Rating
30
+20
16
12.8
50
2.5
-55 to 150
-55 to 150
Units
V
V
A
A
A
W
℃
℃
Thermal Data
Symbol
Rthj-a
Parameter
Maximum Thermal Resistance, Junction-ambient
3
Value
50
Unit
℃/W
Data and specifications subject to change without notice
1
200812181
AP9414GM
Electrical Characteristics@T
j
=25
o
C(unless otherwise specified)
Symbol
BV
DSS
R
DS(ON)
Parameter
Drain-Source Breakdown Voltage
Static Drain-Source On-Resistance
2
Test Conditions
V
GS
=0V, I
D
=250uA
V
GS
=10V, I
D
=15A
V
GS
=4.5V, I
D
=12A
V
GS(th)
g
fs
I
DSS
I
GSS
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
C
iss
C
oss
C
rss
R
g
Gate Threshold Voltage
Forward Transconductance
Drain-Source Leakage Current
Gate-Source Leakage
Total Gate Charge
2
Gate-Source Charge
Gate-Drain ("Miller") Charge
Turn-on Delay Time
2
Rise Time
Turn-off Delay Time
Fall Time
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Gate Resistance
V
DS
=V
GS
, I
D
=250uA
V
DS
=10V, I
D
=12A
V
DS
=30V, V
GS
=0V
V
GS
=+20V, V
DS
=0V
I
D
=15A
V
DS
=15V
V
GS
=4.5V
V
DS
=15V
I
D
=1A
R
G
=3.3Ω,V
GS
=10V
R
D
=15Ω
V
GS
=0V
V
DS
=25V
f=1.0MHz
f=1.0MHz
Min.
30
-
-
1
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Typ.
-
-
-
-
38
-
-
-
26.5
7.5
13.5
13
8
40
18
450
300
1.3
Max. Units
-
6.5
11
3
-
10
100
+100
42
-
-
-
-
-
-
-
-
2
V
mΩ
mΩ
V
S
uA
uA
nA
nC
nC
nC
ns
ns
ns
ns
pF
pF
pF
Ω
Drain-Source Leakage Current (T
j
=70
o
C)
V
DS
=24V, V
GS
=0V
2200 3500
Source-Drain Diode
Symbol
V
SD
Parameter
Forward On Voltage
2
Reverse Recovery Time
2
Reverse Recovery Charge
Test Conditions
I
S
=2.1A, V
GS
=0V
I
S
=15A,
V
GS
=0
V
,
dI/dt=100A/µs
Min.
-
-
-
Typ.
-
33
31
Max. Units
1.2
-
-
V
ns
nC
t
rr
Q
rr
Notes:
1.Pulse width limited by Max. junction temperature.
2.Pulse test
3.Surface mounted on 1 in
2
copper pad of FR4 board, t <10sec ; 125
℃/W
when mounted on Min. copper pad.
THIS PRODUCT IS SENSITIVE TO ELECTROSTATIC DISCHARGE, PLEASE HANDLE WITH CAUTION.
USE OF THIS PRODUCT AS A CRITICAL COMPONENT IN LIFE SUPPORT OR OTHER SIMILAR SYSTEMS IS NOT AUTHORIZED.
APEC DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED
HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
APEC RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN.
2
AP9414GM
50
50
T
A
= 25
o
C
40
I
D
, Drain Current (A)
I
D
, Drain Current (A)
10 V
7.0 V
6.0 V
5.0 V
V
G
=4.0V
T
A
= 150
o
C
40
10 V
7.0 V
6.0 V
5.0 V
V
G
=4.0V
30
30
20
20
10
10
0
0
0
0
1
1
2
2
0
0
1
1
2
2
V
DS
, Drain-to-Source Voltage (V)
V
DS
, Drain-to-Source Voltage (V)

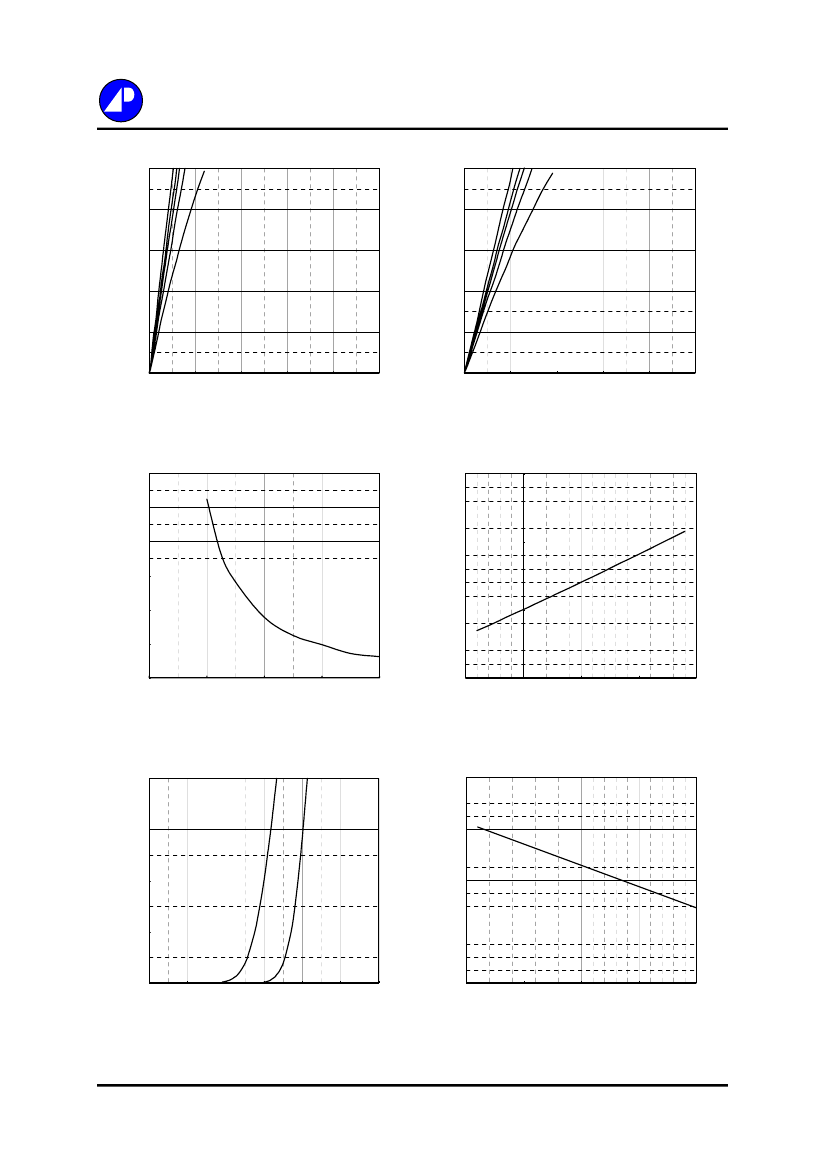

Fig 1. Typical Output Characteristics
Fig 2. Typical Output Characteristics
10
1.9
I
D
= 12 A
T
A
=25
℃
9
I
D
= 15 A
V
G
=10V
Normalized R
DS(ON)
R
DS(ON)
(m
Ω
)
8
1.4
7
6
0.9
5
4
0.4
2
4
6
8
10
-50
0
50
100
150
V
GS
, Gate-to-Source Voltage (V)
T
j
, Junction Temperature ( C)
o
Fig 3. On-Resistance v.s. Gate Voltage
Fig 4. Normalized On-Resistance
v.s. Junction Temperature
1.6
16
T
j
=150
o
C
T
j
=25
o
C
1.2
12
Normalized V
GS(th)
(V)
0
0.2
0.4
0.6
0.8
1
1.2
I
S
(A)
8
0.8
4
0.4
0
0.0
-50
0
50
100
150
V
SD
, Source-to-Drain Voltage (V)
T
j
, Junction Temperature ( C)
o
Fig 5. Forward Characteristic of
Reverse Diode
Fig 6. Gate Threshold Voltage v.s.
Junction Temperature
3
AP9414GM
10
4000
f=1.0MHz
I
D
= 15 A
V
GS
, Gate to Source Voltage (V)
8
3000
6
C (pF)
V
DS
= 15 V
V
DS
= 18 V
V
DS
= 24 V
C
iss
2000
4
1000
2
C
oss
C
rss
0
0
10
20
30
40
50
60
1
5
9
13
17
21
25
29
0
Q
G
, Total Gate Charge (nC)
V
DS
, Drain-to-Source Voltage (V)

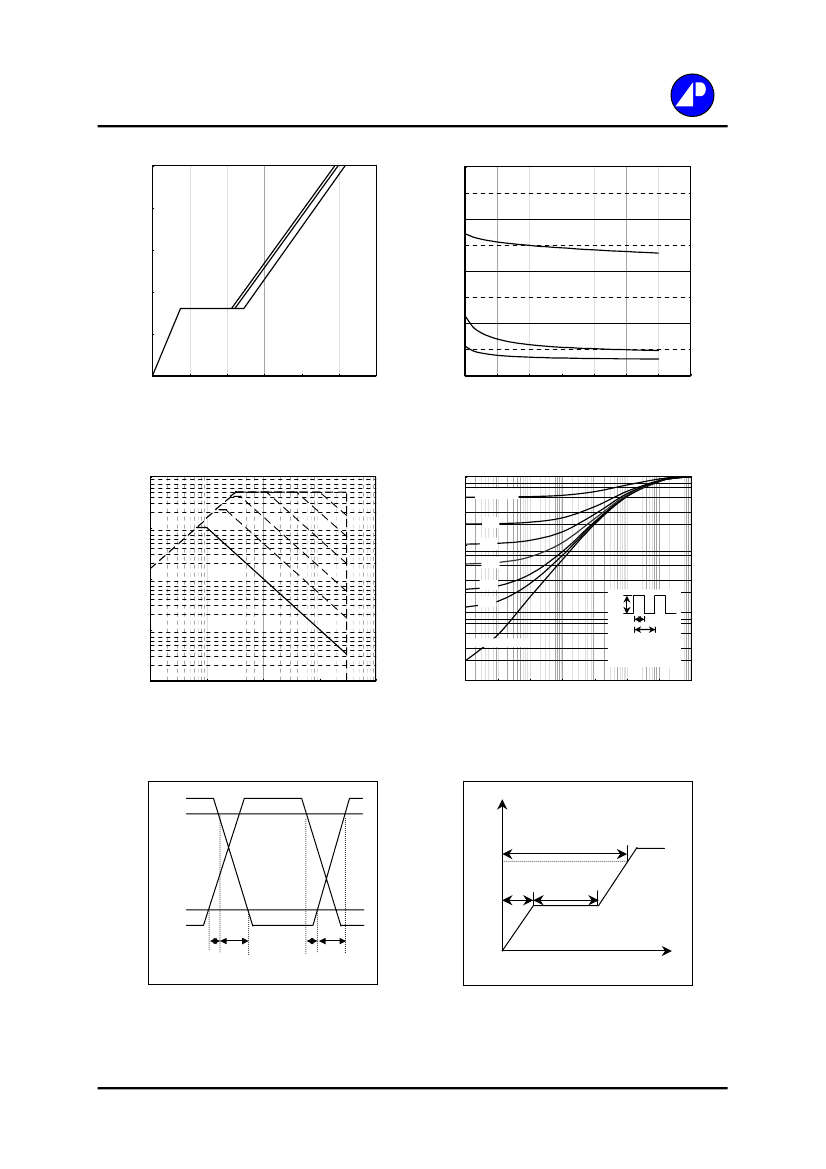

Fig 7. Gate Charge Characteristics
Fig 8. Typical Capacitance Characteristics
100
1
Duty factor=0.5
100us
10
Normalized Thermal Response (R
thja
)
0.2
1ms
I
D
(A)
1
0.1
0.1
0.05
10ms
100ms
0.02
0.01
P
DM
0.01
t
T
Single Pulse
0.1
1s
T
A
=25
o
C
Single Pulse
DC
Duty factor = t/T
Peak T
j
= P
DM
x R
thja
+ T
a
R
thja
=125
o
C/W
0.01
0.01
0.1
1
10
100
0.001
0.0001
0.001
0.01
0.1
1
10
100
1000
V
DS
, Drain-to-Source Voltage (V)
t , Pulse Width (s)
Fig 9. Maximum Safe Operating Area
Fig 10. Effective Transient Thermal Impedance
V
DS
90%
V
G
Q
G
4.5V
Q
GS
Q
GD
10%
V
GS
t
d(on)
t
r
t
d(off)
t
f
Charge
Q
Fig 11. Switching Time Waveform
Fig 12. Gate Charge Waveform
4
