AP98T07GP-HF
Halogen-Free Product
Advanced Power
Electronics Corp.
▼
Simple Drive Requirement
▼
Lower On-resistance
▼
Fast Switching Characteristic
▼
RoHS Compliant & Halogen-Free
G
S
N-CHANNEL ENHANCEMENT MODE
POWER MOSFET
D
BV
DSS
R
DS(ON)
I
D
75V
4.5mΩ
145A
Description
Advanced Power MOSFETs from APEC provide the
The Advanced Power MOSFETs from APEC provide the
designer with the best combination of fast switching,
designer with the best combination of fast switching,
ruggedized device design, low on-resistance and cost-effectiveness.
ruggedized device design, low on-resistance and cost-effectiveness.
The TO-220 package is widely preferred for commercial-industrial
power applications and suited for low voltage applications such as
DC/DC converters.
G
D
S
TO-220(P)
Absolute Maximum Ratings
Symbol
V
DS
V
GS
I
D
@T
C
=25℃
I
D
@T
c
=25℃
I
D
@T
c
=100℃
I
DM
P
D
@T
c
=25℃
P
D
@T
A
=25℃
T
STG
T
J
Parameter
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current (Chip)
Continuous Drain Current, V
GS
@ 10V
Continuous Drain Current, V
GS
@ 10V
Pulsed Drain Current
1
Total Power Dissipation
Total Power Dissipation
Storage Temperature Range
Operating Junction Temperature Range
3
Rating
75
+20
145
120
90
300
166
2
-55 to 150
-55 to 150
Units
V
V
A
A
A
A
W
W
℃
℃
Thermal Data
Symbol
Rthj-c
Rthj-a
Parameter
Maximum Thermal Resistance, Junction-case
Maximum Thermal Resistance, Junction-ambient
Value
0.75
62
Units
℃/W
℃/W
1
201104121
Data and specifications subject to change without notice
AP98T07GP-HF
Electrical Characteristics@T
j
=25 C(unless otherwise specified)
Symbol
BV
DSS
R
DS(ON)
V
GS(th)
g
fs
I
DSS
I
GSS
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
C
iss
C
oss
C
rss
R
g
Parameter
Drain-Source Breakdown Voltage
Static Drain-Source On-Resistance
2
Gate Threshold Voltage
Forward Transconductance
Drain-Source Leakage Current
Gate-Source Leakage
Total Gate Charge
Gate-Source Charge
Gate-Drain ("Miller") Charge
Turn-on Delay Time
Rise Time
Turn-off Delay Time
Fall Time
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Gate Resistance
Test Conditions
V
GS
=0V, I
D
=250uA
V
GS
=10V, I
D
=40A
V
DS
=V
GS
, I
D
=250uA
V
DS
=10V, I
D
=40A
V
DS
=60V, V
GS
=0V
V
GS
=+20V, V
DS
=0V
I
D
=40A
V
DS
=60V
V
GS
=10V
V
DS
=40V
I
D
=40A
R
G
=3.3Ω
V
GS
=10V
V
GS
=0V
V
DS
=25V
f=1.0MHz
f=1.0MHz
Min.
75
-
2
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Typ.
-
-
-
80
-
-
120
20
54
25
85
65
100
800
440
2
Max. Units
-
4.5
5
-
25
+100
192
-
-
-
-
-
-
-
-
4
V
mΩ
V
S
uA
nA
nC
nC
nC
ns
ns
ns
ns
pF
pF
pF
Ω
o
6200 9920
Source-Drain Diode
Symbol
V
SD
t
rr
Q
rr
Parameter
Forward On Voltage
2
Reverse Recovery Time
Reverse Recovery Charge
Test Conditions
I
S
=40A, V
GS
=0V
I
S
=10A,
V
GS
=0
V
,
dI/dt=100A/µs
Min.
-
-
-
Typ.
-
60
120
Max. Units
1.3
-
-
V
ns
nC
Notes:
1.Pulse width limited by Max. junction temperature.
2.Pulse test
3.Package limitation current is 120A.
THIS PRODUCT IS SENSITIVE TO ELECTROSTATIC DISCHARGE, PLEASE HANDLE WITH CAUTION.
USE OF THIS PRODUCT AS A CRITICAL COMPONENT IN LIFE SUPPORT OR OTHER SIMILAR SYSTEMS IS NOT AUTHORIZED.
APEC DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED
HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
APEC RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN.
2
AP98T07GP-HF
300
160
T
C
=25 C
250
o
I
D
, Drain Current (A)
I
D
, Drain Current (A)
200
10V
9.0V
8.0V
7.0V
V
G
= 6.0V
T
C
=150
o
C
120
10V
9.0V
8.0V
7.0V
V
G
=6.0V
150
80
100
40
50
0
0
4
8
12
16
20
0
0
2
4
6
8
V
DS
, Drain-to-Source Voltage (V)
V
DS
, Drain-to-Source Voltage (V)

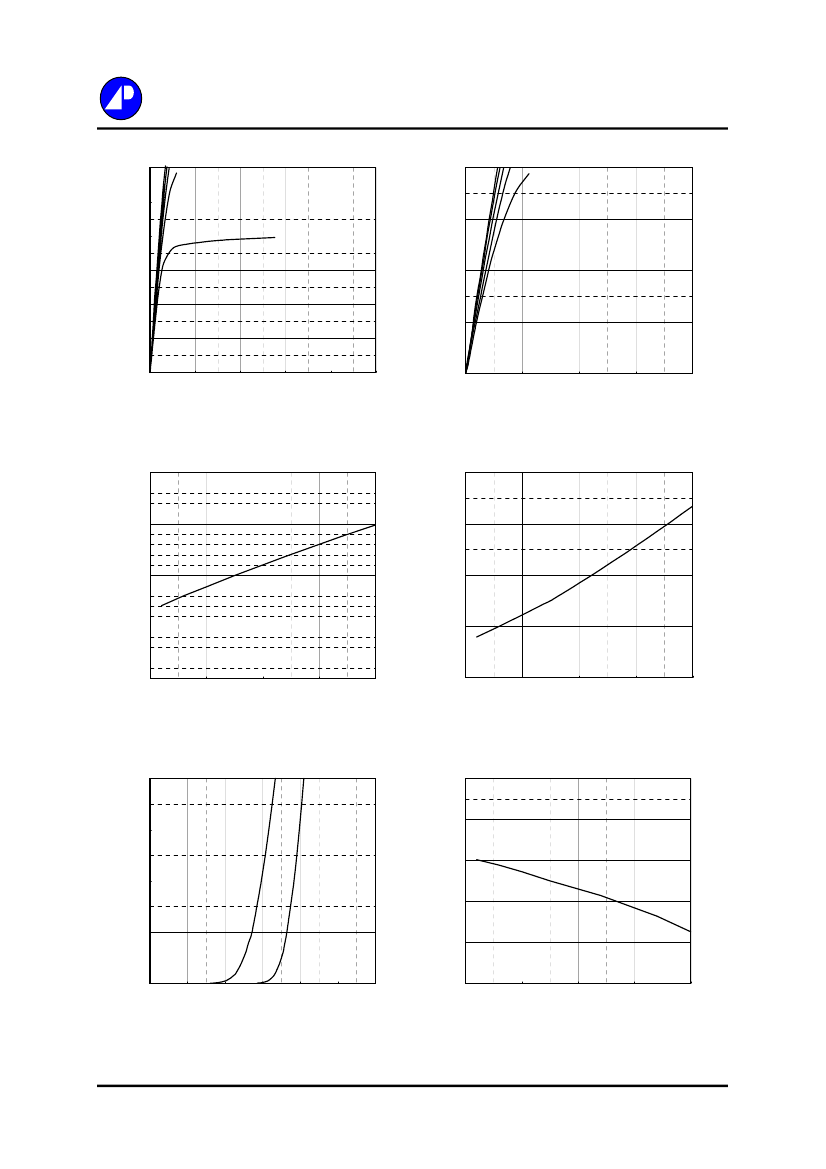

Fig 1. Typical Output Characteristics
Fig 2. Typical Output Characteristics
1.2
2.0
I
D
=1mA
Normalized R
DS(ON)
I
D
=40A
V
G
=10V
1.6
Normalized BV
DSS
(V)
1.1
1
1.2
0.9
0.8
0.8
-50
0
50
100
150
0.4
-50
0
50
100
150
T
j
, Junction Temperature (
o
C)
T
j
, Junction Temperature ( C)
o
Fig 3. Normalized BV
DSS
v.s. Junction
Temperature
40
2.0
Fig 4. Normalized On-Resistance
v.s. Junction Temperature
I
D
=250uA
1.6
I
S
(A)
o
T
j
=150 C
20
T
j
=25
o
C
Normalized V
GS(th)
(V)
30
1.2
0.8
10
0.4
0
0
0.2
0.4
0.6
0.8
1
1.2
0.0
-50
0
50
100
150
V
SD
, Source-to-Drain Voltage (V)
T
j
, Junction Temperature ( C )
o
Fig 5. Forward Characteristic of
Reverse Diode
Fig 6. Gate Threshold Voltage v.s.
Junction Temperature
3
AP98T07GP-HF
f=1.0MHz
12
8000
I
D
=40A
V
DS
=60V
10
V
GS
, Gate to Source Voltage (V)
6000
8
C
iss
6
C (pF)
4000
4
2000
2
C
oss
C
rss
0
0
40
80
120
160
1
5
9
13
17
21
25
29
0
Q
G
, Total Gate Charge (nC)
V
DS
,Drain-to-Source Voltage (V)

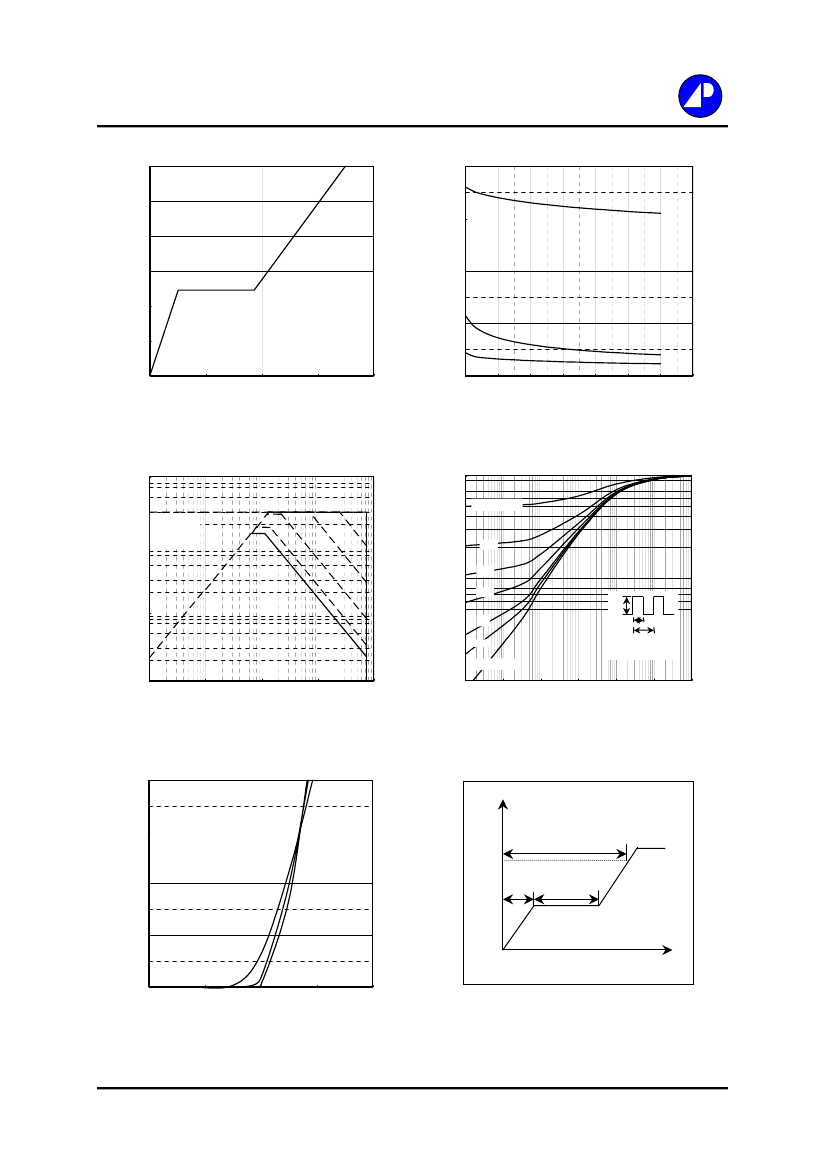

Fig 7. Gate Charge Characteristics
