AP9976GP
RoHS-compliant Product
Advanced Power
Electronics Corp.
▼
Simple Drive Requirement
▼
Lower Gate Charge
▼
Fast Switching Characteristic
G
N-CHANNEL ENHANCEMENT MODE
POWER MOSFET
D
BV
DSS
R
DS(ON)
I
D
60V
21mΩ
30A
S
Description
Advanced Power MOSFETs from APEC provide the
designer with
the best combination of fast switching,
ruggedized device design,
low
on-resistance and cost-effectiveness.
The TO-220 package is widely preferred for commercial-industrial
through-hole applications.
G
D
TO-220(P)
S
Absolute Maximum Ratings
Symbol
V
DS
V
GS
I
D
@T
C
=25℃
I
D
@T
C
=100℃
I
DM
P
D
@T
C
=25℃
T
STG
T
J
Parameter
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current, V
GS
@ 10V
Continuous Drain Current, V
GS
@ 10V
Pulsed Drain Current
1
Total Power Dissipation
Storage Temperature Range
Operating Junction Temperature Range
Rating
60
±20
30
19
100
39
-55 to 150
-55 to 150
Units
V
V
A
A
A
W
℃
℃
Thermal Data
Symbol
Rthj-c
Rthj-a
Parameter
Maximum Thermal Resistance, Junction-case
Maixmum Thermal Resistance, Junction-ambient
Value
3.2
62
Units
℃/W
℃/W
Data and specifications subject to change without notice
1
200806021
AP9976GP
Electrical Characteristics@T
j
=25
o
C(unless otherwise specified)
Symbol
BV
DSS
R
DS(ON)
Parameter
Drain-Source Breakdown Voltage
Static Drain-Source On-Resistance
2
Test Conditions
V
GS
=0V, I
D
=250uA
V
GS
=10V, I
D
=18A
V
GS
=4.5V, I
D
=12A
V
GS(th)
g
fs
I
DSS
I
GSS
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
C
iss
C
oss
C
rss
Gate Threshold Voltage
Forward Transconductance
Drain-Source Leakage Current
Drain-Source Leakage Current (T
j
=125
o
C)
Min.
60
-
-
1
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Typ.
-
-
-
-
11.5
-
-
-
30
5.4
11
9
21
25
7
140
110
Max. Units
-
21
50
3
-
25
100
±100
48
-
-
-
-
-
-
-
-
V
mΩ
mΩ
V
S
uA
uA
nA
nC
nC
nC
ns
ns
ns
ns
pF
pF
pF
V
DS
=V
GS
, I
D
=250uA
V
DS
=10V, I
D
=12A
V
DS
=48V, V
GS
=0V
V
DS
=48V ,V
GS
=0V
V
GS
= ±20V
I
D
=12A
V
DS
=48V
V
GS
=10V
V
DS
=30V
I
D
=12A
R
G
=3.3Ω,V
GS
=10V
R
D
=2.5Ω
V
GS
=0V
V
DS
=25V
f=1.0MHz
Gate-Source Leakage
Total Gate Charge
2
Gate-Source Charge
Gate-Drain ("Miller") Charge
Turn-on Delay Time
2
Rise Time
Turn-off Delay Time
Fall Time
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
1320 2100
Source-Drain Diode
Symbol
V
SD
t
rr
Q
rr
Parameter
Forward On Voltage
2
Reverse Recovery Time
2
Test Conditions
I
S
=12A, V
GS
=0V
I
S
=12A, V
GS
=0V
dI/dt=100A/µs
Min.
-
-
-
Typ.
-
32
42
Max. Units
1.3
-
-
V
ns
nC
Reverse Recovery Charge
Notes:
1.Pulse width limited by Max. junction temperature.
2.Pulse test
THIS PRODUCT IS SENSITIVE TO ELECTROSTATIC DISCHARGE, PLEASE HANDLE WITH CAUTION.
USE OF THIS PRODUCT AS A CRITICAL COMPONENT IN LIFE SUPPORT OR OTHER SIMILAR SYSTEMS IS NOT AUTHORIZED.
APEC DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED
HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
APEC RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN.
2
AP9976GP
100
20
T
C
= 25 C
80
o
10 V
7.0 V
6.0 V
I
D
, Drain Current (A)
T
C
= 150
o
C
16
I
D
, Drain Current (A)
10V
7.0V
6.0V
60
12
5.0V
40
5.0 V
8
20
V
GS
=4.0V
4
V
GS
=4.0V
0
0
2
4
6
8
0
0
2
4
6
8
10
V
DS
, Drain-to-Source Voltage (V)
V
DS
, Drain-to-Source Voltage (V)

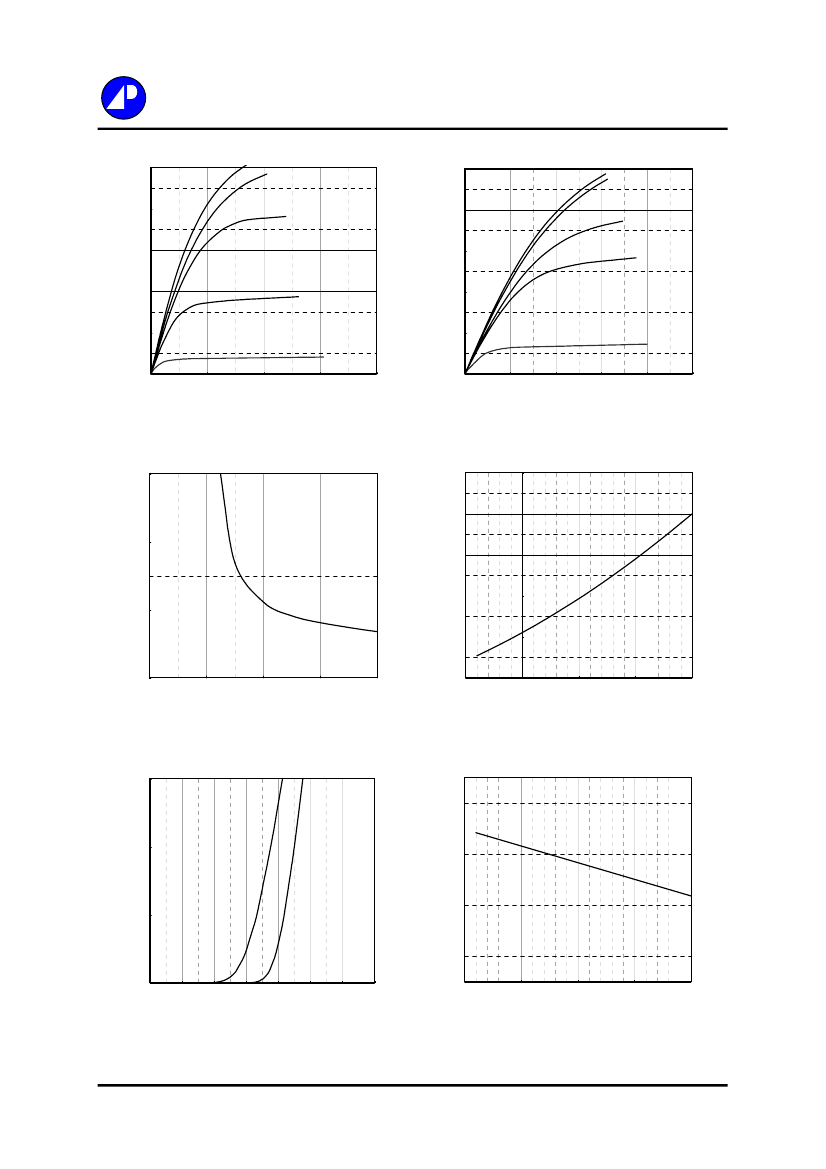

Fig 1. Typical Output Characteristics
Fig 2. Typical Output Characteristics
40
2.4
I
D
=12A
T
C
=25 C
2.0
o
I
D
=18A
V
G
=10V
Normalized R
DS(ON)
R
DS(ON)
(m
Ω
)
30
1.6
1.2
20
0.8
10
2
4
6
8
10
0.4
-50
0
50
100
150
V
GS
Gate-to-Source Voltage (V)
T
j
, Junction Temperature ( C)
o
Fig 3. On-Resistance v.s. Gate Voltage
Fig 4. Normalized On-Resistance
v.s. Junction Temperature
1.6
30
Normalized V
GS(th)
(V)
1.2
20
I
S
(A)
T
j
=150
o
C
T
j
=25
o
C
0.8
10
0.4
0
0
0.2
0.4
0.6
0.8
1
1.2
1.4
0.0
-50
0
50
100
150
V
SD
, Source-to-Drain Voltage (V)
T
j
, Junction Temperature (
o
C)
Fig 5. Forward Characteristic of
Reverse Diode
Fig 6. Gate Threshold Voltage v.s.
Junction Temperature
3
AP9976GP
12
1600
f=1.0MHz
I
D
= 12 A
V
GS
, Gate to Source Voltage (V)
10
V
DS
= 30 V
V
DS
=36V
V
DS
=48V
C (pF)
1200
C
iss
8
6
800
4
400
2
C
oxx
C
rss
0
0
10
20
30
40
0
1
5
9
13
17
21
25
29
Q
G
, Total Gate Charge (nC)
V
DS
,Drain-to-Source Voltage (V)

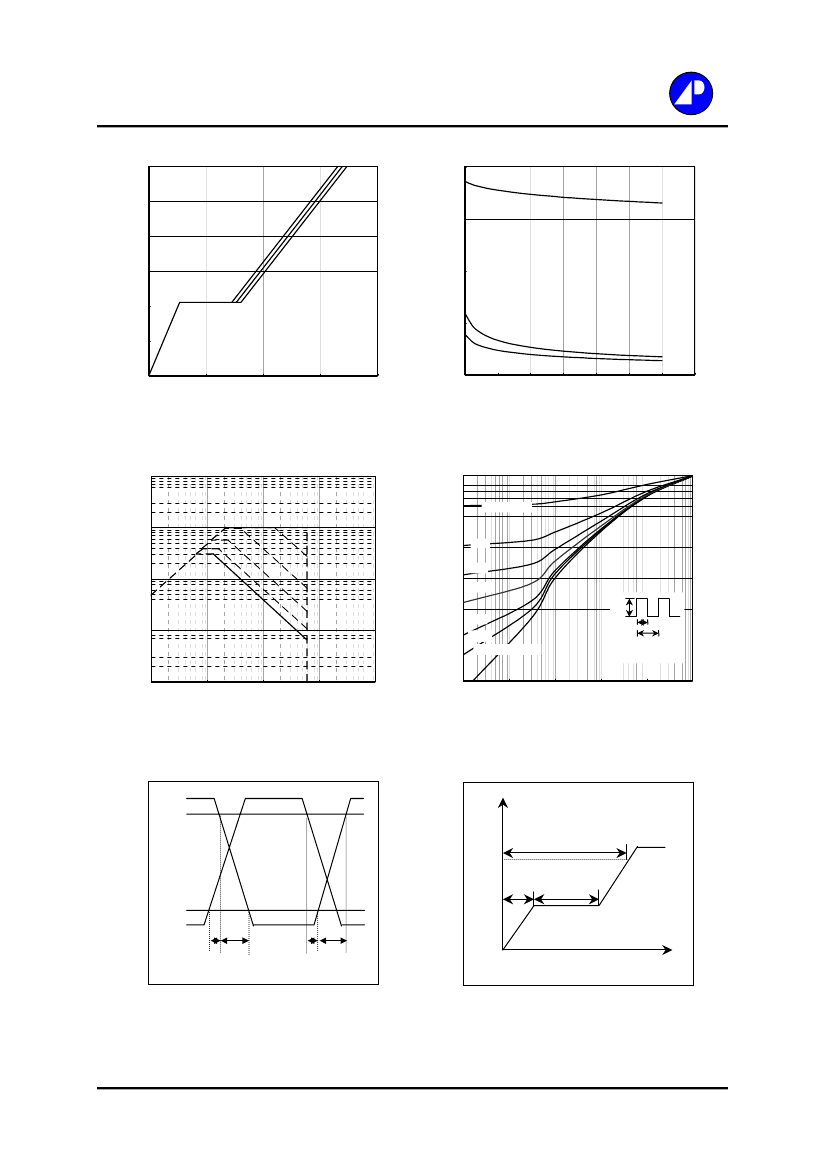

Fig 7. Gate Charge Characteristics
Fig 8. Typical Capacitance Characteristics
1000
1
Normalized Thermal Response (R
thjc
)
Duty factor=0.5
100
0.2
I
D
(A)
100us
10
0.1
0.1
0.05
1ms
1
P
DM
0.02
t
T
T
c
=25
o
C
Single Pulse
0.1
0.1
1
10
10ms
100ms
DC
0.01
Single Pulse
Duty factor = t/T
Peak T
j
= P
DM
x R
thjc
+ T
C
0.01
100
1000
0.00001
0.0001
0.001
0.01
0.1
1
V
DS
, Drain-to-Source Voltage (V)
t , Pulse Width (s)
Fig 9. Maximum Safe Operating Area
Fig 10. Effective Transient Thermal Impedance
V
DS
90%
V
G
Q
G
10V
Q
GS
Q
GD
10%
V
GS
t
d(on)
t
r
t
d(off)
t
f
Charge
Q
Fig 11. Switching Time Waveform
Fig 12. Gate Charge Waveform
4
ADVANCED POWER ELECTRONICS CORP.
Package Outline : TO-220
E
E1
φ
A
SYMBOLS
Millimeters
MIN
NOM
MAX
L1 L5
c1
A
4.40
0.76
8.60
0.36
9.80
14.70
6.20
1.25
1.17
13.25
2.60
3.71
4.60
0.88
8.80
0.43
10.10
15.00
6.40
5.10 REF.
1.35
1.32
13.75
2.54 REF.
2.75
3.84
7.4 REF,
4.80
1.00
9.00
0.50
10.40
15.30
6.60
1.45
1.47
14.25
2.89
3.96
b
D
c
E
L4
L5
D1
D
L4
D1
c1
b1
L
e
L1
b1
L
φ
E1
b
c
1.All Dimensions Are in Millimeters.
2.Dimension Does Not Include Mold Protrusions.
e
Part Marking Information & Packing : TO-220
Part Number
Package Code
9976GP
meet Rohs requirement
LOGO
YWWSSS
Date Code (YWWSSS)
Y：Last Digit Of The Year
WW：Week
SSS：Sequence
5
