ATS010010010-SF-1I datasheet, PDF

Datasheet> All Categories > ATS010010010-SF-1I

Preview

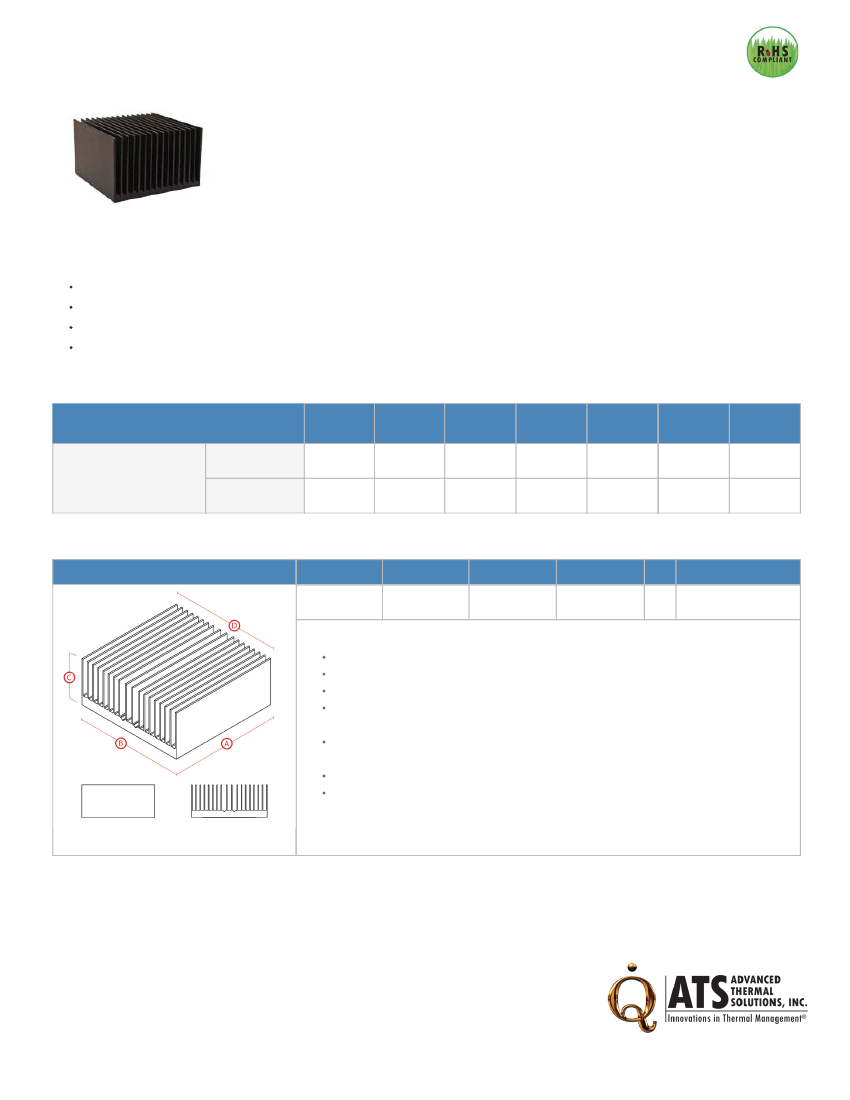

ATS010010010-SF-1I: Description10.00 x 10.00 x 10.00 mm BGA Heat Sink (High Aspect Ratio Ext.) Straight Fin; File Size279KB，1 Pages; ManufacturerATS [Advanced Thermal Solutions, Inc.]

Download Datasheet View All

ATS010010010-SF-1I Overview

10.00 x 10.00 x 10.00 mm BGA Heat Sink (High Aspect Ratio Ext.) Straight Fin

Preview

Download Datasheet

View All

BGA Heat Sink (High Aspect Ratio Ext.)

Straight Fin

ATS Part#:

Description:

ATS010010010-SF-1I

10.00 x 10.00 x 10.00 mm BGA Heat Sink (High Aspect Ratio Ext.) Straight Fin

Heat Sink Type:

Heat Sink Attachment:

Equivalent Part Number:

Straight Fin

superGRIP

N/A

*Image above is for illustration purpose only.

Features & Benefits

High aspect ratio, straight fin heat sinks that are ideal for compact PCB environments

Features a low profile, slant fin array that offers many of the performance benefits of

maxiFLOW™

at a great value

Higher performance helps ensure reliable product life at a lower cost than other extruded heat sinks

Comes standard without interface material or with most common pressure sensitive thermal tapes as a custom option

Thermal Performance

AIR VELOCITY

@200 LFM

1.0 M/S

Unducted Flow

THERMAL RESISTANCE

Ducted Flow

21.9

18.5

16.3

14.8

13.7

12.8

12.1

31.2 °C/W

@300 LFM

1.5 M/S

25.9 °C/W

@400 LFM

2.0 M/S

22.7 °C/W

@500 LFM

2.5 M/S

20.5 °C/W

@600 LFM

3.0 M/S

18.8 °C/W

@700 LFM

3.5 M/S

17.6 °C/W

@800 LFM

4.0 M/S

16.5 °C/W

Product Detail

Schematic Image

Dimension A

10.00 mm

Dimension B

10.00 mm

Dimension C

10.00 mm

Dimension D

10 mm

TIM

N/A

Finish

BLACK-ANODIZED

Notes:

Dimension

and

refer to component size.

Dimension

is the heat sink height from the bottom of the base to the top of the fin field.

Dimension

is fin tip to fin tip.

Thermal performance data are provided for reference only. Actual performance may vary by

application.

ATS reserves the right to update or change its products without notice to improve the design or

performance.

ATS certifies that this heat sink assembly is RoHS-6 and REACH compliant.

Contact ATS to learn about custom options available.

*Image above is for illustration purpose only.

For more information, to find a distributor or to place an order, please contact us at

781-769-2800 (North America),

sales@qats.com

www.qats.com.

| 89-27 Access Road | Norwood MA | 02062 | USA

Rev - 040413
