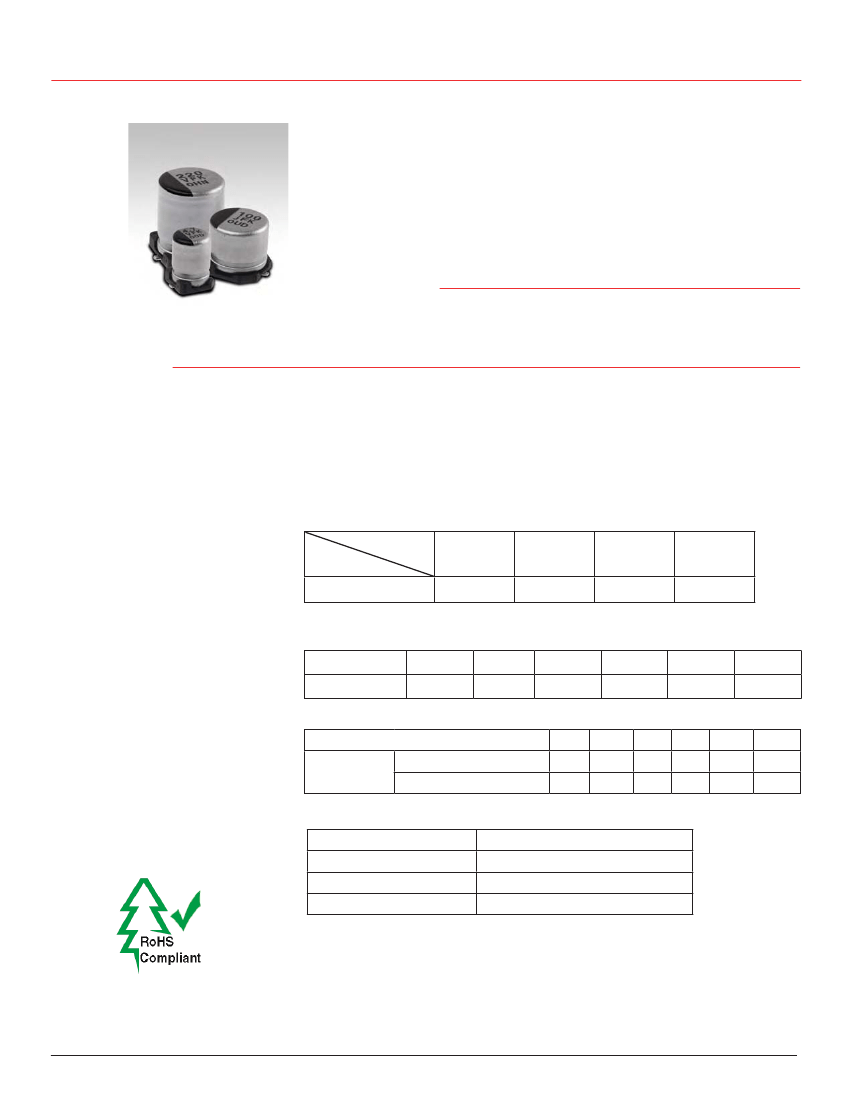

Type AVEZ
–55 °C to +105 °C
Low Impedance SMT Aluminum Electrolytic Capacitors
For Filtering, Bypassing and Power Supply Decoupling
Type AVEZ Capacitors are rated for 1000 hours at 105 ºC with low
impedance characteristics. They are ideal for high density PC board
packaging. The Type AVEZ offers a low in-place-cost for a high
quality performer. The vertical cylindrical cases facilitate automatic
mounting and reflow soldering into the same footprint of like-rated
tantalum capacitors except without the need for voltage derating. Type
AVEZ is RoHS compliant.
Highlights
•
+105
°C,
Up to 1000 Hours Load Life
•
Capacitance Range: 1.0 µF to 220 µF
•
Voltage Range: 6.3 Vdc to 50 Vdc
–55 °C to +105 °C
6.3, 10, 16, 25, 35, 50 Vdc
1.0
µF
to 220
µF
±20% @ 120 Hz and +20 °C
I = 0.01 CV or 3 (µA) whichever is greater after 2 minutes
C = rated capacitance in µF, V = rated DC working voltage
Freq. (Hz)
6.3 ~ 50
50, 60
0.64
120
0.80
1k
0.93
10 k up
1.00
Specifications
Operating Temperature:
Rated Voltage:
Capacitance:
Capacitance Tolerance:
Leakage Current:
Ripple Current Multiplier:
Vdc
Dissipation Factor:
(Tan
δ
at 120 Hz, 20 ºC)
Low Temperature
Characteristic (at 120 Hz):
Rated Voltage
Tan δ Max
6.3
0.28
10
0.24
16
0.20
6.3
4
8
10
3
5
25
0.16
16
2
4
35
0.14
25
2
3
35
2
3
50
0.12
50
2
3
Rated Voltage
Impedance
Ratio
Z(–25 ºC) / Z(+20 ºC)
Z(–40 ºC) / Z(+20 ºC)
Load Life Test:
Test Time
Capacitance Change
Dissipation Factor
Leakage Current
1,000 Hours
Within ±25% of initial value
Less than 200% of specified value
Within specified value
* The above specifications shall be satisfied when the
capacitors are restored to 20 ºC after the rated voltage is
applied for 1,000 hrs at 105 ºC
Shelf LifeTest:
Test time: 1000 hours; test limits are the same as those for life test.
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8564 • Fax: (508)996-3830 • www.cde.com
Type AVEZ
–55 °C to +105 °C
Low Impedance SMT Aluminum Electrolytic Capacitors
Outline Drawing, Case Code & Dimensions Table
ØD ±.05
B ± 0.2
Case Ø D
.04 ±0.2
A ± 0.2
L
L
(mm)
A
B
4.3
5.3
6.6
6.6
C
2.0
2.3
2.7
2.7
W
(mm)
0.5 to 0.8
0.5 to 0.8
0.5 to 0.8
0.5 to 0.8
P ±0.2
(mm)
1.0
1.5
2.0
2.0
Code (mm)
B
C
D
X
(mm) (mm) (mm)
4.0 5.3 ±0.2 4.3
5.0 5.3 ±0.2 5.3
6.3 5.3 ±0.2 6.6
6.3 7.7 ±0.3 6.6
W
.
03 Max
C ±0.2
P
C ±0.2
Part Numbering System
AVEZ
Type
AVEZ
106
Capacitance
105
= 1.0 µF
106
= 10.0 µF
107
= 100.0 µF
M
Capacitance
Tolerance
M
= ±20%
06
= 6.3 Vdc
25
= 25 Vdc
10
= 10 Vdc
35
= 35 Vdc
16
= 16 Vdc
50
= 50 Vdc
25
Voltage Code
C
Case
Code
See
Table
12
= Carrier Tape
Width (mm)
T
= Tape & Reel
12T
Packaging Code
–F
RoHS
Compliant
Ratings Table
Max
Catalog
Cap
(µF)
22
33
47
100
150
220
10
22
33
47
100
150
220
AVEZ226M06B12T-F
AVEZ336M06C12T-F
AVEZ476M06C12T-F
AVEZ107M06D16T-F
AVEZ157M06X16T-F
Part Number
DCL
(µA)
3.0
3.0
3.0
6.3
9.5
0.28
0.28
0.28
0.28
0.28
0.28
0.24
0.24
0.24
0.24
0.24
0.24
0.24
Max
DF
Max
Impedance
(ohms)
6.3 Vdc ( 8 Vdc Surge)
3.20
1.50
1.50
0.85
0.50
0.50
3.20
1.50
1.50
0.85
0.85
0.50
0.50
65
110
110
170
255
255
65
110
110
170
170
255
255
B
C
C
D
X
X
B
C
C
D
D
X
X
4 x 5.3
5 x 5.3
5 x 5.3
6.3 x 5.3
6.3 x 7.7
6.3 x 7.7
4 x 5.3
5 x 5.3
5 x 5.3
6.3 x 5.3
6.3 x 5.3
6.3 x 7.7
6.3 x 7.7
2000
1000
1000
1000
1000
1000
2000
1000
1000
1000
1000
1000
1000
Max
Ripple Current Case
(mA)
Size
DxL
(mm)
Quantity
per Reel
(each)
2 min. 120 Hz 20 ºC
100 kHz 20 ºC 100 kHz 105 °C Code
AVEZ227M06X16T-F 13.9
AVEZ106M10B12T-F
AVEZ226M10C12T-F
AVEZ336M10C12T-F
AVEZ476M10D16T-F
AVEZ107M10D16T-F
AVEZ157M10X16T-F
3.0
3.0
3.0
3.0
6.3
9.5
10 Vdc ( 13 Vdc Surge)
AVEZ227M10X16T-F 13.9
