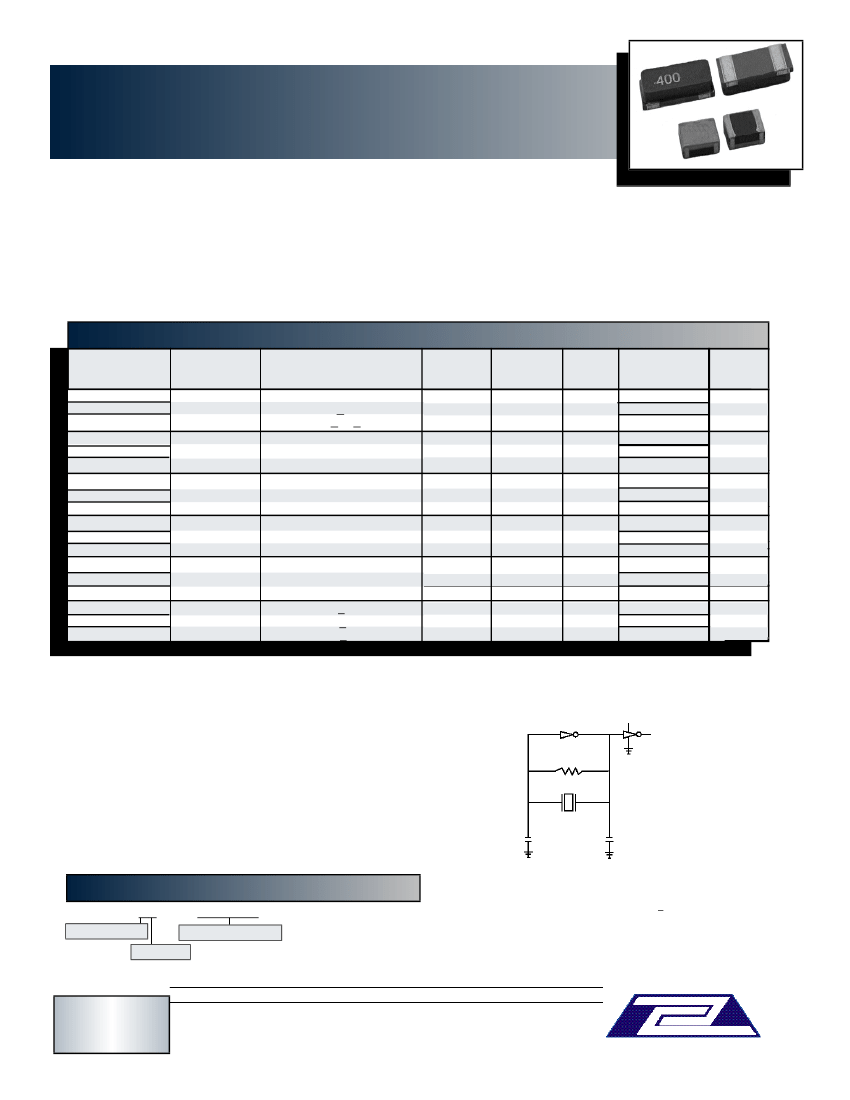

HIGH FREQUENCY, WITHOUT BUILT-IN CAPACITORS
SMD WASHABLE CERAMIC RESONATORS
AWSZT
FEATURES:
• Low resonant impedance.
• High stability washable type.
• Excellent environmental resistance. • Industrial grade.
• Reflow capable.
7434, 4741, 3731, 2520
APPLICATIONS:
• Remote controls.
• Electric appliances.
• Mobile phones, DVD, CD-Rom.
• Microprocessor clocks.
• Automotive controllers.
• Industrial controllers.
STANDARD SPECIFICATIONS
Abracon P/N
AWSZT [ ] MGS
MGD
MGA
AWSZT [ ] MTS
MTD
MTA
AWSZT [ ] MVS
MVD
MVA
AWSZT [ ] MXS
MXD
MXA
AWSZT [ ] MCS
MCD
MCA
AWSZT [ ] MSS
MSD
MSA
Freq. range
(MHz)
2.0~7.99
Resonant Impedance
Ω
max.
100Ω for 2.0 < F < 3.0 MHz
50Ω for 3.0 < F < 3.5 MHz
30Ω for 3.5 < F < 7.99 MHz
25Ω
8.0~13.0
25Ω
13.01~50.0
40Ω
13.01~50.0
40Ω
20.0~50.0
40Ω For
<
32MHZ
50Ω For
<
40MHZ
60Ω For
<
50MHZ
±0.5%
±0.5%
±0.3%
±0.3%
±0.3%
±0.3%
±0.5%
±0.3%
±0.3%
Frequency Frequency Aging in Operating
Package
tolerance stability 10 years temperature
Style*
@
-20
o
Cto+80
o
C
±0.5%
±0.5%
±0.5%
±0.3%
±0.3%
±0.3%
±0.3%
±0.3%
±0.3%
8.0~13.0
-20
o
C to +80
o
C
-40
o
C to +85
o
C
-40
o
C to+125
o
C
-20
o
C to +80
o
C
-40
o
C to +85
o
C
-40
o
C to+125
o
C
-20
o
C to +80
o
C
-40
o
C to +85
o
C
-40
o
C to+125
o
C
-20
o
C to +80
o
C
-40
o
C to +85
o
C
-40
o
C to+125
o
C
-20
o
C to +80
o
C
-40
o
C to +85
o
C
-40
o
C to+125
o
C
-20
o
C to +80
o
C
-40
o
C to +85
o
C
-40
o
C to+125
o
C
7434
4741
3731
4741
3731
2520
*Please see package options and dimensions on page 35A
Please check for availability on M[ ]D and M[ ]A Series
Frequency stability: M[ ]D: ±0.5% typ. -40
o
C to +85
o
C
M[ ]A: ±0.7% typ. -40
o
C to+125
o
C
Storage temperature: -40
o
C to +125
o
C
We perform IC characterization to match your application.
Please call us for details.
Packaging: Option Tape and Reel (1,000 pcs.) see appendix H.
Marking, see appendix G. Application notes, see appendix A.
Environmental and mechanical specification, see appendix C. Group 6.
Recommended handling, see appendix F.
Test Circuit:
Vdd
1/6 U1
1M
Ω
1/6 U1
OUTPUT
Y1
C1
U1:
C2
CD4069UB
74HCU04 (>8MHz)
Y1:
RESONATOR
C1 C2
:
30pF + 20%
:15pF ± 20%(20M ~ 25.99M)
10pF ± 20%(25M ~ 50M)
ORDERING OPTIONS
AWSZTMXX
G,T,V,X,C or S
S, D or A
-
Packaging
- T (Tape and reel)
NOTE: Left blank if standard
•
All specifications and markings subject to change without notice
ABRACON
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
29 Journey • Aliso Viejo, CA 92656 • USA
(949) 448-7070 • F
AX
: (949) 448-8484
E-
MAIL
:
abinfo
@
abracon.com •
I
NTERNET
A
DDRESS
:
www.abracon.com
®
36
Rev. B
01/2003
CORPORATION
HIGH FREQUENCY, WITH OR WITHOUT BUILT-IN CAPACITORS
SURFACE MOUNT CERAMIC RESONATORS
ASZT, ASCR, AWSZT, AWSCR

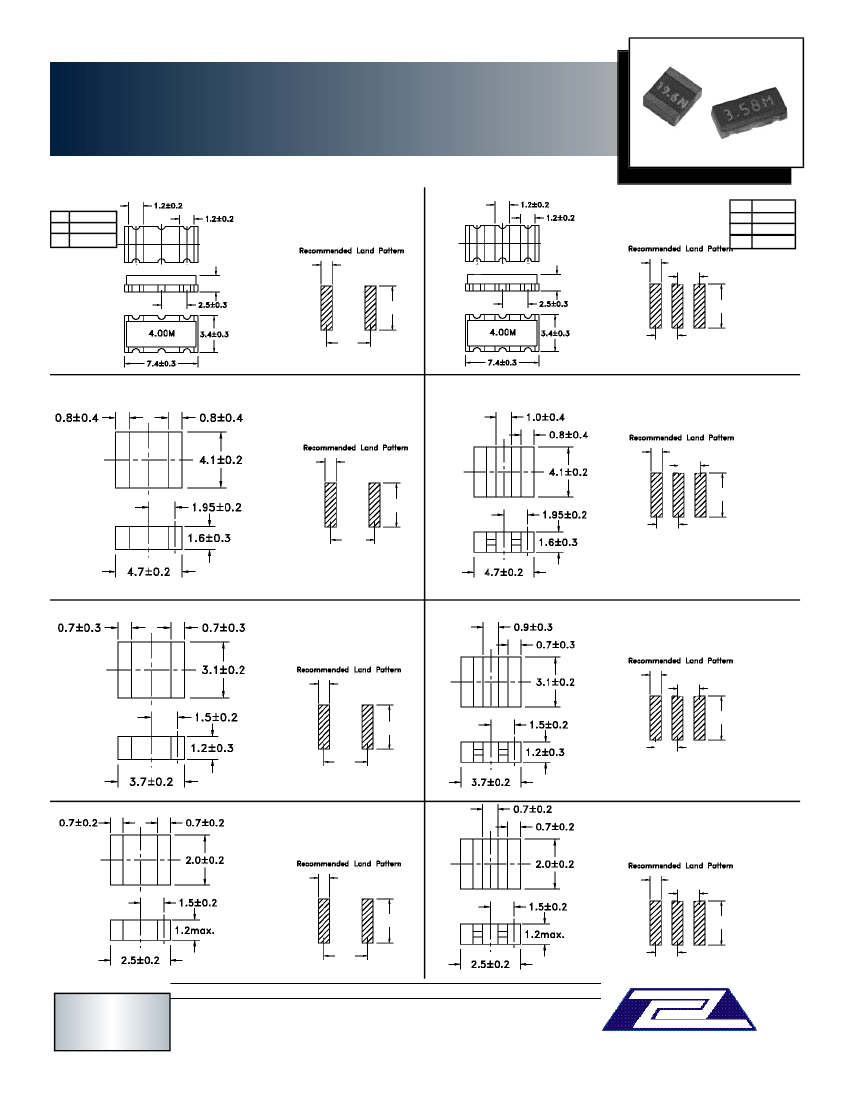

ASZT or AWSZT
Pin Function
1
Input
2
GND
1
2
ASCR or AWSCR
7434
7.4 x 3.4 x 1.8 mm
Pin Function
1
Input
2
GND
3 Output
1.4 3x
2.5
4.4
2.5
7434
1.4 3x
1.8±0.3
4.4
1
2
3
1.8±0.3
5.0
Dimensions: mm
Dimensions: mm
4741
7441
1.4 3x
1.4 3x
1.95
1
2
5.1
5.1
1
2
3
1.95
3.90
Dimensions: mm
Dimensions: mm
3731
3731
1.4 3x
1
2
1
2
3
1.2 3x
1.5
4.1
1.5
4.1
3.0
Dimensions: mm
Dimensions: mm
2520
2520
1.4 3x
1
2
1
2
3
1.0 3x
1.5
3.0
1.5
3.0
3.0
Dimensions: mm
NOTE: Left blank if standard
•
All specifications and markings subject to change without notice
ABRACON
Dimensions: mm
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
®
29 Journey • Aliso Viejo, CA 92656 • USA
(949) 448-7070 • F
AX
: (949) 448-8484
E-
MAIL
:
abinfo
@
abracon.com •
I
NTERNET
A
DDRESS
:
www.abracon.com
C O R P O R A T I O N
35A
____________________________________________________________________________________________
Washability Specification
This product can be washed using the following solvents
under the suggested conditions:
Solvents:
HCFC,
Isopropyl Alcohol,
Trichloroethane,
Tap water, Demineralized
Water, Pine Alpha ST-100S
Ultrasonic Wash:
Less than 1 min. (Frequency:28KHz,Ouput:20W/L)
Immersion Wash or others: Less than 5 min.
Solvents temperature should be at 60℃ or under 60℃
Drying:
By air blow at 80℃ max.
30332 Esperanza, Rancho Santa Margarita, CA 92688
|
T 949.546.8000
|
F 949.546.8001
| www.abracon.com
