AZ1117CD-5.0G1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> AZ1117CD-5.0G1

AZ1117CD-5.0G1: DescriptionLOW DROPOUT LINEAR REGULATOR; CategoryPower/power management The power supply circuit; File Size497KB，23 Pages; ManufacturerBCD Semi（Diodes）

Download Datasheet Parametric View All

AZ1117CD-5.0G1 Overview

LOW DROPOUT LINEAR REGULATOR

AZ1117CD-5.0G1 Parametric

Parameter Name	Attribute value
Maker	BCD Semi（Diodes）
Parts packaging code	TO-252
package instruction	GREEN, TO-252, 3 PIN
Contacts	4
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum input voltage	15 V
Minimum input voltage	6.5 V
JESD-30 code	R-PSSO-G2
JESD-609 code	e3
length	6.525 mm
Number of functions	1
Number of terminals	2
Working temperatureTJ-Max	125 °C
Operating temperatureTJ-Mi	-20 °C
Maximum output current 1	0.8 A
Maximum output voltage 1	5.1 V
Minimum output voltage 1	4.9 V
Nominal output voltage 1	5 V
Package body material	PLASTIC/EPOXY
encapsulated code	TO-252
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	2.527 mm
surface mount	YES
technology	BIPOLAR
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal pitch	2.3 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
width	5.8 mm

Preview

Download Datasheet

View All

600mA LOW DROPOUT LINEAR REGULATOR

LOW DROPOUT LINEAR REGULATOR

General Description

The AZ1117C is a low dropout three-terminal regula-

tor.

The AZ1117C has been optimized for low voltage

where transient response and minimum input voltage

are critical. It provides current limit and thermal shut-

down. Its circuit includes a trimmed bandgap reference

to assure output voltage accuracy to be within

±1%.

On-chip thermal shutdown provides protection against

a combination of high current and ambient temperature

that would create excessive junction temperature.

The AZ1117C is available in 1.2V, 1.5V, 1.8V, 2.5V,

3.3V, 5.0V fixed output voltage vesions and ADJ out-

put voltage version. The fixed versions integrate the

adjust resistors. It is also available in an adjustable ver-

sion which can set the output voltage with two external

resistors.

The AZ1117C is available in the industry-standard

TO-252-2 (3), TO-252-2 (4), SOT-89 and SOT-223

power packages.

Data Sheet

AP1117M

AP2317

AZ1117C

Features

Current Limit: 1.35A (Typ.)

Output Noise from 10Hz to 10KHz: 0.003% of

OUT

PSRR at I

OUT

=300mA and f=120Hz: 70dB

Output Voltage Accuracy:

±1%

(Except 1.2V

version)

On-chip Thermal Shutdown

Maximum Quiescent Current: I

QMAX

=6mA

Compatible with Low ESR Ceramic Capacitor

Operation Junction Temperature: -20 to 125

Applications

USB Device

Add-on Card

DVD Player

PC Motherboard

SOT-89

SOT-223

TO-252-2 (3)

TO-252-2 (4)

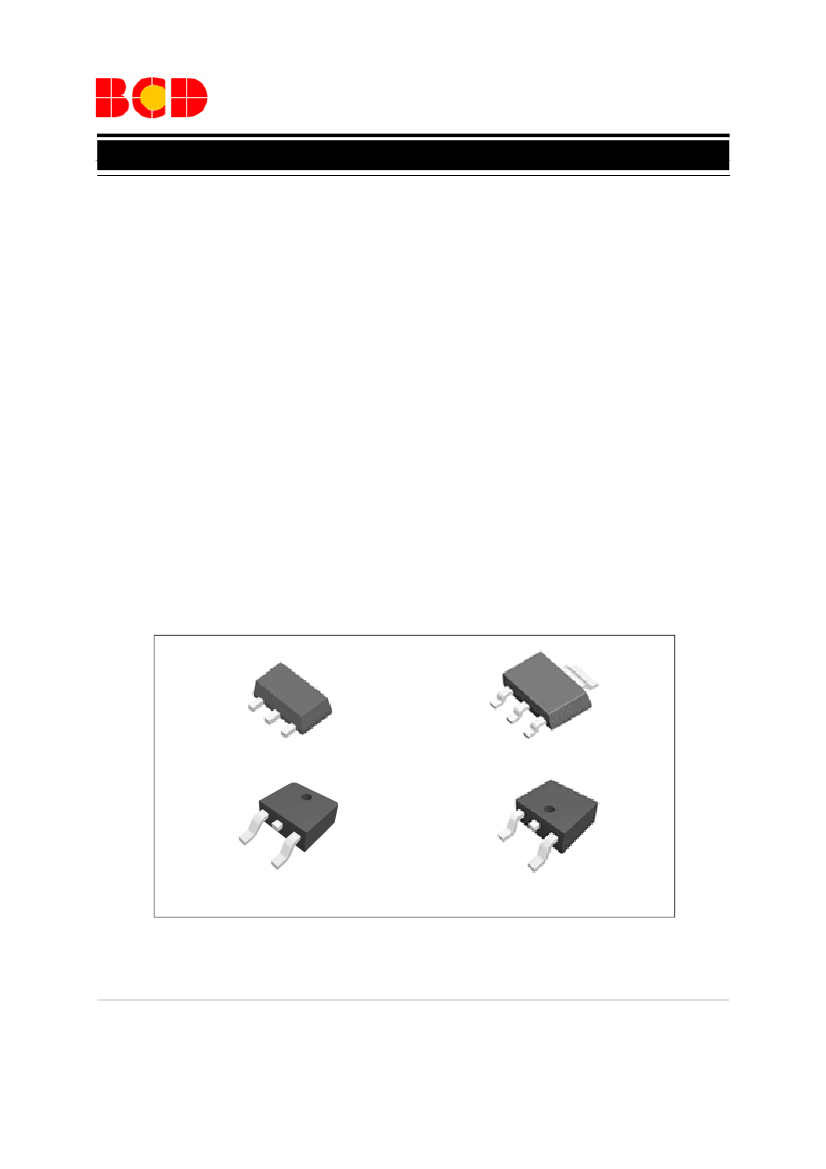

Figure 1. Package Types of AZ1117C

Nov. 2012 Rev. 1. 8

BCD Semiconductor Manufacturing Limited
