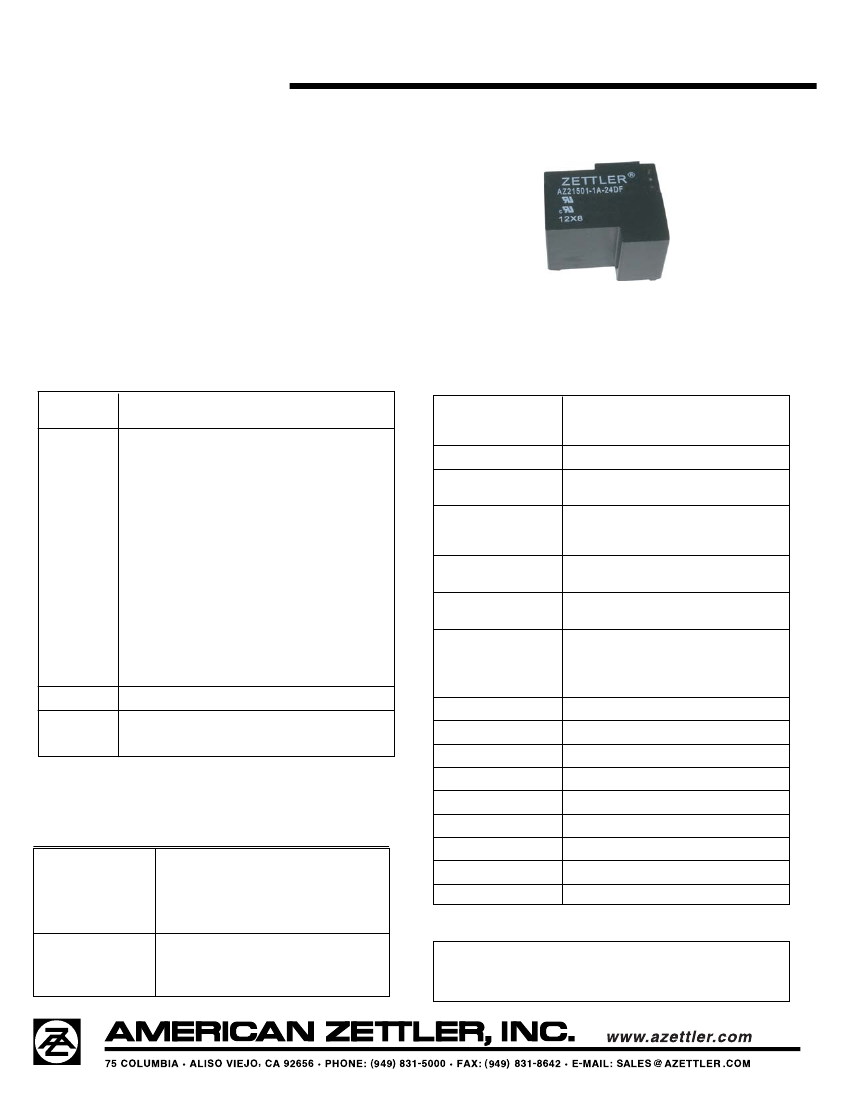

AZ21501
40 AMP MINIATURE
POWER RELAY
FEATURES
•
•
•
•
•
•
1 Form A, B and C contacts available
AC and DC coils available
Class F high temperature available
Epoxy sealed versions available
UL, CUR file E44211
TÜV Pending
CONTACTS
Arrangement
Ratings
SPST (1 Form A, or B)
SPDT (1 Form C)
Resistive load:
Max. switched power: 1100 W or 7200 VA
Max. switched current: 40 A (Form A)
Max. switched voltage: 300 VAC, 110 VDC
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Operate Time
Release Time
Dielectric Strength
Minimum operations
1 x 10
7
1 x 10
5
at 30 A 120 VAC Res.
15 msec max. at nominal coil voltage
10 msec max. at nominal coil voltage
(without suppression)
1500 Vrms contact to contact
2500 Vrms contact to coil
4000 Vrms contact to coil “T” version
1000 megohms min. at 20°C, 500 VDC
50% RH
DC: > 10% of nominal coil voltage
AC: > 30% of nominal coil voltage
-55°C (-67°F) to 100°C (212°F) Class B
-55°C (-67°F) to 130°C (266°F) Class B
-55°C (-67°F) to 125°C (257°F) Class F
-55°C (-67°F) to 155°C (311°F) Class F
UL, CUR
NO:40 A at 240 VAC,
30 A General Purpose
2 HP at 250 Vac, 277 VAC
NC: 30A at 240 Vac, 30A at 30 VDC
20A General Purpose
1 1/2 HP at 250 Vac, 277 VAC
(at sea level for 1 min.)
Insulation Resistance
Dropout
Ambient Temperature
Operating
Storage
TUV
NO: 40A at 240 VAC, 14 VDC
NC: 30A at 240 VAC, 14 VDC
Material
Resistance
Silver cadmium oxide [1], silver tin oxide [2
Vibration
< 50 milliohms initially
(24 V, 1 A voltage drop method)
Shock
Enclosure
Terminals
Max. Solder Temp.
0.062" DA at 10–55 Hz
10 g
P.B.T. polyester
Tinned copper alloy, P.C.,
270°C (518°F)
5 seconds
80°C (176°F)
30 seconds
30 grams
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Max. Temperature
DC: 500 mW
AC: 1.4 VA
DC: 1.7 W at 20°C
AC: 2.7 VA at 20°C
Max. 130°C (266°F) Class B
Max. 155°C (311°F) Class F
Max. Solder Time
Max. Solvent Temp.
Max. Immersion Time
Weight
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
3/10/09
AZ21501
RELAY ORDERING DATA
COIL SPECIFICATIONS – DC Coil
Nominal Coil
VDC
3
5
6
9
12
15
18
24
48
110
Nominal Coil
VAC
12
24
120
220
Must Operate
VDC
2.25
3.75
4.50
6.75
9.00
10.25
13.5
18.0
36.0
82.50
Must Operate
VAC
9
18
90
165
Max. Continuous
VDC
3.9
6.5
7.8
11.7
15.6
19.5
23.4
31.2
62.4
143
Max. Continuous
VAC
15.6
31.2
156
286
Nominal Current
mA ± 10%
300
179
150
100
75
60
50
38
19
8
Nominal Coil
Power VA
2.0
2.0
2.0
2.0
Coil Resistance
± 10%
10
28
40
90
160
250
360
640
2,560
13,445
Coil Resistance
± 10%
27
120
3,040
13,490
ORDER NUMBER*
AZ21501–1A–3D
AZ21501–1A–5D
AZ21501–1A–6D
AZ21501–1A–9D
AZ21501–1A–12D
AZ21501–1A–15D
AZ21501–1A–18D
AZ21501–1A–24D
AZ21501-1A–48D
AZ21501–1A–110D
COIL SPECIFICATIONS – AC Coil 50/60 Hz
ORDER NUMBER*
AZ21501–1A–12A
AZ21501–1A–24A
AZ21501–1A–120A
AZ21501–1A–240A
*Substitute “-1B” or “-1C” in place of “-1A” for 1 Form B or 1 Form C respectively. For silver tin oxide contacts substitute “-1AE” or “-1CE” in place of “-1A” or “-
1C.” To indicate class F version, add suffix “F”. Substitute “DE” or “AE” in place of “D” or “A” for epoxy sealed version. Use AZ21511 for Pin 6 style.
MECHANICAL DATA
Outline Dimensions
0.130 0.0 20
(0.146)
0.787ma x.
PC Board Layout
AZ21511
0.020
20max .
0.701
0.55
0.
0.043
0.043
0.031 0.059
0.027 0.027
0.1
0.047 0.047
FORM 1A,1B,1C
0.606
0.492
2.4
0.094
0.209
27.6max.
1.087max.
25.5
1.004
Wiring Diagram
0.787
BOTTOM VIEW
FORM 1A
3
6
4
FORM 1B
3
6
5
FORM 1C
3
6
4
5
0.724
1.279max.
2
1
2
1
2
1
Omit pin 6 for AZ21501
Dimensions in inches with metric equivalents in parentheses. Tolerance: ± .010"
3/10/09
