AZ2501P1-1C-24D datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> AZ2501P1-1C-24D

AZ2501P1-1C-24D: Description50 AMP LATCHING POWER RELAY; CategoryMechanical and electronic products relay; File Size159KB，3 Pages; ManufacturerAZETTLER; Websitehttp://www.azettler.com/; Environmental Compliance

Download Datasheet Parametric View All

AZ2501P1-1C-24D Overview

50 AMP LATCHING POWER RELAY

AZ2501P1-1C-24D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AZETTLER
Reach Compliance Code	compli
ECCN code	EAR99
body width	15.3 mm
body height	30.5 mm
Body length or diameter	39.3 mm
Coil operating voltage (DC)	19.2 V
Coil resistance	384 Ω
Maximum coil voltage (DC)	31.2 V
Nominal coil voltage	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	13850VA@440VAC
Contact (AC) maximum rated R load	50A@440VAC
Maximum contact current (AC)	50 A
Contact resistance	50 mΩ
Maximum contact voltage (AC)	440 V
Contact/Output Power Type	AC
Dielectric strength between coil and contacts	4000 Vrms
Dielectric strength between breaking contacts	1500 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Tin Oxide
Input switching control type	Random
Insulation resistance	1000000000 Ω
JESD-609 code	e3
Number of terminals	6
operating hours	15 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
PCB hole count	6
physical size	39.3mm x 15.3mm x 30.5mm
Guideline	UL
Relay style	1 FORM C
Relay function	SPDT
Relay type	POWER/SIGNAL RELAY
release time	15 ms
Terminal surface	Ti
Terminal length	0.0052 inch
Termination type	SOLDER
weight	32 g

Preview

Download Datasheet

View All

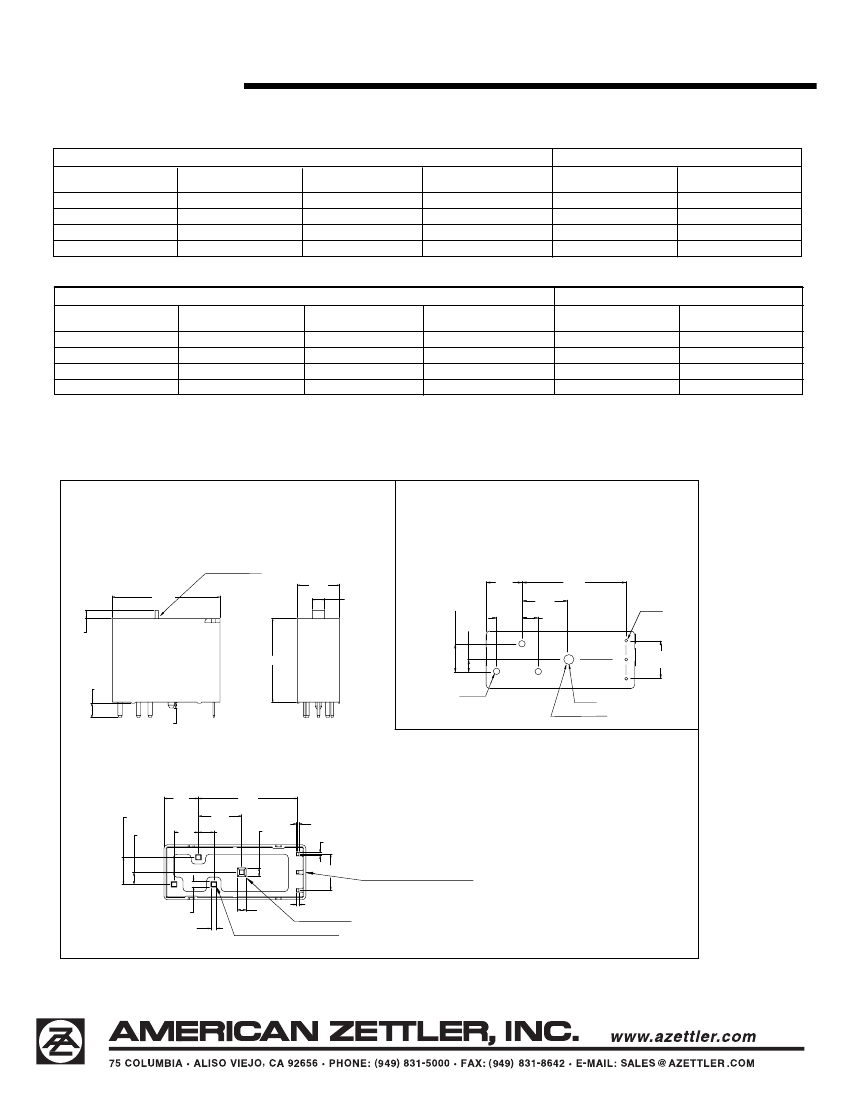

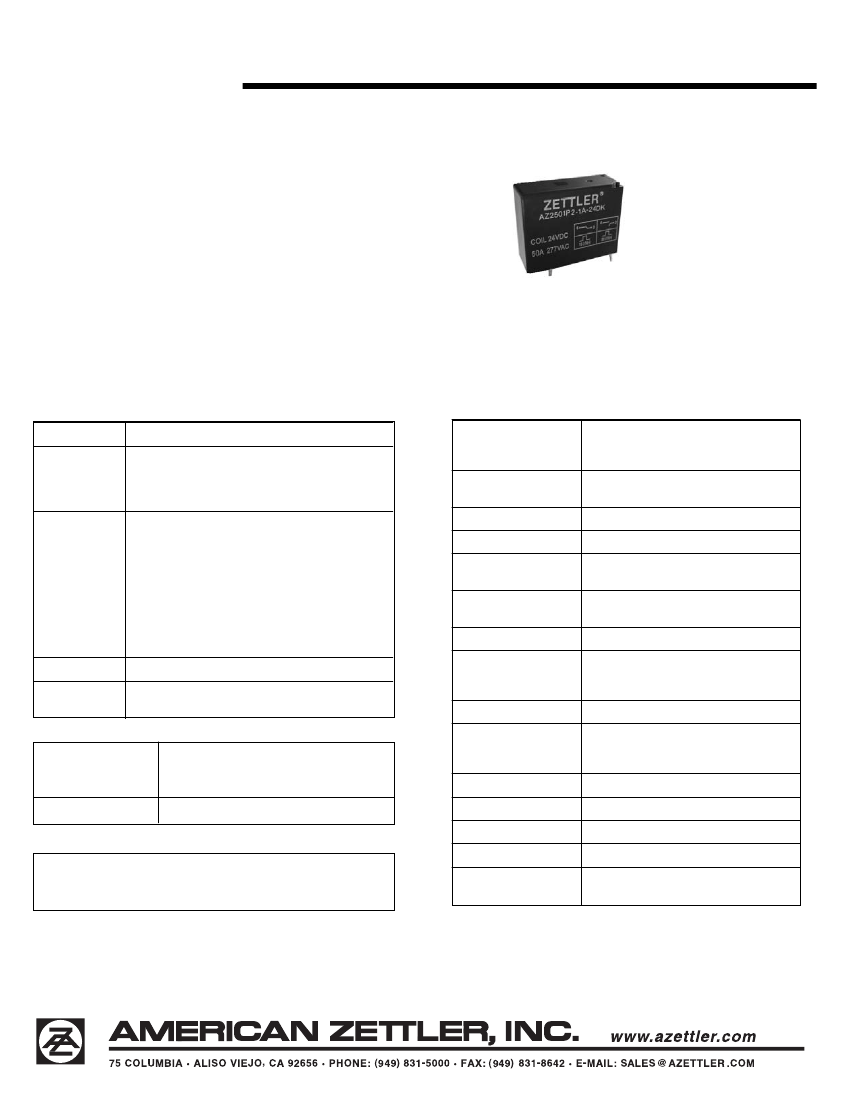

AZ2501

50 AMP LATCHING

POWER RELAY

FEATURES

•

Low cost

50 Amp switching

Heavy loads to 13850 VA

4 kV dielectric

Manual switch available

Epoxy sealed version available

UL, CUR file E44211

CONTACTS

Arrangement

Ratings

SPST (1 Form A), 1C (SPDT)

Resistive load:

Max. switched power: 13850 VA

Max. switched current: 50 A

Max. switched voltage: 440 VAC

UL/CUR

1 Form A (SPST)

50 A at 277 VAC, resistive, 100k cycles

5540 W at 277 VAC, Tungsten, 30k cycles

20A at 120 VAC, 277 VAC Ballast

20 FLA, 120 LRA at 120 VAC, 30k cycles

17 FLA, 102 LRA at 240 VAC, 30k cycles

14 FLA, 84 LRA at 277 VAC, 30k cycles

1 Form C (SPDT)

40 A at 277 VAC, General Use, 30k cycles

Material

Resistance

Silver tin oxide

< 50 milliohms initially

(24 V, 1 A voltage drop method)

GENERAL DATA

Life Expectancy

Mechanical

Electrical

Set and Reset

Pulse Duration

Set Time (typical)

Reset Time (typical)

Minimum operations

1 x 10

at 50 A 250 VAC Res. (SPST)

50 ms minimum

15 ms at nominal coil voltage

Dielectric Strength

4000 Vrms coil to contact

(at sea level for 1 min.)

1500 Vrms between open contacts

Insulation

Resistance

Creepage Distance

Ambient Temperature

Operating

Storage

Vibration

Shock

Operating

10 g, 11 ms,

sine (no false operation)

Non-Operating

100 g, 11 ms,

sine (no damage)

1000 megohms min. at 20°C, 500 VDC,

50% RH

8 mm

At nominal coil voltage

-40°C (-40°F) to 70°C (158°F)

-40°C (-40°F) to 105°C (221°F)

0.062" DA at 10–55 Hz

COIL

Power

At Pickup Voltage

(typical)

Temperature

.96 W single coil

1.9 W dual coil

Max. 105°C (221°F)

Enclosure

Terminals

Max. Solder Temp.

Max. Solder Time

Weight

P.B.T. polyester

Tinned copper alloy

270°C (518°F)

5 seconds

32 grams

NOTES

1. All values at 20°C (68°F).

2. Relay may pull in with less than “Must Operate” value.

3. Specifications subject to change without notice.

7/22/08W
