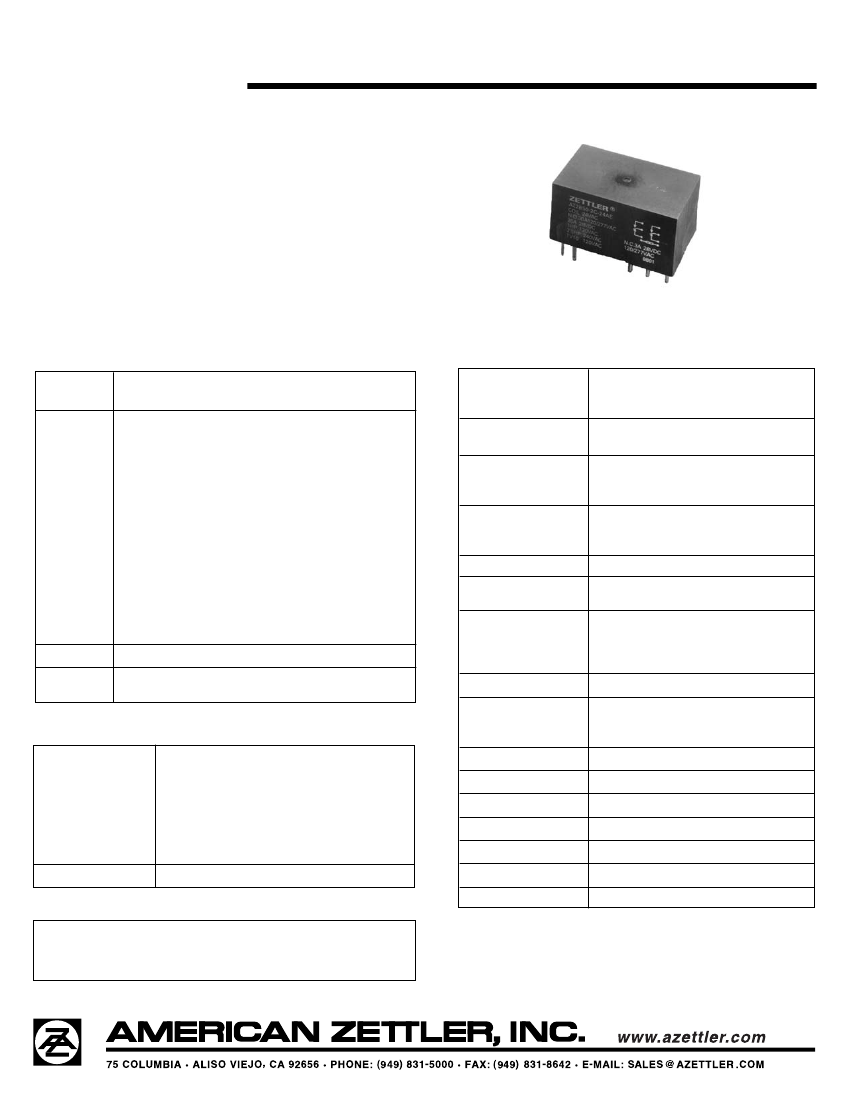

AZ2850
30 AMP MINIATURE
POWER RELAY
FEATURES
•
•
•
•
•
•
•
30 Amp switching capability
DPST-NO and DPDT configuration
Meets 8 mm creepage, 4 kV dielectric
Class F construction
PCB terminals
Epoxy sealed versions available
UL, CUR file E44211, VDE 40023442
GENERAL DATA
DPST-N.O.
DPDT
Resistive load:
Max. switched power: 560 W or 8310 VA
Max. switched current:30 A N.O., 3 A N.C.
Max. switched voltage: 600 VAC or 30 VDC*
UL, CUR
N.O.
30 A at 277 VAC General Use, 100k cycles
1 Hp at 120 VAC, 100k cycles
2.5 Hp at 240 VAC, 100k cycles
110 LRA/25.3 FLA at 240 VAC (DC coils only),
30k cycles
3 A at 277 VAC General Use, 100k cycles
N.O. 30A 250 VAC, N.C. 3A 250 VAC
*Note: If switching voltage is greater than 30VDC,
special precautions must be taken. Please contact
the factory.
CONTACTS
Arrangement
Ratings
Life Expectancy
Mechanical
Electrical
Operate Time
Release Time
Minimum operations
5 x 10
7
1 x 10
5
at 30 A 120 VAC Res. N.O.
15 ms typical
25 ms maximum with bounce
10 ms typical
25 ms maximum with bounce
(with no coil suppression)
Dielectric Strength
1500 Vrms contact to contact
(at sea level for 1 min.)
4000 Vrms contact to coil
2000 Vrms between contact sets
Insulation Resistance
Dropout
Ambient Temperature
Operating
Storage
Vibration
Shock
10
9
ohms minimum at 500 VDC
DC: Greater than 10% of nominal coil voltage
AC: Greater than 20% of nominal coil voltage
At nominal coil voltage
DC: -40°C (-40°F) to 95°C (203°F)
AC: -40°C (-40°F) to 75°C (167°F)
-40°C (-40°F) to 155°C (311°F)
0.062" DA at 10–55 Hz
Operational, 10 g for 11 ms
1
/
2
sine pulse
(no contact opening > 100usec)
Non-destructive, 100 g for 11 ms
1
/
2
sine pulse
P.B.T. polyester
Tinned copper alloy, P.C.
270°C (518°F)
5 seconds
80°C (176°F)
30 seconds
86 grams
UL, CUR
N.C.
VDE
Material
Resistance
Silver cadmium oxide, silver tin oxide
<50 milliohms initially
(6 V, 1 A voltage drop method)
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Temperature
DC: 0.925 W
AC: 2.6 VA
DC: 5.0 W at 20°C (68°F)
AC: 7.0 VA at 20°C (68°F)
DC: 48°C (86°F) at nominal coil voltage
AC: 68° C (122°F) at nominal coil voltage
Max. 155°C (311°F)
Enclosure
Terminals
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
Max. Immersion Time
Weight
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.

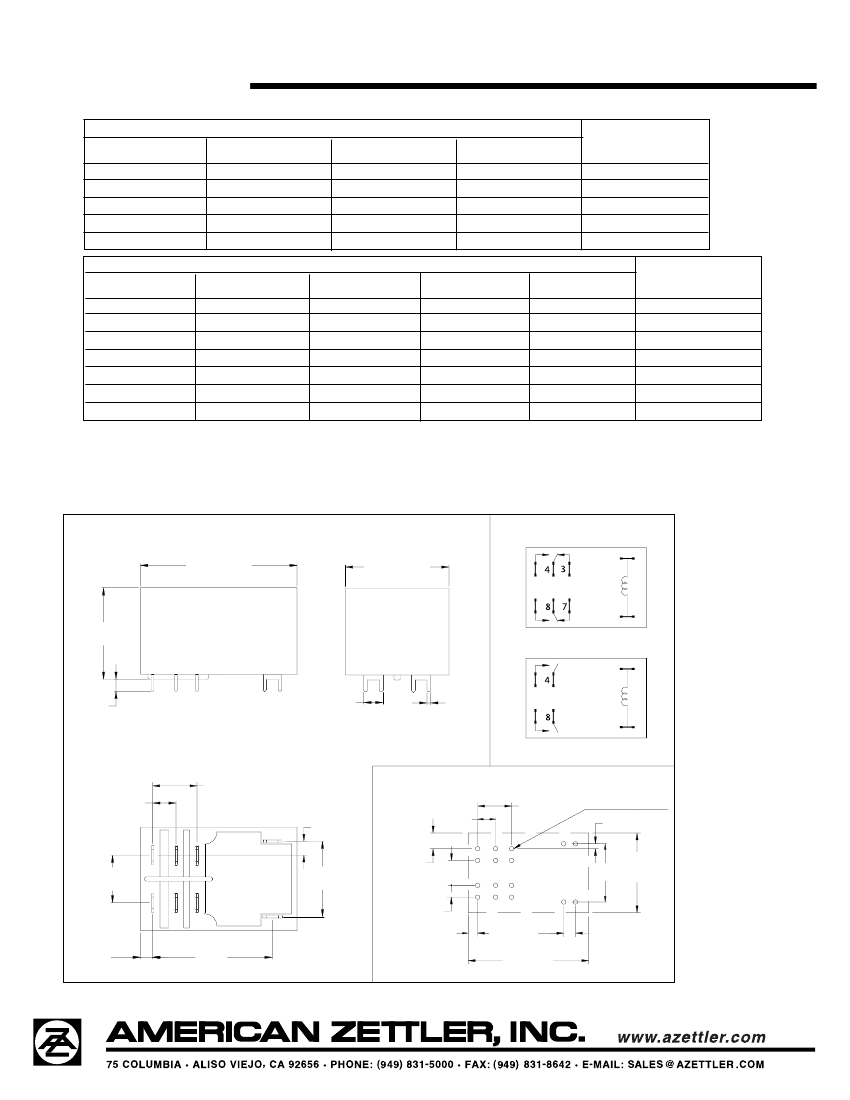

3/3/08W
