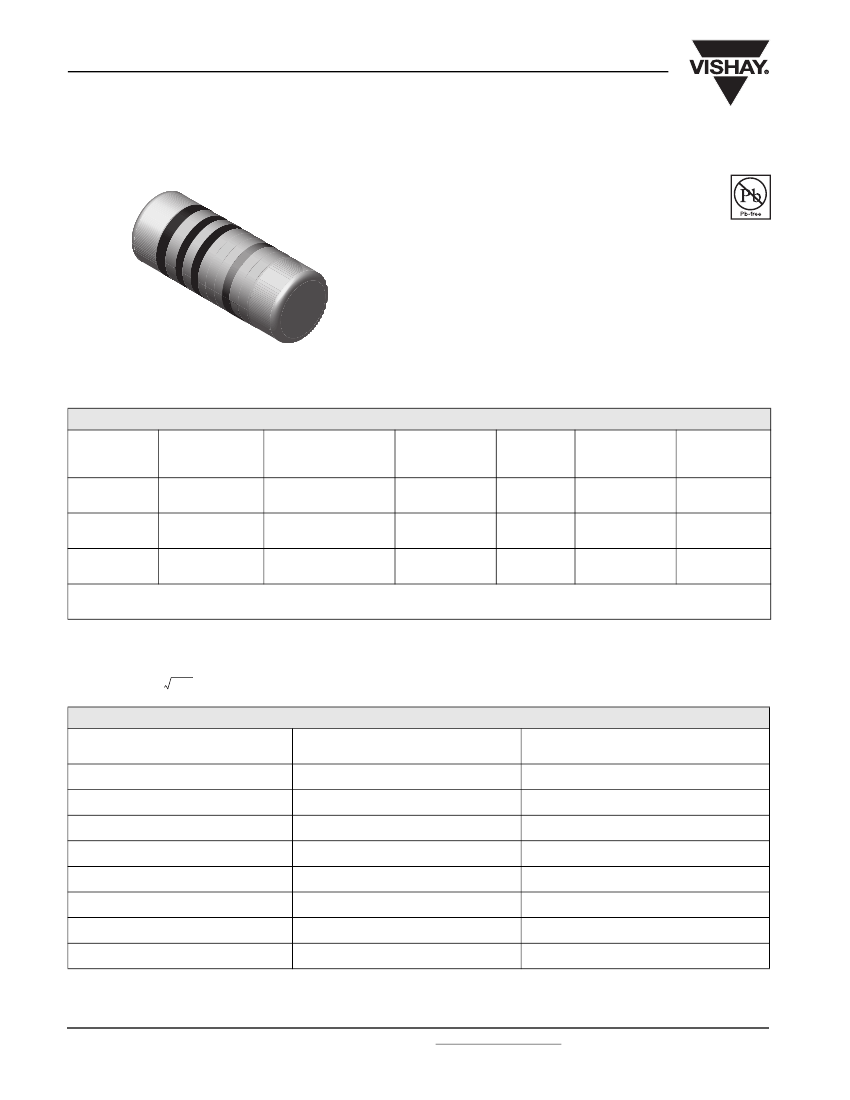

SMM0102
Vishay Draloric
Metal Film, Cylindrical Resistors
FEATURES
•
Stable metal film on high quality ceramic
•
Low TC and tight tolerances
•
Excellent stability
•
Pure tin termination on nickel barrier, plated on press fit
steel caps
•
Compatible with lead (Pb)-free and lead containing
soldering processes
•
Lead (Pb)-free and RoHS compliant
STANDARD ELECTRICAL SPECIFICATIONS
MODEL
LIMITING ELEMENT
POWER RATING
1)
P
70
VOLTAGE
2)
DC or AC rms
V
W
0.20
0.20
0.20
100
100
100
R
max
= 10 mΩ I
max
= 2 A
TEMPERATURE
COEFFICIENT
ppm/K
± 15
± 25
± 50
TOLERANCE
%
± 0.1
± 0.1
± 1.0
RESISTANCE
RANGE
Ω
100R - 100K
100R - 100K
10R - 2M21
E-SERIES
SMM0102
SMM0102
SMM0102
24 - 96
24 - 96
24 - 96
Zero-Ohm-Resistor : OMM0102
Note
1. Permissible dissipation depends on the maximum temperature
atthe solder point, the component placement density and the
substrate material.
2. Rated voltage:
PxR
.
•
Further values and tolerances on request
•
Marking:
According to IEC 60062; see also data sheet “surface
mount resistor marking” (document number: 20020)
TECHNICAL SPECIFICATIONS
PARAMETER
Rated Dissipation at 70 °C
Limiting Element Voltage, DC or AC rms
Insulation Voltage (1 min), DC or AC peak
Thermal Resistance
3)
Insulation Resistance
Category Temperature Range
Failure Rate
Weight/1000 pcs
Note
3. Based on measurements on test board acc. to EN 140400.
UNIT
W
V
V
K/W
Ω
°C
10
-9
/h
g
SMM0102
0.2
100
150
≤
250
≥
10
10
- 55 to + 125
<2
7.8
www.vishay.com
22
For Technical questions contact: ff3bresistors@vishay.com
Document Number: 20003
Revision: 16-Feb-06
SMM0102
Metal Film, Cylindrical Resistors
DIMENSIONS
DIMENSIONS
[in millimeters]
MODEL
D
max
SMM0102
1.1
d*
D - 0.05
L
2.2 - 0.15
A
max
0.45
A
min
0.35
Vishay Draloric
* d measured in the middle of the resistor
SOLDER PAD DIMENSIONS
[in millimeters]
MODEL
REFLOW SOLDERING WAVE SOLDERING
a
SMM0102
0.5
b
1.3
l
1.3
a
0.6
b
1.3
l
1.3
PART NUMBER AND PRODUCT DESCRIPTION
1)
PART NUMBER
2)
: SMM01020D5620BB3
PART NUMBER
2)
: OMM01020000000B3
S
O
MODEL/SIZE
SMM0102
OMM0102
M
M
M
M
0
0
1
1
0
0
2
2
0
0
D
0
5
0
6
0
2
0
0
0
B
0
B
B
3
3
0
0
0
0
SPECIAL
up to 2 digits
00
= standard
SPECIAL CHARACTER
0
= neutral
TC
E
= ± 15 ppm/K
D
= ± 25 ppm/K
C
= ± 50 ppm/K
0
= Jumper
VALUE
3 digit value
1 digit multiplier
0000
= Jumper
Multiplier
9 = *10
-1
0 = *10
0
1 = *10
1
2 = *10
2
3 = *10
3
4 = *10
4
TOLERANCE
B
= ± 0.1 %
F
=±1%
0
= Jumper
PACKING
3)
B1
B3
B0
M8
PRODUCT DESCRIPTION: SMM0102 25 562R 0.1% B3
PRODUCT DESCRIPTION: OMM0102 0R0 B3
SMM0102
OMM0102
MODEL
SMM0102
OMM0102
25
-
TC
±
15
ppm/K
±
25
ppm/K
±
50
ppm/K
562R
0R0
RESISTANCE
VALUE
100
= 100
Ω
2M21
= 2.21M
Ω
0R0
= jumper
0.1 %
-
TOLERANCE
±
0.1
%
±
1
%
B3
B3
PACKING
3)
B1
B3
B0
M8
Note
1. Products can be ordered using either the PRODUCT DESCRIPTION or the PART NUMBER.
2. The PART NUMBER is shown to facilitate the introduction of a unified part numbering system. Currently, this PART NUMBER is applicable
in the Americas only.
3. Please refer to table PACKING, see below.
Document Number: 20003
Revision: 16-Feb-06
For Technical questions contact: ff3bresistors@vishay.com
www.vishay.com
23
SMM0102
Vishay Draloric
Metal Film, Cylindrical Resistors
PACKING
BLISTER TAPE ON REEL
ACC IEC 60286-3
MODEL
DIAMETER
PIECES/REEL
CODE
PIECES/BULK CASE
CODE
BULK CASE
ACC. IEC 60286-6
180 mm/7"
SMM0102
180 mm/7"
OMM0102
330 mm/13"
1000
B1*
3000
B3
8000
M8
10000
B0
• For further information about packing see also data sheet “surface mount resistor packing” (document number: 20014)
* For TC
≤
25 ppm/K and Tolerance
≤
0.25 % only
Rated Power in
%
120
100
80
60
40
20
0
- 55
- 25
0
25
50
155
75 100 125
70
Ambient Temperature in
°C
Derating
www.vishay.com
24
For Technical questions contact: ff3bresistors@vishay.com
Document Number: 20003
Revision: 16-Feb-06
SMM0102
Metal Film, Cylindrical Resistors
Vishay Draloric
PERFORMANCE
TEST
Endurance Test at 70 °C
IEC 60115-1, 4.25.1
CONDITIONS OF TEST
1000 hours at 70 °C, 1.5 hours "ON", 0.5 hours "OFF"
8000 hours at 70 °C, 1.5 hours "ON", 0.5 hours "OFF"
REQUIREMENTS
1)
≤
0.25 %
≤
0.5 %
Endurance at UCT
1000 hours at 125 °C without load
IEC 60115-1, 4.25.3
≤
0.5 %
Overload Test
Short time overload for 2 seconds at 6.25 x rated power
IEC 60115-1, 4.13
≤
0.1 %
Thermal Shock
IEC 60115-1, 4.19 and IEC 60068-2-14
Rapid change between upper and lower category temperature,
5 cycles
≤
0.1 %
Damp Heat Steady State
56 days at 40 °C and 93 % relative humidity
IEC 60115-1, 4.24 and IEC 60068-2-78
≤
0.5 %
Resistance to Soldering Heat
10 seconds at 260 °C solder bath temperature
IEC 60115-1, 4.18 and IEC 60068-2-58
Note
1. For a resistance range from 10
Ω
to 221 kΩ.
≤
0.1 %
APPLICABLE SPECIFICATIONS
• EN 140401-803
• EN 140400
• EN 60115-1
Document Number: 20003
Revision: 16-Feb-06
For Technical questions contact: ff3bresistors@vishay.com
www.vishay.com
25
Legal Disclaimer Notice
Vishay
Disclaimer
All product specifications and data are subject to change without notice.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf
(collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained herein
or in any other disclosure relating to any product.
Vishay disclaims any and all liability arising out of the use or application of any product described herein or of any
information provided herein to the maximum extent permitted by law. The product specifications do not expand or
otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed
therein, which apply to these products.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this
document or by any conduct of Vishay.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications unless
otherwise expressly indicated. Customers using or selling Vishay products not expressly indicated for use in such
applications do so entirely at their own risk and agree to fully indemnify Vishay for any damages arising or resulting
from such use or sale. Please contact authorized Vishay personnel to obtain written terms and conditions regarding
products designed for such applications.
Product names and markings noted herein may be trademarks of their respective owners.
Document Number: 91000
Revision: 18-Jul-08
