AZ9481-1AT-24D Overview

16 AMP LOW PROFILE POWER RELAY

AZ9481-1AT-24D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AZETTLER
Reach Compliance Code	compli
ECCN code	EAR99
body width	16.5 mm
body height	11.4 mm
Body length or diameter	22.5 mm
Coil operating voltage (DC)	19.2 V
Coil resistance	2880 Ω
Maximum coil voltage (DC)	64.4 V
Nominal coil voltage	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	4000VA@250VAC
Contact (AC) maximum rated R load	16A@250VAC
Maximum contact current (AC)	16 A
Maximum contact current (DC)	16 A
Contact (DC) maximum rated power R load	300W@30VDC
Contact (DC) maximum rated R load	16A@30VDC
Contact resistance	100 mΩ
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	30 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	2500 Vrms
Dielectric strength between breaking contacts	1000 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Cadmium Oxide
Input switching control type	Random
Insulation resistance	100000000 Ω
JESD-609 code	e3
Number of terminals	4
operating hours	10 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB hole count	4
physical size	22.5mm x 16.5mm x 11.4mm
Relay action	LATCHED
Relay style	1 FORM A
Relay function	SPST
Relay type	POWER/SIGNAL RELAY
release time	5 ms
Terminal surface	Ti
Terminal length	0.0037 inch
Termination type	SOLDER
weight	8 g

Preview

Download Datasheet

View All

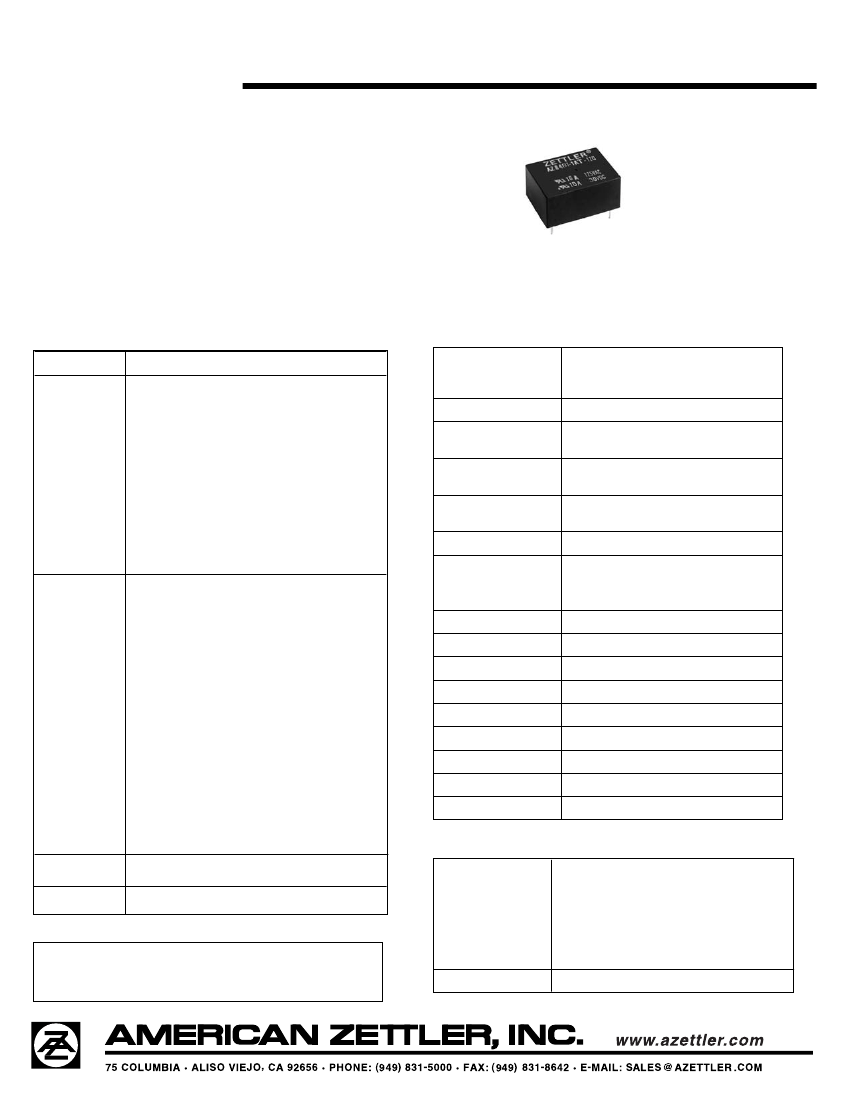

AZ9481

16 AMP LOW PROFILE

POWER RELAY

FEATURES

•

High power switching (4000 VA)

High sensitivity, 128 mW pickup

Low profile (less than .5" height)

SPST (1 Form A) and SPDT (1 Form C)

UL Class F (155°C) standard

Epoxy sealed versions available

DC coils up to 48 VDC

UL file E43203, TÜV R50053055

GENERAL DATA

SPST (1 Form A) SPDT (1 Form C)

Resistive load:

Max. switched power: 300 W, 2500 VA

Max. switched current: 10 A

Max. switched voltage: 250 VAC / 30 VDC

Max. switch power: 300 W, 4000 VA

Max. switch current: 16 A

Max. switched voltage: 250 VAC / 30 VDC

Max. switched power: 300 / 180 W, 2500 / 1500

VA (N.O./N.C.)

Max. switched current: 10 / 6 A (N.O./N.C.)

Max. switched voltages: 250 VAC / 30 VDC

Standard 1 Form A

10 A at 250 VAC Res. 100k cycles [1][2]

10 A at 30 VDC Res. 100k cycles [1][2]

TV-5 [1][2]

High Capacity 1 Form A

16 A at 125 VAC Res. 100k cycles [1][2]

10 A at 30 VDC Res. 100k cycles [1][2]

TV-5 [1][2]

Standard 1 Form C

10 / 6 A (N.O./N.C.) at 250 VAC Res. 100k

cycles[2]

10 / 6 A (N.O./N.C.) at 250 VAC Res. 30k/100k

cycles [3]

TÜV

High Capacity 1 Form A

16 A at 250 VAC Res. 100k cycles [1][2]

8 A at 250 VAC cos phi = 0.4 100k cycles [1][2]

10 A at 30 VDC Res. 100k cycles [1][2]

Silver cadmium oxide [1], silver tin oxide [2] or

silver nickel [3]. Gold plated contacts available.

< 100 milliohms initially

(6 V, 1 A voltage drop method)

Life Expectancy

Mechanical

Electrical

Operate Time (typical)

Release Time (typical)

Minimum operations

1 x 10

10 A 250 VAC Res.

10 ms at nominal coil voltage

5 ms at nominal coil voltage

(with no coil suppression)

CONTACTS

Arrangement

Ratings

Standard

1 Form A

High Capacity

1 Form A

Dielectric Strength

2500 Vrms coil to contact

(at sea level for 1 min.)

1000 Vrms contact to contact

Insulation

Resistance

Dropout

Ambient Temperature

Operating

Storage

Vibration

Shock

Enclosure

Terminals

Max. Solder Temp.

Max. Solder Time

Max. Solvent Temp.

Max. Immersion Time

Weight

100 megohms min. at 20°C, 500 VDC,

50% RH

Greater than 10% of nominal coil voltage

At nominal coil voltage

-40°C (-40°F) to 85°C (185°F)

-40°C (-40°F) to 155°C (333°F)

0.062" DA at 10–55 Hz

10g operational, 100g destructive

P.B.T. polyester

Tinned copper alloy, P.C.

270°C (518°F)

5 seconds

80°C (176°F)

30 seconds

8 grams

1 Form C

Rated Load

COIL

Power

At Pickup Voltage

(typical)

Max. Continuous

Dissipation

Temperature Rise

Temperature

128 mW (Form A)

256 mW (Form C)

1.34 W at 20°C (68°F)

24°C (43°F) at nominal coil voltage (Form C)

13°C (23°F) at nominal coil voltage (Form A)

Max. 155°C (333°F)

Material

Resistance

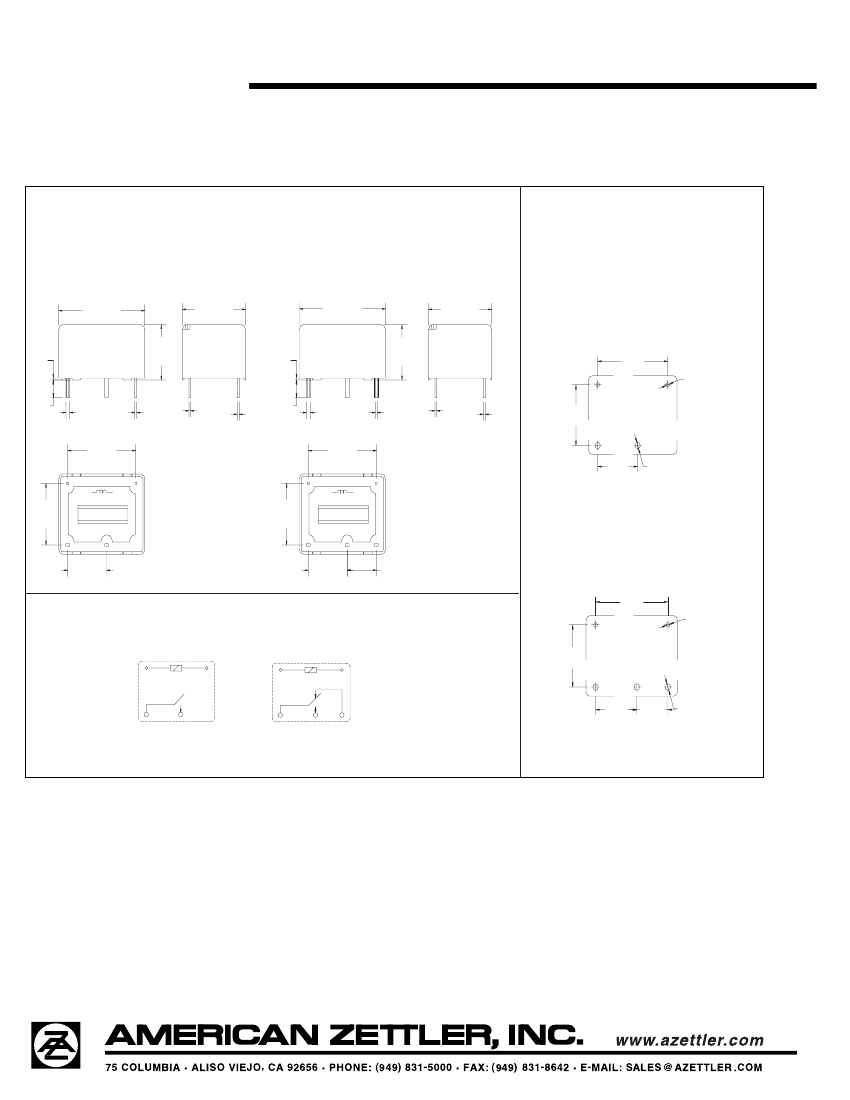

NOTES

1. All values at 20°C (68°F).

2. Relay may pull in with less than “Must Operate” value.

3. Specifications subject to change without notice.

12/14/05W
