T83E157M016NAAS

Description
Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 20% +Tol, 20% -Tol, 150uF, 2917
CategoryPassive components    capacitor
File Size126KB,9 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

T83E157M016NAAS Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 20% +Tol, 20% -Tol, 150uF, 2917

T83E157M016NAAS Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerVishay
package instruction, 2917
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresESR IS MEASURED AT 100 KHZ
capacitance150 µF
Capacitor typeTANTALUM CAPACITOR
dielectric materialsTANTALUM (DRY/SOLID)
ESR500 mΩ
high4 mm
JESD-609 codee0
leakage current0.024 mA
length7.3 mm
Installation featuresSURFACE MOUNT
multi-layerN
negative tolerance20%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package formSMT
method of packingTR, EMBOSSED PLASTIC, 7 INCH
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)16 V
size code2917
surface mountYES
Delta tangent0.08
Terminal surfaceTin/Lead (Sn/Pb)
Terminal shapeJ BEND
width4.3 mm

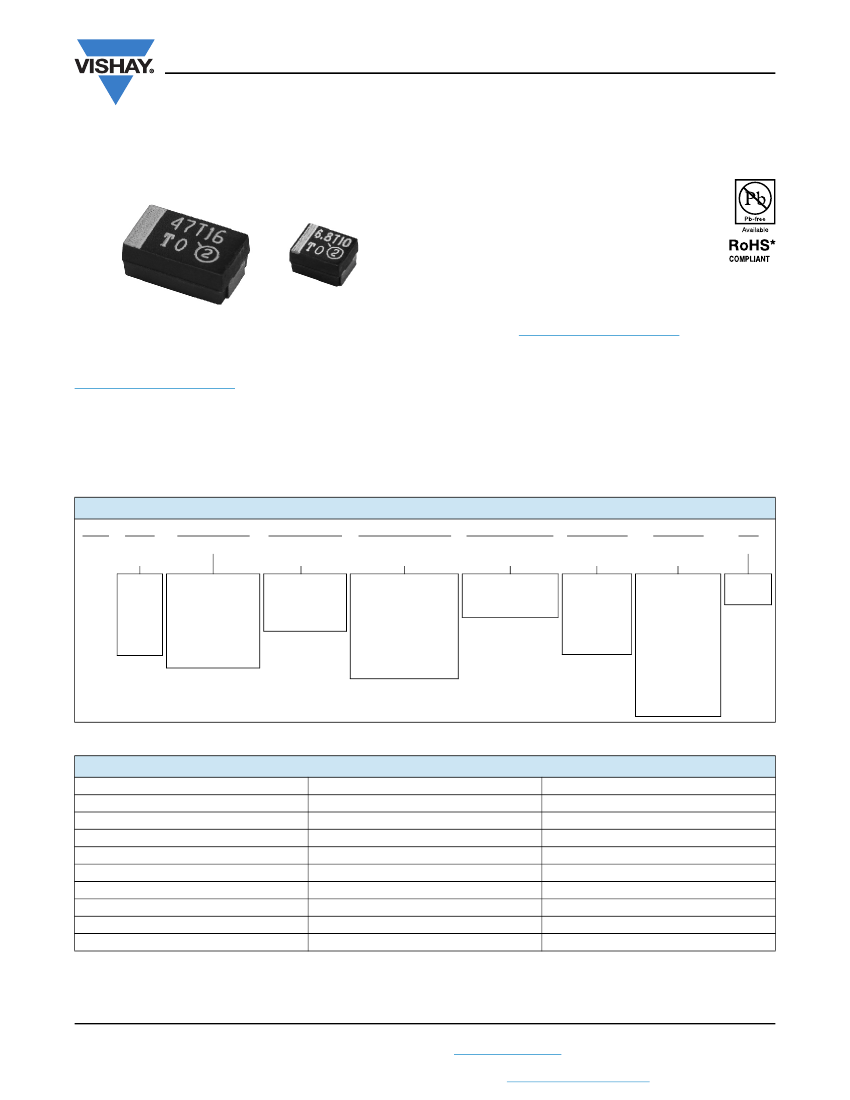

T83
www.vishay.com
Vishay Sprague
Solid Tantalum Surface Mount Chip Capacitors
T
ANTAMOUNT®
, Molded Case, Hi-Rel COTS
FEATURES
Standard and low ESR options
Weibull grading and surge current test options
Terminations: 100 % matte tin and tin/lead
Standard EIA 535BAAC case sizes (A through E)
Moisture sensitivity level 1
Compliant terminations
High reliability
Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
PERFORMANCE/ELECTRICAL
CHARACTERISTICS
www.vishay.com/doc?40088
Operating Temperature:
- 55 °C to + 125 °C
(above 85 °C, voltage derating is required)
Capacitance Range:
0.1 μF to 470 μF
Capacitance Tolerance:
± 10 %, ± 20 %
Voltage Rating:
4 V
DC
to 63 V
DC
Note
*
Lead (Pb)-containing terminations are not RoHS-compliant.
Exemptions may apply.
APPLICATIONS
Industrial
Medical
Military/aerospace
Telecom
ORDERING INFORMATION
T83
TYPE
D
CASE
CODE
See
Ratings
and
Case
Codes
table.
107
CAPACITANCE
This is expressed
in picofarads. The
first two digits are
the significant
figures. The third
is the number of
zeros to follow.
K
CAPACITANCE
TOLERANCE
K = ± 10 %
M = ± 20 %
J=±5%
(special order)
010
DC VOLTAGE
RATING AT + 85 °C
This is expressed in
volts. To complete
the three-digit block,
zeros precede the
voltage rating. A
decimal point is
indicated by an “R”
(6R3 = 6.3 V).
E
TERMINATION
AND PACKAGING
See table
Termination and
Packaging Codes
A
RELIABILITY
LEVEL
A = 1.0 %
B = 0.1 %
C = 0.01 %
S = Hi-Rel
standard
Z = Non-ER
A
SURGE
CURRENT
A = 10 cycles at
+ 25 °C
B = 10 cycles at
- 55 °C/+ 85 °C
C = 10 cycles at
- 55 °C/+ 85 °C
(before Weibull
grading)
Z = None
S = 3 cycles
at + 25 °C
S
ESR
S = Std
L = Low
TERMINATION AND PACKAGING CODES
CODE
C
H
U
E
L
R
K
M
N
TERMINATION
Matte tin
Matte tin
Matte tin
Solder plated, tin/lead
Solder plated, tin/lead
Solder plated, tin/lead
Solder fused, tin/lead
Solder fused, tin/lead
Solder fused, tin/lead
PACKAGING
7" (178 mm) reels
7" (178 mm) reels, ½ reel
7" (178 mm) reels, partial reel
7" (178 mm) reels
7" (178 mm) reels, ½ reel
7" (178 mm) reels, partial reel
7" (178 mm) reels
7" (178 mm) reels, ½ reel
7" (178 mm) reels, partial reel
Revision: 10-Jul-12
Document Number: 40077
1
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
