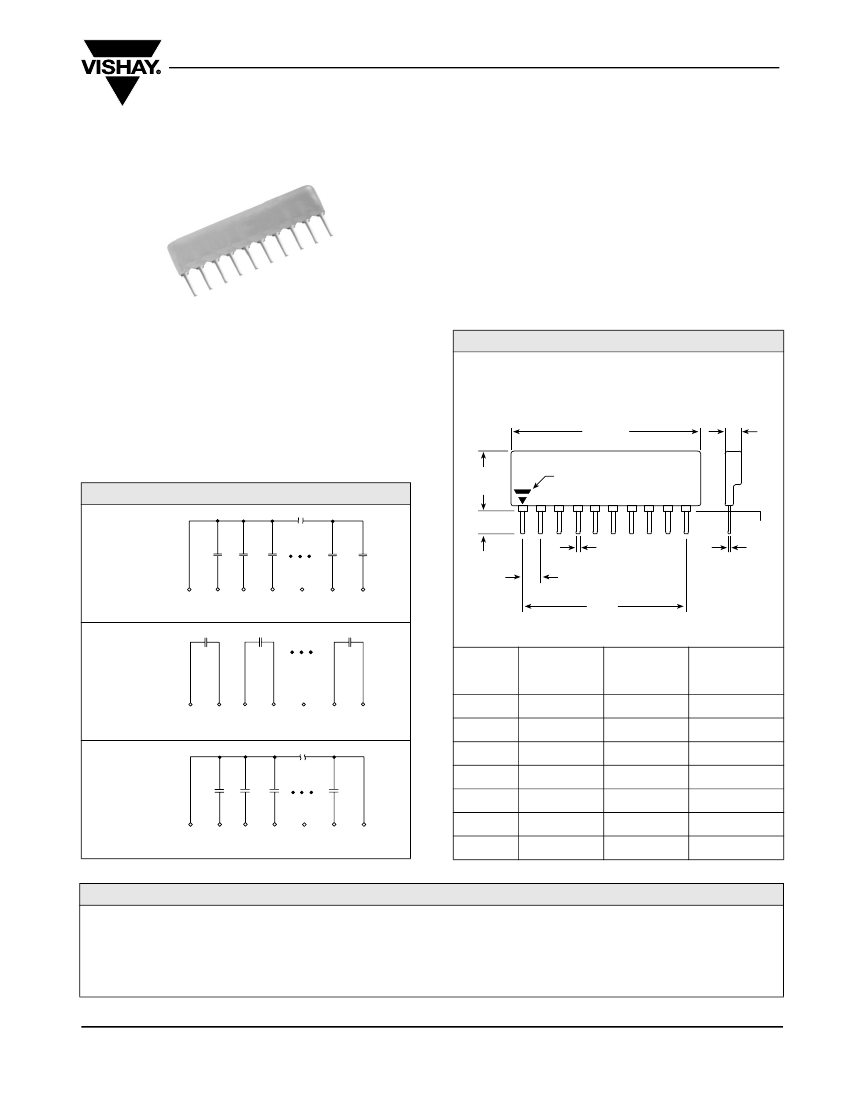

TCN
Vishay Techno
Capacitor Networks, Coated SIP
FEATURES
•
NPO or X7R capacitors for line terminator.
•
Wide operating temperature range.
•
Epoxy based conformal coating.
•
Solder coated copper terminals.
•
Solderability per MIL-STD-202 method 208E.
•
Marking resistance to solvents per MIL-STD-202 method 215.
ELECTRICAL SPECIFICATIONS
Type:
NPO or X7R.
NPO Capacitance Range Standard:
33 pF - 3900 pF, other
values available.
X7R Capacitance Range:
470 pF - 0.1 µF, other values
available.
Tolerance:
NPO Type = ± 10 %, ± 20 %.
X7R Type = ± 10 %, ± 20 %. Tighter tolerance available.
Voltage Rating:
50 VDC. Higher voltage available.
Operating Temperature Range:
- 55 °C to + 125 °C.
DIMENSIONS
in inches [millimeters]
A Max.
0.130 [3.30]
Max.
SCHEMATICS
SCHEMATIC 01
C
Max.
0.125 ± 0.015
[3.18 ± 0 .381]
C
C
C
C
C
Pin #1 Identifier
0.020 ± 0.002
[0.508 ± 0.051]
0.100 ± 0.005
[2.54 ± 0.127]
Non-Cumulative
(Seating
Plane)
0.010 ± 0.002
[0.254 ± 0.051]
1
2
3
4
n-1
n
B
SCHEMATIC 02
C
C
C
NUMBER
OF PINS
6
A
(Max.)
0.590 [14.99]
0.690 [17.53]
0.790 [20.07]
0.890 [22.61]
0.990 [25.15]
1.09 [27.69]
1.19 [30.23]
B
± 0.005 [0.127]
0.500 [12.70]
0.600 [15.24]
0.700 [17.78]
0.800 [20.32]
0.900 [22.86]
1.00 [25.40]
1.10 [27.94]
C
(Max.)
0.350 [8.89]
0.350 [8.89]
0.350 [8.89]
0.350 [8.89]
0.350 [8.89]
0.350 [8.89]
0.350 [8.89]
1
2
3
4
n-1
n
7
SCHEMATIC 09
8
9
C
C
C
C
10
11
1
2
3
4
n-1
n
12
NOTE: Custom schematics available.
ORDERING INFORMATION
TCN
XX
XX
XXX
CAPACITANCE VALUE (pF)
First two digits are significant, third
digit signifies number of zeros to follow.
*Tighter tolerance available.
X
K =
±
10 %
M =
±
20 %
e2
MODEL NUMBER OF PINS SCHEMATIC
CAPACITANCE TOLERANCE* LEAD TERMINATION
e2 = Sn/Ag 95/5
Document Number: 68003
Revision: 12-Sep-05
