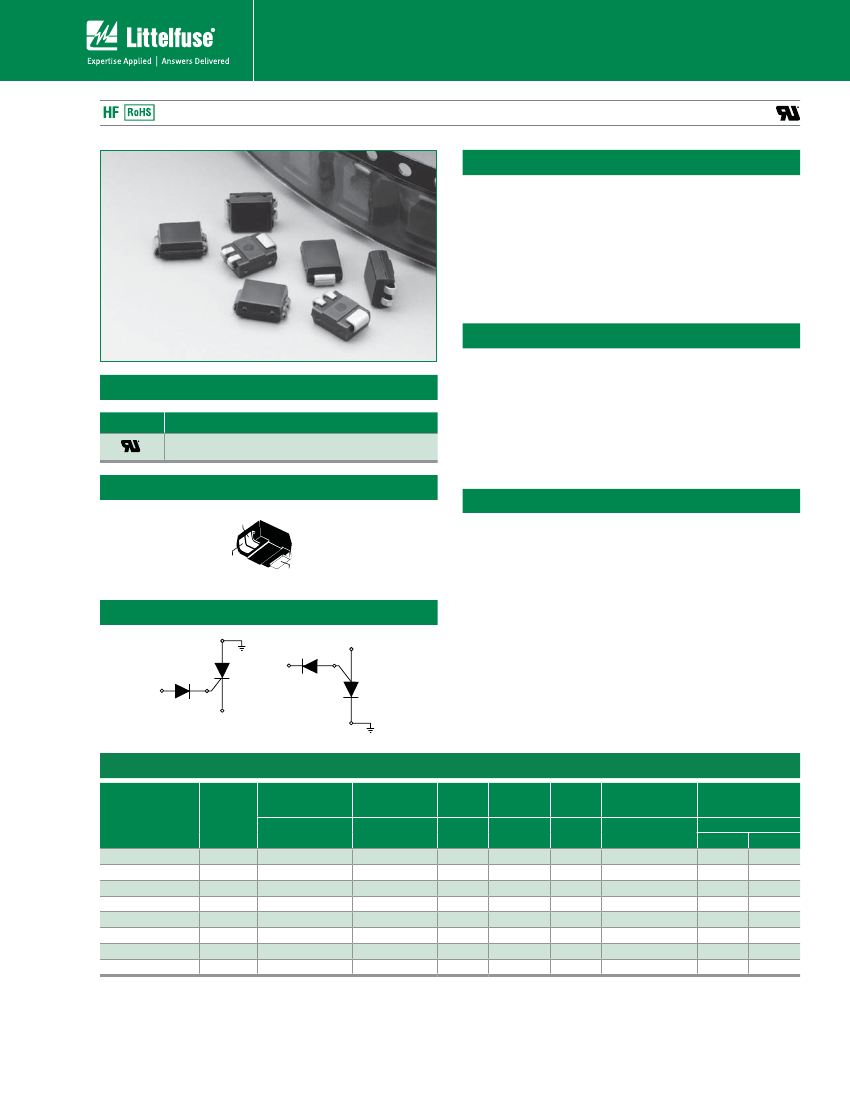

SIDACtor
®
Protection Thyristors
SLIC Protection
Battrax
®
Series Positive/Negative - Modified DO-214
Description
The Battrax
®
series offers programmable SIDACtor
®
overvoltage protection devices for SLIC applications.
This series is offered in a negative Battrax version and a
positive Battrax version. The B1xx0C_ is for a -V
REF
supply
supply. Designed using
REF
an SCR and a gate diode, the B1xx0C_ Battrax begins
to conduct at |-V
REF
REF
Features and Benefits
Low voltage overshoot
Agency Approvals
Agency
Agency File Number
E133083
ratings
Robust surge current
ratings
Gate triggered tracking
devices
Low on-state voltage
Does not degrade with
use
Fails short circuit when
surged in excess of
Pinout Designation
PIN 3
(V
REF
)
Applicable Global Standards
TIA-968-A
TIA-968-B
ITU K.20/21 Enhanced
Level*
ITU K.20/21 Basic Level
GR 1089 Inter-building*
PIN 3
(+VREF)
PIN 1
(Line)
GR 1089 Intra-building
IEC 61000-4-5
YD/T 1082
YD/T 993
YD/T 950
PIN 1
(Line)
PIN 2
(Ground)
Schematic Symbol
PIN 2
(Ground)
PIN 3
(-VREF)
Gate
Negative Battrax
B1xx0C_
PIN 1
(Line)
Positive Battrax
B2050C_
PIN 2
(Ground
*A-rated parts require series resistance
Electrical Characteristics
V
DRM
@l
DRM
=5μA
V min
B1100CALRP
B1160CALRP
B1200CALRP
B2050CALRP
B1100CCLRP
B1160CCLRP
B1200CCLRP
B2050CCLRP
B10A
B16A
B12A
B25A
B10C
B16C
B12C
B25C
I-V
REF
I-V
REF
I-V
REF
REF
Part Number
Marking
V
S
@100V/μs
V max
I-V
REF
I-V
REF
I-V
REF
REF
I
H
mA min
100
160
200
5
100
160
200
5
I
S
mA max
100
100
100
50
100
100
100
50
I
T
A max
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
V
T
@I
T
=2.2 Amps
V max
4
4
4
4
4
4
4
4
Capacitance*
pF
Min
30
30
30
20
30
30
30
20
Max
200
200
200
200
200
200
200
200
I-V
REF
I-V
REF
I-V
REF
REF
I-V
REF
I-V
REF
I-V
REF
REF
Notes:
- Absolute maximum ratings measured at T
A
= 25ºC (unless otherwise noted).
- Devices are uni-directional
- All electrical characteristics shown are defined from Tip (pin 1) to Ground (pin 2), and Ring
(pin 1) to Ground (pin 2)
© 2011 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com for current information.
114
- V
REF
Max Value for the negative Battrax is -200 V.
- V
REF
Max Value for the positive Battrax is 110 V.
* Off-state capacitance (C
O
) is measured across pins 1 & 2 at 1 MHz with a 2V bias.
Revised: February 22, 2011
SIDACtor
®
Protection Thyristors
SLIC Protection
Surge Ratings
I
PP
Series
0.2x310
1
0.5x700
2
A min
20
50
2x10
1
2x10
2
A min
150
500
8x20
1
1.2x50
2
A min
150
400
10x160
1
10x160
2
A min
90
200
10x560
1
10x560
2
A min
50
150
5x320
1
9x720
2
A min
75
200
10x360
1
10x360
2
A min
75
175
10x1000
1
10x1000
2
A min
45
100
5x310
1
10x700
2
A min
75
200
I
TSM
50/60 Hz
A min
20
50
di/dt
A/μs max
500
500
1: Current waveform in μs
2: Voltage waveform in μs
A
C
Notes:
1 Current waveform in μs
2 Voltage waveform in μs
- Peak pulse current rating (I
PP
) is repetitive and guaranteed for the life of the product.
- I
PP
rating assumes V
REF
PP
- The device must initially be in thermal equilibrium with -40°C < T
J
<
Thermal Considerations
Package
Modified DO-214AA
PIN 3
(V
REF
)
Symbol
T
J
T
S
Parameter
Operating Junction Temperature Range
Storage Temperature Range
Thermal Resistance: Junction to Ambient
Value
Unit
°C
°C
PIN 1
(Line)
PIN 2
(Ground)
R
0JA
85
°C/W
V-I Characteristics - Negative Battrax
+I
V-I Characteristics - Positive Battrax
+I
I
T
I
GT
I
H
V
S
V
DRM
-V
V
T
+V
I
DRM
-V
V
T
V
DRM
V
S
+V
I
DRM
I
H
I
GT
I
T
-I
-I
Normalized V
S
Change vs. Junction Temperature
Normalized DC Holding Current vs. Case Temperature
2.0
14
Percent of V
S
Change – %
10
I
H
(T
C
= 25ºC)
12
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
-40
-20
0
20
40
60
80
100 120 140 160
6
4
2
0
-4
-6
-8
-40 -20
0
I
H
8
25 °C
25°C
20 40 60 80 100 120 140 160
Junction Temperature (T
J
) – °C
© 2011 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com for current information.
115
Revised: February 22, 2011
Ratio of
Case Temperature (T
C
) - ºC
SIDACtor
®
Protection Thyristors
SLIC Protection
t
r
x t
d
Pulse Waveform
t
r
= rise time to peak value
t
d
= decay time to half value
Environmental Specifications
High Temp Voltage
Blocking
80% Rated V
REF
Max. (V
DC
Peak
1040) JEDEC, JESD22-A-101
cycles. MIL-STD-750 (Method 1051) EIA/JEDEC,
JESD22-A104
52 V
DC
JEDEC, JESD22-A-101
JEDEC, JESD22-A-101
-65°C, 1008 hrs.
10 cycles. MIL
-STD-750 (Method 1056) JEDEC,
JESD22-A-106
JEDEC, JESD22-A-102
I
PP
– Peak Pulse Current – %I
PP
100
Peak
Value
Waveform = t
r
x t
d
Temp Cycling
Biased Temp &
Humidity
High Temp Storage
Low Temp Storage
50
Half Value
0
0
t
r
t
d
t – Time (μs)
Thermal Shock
Autoclave (Pressure
Cooker Test)
Resistance to Solder
Heat
Moisture Sensitivity
Level
Physical Specifications
Lead Material
Terminal Finish
Body Material
Copper Alloy
100% Matte-Tin Plated
UL recognized epoxy meeting flammability
classification 94V-0
Soldering Parameters
Reflow Condition
- Temperature Min (T
s(min)
)
Pb-Free assembly
(see Fig. 1)
Figure 1
Pre Heat
- Temperature Max (T
s(max)
)
- Time (Min to Max) (t
s
)
T
P
Ramp-up
t
P
Critical Zone
T
L
to T
P
60-180 secs.
Temperature
Average ramp up rate (Liquidus Temp (T
L
)
to peak)
T
S(max)
to T
L
- Ramp-up Rate
Reflow
- Temperature (T
L
) (Liquidus)
- Temperature (t
L
)
T
L
T
S(max)
Preheat
3°C/sec. Max.
3°C/sec. Max.
60-150 secs.
t
L
Ramp-down
T
S(min)
t
S
Peak Temp (T
P
)
Time within 5°C of actual Peak Temp (t
p
)
Ramp-down Rate
Time 25°C to Peak Temp (T
P
)
Do not exceed
30 secs. Max.
6°C/sec. Max.
8 min. Max.
25
time to peak temperature
(t 25ºC to peak)
Time
Part Numbering
Bx xx 0 C x L RP
TYPE
B1: Negative Battrax SIDACtor
B2: Positive Battrax SIDACtor
Part Marking
REEL PACK
RoHS COMPLIANT
I
PP
RATING
PACKAGE TYPE
XXXX
XXXXX
Part Number Code
(Refer to Electrical Characteristics
Table)
Date Code
HOLDING CURRENT
05:
5
mA
16: 160 mA
10: 100 mA 20: 200 mA
CONSTRUCTION VARIABLE
© 2011 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com for current information.
116
Revised: February 22, 2011
SIDACtor
®
Protection Thyristors
SLIC Protection

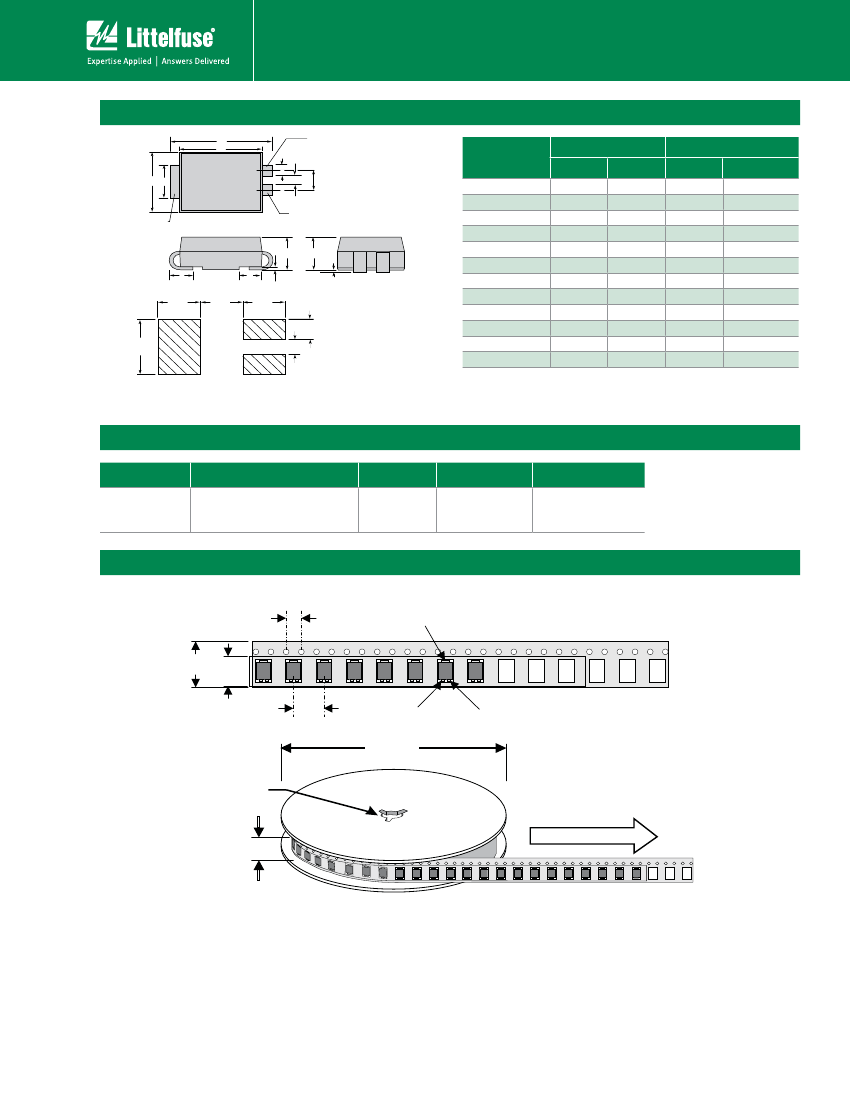

Dimensions — Modified DO-214AA
B
D
M
N
PIN 3
P
Dimensions
A
B
C
D
E
F
G
H
K
M
N
P
Inches
Min
0.130
0.201
0.077
0.159
0.030
0.075
0.002
0.077
0.006
0.022
0.027
0.052
Max
0.156
0.220
0.087
0.181
0.063
0.096
0.008
0.104
0.016
0.028
0.033
0.058
Millimeters
Min
3.30
5.10
1.95
4.05
0.75
1.90
0.05
1.95
0.15
0.56
0.69
1.32
Max
3.95
5.60
2.20
4.60
1.60
2.45
0.20
2.65
0.41
0.71
0.84
1.47
A C
PIN 1
PIN 2
H
E
0.079
(2.0)
0.079
(2.0)
J
0.079
(2.0)
0.040
(1.0)
0.110
(2.8)
0.030
(0.76)
F
K
G
Dimensions are in inches
(and millimeters).
Pad Outline
(MM)
Packing Options
Package Type
C
Description
Modified DO-214AA 3-leaded
Tape and Reel Pack
Quantity
2500
Added Suffix
RP
Industry Standard
EIA-481-D
Tape and Reel Specification — Modified DO-214AA
0.157
(4.0)
0.472
(12.0)
Pin 2
0.360
(9.2)
0.315
(8.0)
Pin 1
12.99
(330.0)
Pin 3
Dimensions are in inches
(and millimeters).
0.512 (13.0)
Arbor Hole Dia.
Dimensions are in inches
(and millimeters).
0.49
(12.4)
Direction of Feed
© 2011 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com for current information.
117
Revised: February 22, 2011
