TMS2.52X18V datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> TMS2.52X18V

TMS2.52X18V: DescriptionPower/Mains Transformer, POWER TRANSFORMER, 2.5 VA; CategoryPower management transformer; File Size102KB，2 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

TMS2.52X18V Overview

Power/Mains Transformer, POWER TRANSFORMER, 2.5 VA

TMS2.52X18V Parametric

Parameter Name	Attribute value
Objectid	1512354439
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	6.85
Certification	UL
Center click function 1	NO
Center click function 2	NO
high	29.5 mm
Insulation voltage	400 V
length	34.5 mm
Manufacturer's serial number	TMS
Installation features	THROUGH HOLE MOUNTED
Number of secondary windings	2
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Output current 1	0.069 A
Output current 2	0.069 A
Output voltage 1	18 V
Output voltage 2	18 V
method of packing	BOX
physical size	34.5mm X 32mm X 29.5mm
main rating	SINGLE 230V
surface mount	NO
Transformer type	POWER TRANSFORMER
VA rating	2.5 VA
width	32 mm

Preview

Download Datasheet

View All

TMS

Vishay Aztronic

Mains Transformers

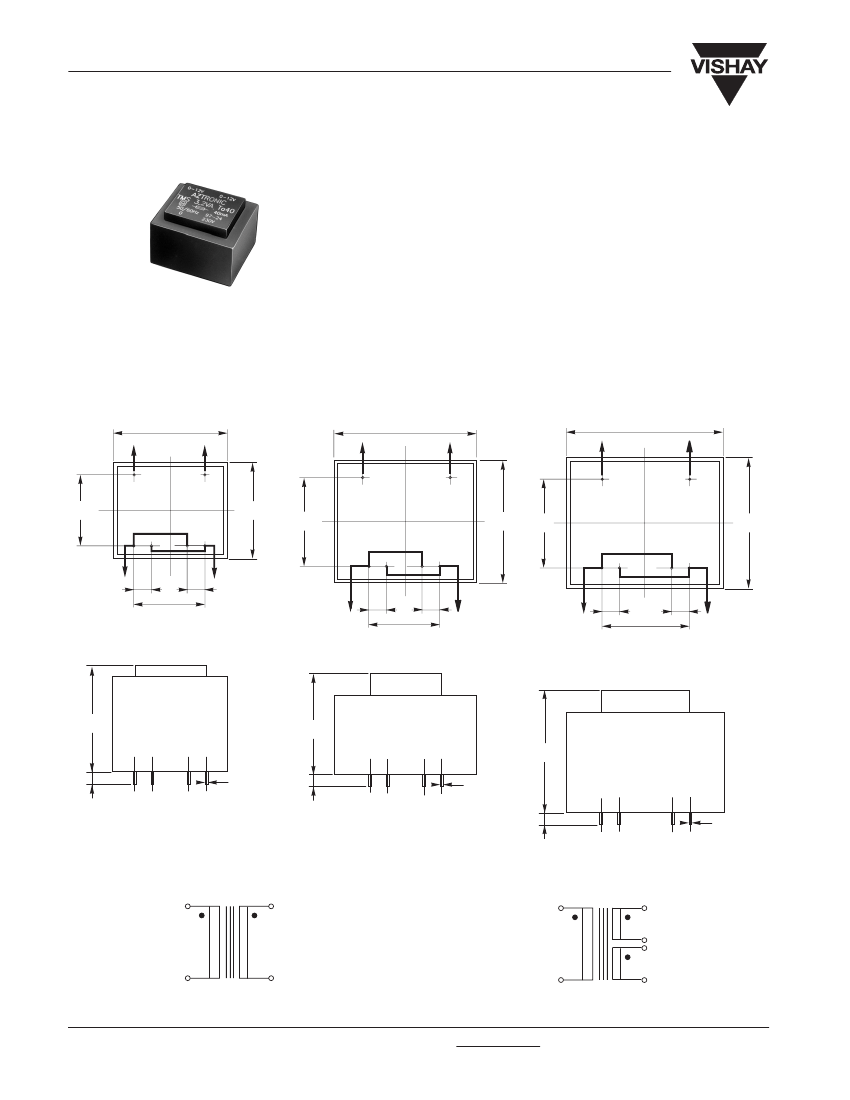

FEATURES

• Potted in a case to be mounted on a PCB

• Potting gives a high isolation and good aging

• Pins are on a standard 5mm pitch

DIMENSIONS

in millimeters

TMS 0.5 / 1 / 1.2 / 1.8 / 2.5

TMS 3.2

40.2

TMS 5

44.1

34.5

36.9

28.1

32.5

3.5

6 pins

ø 0.8

3.5

6 pins

Ø 0.8

3.5

6 pins

Ø 0.8

ELECTRICAL DIAGRAMS

1 SECONDARY

2 SECONDARYS

7 secondary

primary

secondary

primary

www.vishay.com

For technical questions, contact sfer@vishay.com

Document Number: 59049

Revision 16-Jul-02

TMS2.52X18V Related Products

	TMS2.52X18V	TMS2.52X12V	TMS2.52X15V	TMS2.52X24V	TMS2.52X6V	TMS2.52X9V	TMS2.51X15V
Description	Power/Mains Transformer, POWER TRANSFORMER, 2.5 VA	Power/Mains Transformer, POWER TRANSFORMER, 2.5 VA	Power/Mains Transformer, POWER TRANSFORMER, 2.5 VA	Power/Mains Transformer, POWER TRANSFORMER, 2.5 VA	Power/Mains Transformer, POWER TRANSFORMER, 2.5 VA	Power/Mains Transformer, POWER TRANSFORMER, 2.5 VA	Power/Mains Transformer, POWER TRANSFORMER, 2.5 VA
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Certification	UL	UL	UL	UL	UL	UL	UL
Center click function 1	NO	NO	NO	NO	NO	NO	NO
Center click function 2	NO	NO	NO	NO	NO	NO	NO
high	29.5 mm	29.5 mm	29.5 mm	29.5 mm	29.5 mm	29.5 mm	29.5 mm
Insulation voltage	400 V	400 V	400 V	400 V	400 V	400 V	400 V
length	34.5 mm	34.5 mm	34.5 mm	34.5 mm	34.5 mm	34.5 mm	34.5 mm
Manufacturer's serial number	TMS	TMS	TMS	TMS	TMS	TMS	TMS
Installation features	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED
Number of secondary windings	2	2	2	2	2	2	1
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Output current 1	0.069 A	0.104 A	0.083 A	0.052 A	0.208 A	0.139 A	0.167 A
Output voltage 1	18 V	12 V	15 V	24 V	6 V	9 V	15 V
method of packing	BOX	BOX	BOX	BOX	BOX	BOX	BOX
physical size	34.5mm X 32mm X 29.5mm	34.5mm X 32mm X 29.5mm	34.5mm X 32mm X 29.5mm	34.5mm X 32mm X 29.5mm	34.5mm X 32mm X 29.5mm	34.5mm X 32mm X 29.5mm	34.5mm X 32mm X 29.5mm
main rating	SINGLE 230V	SINGLE 230V	SINGLE 230V	SINGLE 230V	SINGLE 230V	SINGLE 230V	SINGLE 230V
surface mount	NO	NO	NO	NO	NO	NO	NO
Transformer type	POWER TRANSFORMER	POWER TRANSFORMER	POWER TRANSFORMER	POWER TRANSFORMER	POWER TRANSFORMER	POWER TRANSFORMER	POWER TRANSFORMER
VA rating	2.5 VA	2.5 VA	2.5 VA	2.5 VA	2.5 VA	2.5 VA	2.5 VA
width	32 mm	32 mm	32 mm	32 mm	32 mm	32 mm	32 mm
Objectid	1512354439	1512354437	1512354438	1512354440	1512354441	1512354442	-
YTEOL	6.85	6.85	6.85	6.85	6.85	6.85	-
Output current 2	0.069 A	0.104 A	0.083 A	0.052 A	0.208 A	0.139 A	-
Output voltage 2	18 V	12 V	15 V	24 V	6 V	9 V	-
