Series B
Toggles
Process Sealed Subminiature Antistatic Toggles
A
General
Specifications
Electrical Capacity (Resistive Load)
Logic Level:
0.4VA maximum @ 28V AC/DC maximum
(Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V)
Note: Find additional explanation of operating range in Supplement section.
Pushbuttons
Rockers
Other Ratings
Programmable Illuminated PB
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Mechanical Life:
Electrical Life:
Nominal Operating Force:
Keylocks
Contact Timing:
Angle of Throw:
50 milliohms maximum
500 megohms minimum @ 500V DC
500V AC minimum for 1 minute minimum
100,000 operations minimum for On-None-On & On-Off-On
50,000 operations minimum for other circuits
50,000 operations minimum for locking lever models
50,000 operations minimum
Toggles A, A1, E & K with Long Paddle: 1.47N (momentary); 1.18N (maintained)
Toggles J & H & K with Short Paddle: 2.72N (momentary); 1.84N (maintained)
Toggle L: 0.59N
Nonshorting (break-before-make)
26°
Materials & Finishes
Rotaries
Toggle:
Bushing:
Gasket:
Case Housing:
Support Bracket:
Movable Contact:
Stationary Contacts:
Terminals:
Nickel plated brass
Carbon blended polyamide; nickel plated zinc alloy for locking levers & threaded bushing
Nitrile butadiene rubber
Glass fiber reinforced polyamide
Tin plated phosphor bronze
Phosphor bronze with gold plating
Copper alloy with gold plating
Copper alloy with gold plating
Tactiles
Slides
Environmental Data
Operating Temperature Range:
Humidity:
Vibration:
Shock:
–30°C through +85°C (–22°F through +185°F)
90 ~ 95% humidity for 96 hours @ 40°C (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning
in 1 minute; 3 right angled directions for 2 hours
50G (490m/s
2
) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)
Tilt
Touch
Installation
Mounting Torque:
.30 ~ .45Nm (2.65 ~ 3.98 lb
•
in) for A1 actuator with threaded bushing only
PCB Processing
Indicators
Soldering:
Cleaning:
Wave Soldering Recommended: See Profile A in Supplement section.
Manual Soldering: See Profile A in Supplement section.
Automated cleaning. See Cleaning specifications in Supplement section.
Accessories
Standards & Certifications
Flammability Standards:
Supplement
UL94V-0 available
The B Series toggles have not been tested for UL recognition or CSA certification.
These switches are designed for use in a low-voltage, low-current, logic-level circuit.
When used as intended in a logic-level circuit, the results do not produce hazardous energy.
A12
www.nkk.com
Process Sealed Subminiature Antistatic Toggles
Series B
A
Toggles
Supplement
Accessories
Indicators
Touch
Tilt
Tactiles
Slides
Rotaries
Keylocks
Programmable Illuminated PB
Pushbuttons
Rockers

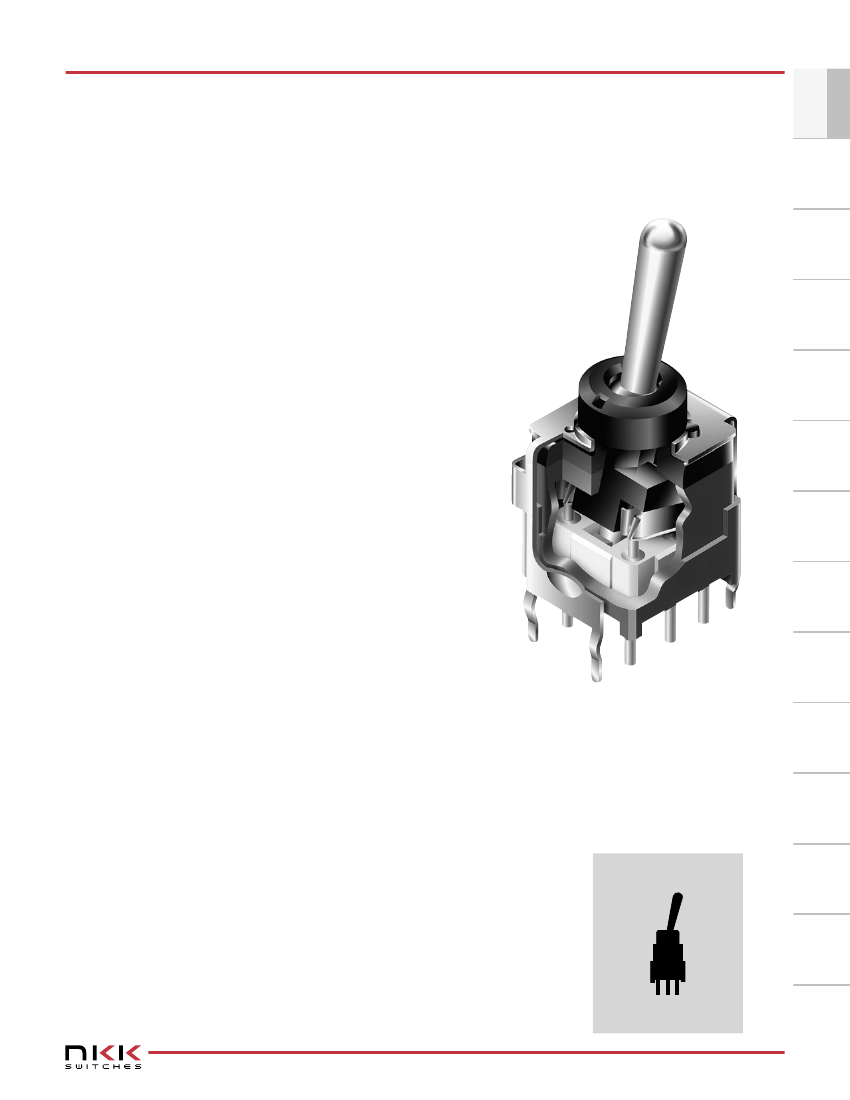

Distinctive
Characteristics
Subminiature size saves space on PC boards.
Specifically developed for logic-level applications.
Antistatic superstructure, consisting of the carbon impregnated
bushing and the support bracket, prevents static discharge
to the contacts. Static electricity from an operator’s touch
travels from actuator through the bushing and bracket to
the PC board.
Locking lever mechanism offered as a toggle option.
Optional threaded, 6mm diameter bushing for
panel seal mounting meets IP65 of IEC60529
specifications (similar to NEMA 4 and 13).
Totally sealed body construction prevents
contact contamination and allows time-
and money-saving soldering and cleaning.
Epoxy sealed terminals lock out flux and
other contaminants.
Award-winning STC contact mechanism with
benefits unavailable in conventional mechanisms:
smoother, positive detent actuation, increased contact
stability and unparalleled logic-level reliability. (Additional
STC details in Terms & Acronyms; see Supplement section.)
.100” x .100” (2.54mm x 2.54mm) terminal spacing
conforms to standard PC board grid spacing.
Actual Size
www.nkk.com
A13
Series B
Toggles
Process Sealed Subminiature Antistatic Toggles
TYPICAL SWITCH ORDERING EXAMPLE
A
Pushbuttons
Rockers
B
Poles
1
2
SPDT
DPDT
1
2
Toggles
A
A1
J
E
H
L
.394” (10.0mm) Bat
A
B
Optional Caps
G
J
.394” (10.0mm) Bat Lever Cap
.248” (6.3mm) Bat Lever Cap
Programmable Illuminated PB
.315” (8.0mm) Bat with
Panel Seal Threaded Bushing
(Straight PC only)
.248” (6.3mm) Bat
.394” (10.0mm) Flatted
.248” (6.3mm) Flatted
Locking Lever
(with Circuits 2 & 3 only)
Keylocks
Circuits
2
3
5
*R
8
9
*S
ON
ON
ON
(ON)
(ON)
ON
(ON)
NONE
OFF
NONE
NONE
OFF
OFF
OFF
ON
ON
(ON)
ON
(ON)
(ON)
ON
P
*B
*H
*V
PC Terminals
Straight
Straight with Bracket
Right Angle with Bracket
Vertical with Bracket
Cap
Colors
A
B
C
---
---
---
---
Black
White
Red
Yellow
Green
Blue
Gray
Paddle
Colors
A
B
C
E
F
G
H
Rotaries
Slides
*
Bracketed models are ESD protected
Tactiles
( ) = Momentary
*
Reverse circuits R & S
available with right angle
& vertical only
Tilt
Touch
DESCRIPTION FOR TYPICAL ORDERING EXAMPLE
B12AB
.394” (10.0mm)
Bat Toggle
Accessories
Indicators
Straight PC Terminals
with Bracket
SPDT
ON-NONE-ON Circuit
Supplement
A14
www.nkk.com
Process Sealed Subminiature Antistatic Toggles

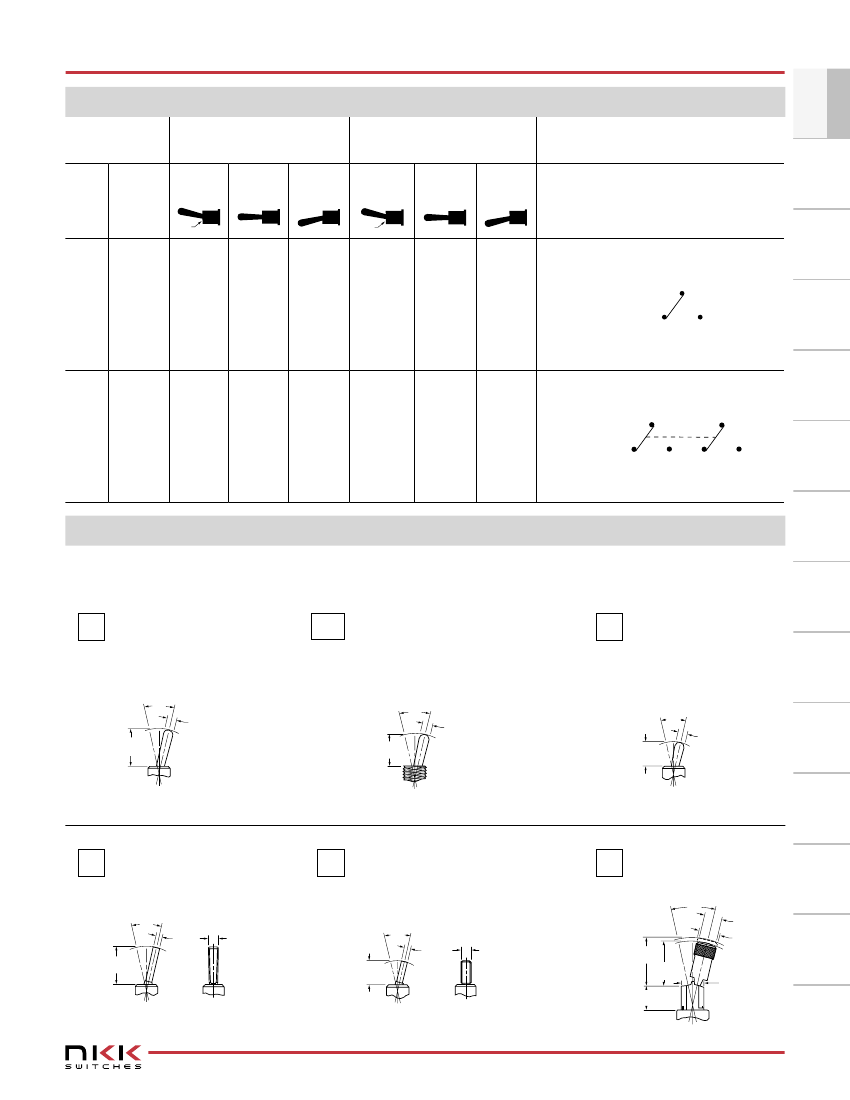

POLES & CIRCUITS
Toggle Position
( ) = Momentary
Up
Pole
Model
Slot
Slot
Series B
A
Throw & Schematics
Note:
Terminal numbers are
not actually on the switch.
Rockers
Toggles
Supplement
Accessories
Indicators
(4.5) Dia
.177
(5.1) Dia
.201
(11.5)
.453
(5.8)
.228
Connected Terminals
Up
Center
Down
Center
Down
2 (COM)
SP
2-3
OPEN
2-1
SPDT
3
1
3
1
6
4
TOGGLES
Standard Material & Finish:
Brass with Bright Nickel
.394” (10.0mm)
Bat
.315” (8.0mm) Bat with
Panel Seal Threaded Bushing
.248” (6.3mm)
Bat
A
A1
J
26°
(2.6) Dia
.102
(10.0)
.394
(8.0)
.315
26°
(2.6) Dia
.102
(6.3)
.248
26°
E
.394” (10.0mm)
Flatted
H
.248” (6.3mm) Flatted
L
Locking Lever
26°
26°
(1.6)
.063
(10.0)
.394
(2.7)
.106
(6.3)
.248
26°
(1.6)
.063
(2.6)
.102
(12.5)
.492
(5.9)
.232
www.nkk.com
A15
Touch
Tilt
(2.6) Dia
.102
Tactiles
Slides
Rotaries
Keylocks
DP
B22
B23
B25
B2R
B28
B29
B2S
ON
ON
ON
(ON)
(ON)
ON
(ON)
NONE
OFF
NONE
NONE
OFF
OFF
OFF
ON
ON
(ON)
ON
(ON)
(ON)
ON
2-3 5-6
OPEN
2-1 5-4
DPDT
2
(COM)
5
Programmable Illuminated PB
B12
B13
B15
B1R
B18
B19
B1S
ON
ON
ON
(ON)
(ON)
ON
(ON)
NONE
OFF
NONE
NONE
OFF
OFF
OFF
ON
ON
(ON)
ON
(ON)
(ON)
ON
Pushbuttons
Series B
Toggles
Process Sealed Subminiature Antistatic Toggles

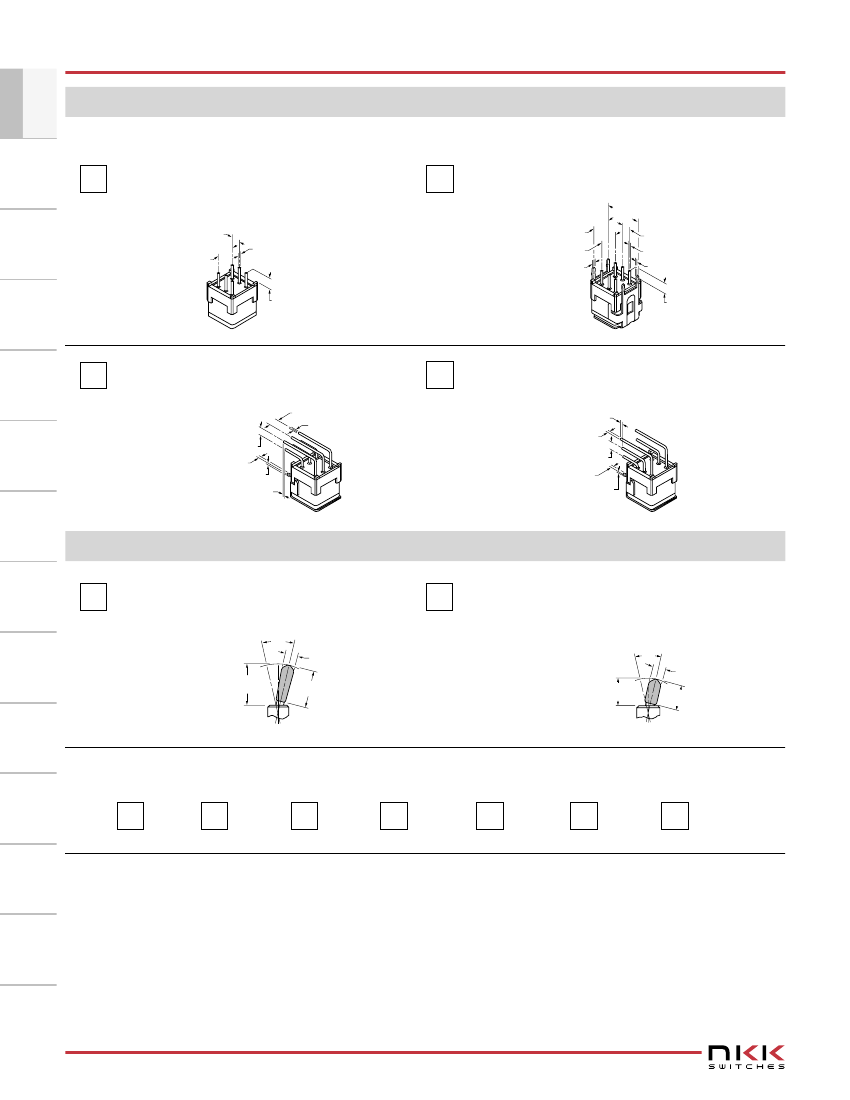

PC TERMINALS
A
P
Use of a support bracket is recommended to increase PCB mounting strength and stability.
Rockers
Straight
(2.54) Typ
.100
(5.08)
.200
B
Straight with Bracket
(10.16)
.400
(5.08)
.200
(5.08)
.200
(0.6) Typ
.024
(2.54) Typ
.100
(0.6) Dia Typ
.024
(0.4) Typ
.016
(3.1)
.122
Pushbuttons
(0.6) Dia Typ
.024
Programmable Illuminated PB
(3.1) Typ
.122
H
Right Angle with Bracket
(2.54) Typ
.100
(0.6) Dia Typ
.024
(2.54) Typ
.100
(0.6)
.024 (0.4)
.016
(0.5) Typ
.020
V
Vertical with Bracket
(0.5) Typ
.020
(0.6) Dia Typ
.024
(2.54) Typ
.100
(0.6)
.024
(0.4)
.016
Rotaries
Keylocks
OPTIONAL CAPS
G
AT4003
.394” (10.0mm) Bat Lever Cap
26°
J
AT4064
.248” (6.3mm) Bat Lever Cap
Slides
Tactiles
(3.0) Dia
.118
26°
Material: PVC
Colors Available:
A, B, C
(11.0)
.433
(10.0)
.394
Material: PVC
Colors Available:
A, B, C
(3.0) Dia
.118
(7.0)
.276
(6.3)
.248
Tilt
Color Codes:
Touch
A
Black
B
White
C
Red
E
Yellow
F
Green
G
Blue
H
Gray
Supplement
Accessories
Indicators
A16
www.nkk.com
