B0530W
0.5A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Please click here to visit our online spice models database.
Features
•
•
•
•
Low Forward Voltage Drop
Guard Ring Die Construction for Transient Protection
High Conductance
Lead, Halogen and Antimony Free, RoHS Compliant
"Green" Device (Notes 3 and 4)
Mechanical Data
•
•
•
•
•
•
•
•
Case: SOD-123
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe) Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Marking Information: See Page 3
Ordering Information: See Page 3
Weight: 0.01 grams (approximate)
Top View
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
@ T
L
= 100°C
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
Value
30
21
0.5
5.5
Unit
V
V
A
A
Thermal Characteristics
Characteristic
Power Dissipation (Note 1)
Typical Thermal Resistance Junction to Ambient (Note 1)
Operating and Storage Temperature Range
Symbol
P
D
R
θ
JA
T
J,
T
STG
Value
410
244
-65 to +125
Unit
mW
°C/W
°C
Electrical Characteristics
@T
A
= 25°C unless otherwise specified
Symbol
V
(BR)R
V
FM
I
RM
C
T
Value
30
0.375
0.430
20
130
170
Unit
V
V
μA
pF
Test Conditions
I
R
= 130μA
I
F
= 0.1A, T
J
= 25°C
I
F
= 0.5A, T
J
= 25°C
V
R
= 15V, T
J
= 25°C
V
R
= 30V, T
J
= 25°C
f = 1MHz, V
R
= 0V DC
Characteristic
Minimum Reverse Breakdown Voltage (Note 2)
Maximum Forward Voltage Drop
Maximum Leakage Current (Note 2)
Total Capacitance
Notes:
1.
2.
3.
4.
Device mounted on FR-4 PC board, 2"x2", 2 oz. Copper, single sided, Cathode pad dimensions 0.75"x1.0", Anode pad dimensions 0.25"x1.0".
Pulse Test: Pulse width = 300μs, Duty Cycle
≤
2%.
No purposefully added lead. Halogen and Antimony Free.
Product manufactured with Data Code V9 (week 33, 2008) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code V9 are built with Non-Green Molding Compound and may contain Halogens or Sb
2
O
3
Fire Retardants.
B0530W
Document number: DS30139 Rev. 9 - 2
1 of 3
www.diodes.com
June 2008
© Diodes Incorporated
B0530W
I
F
, INSTANTANEOUS FORWARD CURRENT (mA)
500
100,000
10,000
1,000
100
P
D
, POWER DISSIPATION (mW)
400
300
200
10
1
0.1
0.01
0
100
0
0
25
50
75
100
125
T
A
, AMBIENT TEMPERATURE (
°
C)

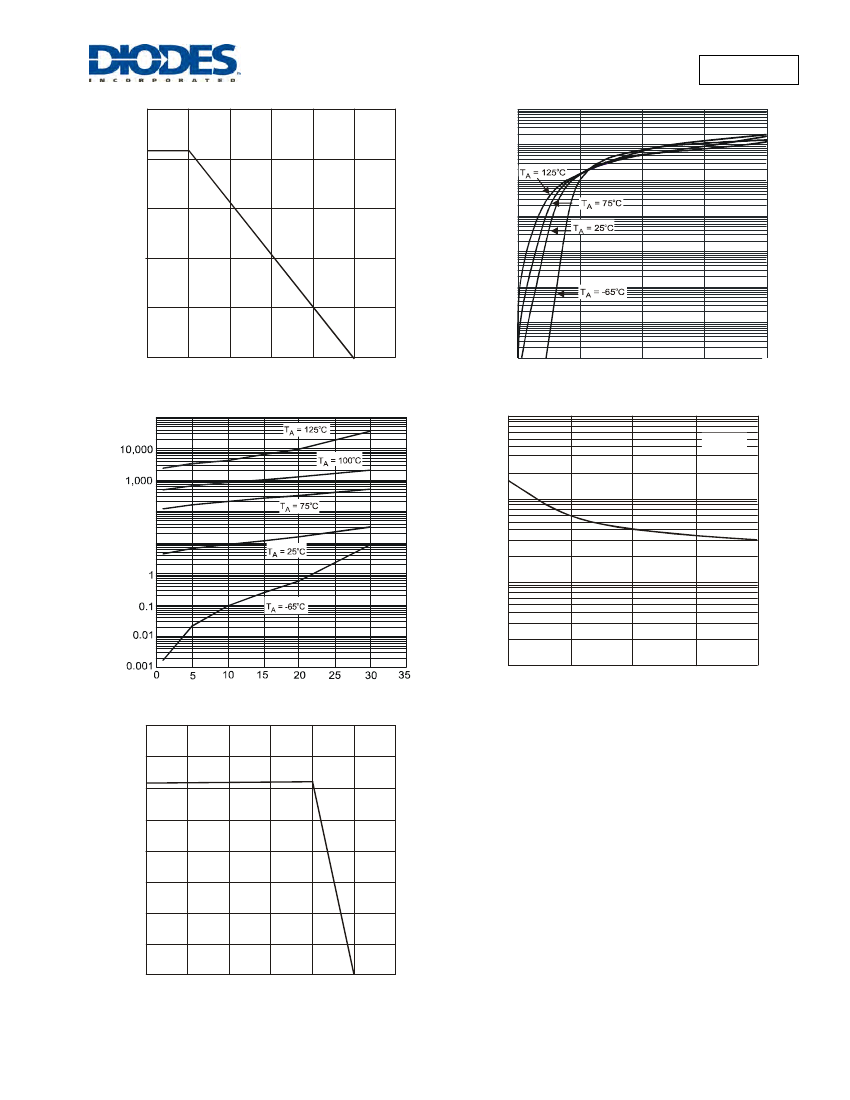

Fig. 1 Power Derating
150
2.5
0.5
1.5
1
2
3
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
I
R
, INSTANTANEOUS REVERSE CURRENT (µA)
100,000
1,000
f = 1MHz
C
T
, TOTAL CAPACITANCE (pF)
100
100
10
10
1.0
0
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 3 Typical Reverse Characteristics
1.0
5
10
15
20
V
R
, DC REVERSE VOLTAGE (V)
Fig. 4 Total Capacitance vs. Reverse Voltage
I
O
, AVERAGE RECTIFIED CURRENT (A)
0.75
0.50
0.25
0
0
75
125
50
100
T
L
, LEAD TEMPERATURE (
°
C)
Fig. 5 Forward Current Derating Curve
25
150
B0530W
Document number: DS30139 Rev. 9 - 2
2 of 3
www.diodes.com
June 2008
© Diodes Incorporated
B0530W
Ordering Information
Part Number
B0530W-7-F
Notes:
(Note 5)
Case
SOD-123
Packaging
3000/Tape & Reel
5. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
SE = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: N = 2002)
M = Month (ex: 9 = September)
SE
Date Code Key
Year
1998
Code
Month
Code
J
Jan
1
1999
K
Feb
2
2000
L
2001
M
Mar
3
2002
N
Apr
4
2003
P
May
5
YM
2004
R
Jun
6
2005
S
2006
T
Jul
7
2007
U
Aug
8
2008
V
Sep
9
2009
W
Oct
O
2010
X
2011
Y
Nov
N
2012
Z
Dec
D

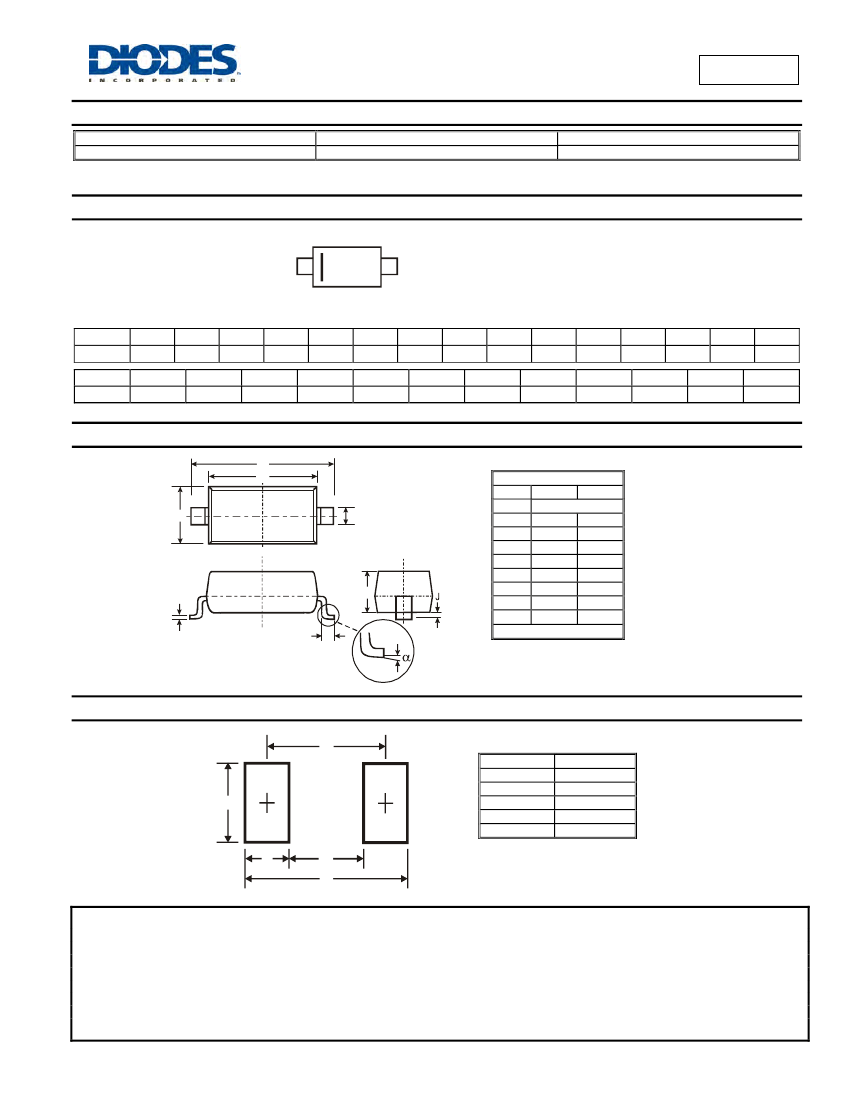

Package Outline Dimensions
C
H
B
A
M
L
K
SOD-123
Dim
Min
Max
A
0.55 Typ
B
1.40
1.70
C
3.55
3.85
H
2.55
2.85
J
0.00
0.10
K
1.00
1.35
L
0.25
0.40
M
0.10
0.15
0
8°
α
All Dimensions in mm
Suggested Pad Layout
C
X
Dimensions Value (in mm)
Z
4.9
G
2.5
X
0.7
Y
1.2
C
3.7
Y
G
Z
