PIC16F870T-/SO datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> PIC16F870T-/SO

PIC16F870T-/SO: DescriptionRISC MICROCONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size3MB，172 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com; Environmental Compliance

Download Datasheet Parametric View All

PIC16F870T-/SO Overview

RISC MICROCONTROLLER

PIC16F870T-/SO Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Microchip
Reach Compliance Code	compli
bit size	8
CPU series	PIC
JESD-30 code	R-PDSO-G28
JESD-609 code	e3
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP28,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	128
rom(word)	2048
ROM programmability	FLASH
speed	20 MHz
Maximum slew rate	15 mA
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER, RISC
Base Number Matches	1

Preview

Download Datasheet

View All

PIC16F870/871

28/40-Pin, 8-Bit CMOS FLASH Microcontrollers

Devices Included in this Data Sheet:

• PIC16F870

• PIC16F871

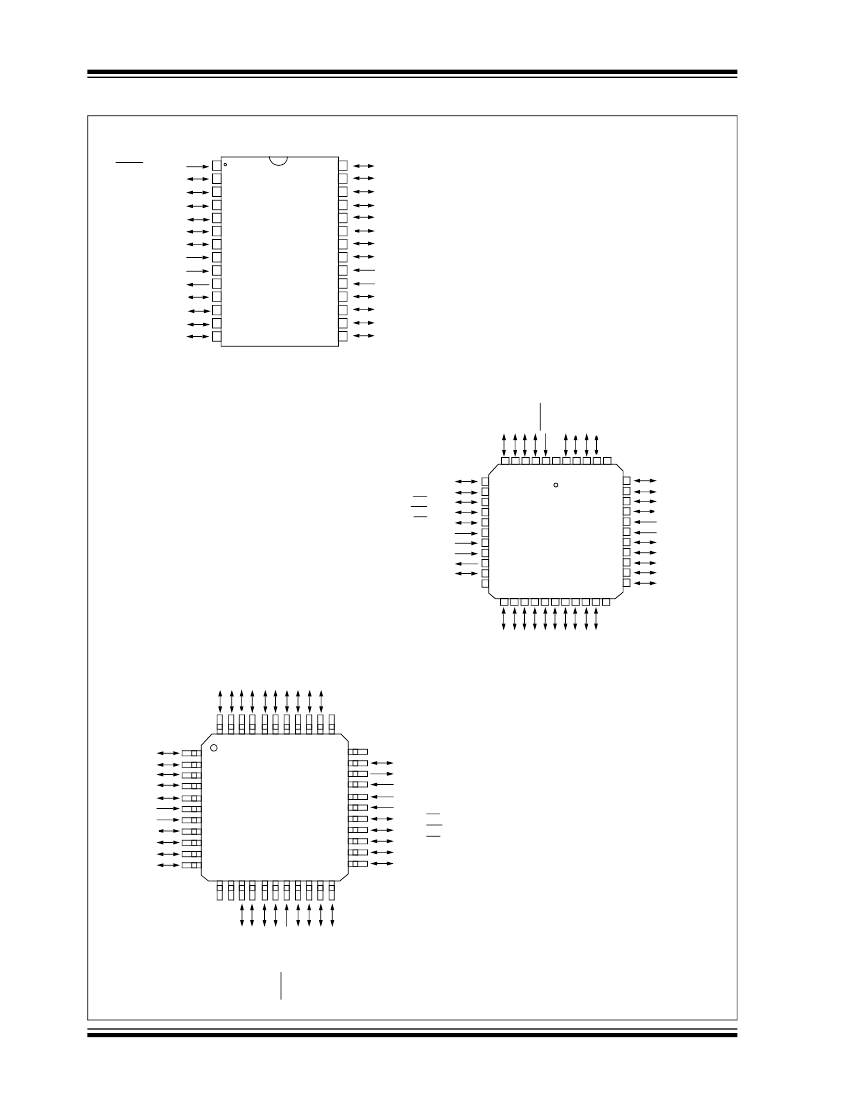

Pin Diagram

PDIP

MCLR/V

/THV

RA0/AN0

RA1/AN1

RA2/AN2/V

REF

RA3/AN3/V

REF

RA4/T0CKI

RA5/AN4

RE0/RD/AN5

RE1/WR/AN6

RE2/CS/AN7

OSC1/CLKI

OSC2/CLKO

RC0/T1OSO/T1CKI

RC1/T1OSI

RC2/CCP1

RC3

RD0/PSP0

RD1/PSP1

RB7/PGD

RB6/PGC

RB5

RB4

RB3/PGM

RB2

RB1

RB0/INT

RD7/PSP7

RD6/PSP6

RD5/PSP5

RD4/PSP4

RC7/RX/DT

RC6/TX/CK

RC5

RC4

RD3/PSP3

RD2/PSP2

Microcontroller Core Features:

• High performance RISC CPU

• Only 35 single word instructions to learn

• All single cycle instructions except for program

branches which are two-cycle

• Operating speed: DC - 20 MHz clock input

DC - 200 ns instruction cycle

• 2K x 14 words of FLASH Program Memory

128 x 8 bytes of Data Memory (RAM)

64 x 8 bytes of EEPROM Data Memory

• Pinout compatible to the PIC16CXXX 28 and

40-pin devices

• Interrupt capability (up to 11 sources)

• Eight level deep hardware stack

• Direct, Indirect and Relative Addressing modes

• Power-on Reset (POR)

• Power-up Timer (PWRT) and

Oscillator Start-up Timer (OST)

• Watchdog Timer (WDT) with its own on-chip RC

oscillator for reliable operation

• Programmable code protection

• Power saving SLEEP mode

• Selectable oscillator options

• Low power, high speed CMOS FLASH/EEPROM

technology

• Fully static design

• In-Circuit Serial Programming(ICSP)via

two pins

• Single 5V In-Circuit Serial Programming capability

• In-Circuit Debugging via two pins

• Processor read/write access to program memory

• Wide operating voltage range: 2.0V to 5.5V

• High Sink/Source Current: 25 mA

• Commercial and Industrial temperature ranges

• Low power consumption:

- < 1.6 mA typical @ 5V, 4 MHz

- 20

A

typical @ 3V, 32 kHz

- < 1

A

typical standby current

Peripheral Features:

• Timer0: 8-bit timer/counter with 8-bit prescaler

• Timer1: 16-bit timer/counter with prescaler,

can be incremented during SLEEP via external

crystal/clock

• Timer2: 8-bit timer/counter with 8-bit period

• One Capture, Compare, PWM module

- Capture is 16-bit, max. resolution is 12.5 ns

- Compare is 16-bit, max. resolution is 200 ns

- PWM max. resolution is 10-bit

• 10-bit multi-channel Analog-to-Digital converter

• Universal Synchronous Asynchronous Receiver

Transmitter (USART/SCI) with 9-bit address

detection

• Parallel Slave Port (PSP) 8-bits wide, with

external RD, WR and CS controls (40/44-pin only)

• Brown-out detection circuitry for

Brown-out Reset (BOR)



2000-2013 Microchip Technology Inc.
