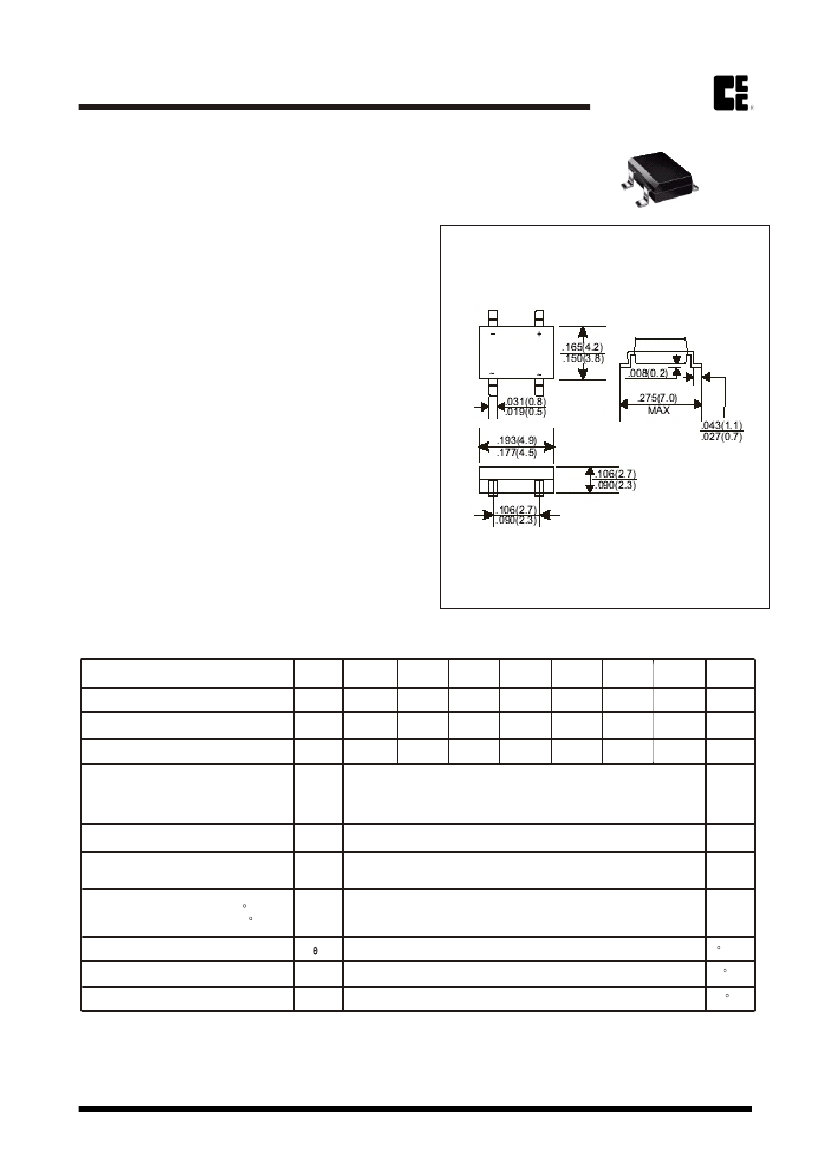

SMD Genenal Purpose Bridge Rectifier
COMCHIP
www.comchip.com.tw
B05S Thru B10S
Glass Passivated Type
Reverse Voltage: 50 - 1000 Volts
Forward Current: 0.5 Amp
Features
Ideal for surface mount applications
Easy pick and place
Plastic package has Underwriters Lab.
flammability classification 94V-0
Built-in strain relief
Glas passivated junction
TO-269AA
Mechanical data
Case: JEDEC DO-269AA molded plastic
Terminals: solderable per MIL-STD-750,
method 2026
Polarity: Marked on body
Mounting position: Any
Approx. Weight:0.22 gram
Dimension in inches and (millimeters)
Maximum Ratings and Electrical Characterics
Parameter
Max. Repetitive Peak Reverse Voltage
Max. DC Blocking Voltage
Max. RMS Voltage
Peak Surge Forward Current
8.3ms single half sine-wave
superimposed on rate load
( JEDEC method )
Max. Average Forward Current
Max. Instantaneous Forward Current
at 0.5 A
Max. DC Reverse Current at Rated DC
Blocking Voltage
Ta=25
C
Ta=125
C
Max. Thermal Resistance (Note 1)
Operating Junction Temperature
Storage Temperature
Symbol
V
RRM
V
DC
V
RMS
I
FSM
B05S
50
50
35
B1S
100
100
70
B2S
200
200
140
B4S
400
400
280
B6S
600
600
420
B8S
800
800
560
B10S
1000
1000
700
Unit
V
V
V
A
30
Io
V
F
I
R
R
0.5
1.0
A
V
uA
5
500
85
-55 to +150
-55 to +150
JA
C/W
C
C
Tj
T
STG
Note 1: Thermal resistance from junction to ambient.
MDS0212005A
Page 1
SMD Genenal Purpose Bridge Rectifier
Rating and Characteristic Curves (B05S thru B10S)
Fig. 1 - Reverse Characteristics
100
COMCHIP
www.comchip.com.tw
Fig.2 - Forward Characteristics
100
Reverse Current ( uA )
Forward Current ( A )
10
10
1.0
1.0
0.1
0.1
Tj=25 C
0.01
0.01
0
20
40
60
80
100
120
140
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
Percent of Rated Peak Reverse Voltage (%)
Forward Voltage (V)
Fig. 3 - Non Repetitive Forward
Surge Current
50
0.7
8.3mS Single Half Sine
Wave JEDEC methode
Fig. 4 - Current Derating Curve
Peak Surge Forward Current ( A )
40
Average Forward Current ( A )
0.6
0.5
0.4
0.3
0.2
0.1
0
Single Phase
Half wave 60Hz
Resistive or inductive Load
30
Tj=25 C
20
10
0
1
5
10
50
1 00
0
25
50
75
100 125
150
175
Number of Cycles at 60Hz
Ambient Temperature ( C)
MDS0212005A
Page 2
