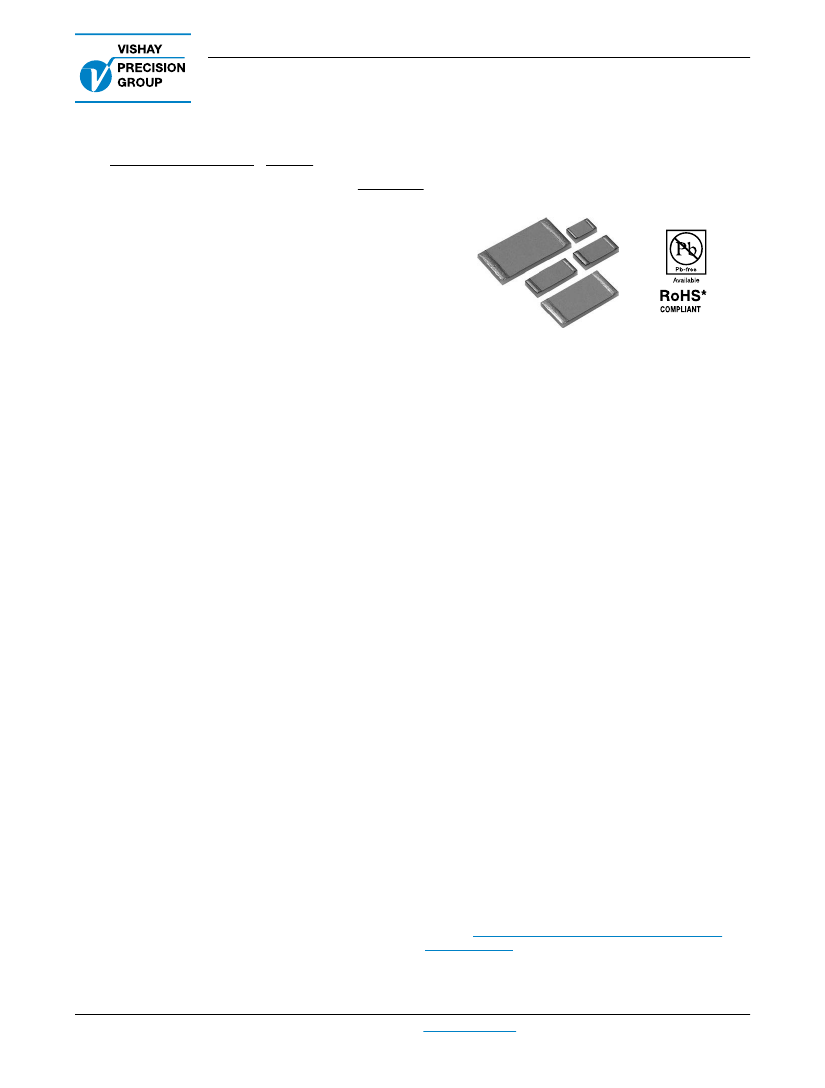

VFCP Series (0805, 1206, 1506, 2010, 2512) (Z-Foil)
Vishay Foil Resistors
UltraUltra High-Precision with ofFlip Chip Resistorng W TCR of gn
High-Pr sion Flip p stor TCR ±0.05
eci Z-Foil Chi Resi Z-Foil
ppm/°C, Space with ound
35%
Savi vs. rapar Desi
±0.05 ppm/°C, 35% Space Saving vs. Wraparound Design
and PCR of 5 ppm at Rated Power
FEATURES
• Temperature coefficient of resistance (TCR):
± 0.05 ppm/°C nominal (0°C to + 60°C)
± 0.2 ppm/°C nominal (–55°C to +125°C, +25°C ref.)
(see Table 1 and Figure 2)
• Tolerance: to ±0.01% (100 ppm)
• Power coefficient “∆R due to self heating” 5 ppm at
rated power
• Load-life stability (70°C for 2000 h): ±0.005% (50 ppm)
• Power rating to: 600 mW at +70°C
• Electrostatic discharge (ESD): at least to 25 kV
• Resistance range: 5 Ω to 125 kΩ (for lower and higher
values, please contact us)
• Foil resistors are not restricted to standard values;
specific “as required” values can be supplied at no
extra cost or delivery (e.g., 1K2345 vs. 1K)
• Non-inductive, non-capacitive design
• Thermal stabilization time: <1 s (within 10 ppm of
steady state value)
• Short time overload: ≤0.005% (50 ppm)
• Non hot spot design
• Rise time: 1 ns effectively no ringing
• Current noise: <0.010 μV
rms
/ V of applied voltage
(<–40 dB)
• Voltage coefficient: <0.1 ppm/V
• Non-inductive: <0.08 μH
• Terminal finishes available: lead (Pb)-free, tin/lead alloy
• Compliant to RoHS directive 2002/95/EC*
• Matched sets are available per request
• Prototype quantities available in just 5 working days or
sooner. For more information, please contact us.
in the most critical applications by eliminating the need for
corrective circuitry and reducing the large land patterns
needed for a wrap-around configuration. The device’s flip-
chip configuration saves up to 35% PCB space compared
with a surface-mount chip with wraparound terminations
while also providing better strain relief to eliminate
cracked substrates and board delamination.
In addition to its remarkably improved load-life stability,
the VFCP Series is noise-free and provides ESD
protection of 25 kV or more for increased reliability. The
device’s solid element alloy is matched to the substrate,
forming a single entity with balanced resistance versus
temperature characteristics for an unusually low and
predictable TCR over a wide temperature range from
–55°C to more than +125°C. The adhesive that holds the
foil to the flat substrate withstands high temperatures,
pulsing power, moisture incursions, shock and vibration,
and low-temperature exposure while still holding securely
to the foil element. Resistance patterns are photo-etched
into the element to permit the trimming of resistance
values to very tight tolerances as low as 0.01%.
The Flip Chips devices are qualified as anti-sulfurated
resistors for use in environments with high levels of
contamination. Such environments include alternative
energy applications, industrial control systems,
sensors, RTDs, electric instrumentation, weather and
communication base stations, and any electronic
appliance used in high concentrations of sulfur. The
combination of flip-chip terminations and Z-Foil
construction and materials results in the most stable
resistors available, requiring the lowest error allowance.
This means that more error allowance can be transferred
to active devices—resulting in lower costs—or applied
to the foil resistors themselves, allowing for looser initial
tolerances than would be required for other resistor
technologies.
INTRODUCTION
Based on VFR’s next-generation Bulk Metal
®
Z-Foil
technology, the VFCP Series (foil resistor flip-chip)
excels over all previous stability standards for precision
resistors with an order of magnitude improvement in
high-temperature stability, load-life stability, and moisture
resistance. These new benchmark levels of performance
provide design engineers with the tools to build circuits
not previously achievable while reducing costs and space
RELATED VIDEO
Refer to
Bulk Metal® Foil Resistor TCR Performance
(Product Demo).
* Pb containing terminations are not RoHS compliant, exemptions may apply
Document No.: 63106
Revision: 04-Nov-2013
For questions, contact
foil@vishaypg.com
www.vishayfoilresistors.com
1
VFCP Series (0805, 1206, 1506, 2010, 2512) (Z-Foil)
Vishay Foil Resistors
Percent of Rated Power
TABLE 1—TOLERANCE AND TCR VS.
RESISTANCE VALUE
Resistance
Value
(Ω)
250 to 125k
100 to <250
50 to <100
25 to <50
10 to <25
5 to <10
FIGURE 1—POWER DERATING CURVE
100
75
50
25
0
–75
Tolerance
(%)
±0.01%
±0.02%
±0.05%
±0.1%
±0.25%
±0.5%
Nominal TCR and Max. Spread
(–55°C to +125°C, +25°C Ref.)
(ppm/°C)
±0.2 ±1.6
±0.2 ±1.6
±0.2 ±1.8
±0.2 ±2.8
±0.2 ±2.8
±0.2 ±7.8
–55°C
+70°C
–50
–25
0
+25
+50
+75
+100 +125 +150 +175
Ambient Temperature (°C)
FIGURE 2—NOMINAL
RESISTANCE/TEMPERATURE CURVE
+400
+500
FIGURE 3—TRIMMING TO VALUES
(conceptual illustration)
Interloop
Capacitance
Reduction
in Series
Mutual
Inductance
Reduction
due to Change
in Current
Direction
+300
∆R
(ppm)
R
+200
+100
–100
–200
–400
–300
–500
–55
Current Path
Before Trimming
Current Path After Trimming
0
0.05 ppm/°C
- 0.1 ppm/°C
- 0.16 ppm/°C
–25
0
+25
0.1 ppm/°C
0.14 ppm/°C
0.2 ppm/°C
+60
+75
+100
+125
Trimming Process
Removes this Material
from Shorting Strip Area
Changing Current Path
and Increasing
Resistance
Foil shown in black, etched spaces in white
Ambient Temperature (°C) and TCR Chord Slopes
for Different Temperature Ranges
Note
The TCR values for <100 Ω are influenced by the termination
composition and result in deviation from this curve.
Note
To acquire a precision resistance value, the Bulk Metal
®
Foil
chip is trimmed by selectively removing built-in “shorting bars.”
To increase the resistance in known increments, marked areas
are cut, producing progressively smaller increases in resistance.
This method reduces the effect of “hot spots” and improves the
long-term stability of the Vishay Foil resistors.
TABLE 2—MODEL SELECTION
Chip
Size
0805
1206
1506
2010
2512
Rated Power
Maximum
Resistance
at +70°C
Voltage Rating
Range
(mW)
(≤√P
×
R)
(Ω)
100 mW
250 mW
300 mW
400 mW
600 mW
28 V
79 V
95 V
167 V
220 V
5 to 8k
5 to 25k
5 to 30k
5 to 70k
5 to 125k
Max.
Weight
(mg)
5.2
10.3
12
25
35
TABLE 3—LOAD-LIFE STABILITY
(+70°C for 2000 h)
Chip Size
0805
1206
1506
2010
2512
MAXIMUM ∆R LIMITS
±0.005% at 50 mW
±0.01% at 100 mW
±0.005% at 150 mW
±0.01% at 250 mW
±0.005% at 150 mW
±0.01% at 300 mW
±0.005% at 200 mW
±0.01% at 400 mW
±0.005% at 500 mW
±0.01% at 600 mW
www.vishayfoilresistors.com
2
For questions, contact
foil@vishaypg.com
Document No.: 63106
Revision: 04-Nov-2013
VFCP Series (0805, 1206, 1506, 2010, 2512) (Z-Foil)
Vishay Foil Resistors
TABLE 4—PERFORMANCE SPECIFICATIONS
Test or Condition
Thermal Shock
Low Temperature Operation
Short Time Overload
High Temperature Exposure
Resistance to Soldering Heat
Moisture Resistance
Load Life Stability +70°C for
2000 hours at Rated Power
MIL-PRF-55342
Characteristic E ∆R Limits
±0.1%
±0.1%
±0.1%
±0.1%
±0.2%
±0.2%
±0.5%
Typical ∆R Limits
±0.005% (50 ppm)
±0.005% (50 ppm)
±0.005% (50 ppm)
±0.01% (100 ppm)
±0.005% (50 ppm)
±0.005% (50 ppm)
±0.005% (50 ppm)
Maximum ∆R Limits
(1)
± 0.01% (100 ppm)
± 0.01% (100 ppm)
± 0.01% (100 ppm)
±0.02% (200 ppm)
±0.015% (150 ppm)
±0.02% (200 ppm)
±0.01% (100 ppm)
Note
(1) As shown +0.01 ohms (Ω) to allow for measurement errors at low values.
TABLE 5—DIMENSIONS AND LAND PATTERN
in inches (millimeters)
BOTTOM VIEW (showing terminals for mounting)
D
Solder Terminals
LAND PATTERN
W
W1 (W - 0.003")
G
X
L1 (L - 0.005")
L
Z
Chip
Size
0805
1206
1506
2010
2512
L
±0.005 (0.13)
0.079 (2.01)
0.126 (3.20)
0.150 (3.81)
0.200 (5.08)
0.250 (6.35)
W
±0.005 (0.13)
0.049 (1.24)
0.062 (1.57)
0.062 (1.57)
0.100 (2.54)
0.126 (3.20)
Thickness
Maximum
0.025 (0.64)
0.025 (0.64)
0.025 (0.64)
0.025 (0.64)
0.025 (0.64)
D
±0.005 (0.13)
0.010 (0.25)
0.015 (0.38)
0.012 (0.30)
0.020 (0.51)
0.024 (0.61)
Z
0.078 (1.98)
0.125 (3.18)
0.150 (3.81)
0.199 (5.05)
0.250 (6.35)
G
0.053 (1.35)
0.090 (2.29)
0.120 (3.05)
0.153 (3.89)
0.196 (4.98)
X
0.049 (1.24)
0.062 (1.57)
0.062 (1.57)
0.100 (2.54)
0.126 (3.20)
Notes
Avoid the use of those cleaning agents that could attack epoxy resins, which form part of the resistor construction.
Vacuum pick-up is recommended for handling.
Soldering iron not recommended.
RELATED PRODUCT TRAINING MODULE
Refer to
Precision Resistors—There is more to resistor
precision than meets the eye.
the resistance value depending on the construction,
material, and size. Under these conditions Bulk Metal Foil
resistors behave more linearly than other resistor types.
RELATED VIDEO
Refer to
Bulk Metal® Foil Resistor Accelerated Life Test
(Product Demo).
FLOWER OF SULFUR
ASTM B 809, also known as flower of sulfur, is a test to
determine the porosity of metallic coating using humid
sulfur vapor. This vapor can penetrate conformal coatings
and cause damage to the device when it reacts with
lower layers of silver. Surface-mount Bulk Metal Foil chip
resistors avoid this problem with a special coating that
is proven to be reliable in extreme environments and
even against sulfur. The flower of sulfur test is especially
HARMONIC DISTORTION
Harmonic distortion is an important consideration in the
choice of precision resistors for sensitive applications. A
significant signal voltage across the resistor may change
Document No.: 63106
Revision: 04-Nov-2013
For questions, contact
foil@vishaypg.com
www.vishayfoilresistors.com
3
VFCP Series (0805, 1206, 1506, 2010, 2512) (Z-Foil)
Vishay Foil Resistors
relevant to designers of circuits used in alternative
energy and industrial applications, where environmental
pollution is a constant concern. Analog circuitry in
these applications almost always operates under severe
environmental, thermal, and mechanical conditions,
and must withstand frequent and extended service by
professionals and novices alike. The picture is further
complicated by tough regulatory restrictions and high
consumer expectations. VFR received a steady stream
of customer inquiries, which led to more focus on anti-
sulfurated resistor research and development. As a result
we have qualified our surface-mount foil chip resistors
as “antisulfurated resistors.” These resistors are capable
of exposure to sulfurous environments without damage.
Beyond alternative energy, applications include industrial
control systems, sensors, RTDs, electric instrumentation,
weather and communication base stations. These
resistors are also suited for electronic appliances used in
high concentrations of sulfur.
POWER COEFFICIENT OF RESISTANCE
(PCR)
The TCR of a resistor for a given temperature range is
established by measuring the resistance at two different
ambient temperatures: at room temperature and in a
cooling chamber or oven. The ratio of relative resistance
change and temperature difference gives the slope of
DR/R = f (T) curve. This slope is usually expressed in
parts per million per degree Centigrade (ppm/°C). In
these conditions, a uniform temperature is achieved
in the measured resistance. In practice, however, the
temperature rise of the resistor is also partially due to
self-heating as a result of the power it is dissipating. As
stipulated by the Joule effect, when current flows through
a resistance, there will be an associated generation of
of a heat flow and of a temperature gradient. Therefore,
the TCR alone does not provide the actual resistance
change for precision resistor. Hence, another metric is
introduced to incorporate this inherent characteristic—the
Power Coefficient of Resistance (PCR). PCR is expressed
in parts per million per Watt or in ppm at rated power. In
the case of Z-based Bulk Metal
®
Foil, the PCR is 5 ppm
typical at rated power or 4 ppm per Watt typical for power
resistors.
TABLE 6—GLOBAL PART NUMBER INFORMATION
(1)
NEW GLOBAL PART NUMBER: Y163010K0000T9W (preferred part number format)
DENOTES PRECISION
Y
VALUE
R
=
Ω
K
= kΩ
CHARACTERISTICS
0
= tin/lead
9
= lead (Pb)-free
1 to 999
= custom
Y
1
6
3
0
1
0
K
0
0
0
0
T
9
W
1629
= VFCP0805
1630
= VFCP1206
1631
= VFCP1506
1632
= VFCP2010
1633
= VFCP2512
PRODUCT CODE
RESISTANCE TOLERANCE
T
= ±0.01%
Q
= ±0.02%
A
= ±0.05%
B
= ±0.10%
C
= ±0.25%
D
= ±0.50%
F
= ±1.00%
R
= tape and reel
W
= waffle pack
PACKAGING
FOR EXAMPLE: ABOVE GLOBAL ORDER Y1630 10K0000 T 9 W:
TYPE: VFCP1206
VALUE: 10.0 kΩ
ABSOLUTE TOLERANCE: ±0.01%
TERMINATION: lead (Pb)-free
PACKAGING: waffle pack
VFCP1206
MODEL
VFCP0805
VFCP1206
VFCP1506
VFCP2010
VFCP2512
HISTORICAL PART NUMBER: VFCP1206 10K000 TCR0.2 T S W (will continue to be used)
10K000
OHMIC VALUE
10.0 kΩ
TCR0.2
TCR
Characteristic
T
RESISTANCE
TOLERANCE
T
= ±0.01%
Q
= ±0.02%
A
= ±0.05%
B
= ±0.10%
C
= ±0.25%
D
= ±0.50%
F
= ±1.00%
S
TERMINATION
S
= lead (Pb)-free
B
= tin/lead
W
PACKAGING
T
= tape and reel
W
= waffle pack
Note
(1) For non-standard requests, please contact Application Engineering
www.vishayfoilresistors.com
4
For questions, contact
foil@vishaypg.com
Document No.: 63106
Revision: 04-Nov-2013
Legal Disclaimer Notice
Vishay Precision Group
Disclaimer
ALL PRODUCTS, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Vishay Precision Group, Inc., its affiliates, agents, and employees, and all persons acting on its or their
behalf (collectively, “Vishay Precision Group”), disclaim any and all liability for any errors, inaccuracies or
incompleteness contained herein or in any other disclosure relating to any product.
The product specifications do not expand or otherwise modify Vishay Precision Group’s terms and
conditions of purchase, including but not limited to, the warranty expressed therein.
Vishay Precision Group makes no warranty, representation or guarantee other than as set forth in the terms
and conditions of purchase.
To the maximum extent permitted by applicable law, Vishay Precision
Group disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and
all liability, including without limitation special, consequential or incidental damages, and (iii) any and
all implied warranties, including warranties of fitness for particular purpose, non-infringement and
merchantability.
Information provided in datasheets and/or specifications may vary from actual results in different
applications and performance may vary over time. Statements regarding the suitability of products for
certain types of applications are based on Vishay Precision Group’s knowledge of typical requirements that
are often placed on Vishay Precision Group products. It is the customer’s responsibility to validate that a
particular product with the properties described in the product specification is suitable for use in a particular
application.
No license, express, implied, or otherwise, to any intellectual property rights is granted by this document, or
by any conduct of Vishay Precision Group.
The products shown herein are not designed for use in life-saving or life-sustaining applications unless
otherwise expressly indicated. Customers using or selling Vishay Precision Group products not expressly
indicated for use in such applications do so entirely at their own risk and agree to fully indemnify Vishay
Precision Group for any damages arising or resulting from such use or sale. Please contact authorized
Vishay Precision Group personnel to obtain written terms and conditions regarding products designed for
such applications.
Product names and markings noted herein may be trademarks of their respective owners.
Document No.: 63999
Revision: 27-Apr-2011
www.vishaypg.com
1
Embedded System
京公网安备 11010802033920号
EEWORLD
