Film Capacitors – Power Electronic Capacitors
MKP DC
Series/Type:
Ordering code:
Date:
Version:
B2562*
January 2013
8
Content of header bars 1 and 2 of data sheet will be automatically entered in headers and footers! Please fill in the
table and then change the color to "white". This ensures that the table disappears (invisible) for the customer PDF.
Don't change formatting when entering or pasting text in the table and don't add any cell or line in and to it!
Identification/Classification 1
(header 1 + top left bar):
Identification/Classification 2
(header 2 + bottom left header bar):
Ordering code: (top right header bar)
Series/Type: (bottom right header bar)
Preliminary data (optional):
(if necessary)
Department:
Date:
Version:
FILM R&D / FILM P PM
January 2013
8
Film Capacitors – Power Electronic Capacitors
MKP DC
B2562*
EPCOS AG 2013. Reproduction, publication and dissemination of this publication, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited.
Film Capacitors – Power Electronic Capacitors
MKP DC
B2562*
Construction and general data
Characteristics
Standard capacitance tolerance
Dielectric dissipation factor (tan
δ
o
)
Θ
stg
Expected lifetime t
LD (co)
Fit rate
Minimum temperature
Θ
min.
Maximum temperature
Θ
max.
Storage temperature
Θ
stg
Maximum hotspot temperature
Θ
hs
(refer to section 1)
Climatic category
Maximum altitude
K: ±10%
2 • 10
-4
–55 ... +85 °C
100 000 h at
Θ
hs
+75°C (refer to section 1)
200 (refer to section 2)
–55 °C
+ 70 °C (refer to section 2)
–55 ... +85 °C
+85 ºC for diameter 85 and 90 mm
+75 °C for diameter 116 mm
55/70/56
2000 m above sea level
(derating curves available upon request)
Test data
Voltage between terminals V
TT
Voltage between terminals and case V
TC
Dissipation factor tan
δ
(100 Hz)
Life test
Cooling
Degree of protection
Design data
Impregnation
Mounting and grounding
Max. torque (case) M12 stud
Max. torque terminal
1.5
V
DC
, 10s
4000 V
AC
, 10s
≤
1.0 • 10
-3
According to IEC 61071
Naturally air-cooled (or forced air cooling)
Indoor mounting
Resin filling: Non PCB, hard polyurethane (dry type)
M12 threaded bolt on bottom of the aluminum case
10 Nm
Female M6: 5 Nm
Female M8: 6 Nm
Male M8: 8 Nm
Reference standards
IEC 61071
RoHS compliance
Certification: UL 810-5th edition (refer to table 1.3)
FILM R&D / FILM P PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 20
January 2013 – Version 8
Film Capacitors – Power Electronic Capacitors
MKP DC
B2562*
1.1 Structure of ordering code
Version:
B = standard
C = standard with plastic cap
D = heavy duty with plastic cap
S = special
MKP DC Series
Rated voltage: 110
•
10 = 1100 V
B2562 0 B 1 427 K 10 1
Terminal type:
0 = Female M6
1 = Male M6
2 = Female M8
3 = Male M8
4 = Female M10
5 = Male M10
9 = special
Rated capacitance:
7
107 = 10 · 10 pF = 100 µF
427 = 42 · 10
7
pF = 420 µF
8
108 = 10 · 10 pF = 1 mF
Distance between terminals:
1 = 32 mm
2 = 35 mm
3 = 50 mm
4 = 45 mm
9 = special
Capacitance tolerance
J = ± 5%
K = ± 10%
A = special
1.2 Standard types:
D (mm)
OC ending
Diameter (Ø)
Terminal type
85 mm
Female M6
(B25620)
Male M8
(B25623)
Female M6
(B25620)
Female M6
(B25620)
32 ± 0.5
-**1
45 ± 0.5
-**4
50 ± 0.5
-**3
standard
standard
available
standard
90 mm
116 mm
Other terminal configurations available upon request.
1.3 UL approved types:
Diameter (Ø)
85 mm
90 mm
116 mm
B2562xC
B2562xD
all types
all types
Series
FILM R&D / FILM P PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 20
January 2013 – Version 8
Film Capacitors – Power Electronic Capacitors
MKP DC
B2562*
1.4 Drawings types:

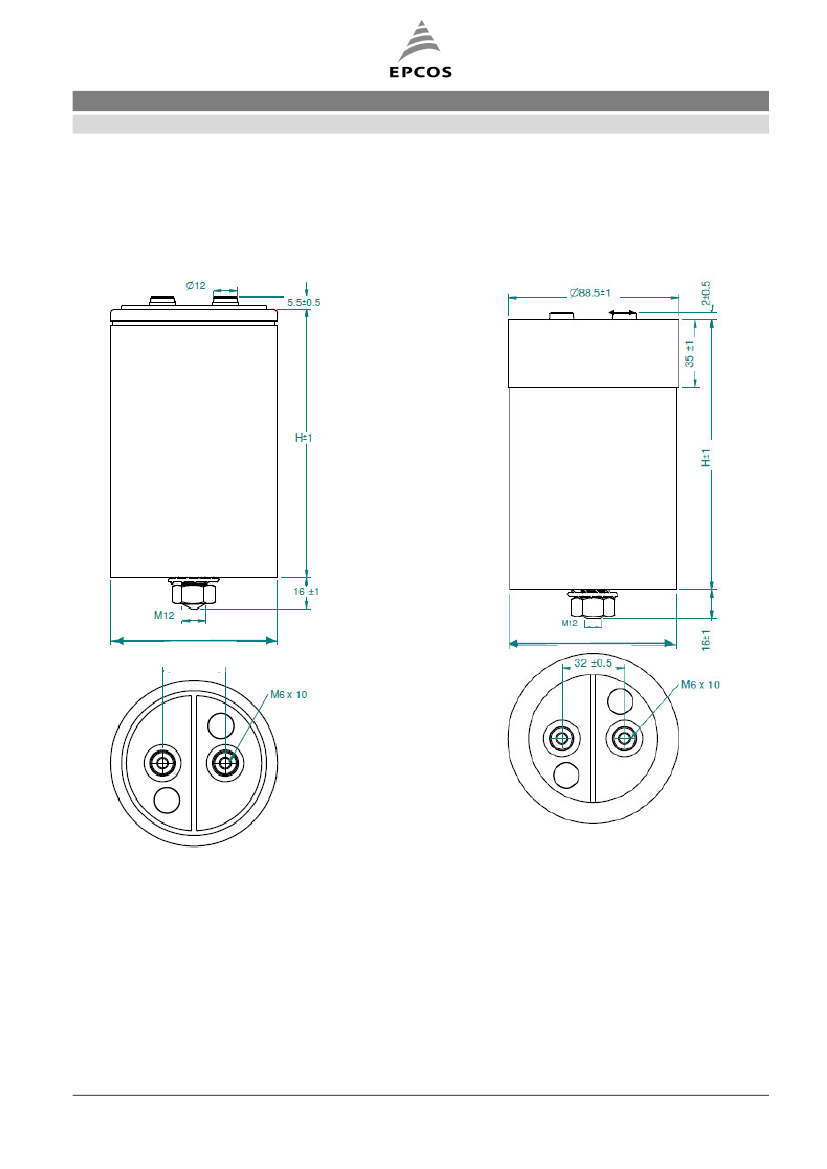

Figure 1: - B25620B - Ø 85mm
- Female terminals (M6)
- Between terminals 32±0.5mm
Figure 2: - B25620C / B25620D - Ø 85mm
- Female terminals (M6)
- Between terminals 32±0.5mm
Ø 12
Ø 85 ± 0.5
32 ± 0.5
Ø 85 ± 0.5
FILM R&D / FILM P PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 20
January 2013 – Version 8
Film Capacitors – Power Electronic Capacitors
MKP DC
B2562*

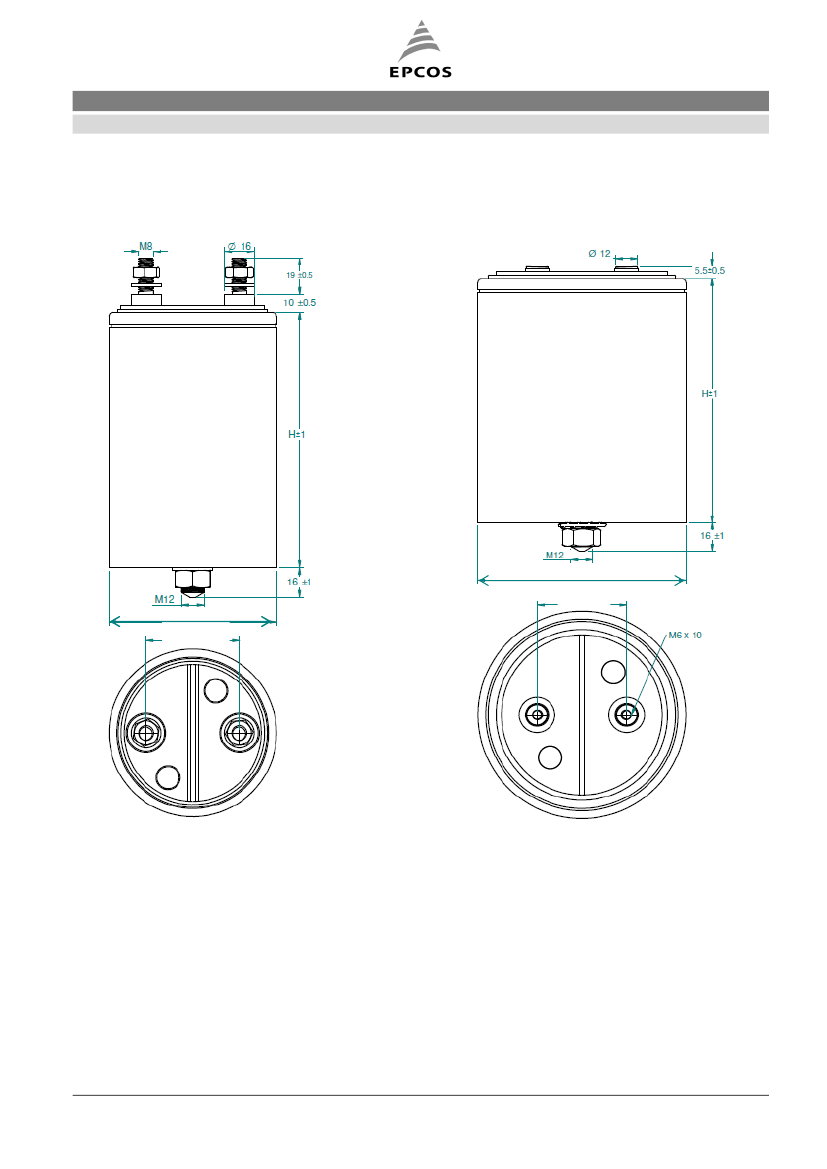

Figure 3 : - B25620B - Ø 90mm
- Male terminals (M8)
- Between terminals 45±0.5mm
Figure 4: - B25620B - Ø 116mm
- Female terminals (M6)
- Between terminals 50±0.5mm
Ø 116 ± 0.5
50 ± 0.5
Ø 90 ± 0.5
45 ± 0.5
M12 stud on bottom of the aluminum case, nut and washer for fixing are standard for all types.
FILM R&D / FILM P PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 20
January 2013 – Version 8
